Jack JK-T9270D-12-2PL-Q-1-4 High-Speed 2-Needle Feed-Off-The-Arm Double Chainstitch Sewing Machine with PL Puller System and Q-Type Folder Complete Unit with Table and Stand

No reviews yet Write a Review
Market Price: $4,755.00
$4,559.00
Save $196.00 per unit
SKU:
JK-T9270D-12-2PL-Q-1-4
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack JK-T9270D-12-2PL-Q-1-4 High-Speed 2-Needle Feed-Off-The-Arm Double Chainstitch Sewing Machine with PL Puller System and Q-Type Folder Complete Unit with Table and Stand

Market Price: $4,755.00
$4,559.00
Save $196.00 per unit

Jack JK-T9270D-12-2PL-Q-1-4 High-Speed 2-Needle Feed-Off-The-Arm Double Chainstitch Sewing Machine with PL Puller System and Q-Type Folder Complete Unit with Table and Stand

Market Price: $4,755.00
$4,559.00
Save $196.00 per unit

Jack JK-T9270D-12-2PL-Q-1-4 High-Speed 2-Needle Feed-Off-The-Arm Double Chainstitch Sewing Machine Complete Unit with Table and Stand

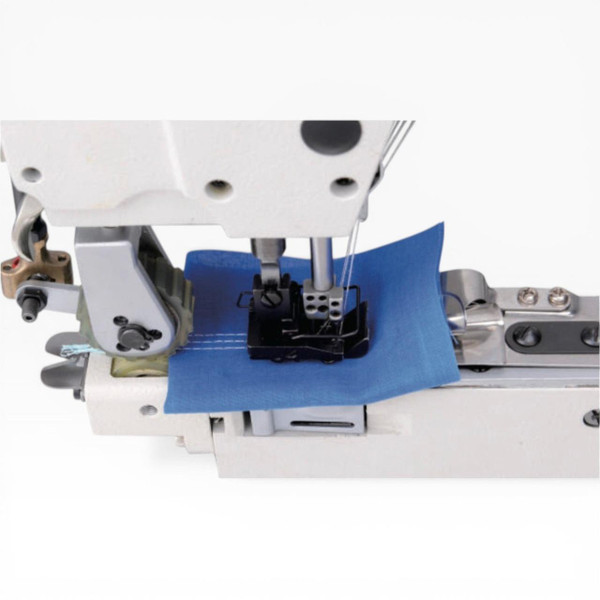

This industrial feed-off-the-arm chainstitch machine is designed for clean, consistent seams on tubular garments and similar sewn products. Its cantilever cylindrical arm makes it especially well suited for operations such as side seams, sleeves, and inseams, while the built-in folder helps produce flat, uniform stitching. The integrated PL puller system supports smooth fabric feeding and reliable handling of light to medium-weight materials, making it a practical choice for shirt, uniform, and sportswear production. It is built for dependable high-volume sewing where puckering-free results and consistent seam quality are important.

MACHINE APPLICATIONS:

  • Shirt and garment factories sewing side seams, sleeves, and inseams at high volume
  • Uniform and sportswear manufacturers requiring clean, flat chainstitch seams
  • Light to medium-weight fabric operations — shirts, blouses, dust coats, and raincoats
  • Industrial sewing lines replacing manual or belt-driven feed-off-the-arm machines with direct drive technology

MACHINE FEATURES:

  • 2-needle feed-off-the-arm double chainstitch with 1/4" (6.4mm) gauge and built-in folder for flat, uniform seams
  • Built-in PL puller system with oil-lubricated rear puller for smooth, consistent fabric feeding on light to medium materials
  • Cantilever cylindrical arm design (180mm) ideal for tubular sewing — side seams, sleeves, and inseams on shirts and garments
  • 750W direct drive servo motor integrated into the structure for energy-efficient, low-vibration operation
  • Removable needle guard to prevent stitch skipping and ensure high-quality output at high speed
  • Push-button stitch length adjustment to accommodate different fabric types and sewing requirements
  • Automatic needle positioning function — needle always stops in the up position for easy threading and needle changes
  • Built-in LED light to reduce eye strain during threading, adjustments, and operation
  • TVx64 (B64) needle system for reliable performance on shirts, uniforms, and lightweight garments

MACHINE SPECIFICATIONS:

  • Model: JK-T9270D-12-2PL-Q (1/4")
  • Stitch Type: Double Chainstitch
  • Number Of Needles: 2
  • Number Of Threads: 4
  • Needle Gauge: 1/4" (6.4mm)
  • Needle System: TVx64 (B64)
  • Sewing Speed: Up to 4,000 sti/min
  • Stitch Length: Up to 3.5mm (push-button adjustable)
  • Presser Foot Lift: 8mm (0.31")
  • Arm Length: 180mm (7.09")
  • Puller: Built-in PL (motorized, oil-lubricated)
  • Folder: Included (Q type)
  • Motor: 750W Direct Drive Servo Motor
  • Drive Type: Direct Drive
  • Fabric Weight: Light to Medium
  • Machine Type: Feed-Off-The-Arm Chainstitch
  • Table Stand: Included
  • Brand: JACK

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Motor is built directly into the machine head for maximum efficiency
  • Silent operation with low vibration
  • Energy efficient — uses up to 70% less power than clutch motors
  • Precise speed control through electronic foot pedal
  • Instant start/stop with electronic braking
  • Compact design eliminates belt and pulley maintenance

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
