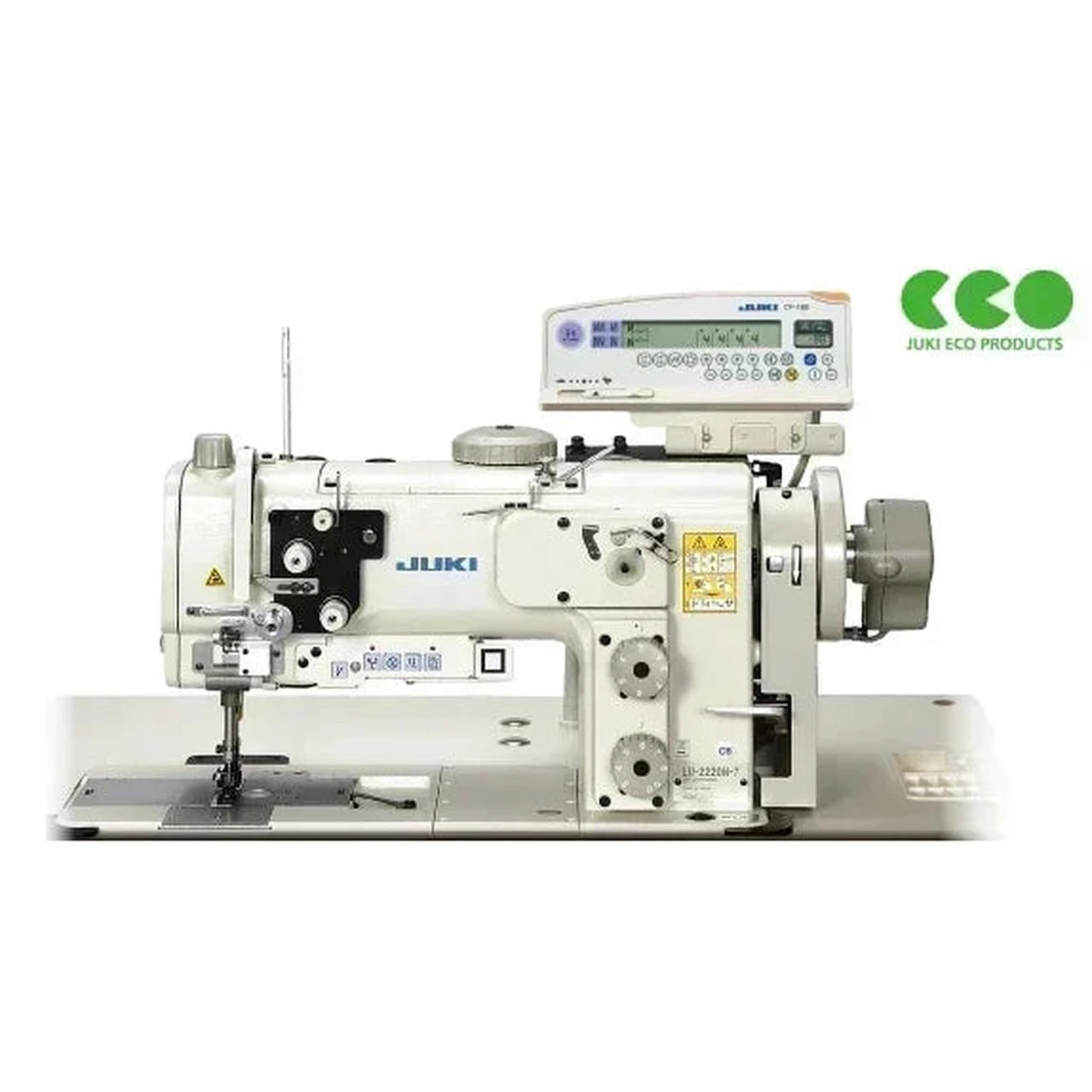

Juki LU-2210NAKSB-70B Single Needle Unison Feed Heavy Duty Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $8,274.00
$7,706.00
Save $568.00 per unit
SKU:
LU-2210NAKSB-70B
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki LU-2210NAKSB-70B Single Needle Unison Feed Heavy Duty Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $8,274.00
$7,706.00
Save $568.00 per unit

Juki LU-2210NAKSB-70B Single Needle Unison Feed Heavy Duty Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $8,274.00
$7,706.00
Save $568.00 per unit

Juki LU-2210NAKSB-70B Single Needle Unison Feed Heavy Duty Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

This industrial sewing machine is designed specifically for heavy-weight materials, making it an ideal choice for applications such as automotive upholstery, furniture coverings, and leather goods. Its high-speed unison-feed mechanism ensures stable material movement, preventing stitch gathering even on thick fabrics and overlapped seams. The large-capacity vertical-axis hook allows for longer continuous runs, minimizing the need for frequent bobbin changes and enhancing productivity. Additionally, the machine features a high presser foot lift, which facilitates easy handling of bulky components, while the automatic thread trimmer ensures clean cuts for a professional finish. With its robust design and advanced capabilities, this machine is perfectly suited for demanding sewing tasks in various industrial settings.

MACHINE FEATURES:

  • High-Speed Unison Feed Mechanism: Optimised for up to 3,500 stitches per minute, this feed system maintains stable material movement and prevents stitch gathering — even on heavy fabrics and overlapped seams.
  • Large-Capacity Vertical-Axis Hook (1.6-fold capacity): Increases bobbin thread capacity, allowing longer continuous runs and fewer bobbin changes, which improves productivity for thick-material sewing tasks.
  • High Presser Foot Lift (Auto 16 mm / Hand 9 mm): Allows easy handling of bulky components and layered materials, facilitated by the included pneumatic auto-lifter for operator comfort.
  • Automatic Thread Trimmer: Integrated trimming mechanism cleanly cuts thread — even heavy thread counts — and maintains consistent performance without adjustment.
  • Adjustable Alternating Vertical Movement (Walking Foot & Presser): A dial on the machine head allows quick changes to the vertical lift stroke of the walking and presser feet, enabling ideal feed conditions for overlapping materials and complex assemblies.
  • Automotive interior manufacturers: ✔
  • Furniture & heavy upholstery producers: ✔
  • Leather-goods and industrial textile makers: ✔
  • Unison Feed Mechanism (Top + Bottom + Needle Feed): Synchronizes the movement of the needle, presser foot, and feed dog to ensure stable, even feeding of heavy or layered materials — preventing slippage and maintaining uniform stitch pitch across varying thicknesses.
  • Large Vertical-Axis Hook (1.6× Capacity): Accommodates a larger bobbin for extended sewing time and reduced thread changes, boosting productivity when working with thick threads or long seams.
  • Automatic Thread Trimming System: Integrated trimming mechanism cleanly cuts both needle and bobbin threads, improving efficiency, reducing manual handling, and ensuring neat, professional seam finishes.
  • High Presser Foot Lift (Up to 16 mm): Provides sufficient clearance for bulky materials such as leather, canvas, or padded assemblies, allowing smooth fabric handling and quick material changes.

MACHINE SPECIFICATIONS:

  • Application: Heavy-weight materials
  • Max Sewing Speed: 3,500 sti/min
  • Max Stitch Length: 9 mm (forward/backward)
  • Needle Bar Stroke: 33.8 mm (1.33")
  • Presser Foot Lift: By hand 9 mm (0.35") / Auto 16 mm (0.63")
  • Alternating Vertical Movement Walking Foot Presser: 1.0 ~ 6.5 mm (dial adjustable)
  • Hook: Vertical‐axis 1.6 fold-capacity hook
  • Needle At Delivery: 134×35R (Nm140)
  • Thread Range: #30 ~ #4, B46 ~ B138 (Nm60/3 ~ 20/3)
  • Lubrication: Automatic
  • Distance From Needle To Machine Arm: 264 mm (10.39")
  • Bed Size: 517 mm (20.35") × 178 mm (7.01")
  • Machine Head Weight: 55 kg

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
