Juki MF-7913-DRH24-E64D/UT56/MC37 Semi-Dry Head Cylinder-Bed Bottom Coverstitch Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $11,258.00
$10,533.00
Save $725.00 per unit
SKU:
MF-7913-DRH24-E64D/UT56/MC37
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MF-7913-DRH24-E64D/UT56/MC37 Semi-Dry Head Cylinder-Bed Bottom Coverstitch Machine Complete Unit with Table and Servo Motor

Market Price: $11,258.00
$10,533.00
Save $725.00 per unit

Juki MF-7913-DRH24-E64D/UT56/MC37 Semi-Dry Head Cylinder-Bed Bottom Coverstitch Machine Complete Unit with Table and Servo Motor

Market Price: $11,258.00
$10,533.00
Save $725.00 per unit

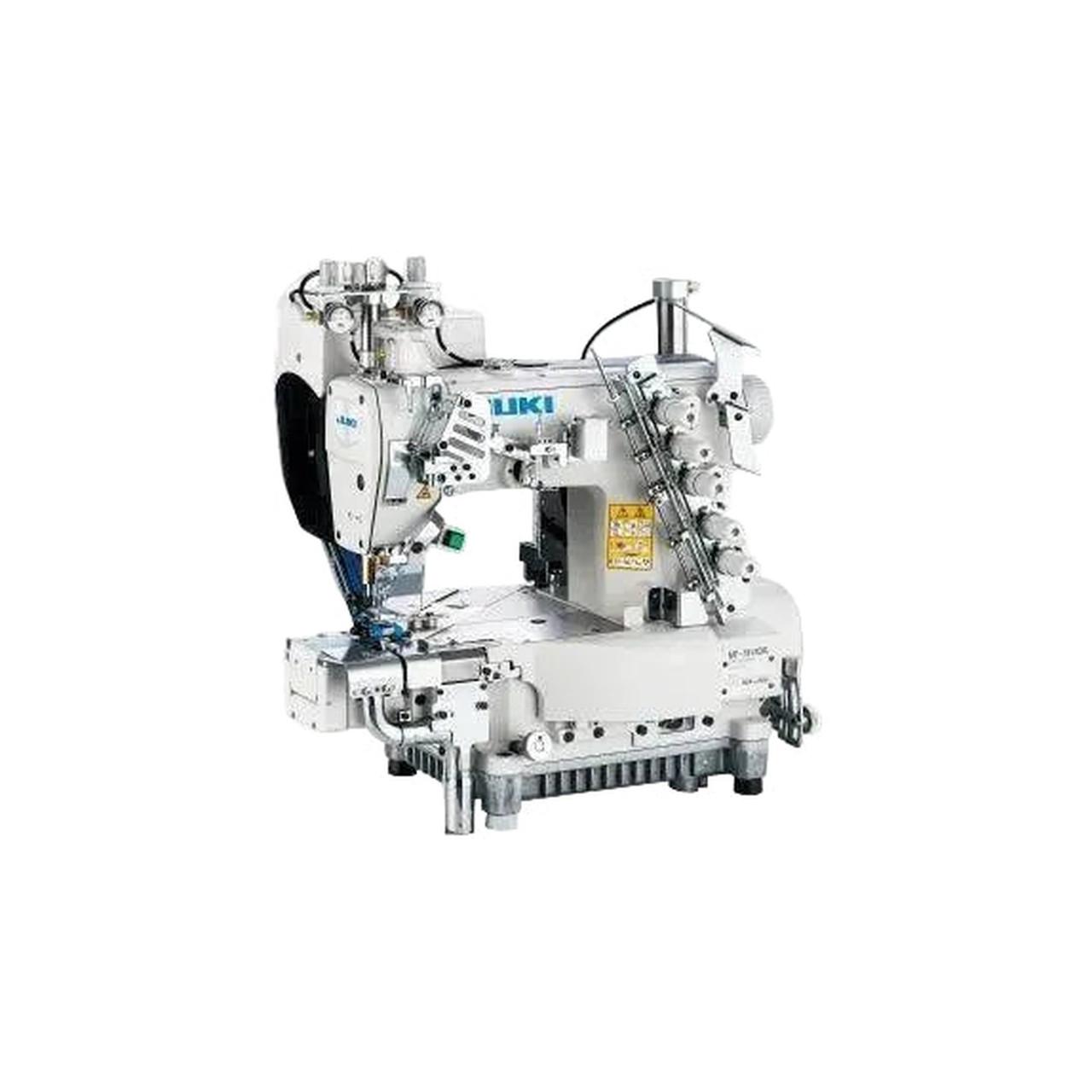

Juki MF-7913-DRH24-E64D/UT56/MC37 Semi-Dry Head Cylinder-Bed Bottom Coverstitch Machine Complete Unit with Table and Servo Motor

This advanced three-needle cylinder-bed coverstitch machine delivers exceptional precision for sewing elastic, multi-layer, and tubular materials with minimal distortion. The semi-dry head design ensures perfectly balanced fabric feeding and stable seaming, even on challenging stretchy materials. Automated features including pneumatic thread trimming and an air blow wiper system streamline production by eliminating manual thread cutting and clearing remnants during operation. With its SC921 digital control box and CP18 operation panel, this machine offers programmable memory functions and quick parameter adjustments for consistent, high-quality results across varied applications.

MACHINE APPLICATIONS:

  • Perfectly balanced feeding with digital top feed
  • Stable sewing on elastic and multi-layer materials
  • Reduced fabric distortion and twisting
  • Fully automated trimming and cleaning processes
  • High repeatability and consistent seam quality

MACHINE FEATURES:

  • SC921 Control Box & CP18 Operation Panel Included: Full digital control with memory and quick parameter adjustment.
  • Digital Top Feed System: Precise control of fabric movement and feeding.
  • Pneumatic Thread Trimming: Automatic trimming for higher productivity.
  • Air Blow Wiper System: Removes thread remnants during sewing.

MACHINE SPECIFICATIONS:

  • Machine Head: MF-7913-DRH24-E64D (Semi-dry head, Cylinder-bed, Bottom Coverstitch)
  • Max Sewing Speed: 5,000 stitches per minute (sti/min)
  • Lift Of The Presser Foot: 5mm (0.20") to 8mm (0.31")
  • Stitch Type: 3-needle bottom covering stitch (MF-7913DRH24)
  • Needle: UY128GAS #9S~#12S (#10S)
  • Stitch Length: Adjustable from 0.9mm (0.04") to 3.6mm (0.14")
  • Feed Mechanism: Digital type top feed
  • Presserbar Air Pressure Changeover Switch: Push button method
  • Lubrication System: Semi-dry head with JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Oil Crankcase: Not applicable (semi-dry head design)
  • Number Of Threads: 5 threads
  • Number Of Needles: 3 needles
  • Automatic Thread Trimming: Pneumatic
  • Power Requirement Power Consumption: Single-phase 100V, 200V; 3-phase 200V / 500VA

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
