Juki MF-7923D-H24-E56/UT57/MC37 3-Needle Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $9,488.00
$8,878.00
Save $610.00 per unit
SKU:
MF-7923D-H24-E56/UT57/MC37
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MF-7923D-H24-E56/UT57/MC37 3-Needle Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $9,488.00
$8,878.00
Save $610.00 per unit

Juki MF-7923D-H24-E56/UT57/MC37 3-Needle Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $9,488.00
$8,878.00
Save $610.00 per unit

Juki MF-7923D-H24-E56/UT57/MC37 3-Needle Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

This specialized cylinder-bed coverstitch machine is engineered specifically for hemming operations on extra lightweight materials, making it an ideal choice for delicate knitwear and fine fabrics. The semi-dry head technology prevents oil stains on garments, which is particularly critical when working with light-colored or delicate materials. Its cylinder-bed design excels at handling tubular items such as sleeves, cuffs, and other curved garment components, while the 3-needle configuration with 5.6mm gauge creates strong yet flexible seams perfect for stretch fabrics. Advanced automation features include pneumatic thread trimming and a suction system that removes trimming waste, keeping the work area clean while boosting productivity through reduced manual intervention.

MACHINE FEATURES:

  • SC921 Control Box & CP18 Operation Panel Included: Provides stable electronic control, fast response, and intuitive operation.
  • Pneumatic Top & Bottom Thread Trimming (UT57): Automatically trims threads, reducing manual work and increasing productivity.
  • Pneumatic Cloth Chip Suction System (MC37): Removes trimming waste and thread residues, keeping the sewing area clean.
  • Semi-Dry Head Technology: Prevents oil stains on garments, especially critical for light and delicate fabrics.
  • Cylinder-Bed Design: Ideal for tubular items such as sleeves, cuffs, and lightweight garment parts.
  • 3-Needle Coverstitch (5.6 mm Gauge): Ensures strong yet flexible seams suitable for delicate knitwear.
  • Optimized Feed Mechanism for Light Materials: Improves fabric control and prevents distortion or stretching.

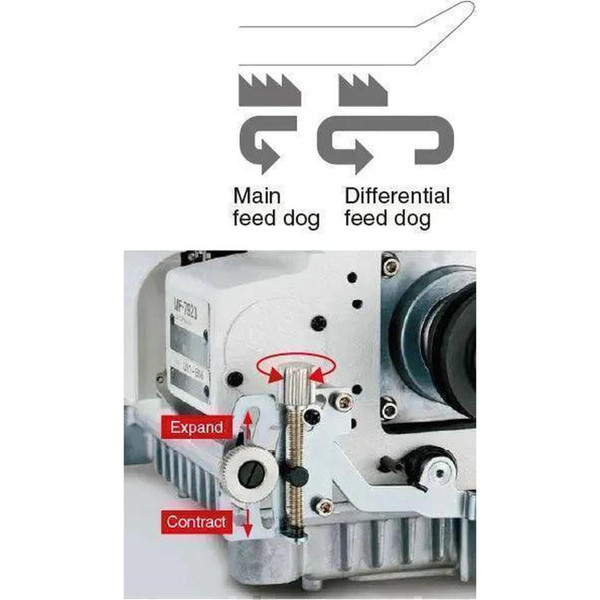

  • Differential-Feed Micro-Adjustment Mechanism: Allows precise adjustment of fabric feeding for different material types.
  • Micro-Lifter Mechanism: Reduces fabric slippage and damage during sewing.
  • Looper Thread Twining Prevention Mechanism: Prevents thread tangling and improves maintenance efficiency.
  • Direct-Drive Motor: Ensures fast start-up, precise stopping, reduced vibration, and lower energy consumption.
  • SC921 Control Box & CP18 Operation Panel Included: Provides stable electronic control, fast response, and easy operation.
  • Pneumatic Top & Bottom Thread Trimming (UT57): Automatically trims threads, reducing manual work and increasing productivity.
  • Pneumatic Cloth Chip Suction System (MC37): Removes trimming waste and thread residues, keeping the sewing area clean.
  • Semi-Dry Head Technology: Prevents oil stains on garments, especially critical for light and delicate fabrics.
  • Cylinder-Bed Design: Ideal for tubular items such as sleeves, cuffs, and lightweight garment parts.
  • 3-Needle Coverstitch (5.6 mm Gauge): Ensures strong yet flexible seams suitable for delicate knitwear.
  • Optimized Feed Mechanism for Light Materials: Improves fabric control and prevents distortion or stretching.

MACHINE SPECIFICATIONS:

  • Machine Type: 3-needle, cylinder-bed, top & bottom coverstitch machine
  • Application: Hemming (H24), extra light-weight materials
  • Needle Gauge: 5.6 mm (0.22")
  • Thread Trimming: Pneumatic top & bottom thread trimming (UT57)
  • Suction System: Pneumatic cloth chip suction device (MC37, electromagnetic valve type)
  • Head Type: Semi-dry (reduced oil contamination)
  • Max Sewing Speed: Up to 5,000 stitches per minute
  • Stitch Length: 0.9 – 3.6 mm (0.14")
  • Differential Feed Ratio: 1:0.9 – 1:1.8
  • Needle: UY128GAS (#9S – #12S)
  • Presser Foot Lift: 5 mm (standard), up to 8 mm (0.31")
  • Lubrication: Semi-dry system (minimal oil + grease)
  • Control System: SC921 Control Box & CP18 Operation Panel
  • Drive System: Direct drive

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
