Juki MS-1261AM-FN-DWS Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine with Digital Workstation Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $19,055.00
$15,828.00
Save $3,227.00 per unit
SKU:
MS-1261AM-FN-DWS
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MS-1261AM-FN-DWS Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine with Digital Workstation Complete Unit with Table and Servo Motor

Market Price: $19,055.00
$15,828.00
Save $3,227.00 per unit

Juki MS-1261AM-FN-DWS Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine with Digital Workstation Complete Unit with Table and Servo Motor

Market Price: $19,055.00
$15,828.00
Save $3,227.00 per unit

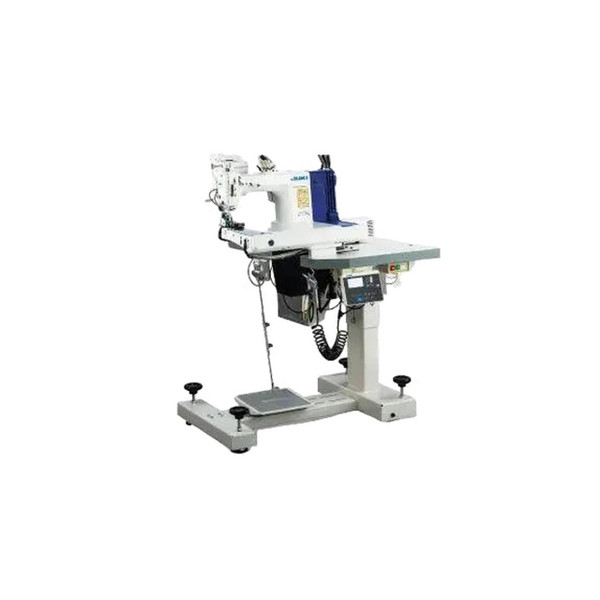

Juki MS-1261AM-FN-DWS Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine Complete Unit with Table and Servo Motor

This is a three-needle, feed-off-the-arm double chainstitch machine built for medium to heavy-weight materials. Built on the advanced MS-1261A Digital Workstation (DWS) platform, it is designed for high-performance sewing applications. The feed-off-the-arm design is well suited to tubular sewing applications such as sleeves and side seams.

MACHINE FEATURES:

  • Digital Workstation (DWS): Allows precise adjustment, storage, and recall of sewing parameters.
  • 3-Needle Chainstitch System: Provides strong, elastic seams suitable for industrial garment production.

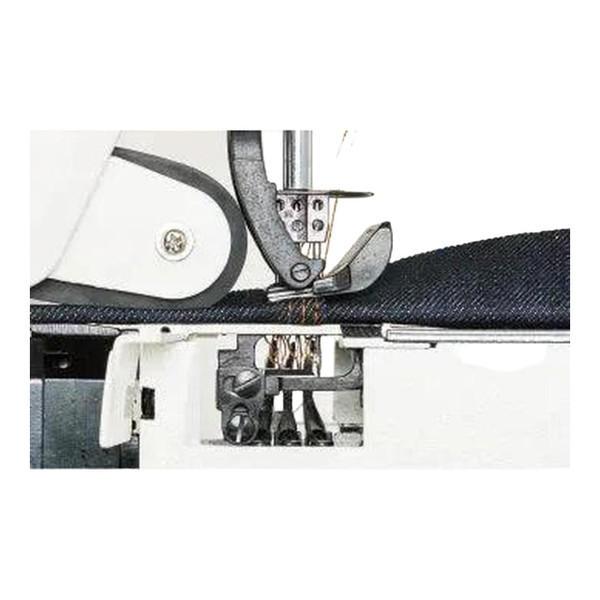

  • Feed-Off-The-Arm Design: Ideal for tubular sewing operations such as sleeves and side seams.
  • Low-Tension Sewing Technology: Produces soft, high-quality seams without puckering or distortion.

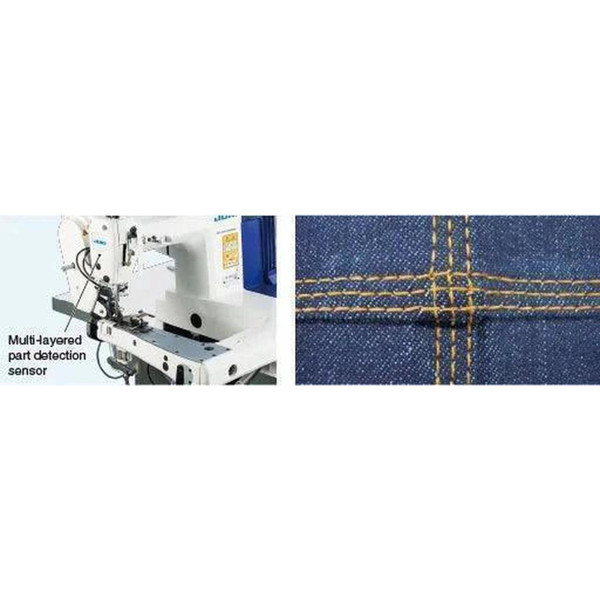

  • Digital Cloth Puller System: Improves feeding of multi-layer materials and prevents stitch gathering.
  • Material Thickness Adaptation: Ensures stable sewing across varying fabric thicknesses.
  • High-Speed Performance: Supports efficient industrial production with consistent quality.
  • Digital Workstation (DWS): Allows precise adjustment and storage of sewing parameters for consistent results.
  • 3-Needle Chainstitch System: Provides strong, elastic seams ideal for heavy-duty applications.
  • Feed-Off-The-Arm Design: Perfect for sewing tubular parts such as sleeves, cuffs, and side seams.
  • Heavy-Duty Feeding Mechanism: Ensures stable material handling even on thick, multi-layer fabrics.
  • High-Speed Industrial Performance: Supports efficient production while maintaining seam quality.
  • Reduced Setup Time: Digital settings enable quick adjustments when changing materials or operations

MACHINE SPECIFICATIONS:

  • Machine Head: MS-1261AM/DWS (3-Needle Double Chainstitch Machine with Digital Workstation)
  • Max Sewing Speed: 5,500 stitches per minute (sti/min)
  • Lift Of The Presser Foot: Maximum 10 mm (0.39")
  • Needle: UY128GAS #16~#21 (Standard #19)
  • Stitch Length: 1.4 mm (0.06") to 4.2 mm (0.17")
  • Needle Gauge: 6.4 mm (1/4”)
  • Needle Bar Stroke: 33.2 mm (1.31")
  • Feed: Bottom feed
  • Thread Takeup Lever: Needle bar thread take-up lever
  • Circumference Of Tube At The Needle Entry: 194 mm (7.64")
  • Needle Guard: Backward traveling needle guard
  • Lubrication: Automatic lubrication
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Application: Medium to heavy-weight materials

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
