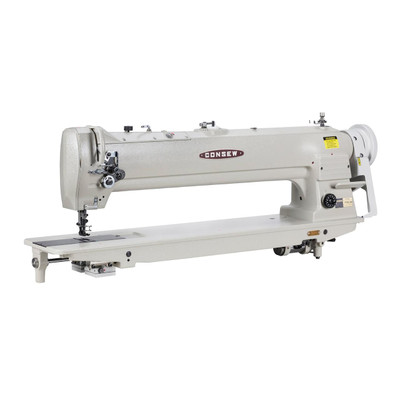

Consew 4224RBALP Four Needle Heavy Duty Long Arm Walking Foot Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $20,111.00
$17,599.00
Save $2,512.00 per unit
SKU:
4224RBALP#
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 4224RBALP Four Needle Heavy Duty Long Arm Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $20,111.00
$17,599.00
Save $2,512.00 per unit

Consew 4224RBALP Four Needle Heavy Duty Long Arm Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $20,111.00
$17,599.00
Save $2,512.00 per unit

Consew 4224RBALP Four Needle Heavy Duty Long Arm Walking Foot Sewing Machine with Table and Servo Motor

The Consew 4224RBALP is a heavy-duty, high-speed, long-arm walking foot machine designed for precision sewing on extra-heavy materials. Engineered for industrial applications, this model features a triple feed mechanism (needle feed, walking foot, and drop feed), 4 large vertical axis hooks, a puller, pneumatic foot lift, and an electronic reverse button next to the needle. Ideal for products like tarps and technical textiles, the 4224RBALP offers high performance and reliability in demanding sewing environments.

Consew 4224RBALP Four Needle Heavy Duty Long Arm Walking Foot Sewing Machine with Table and Servo Motor Brochure Page 1Consew 4224RBALP Four Needle Heavy Duty Long Arm Walking Foot Sewing Machine with Table and Servo Motor Brochure Page 2

MACHINE APPLICATIONS:

  • Compound feed, four needle lockstitch machine, with big hooks and bobbins, and puller.
  • Great for sewing wide elastic bands and webbing bands that require strong reinforcing.
  • Ideal for decorative stitching on canvas and leather goods.
  • Produces four parallel lines of even and beautiful lockstitches with four straight needles, feed dog, and walking foot.
  • The Puller feeder is effective for sewing heavy weight materials, achieving positive feeding of heavy and difficult materials.
  • Enables the creation of uniform seams without a struggle.

MACHINE FEATURES:

  • Sews four parallel rows of strong lockstitching.
  • Easily adjustable stitch length.
  • Puller feed for heavy fabric.
  • Comes with air foot lift and reverse button near the needles.
  • Wide range of available gauges enhances versatility.
  • Large maximum needle distance - 38.1 mm.
  • Heavy duty 750W servo motor, 110V or 220V.
  • Variable distance between the two middle needles using special gauges allows for flexibility in accomplishing special sewing tasks.
  • Maximum width of the four needles can be up to 50 mm.

MACHINE SPECIFICATIONS:

  • Max. sewing speed: 1800 r.p.m.
  • Stitch length: 0 — 10 mm.
  • Needle bar stroke: 36 mm.
  • Thread take-up lever stroke: 74.5 mm.
  • Presser foot lift: by hand 8mm / by knee 15mm.
  • Presser foot alternation: 2–6mm.
  • Needle size: DP x 17 23.
  • Rotating hook: Large vertical hook (2 times).
  • Lubrication: Auto lubricated.
  • Motor: 110V or 220V, 750W servo motor.
  • Needle gauge: - Standard 6.4 — 6.4 — 6.4 mm - Special 6.4 — 25.4 — 6.4 mm.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
