Consew 7360RB-2DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

No reviews yet Write a Review
Market Price: $1,528.00
$1,271.00
Save $257.00 per unit
SKU:
7360RB-2DD#
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 7360RB-2DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

Market Price: $1,528.00
$1,271.00
Save $257.00 per unit

Consew 7360RB-2DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

Market Price: $1,528.00
$1,271.00
Save $257.00 per unit

Consew 7360RB-2DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

The Consew 7360RB-2DD is an advanced version of the 7360R Direct Drive series, offering a large bobbin, high speed of up to 5000 stitches per minute, and a single needle lockstitch mechanism. This machine features a servo motor directly connected to the top shaft and includes needle positioning capabilities. It also offers semi-dry oiling and is available in 110v single-phase, with other voltages available upon special order.

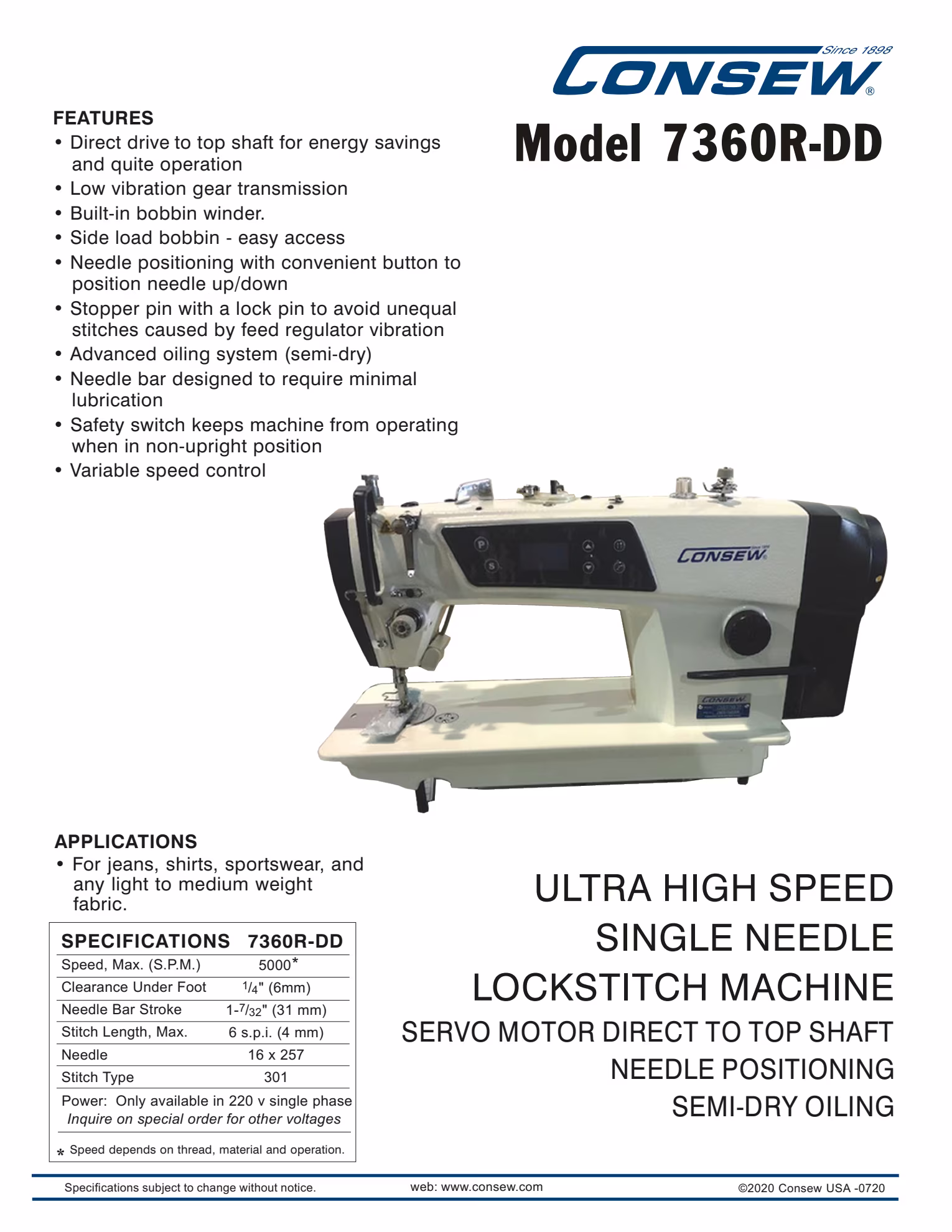

Consew 7360RB-2DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling Brochure Page 1

MACHINE APPLICATIONS:

  • Jeans
  • Shirts
  • Sportswear
  • Any light to medium weight fabric

MACHINE FEATURES:

  • Direct drive to top shaft for energy savings and quiet operation
  • Low vibration gear transmission
  • Built-in bobbin winder
  • Side load bobbin for easy access
  • Needle positioning with a convenient button to position needle up/down
  • Stopper pin with a lock pin to avoid unequal stitches caused by feed regulator vibration
  • Advanced oiling system (semi-dry)
  • Needle bar designed to require minimal lubrication
  • Safety switch prevents operation when in a non-upright position
  • Variable speed control

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Speed, Max (S.P.M.): 5000
  • Motor Type: Direct Drive
  • Clearance Under Presser Foot: 1/4" (6mm)
  • Stitch Length: 6 s.p.i. (4 mm)
  • Work Space: 10" (258mm)
  • Needle: 16 x 257
  • Bed Size: 7" x 18 7/8" (177mm x 477mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 1-7/32" (31 mm)
  • Electric: 220v single phase

WHAT COMES WITH THE COMPLETE UNIT SHIPMENT?

  • Machine Head factory-sealed box
  • Stand/Leg
  • Table Top
  • Instruction Manual, Parts Book, and Documentation

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
