Consew 7360RBL-18-7DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

No reviews yet Write a Review
Market Price: $6,349.00
$4,099.00
Save $2,250.00 per unit
SKU:
7360RBL-18-7DD#
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 7360RBL-18-7DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

Market Price: $6,349.00
$4,099.00
Save $2,250.00 per unit

Consew 7360RBL-18-7DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

Market Price: $6,349.00
$4,099.00
Save $2,250.00 per unit

Consew 7360RBL-18-7DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

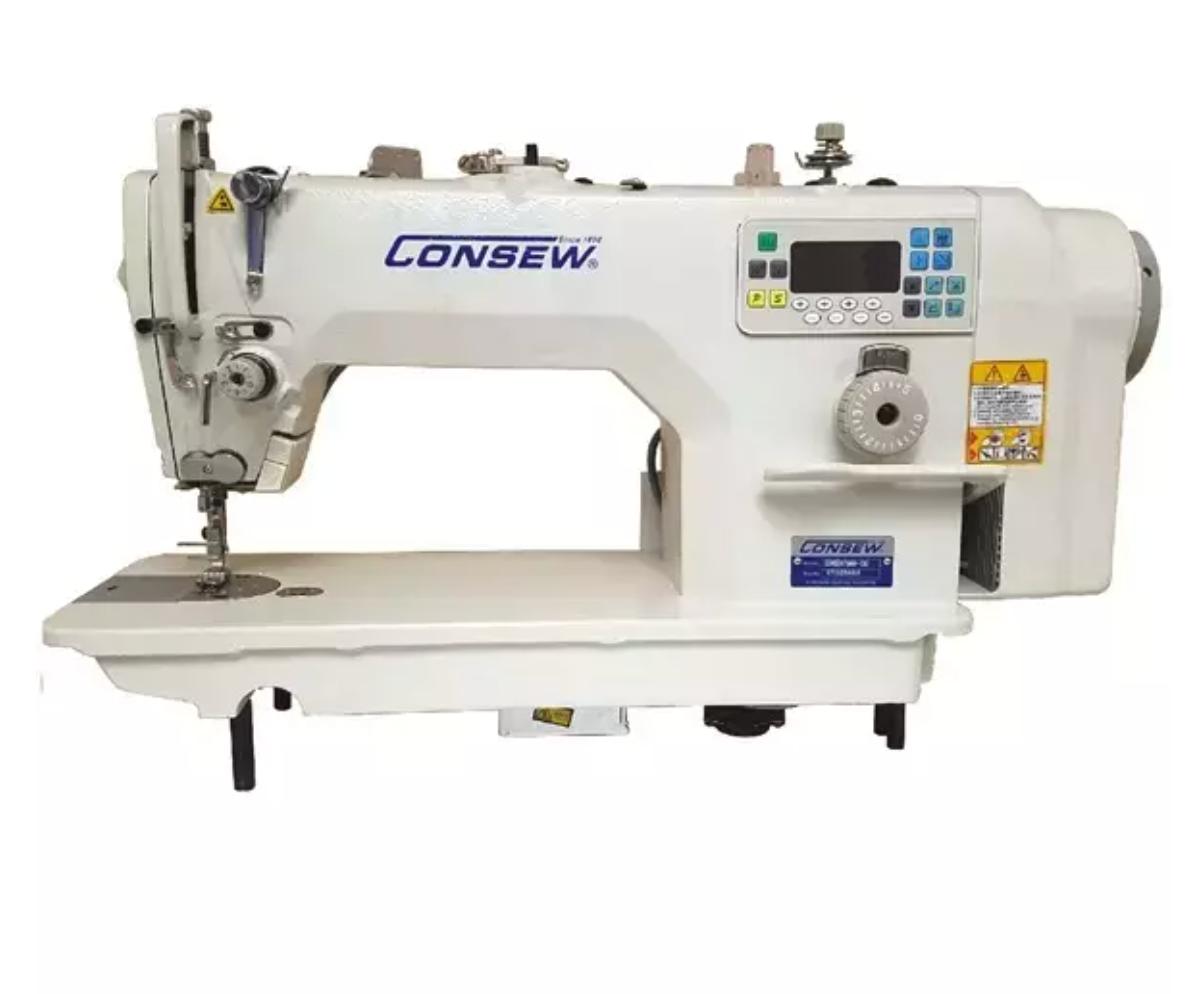

The Consew Model 7360RBL-18-7DD is an industrial-grade, high-speed, single-needle, drop-feed lockstitch sewing machine. Featuring an 18-inch long arm and a direct-drive servo motor, it offers an extended workspace and enhanced control for handling larger materials. Equipped with automatic functions, including thread trimming and reverse stitching, this machine ensures efficient and reliable performance across various sewing tasks.

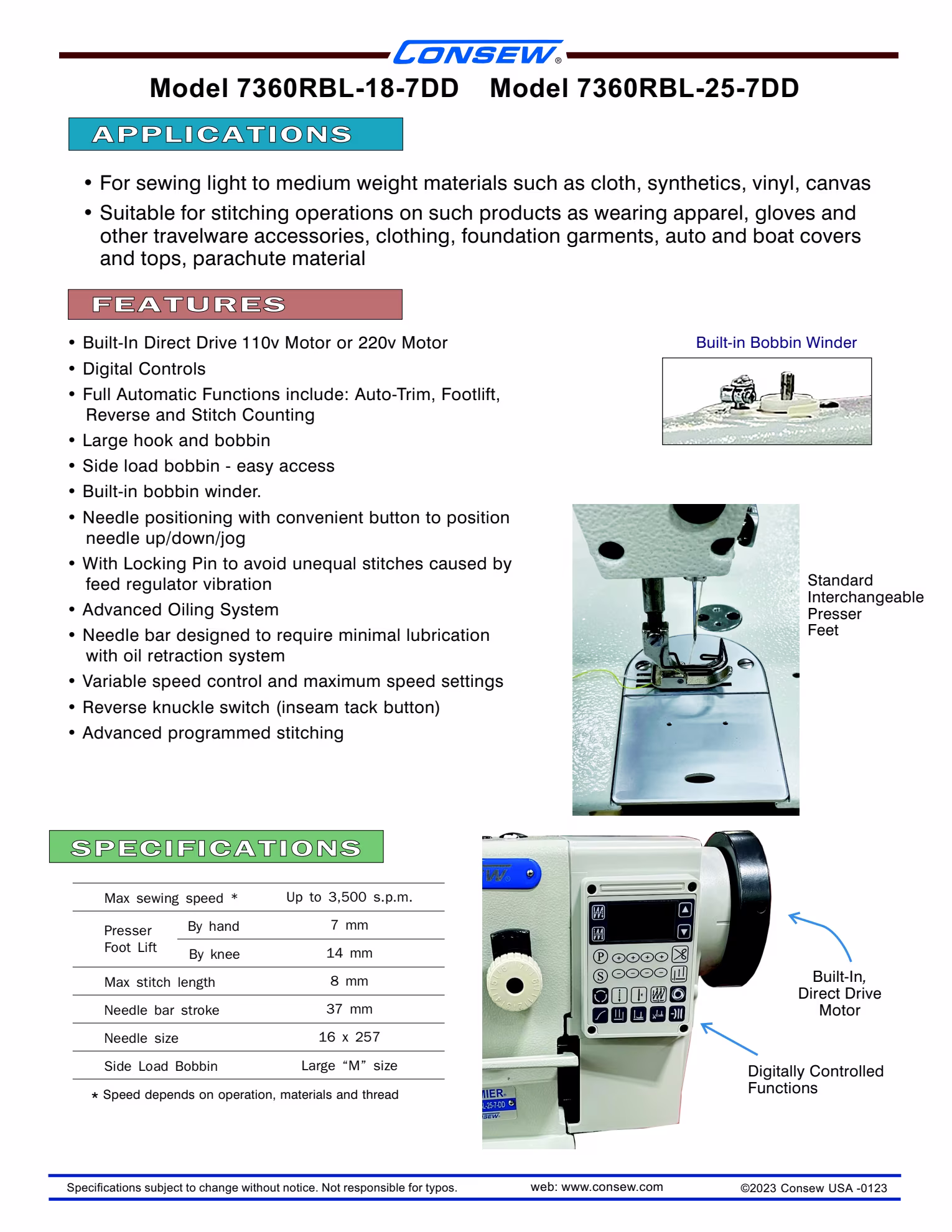

Consew 7360RBL-18-7DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling Brochure Page 1Consew 7360RBL-18-7DD Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling Brochure Page 2

MACHINE APPLICATIONS:

  • Ideal for sewing light to heavy-weight materials such as cotton, knits, polyester, nylon, sheer fabrics, and denim.
  • Suitable for producing garments like blouses, shirts, uniforms, overalls, lingerie, and similar apparel.
  • Capable of handling heavyweight fabrics like jeans by adjusting components such as the needle plate, feed dog, foot, stitch regulator, hook, and needle bar.

MACHINE FEATURES:

  • Direct-drive servo motor for energy efficiency and reduced noise.
  • High-speed operation with a maximum of 5,000 stitches per minute.
  • Fully automatic lubrication system with a high-pressure recirculating pump for smooth performance.
  • Automatic thread trimming and reverse stitching functions.
  • Electric thread clamp to hold thread after trimming.
  • Electric foot lift and stitch counter for increased automation.
  • Built-in bobbin winder and LED light for improved visibility.
  • Noise and vibration-absorbing table mounting for operator comfort.
  • 18-inch long arm providing ample workspace for larger projects.

MACHINE SPECIFICATIONS:

  • Maximum Sewing Speed: 5,000 stitches per minute
  • Needle Bar Stroke: 31.8mm
  • Clearance Under Presser Foot: 6mm by hand, 13mm by knee
  • Needle System: Uses DBx1 needles
  • Workspace: 18 inches (457mm)
  • Stitch Length: Up to 6.2mm
  • Bed Size: 7 inches x 18 7/8 inches (177mm x 477mm)
  • Hook Type: Horizontal axis rotary hook

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
