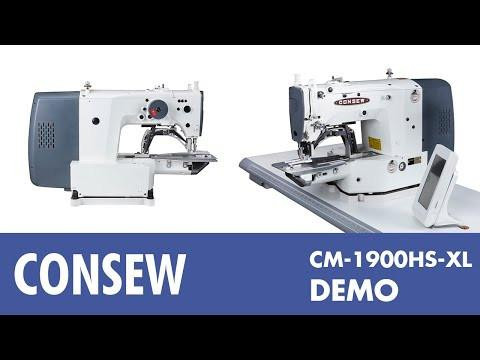

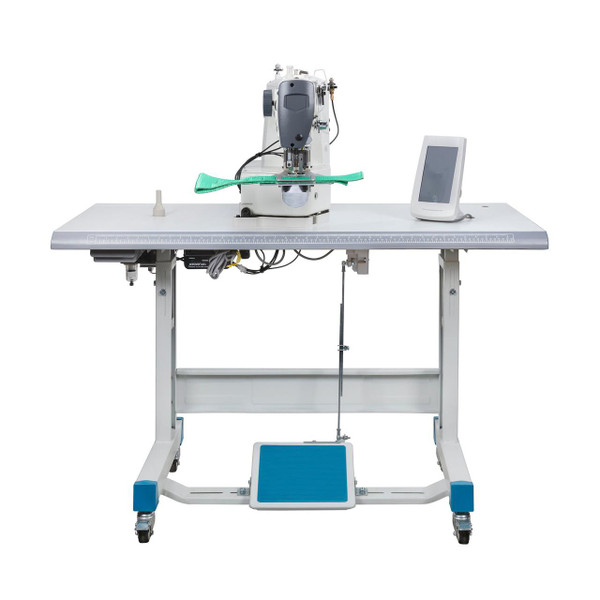

Consew CM-1900HS-XL Single Needle Direct Drive Computer-Controlled Bar Tacking Machine with Complete Tabling

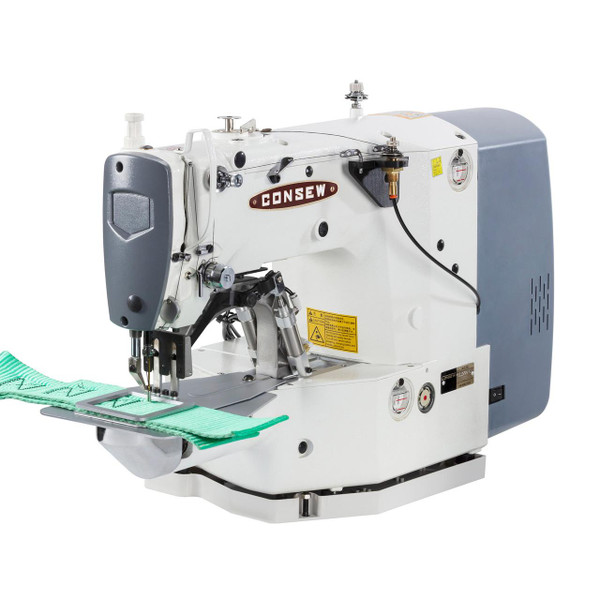

The Consew CM-1900HS-XL is a fully automatic, direct-drive, computer-controlled, single-needle bar tacking machine. It features programmable sewing patterns and a large internal pattern storage, along with a USB port for additional storage. For enhanced visibility, it is equipped with an LED needle light.

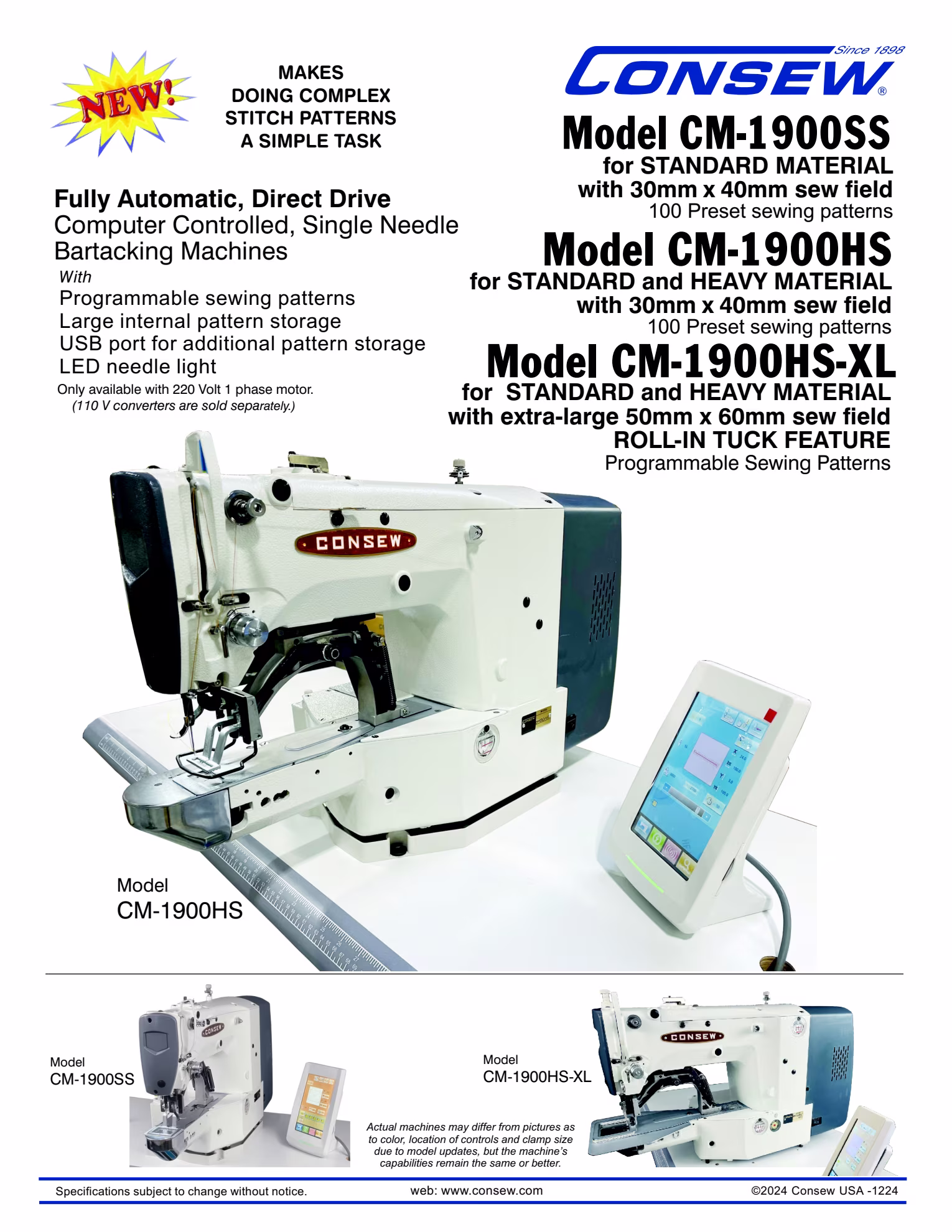

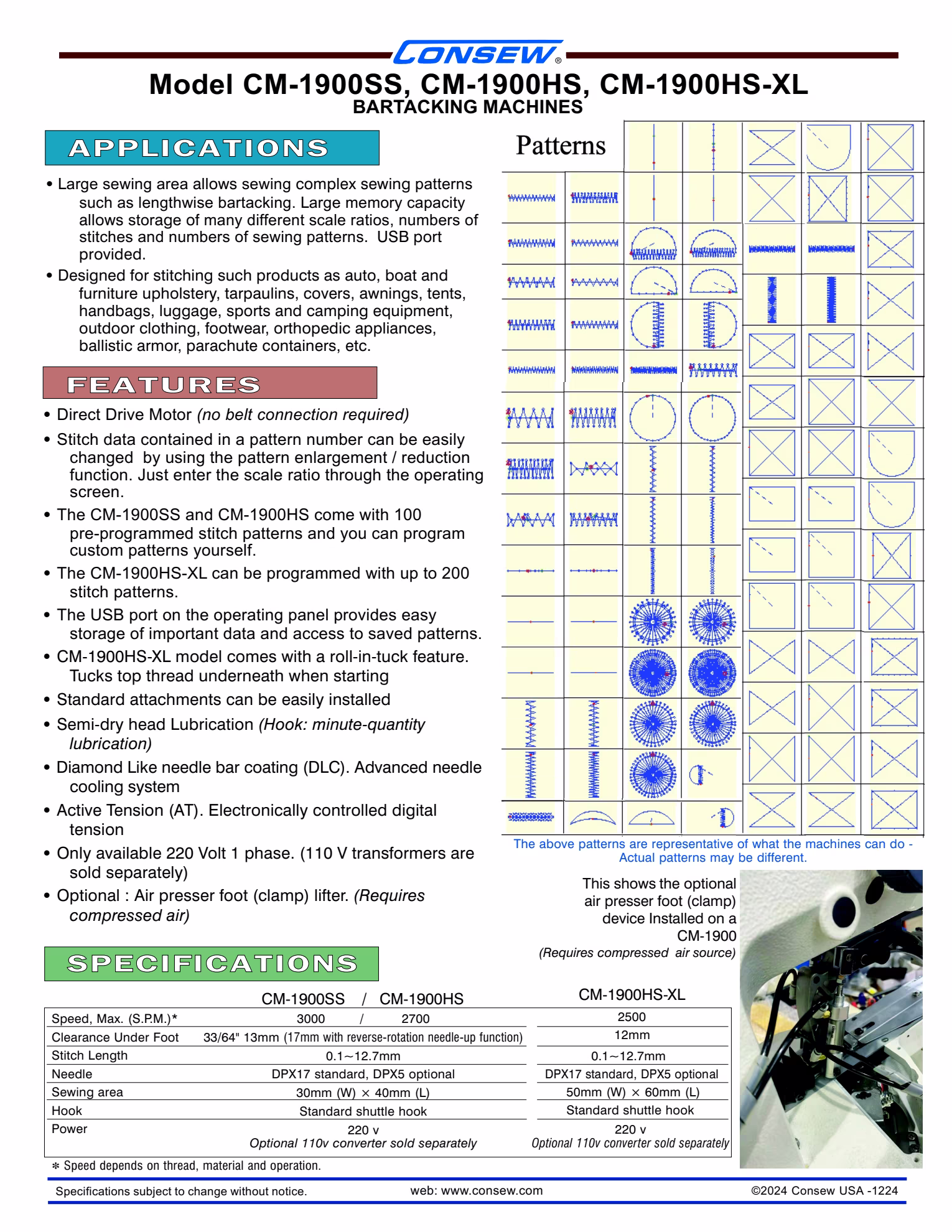

Consew CM-1900HS-XL Single Needle Direct Drive Computer-Controlled Bar Tacking Machine with Complete Tabling Brochure Page 1Consew CM-1900HS-XL Single Needle Direct Drive Computer-Controlled Bar Tacking Machine with Complete Tabling Brochure Page 2

MACHINE APPLICATIONS:

  • Auto, boat, and furniture upholstery
  • Tarpaulins, covers, awnings, and tents
  • Handbags, luggage, sports, and camping equipment
  • Outdoor clothing and footwear
  • Orthopedic appliances and ballistic armor
  • Parachute containers

MACHINE FEATURES:

  • Large Sewing Area: 50mm (W) × 60mm (L)
  • Direct Drive Motor (no belt connection required)

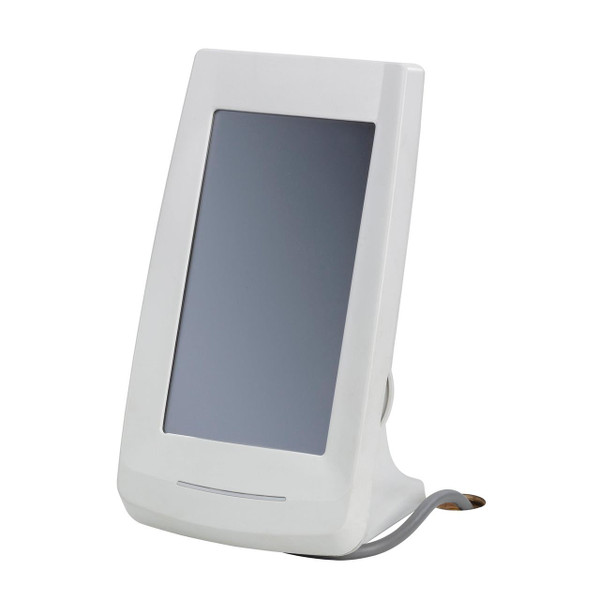

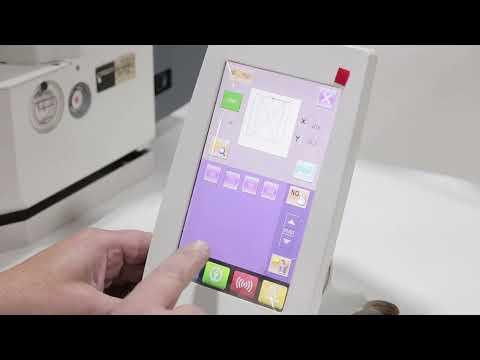

  • Pattern enlargement/reduction function via operating screen
  • Pre-programmed with 100 stitch patterns; up to 200 programmable
  • USB port for easy data storage and access
  • Roll-in-tuck feature for top thread management
  • Standard attachments easily installed
  • Semi-dry head lubrication
  • Diamond Like needle bar coating (DLC)
  • Advanced needle cooling system

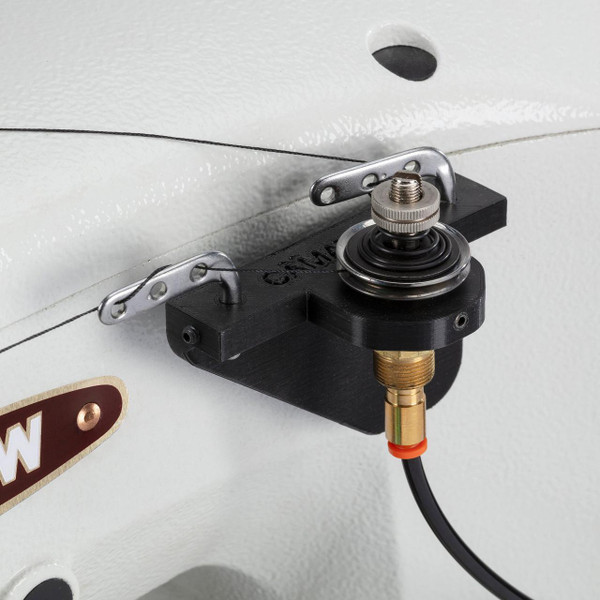

  • Active Tension (AT) with electronically controlled digital tension
  • Available in 220 Volt 1 phase (110 V transformers sold separately)
  • Optional air presser foot (clamp) lifter (requires compressed air)

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Speed (Max S.P.M.): 2500
  • Max Stitch Length: 12 mm
  • Needle Used: DPX17 (standard), DPX5 (optional)
  • Clearance Under Foot: 33/64" (13mm), 17mm with reverse-rotation needle-up function
  • Power: 220V (110V converter available as an option)

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
