Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling

No reviews yet Write a Review
Market Price: $7,098.00
$4,589.00
Save $2,509.00 per unit
SKU:
CM-1900HS#
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling

Market Price: $7,098.00
$4,589.00
Save $2,509.00 per unit

Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling

Market Price: $7,098.00
$4,589.00
Save $2,509.00 per unit

Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling

The Consew CM-1900HS is a fully automatic, direct drive, computer-controlled bartacking machine. It features programmable sewing patterns, large internal pattern storage, and a USB port for additional pattern storage. Designed for both standard and heavy materials, it offers a 30mm x 40mm sewing field and comes with 100 preset sewing patterns. The LED needle light enhances visibility during operation.

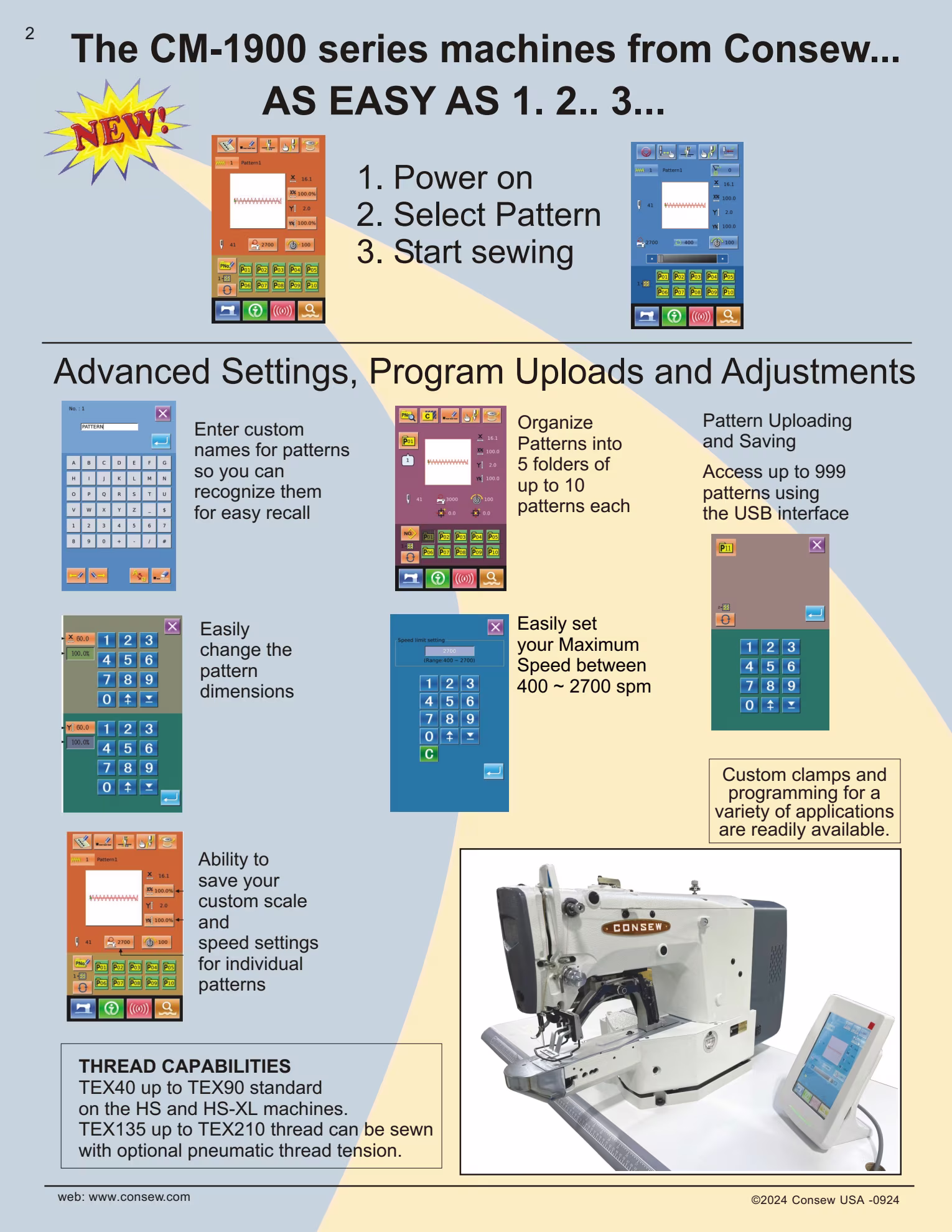

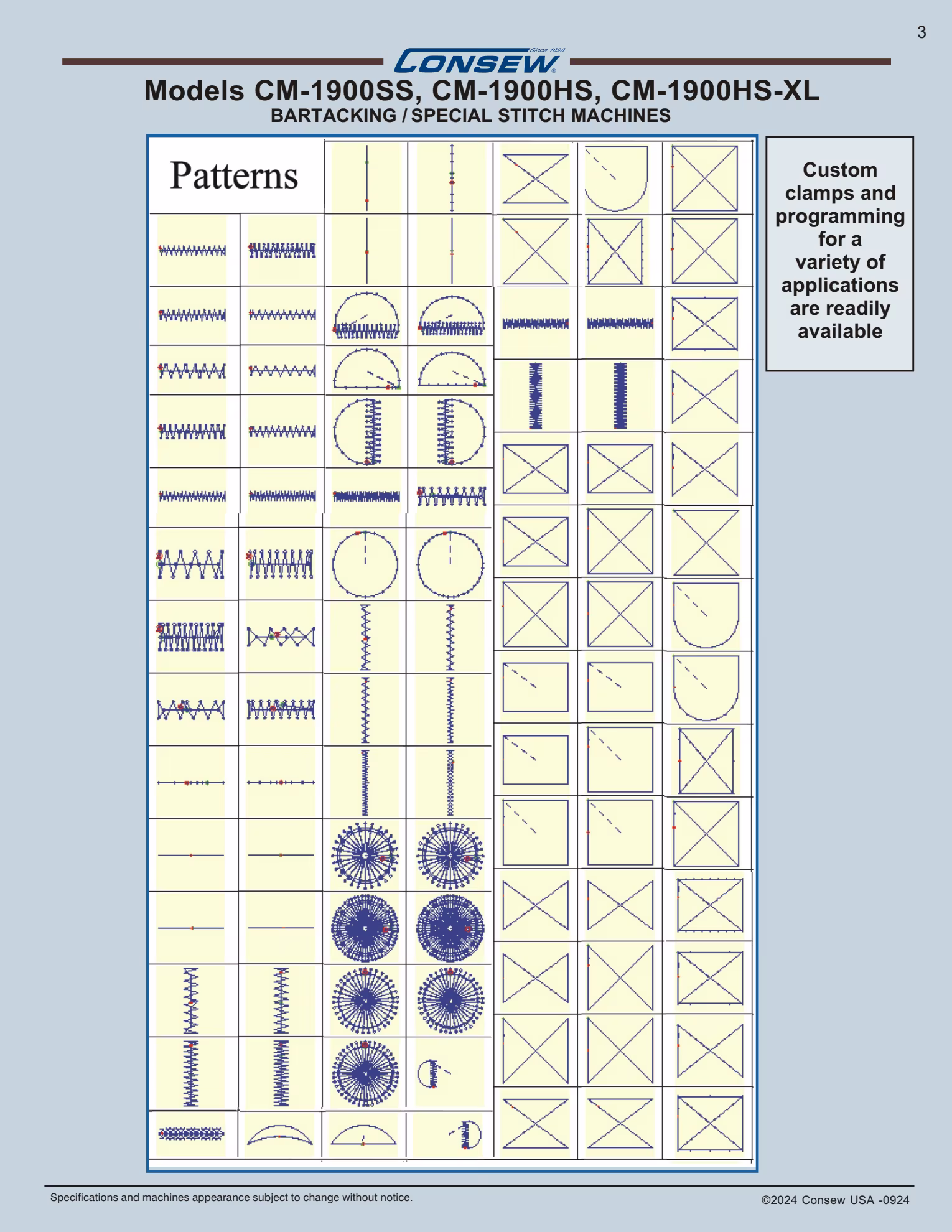

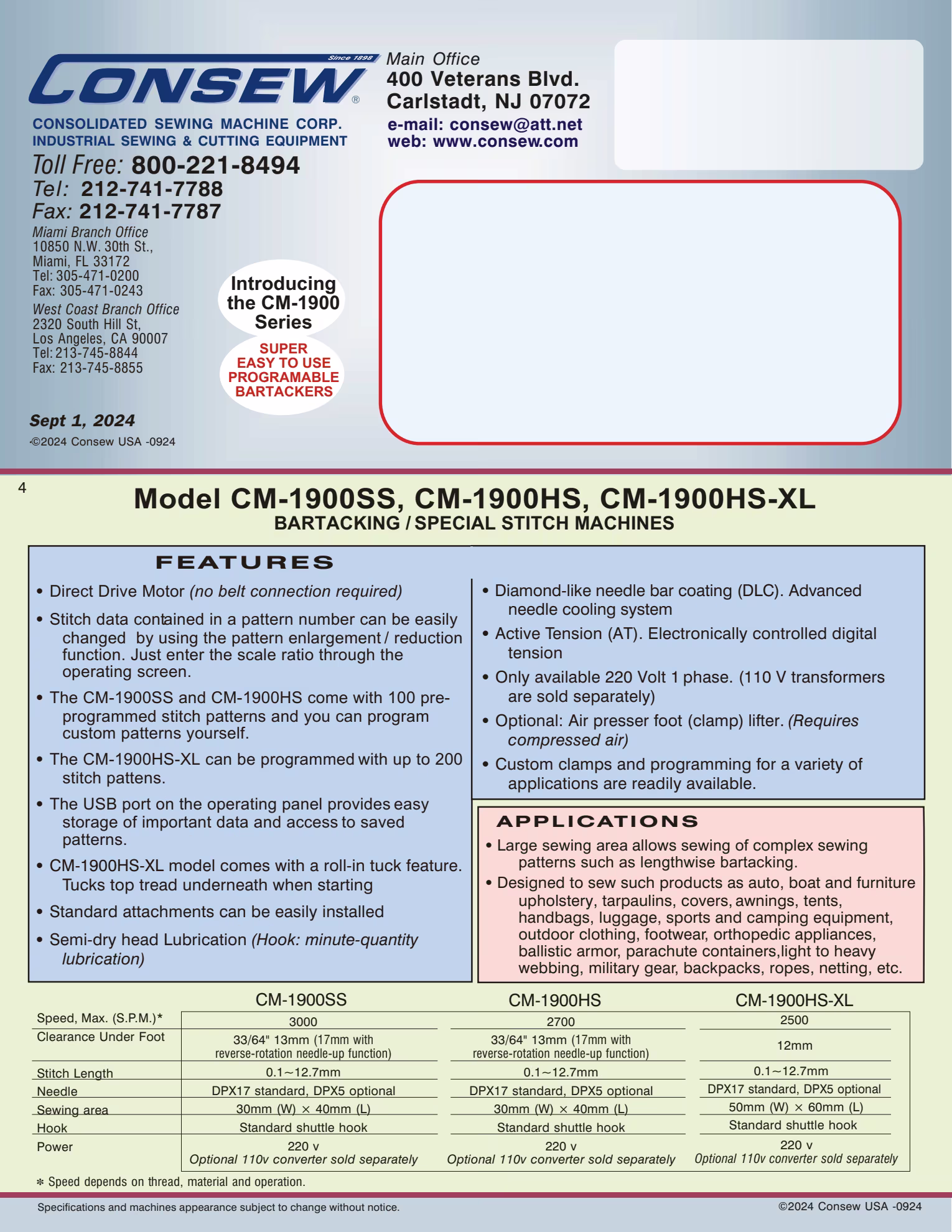

Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling Brochure Page 1Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling Brochure Page 2Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling Brochure Page 3Consew CM-1900HS Single Needle Direct Drive Bartacking Machine with Complete Tabling Brochure Page 4

MACHINE APPLICATIONS:

  • Auto, boat, and furniture upholstery
  • Tarpaulins, covers, awnings, and tents
  • Handbags, luggage, and sports equipment
  • Camping equipment and outdoor clothing
  • Footwear and orthopedic appliances
  • Ballistic armor and parachute containers

MACHINE FEATURES:

  • Direct Drive Motor: No belt connection required
  • Pattern Adjustment: Modify stitch data using the pattern enlargement/reduction function
  • USB Port: Easy storage and retrieval of saved stitch patterns
  • Roll-in-tuck function: Tucks top thread underneath at the start
  • Standard attachments can be easily installed
  • Semi-dry head lubrication with minute-quantity lubrication on the hook
  • Diamond-Like Carbon (DLC) coating on needle bar with advanced cooling system
  • Electronically controlled digital tension (Active Tension)
  • Available power supply: 220V 1 phase (110V transformer sold separately)
  • Optional air presser foot (clamp) lifter (requires compressed air)

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Max Speed: 2700 S.P.M.
  • Max Stitch Length: 0.1 ~ 12.7mm
  • Needle Used: DPX17 (standard), DPX5 (optional)
  • Clearance Under Foot: 33/64" (13mm), 17mm with reverse-rotation needle-up function
  • Power: 220V (110V converter available as an option)

WHAT COMES WITH THE COMPLETE UNIT SHIPMENT?

  • Machine Head factory-sealed box
  • Stand/Legs
  • Servo-Motor
  • Table Top
  • Instruction Manual, Parts Book, and Documentation

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
