Consew EF423AL-H Single Needle Heavy Duty Overedging Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $6,408.00
$4,460.00
Save $1,948.00 per unit
SKU:
EF423AL-H#
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew EF423AL-H Single Needle Heavy Duty Overedging Machine with Table and Servo Motor

Market Price: $6,408.00
$4,460.00
Save $1,948.00 per unit

Consew EF423AL-H Single Needle Heavy Duty Overedging Machine with Table and Servo Motor

Market Price: $6,408.00
$4,460.00
Save $1,948.00 per unit

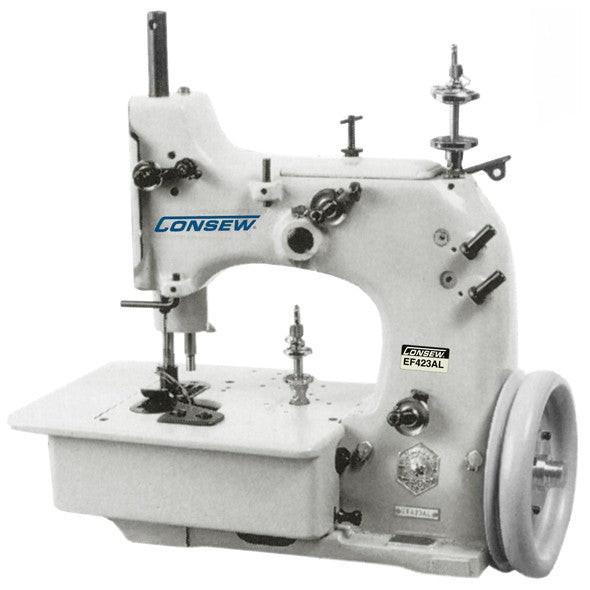

Consew EF423AL-H Single Needle Heavy Duty Overedging Machine with Table and Servo Motor

The Consew EF423AL-H is a high-capacity, heavy-duty overedging machine specifically designed for heavyweight carpets and rugs that require a wider overedging finish. It operates with one needle and three threads at speeds up to 2,000 stitches per minute and offers an expanded overedging width of 15 mm (19/32"). Like the EF423AL, it can sew high-pile materials and curved edges when equipped with special order presser feet and guides, providing durability and flexibility for industrial carpet edge finishing.

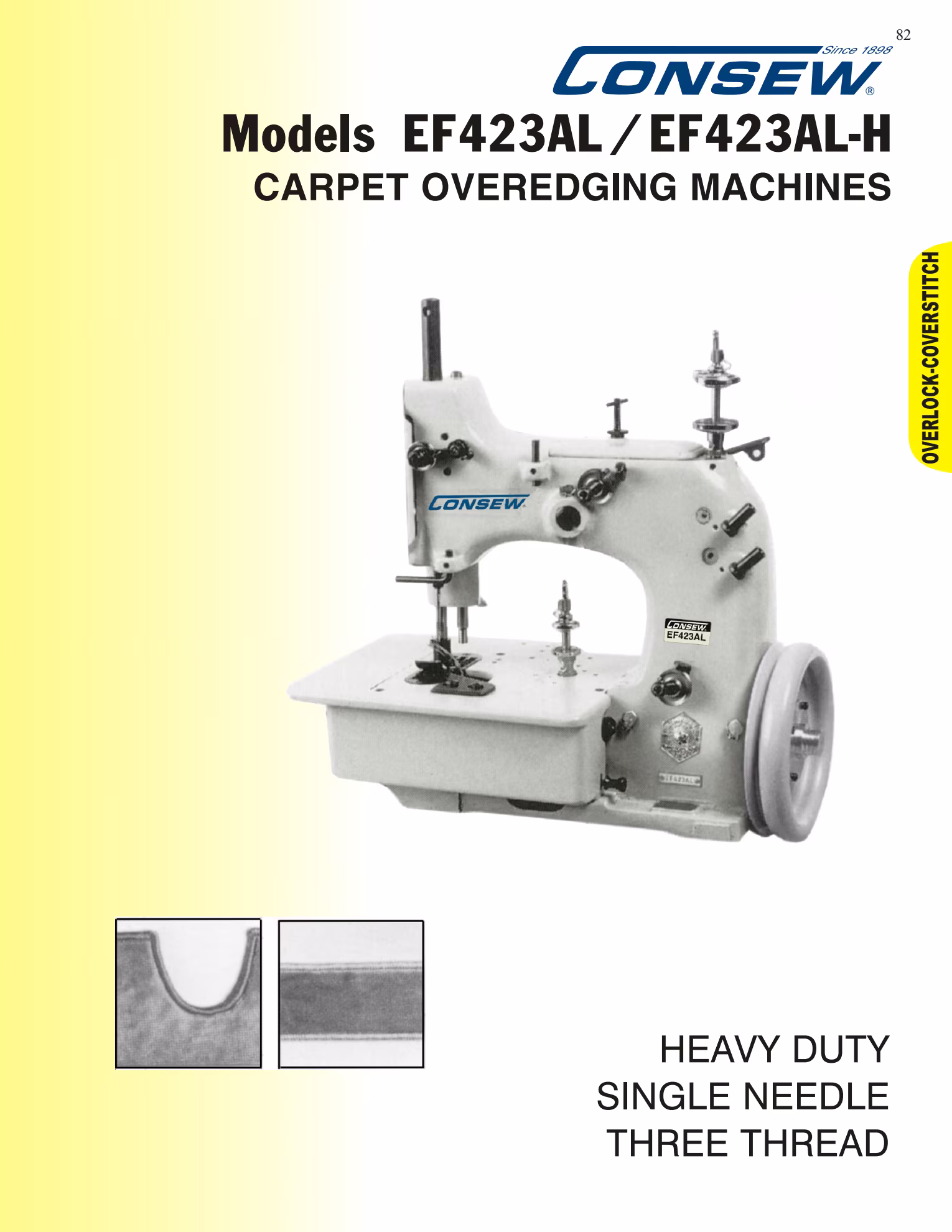

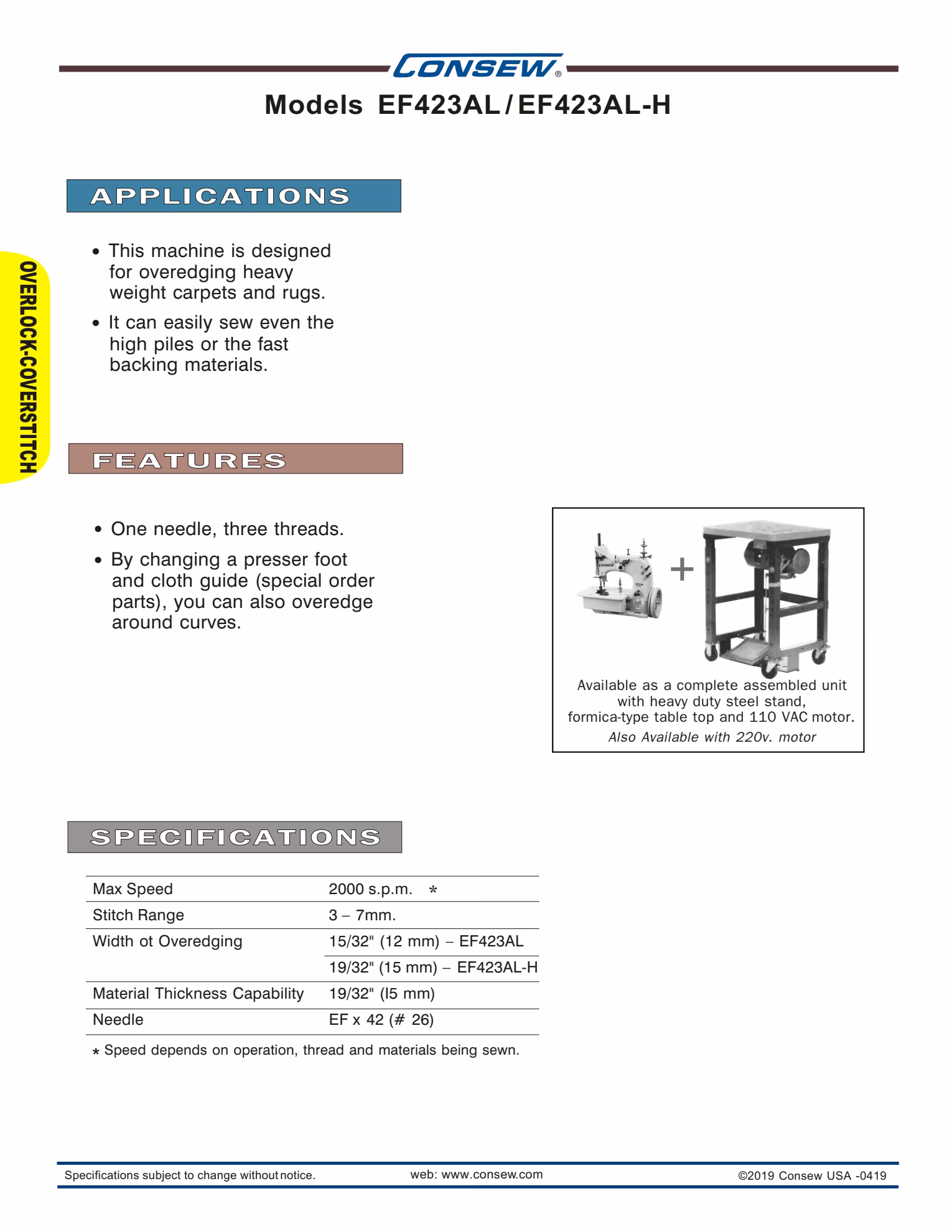

Consew EF423AL-H Single Needle Heavy Duty Overedging Machine with Table and Servo Motor Brochure Page 1Consew EF423AL-H Single Needle Heavy Duty Overedging Machine with Table and Servo Motor Brochure Page 2

MACHINE APPLICATIONS:

  • Designed for overedging heavyweight carpets and rugs
  • Can easily sew high piles
  • Suitable for fast backing materials

MACHINE FEATURES:

  • One needle, three threads
  • Capable of overedging around curves with special order presser feet and guides

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2000
  • Needle Used: EF x 42 (#26)
  • Stitch Range: 3m-7mm
  • Width of Overedging: 19/32" (15mm)
  • Material Thickness Capability: 19/32" (15mm)

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.
