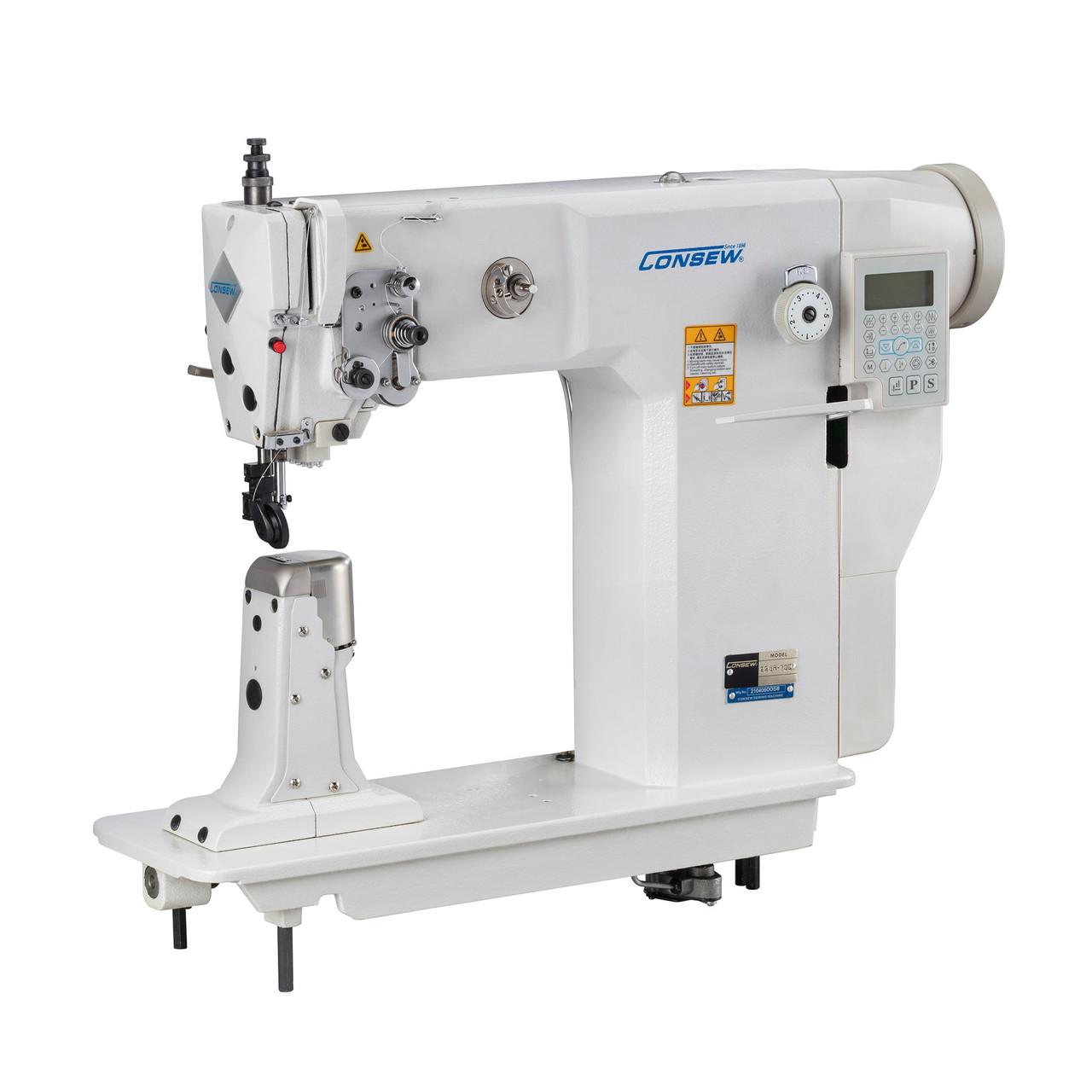

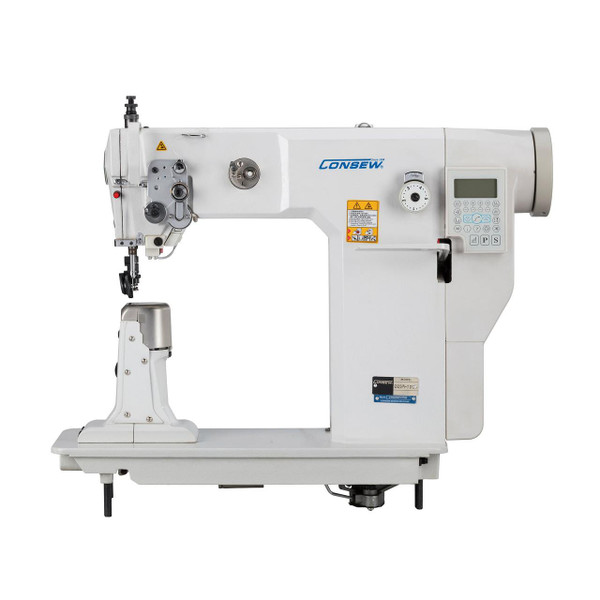

Consew 228R-7DD-220V Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling

The 228R-7DD is a high-speed, direct-drive single-needle lockstitch machine designed for precision and efficiency. Featuring drop feed, automatic thread trimming, reverse stitching, and built-in lubrication, this model also includes a user-friendly control panel with programmable functions and stitch counting.

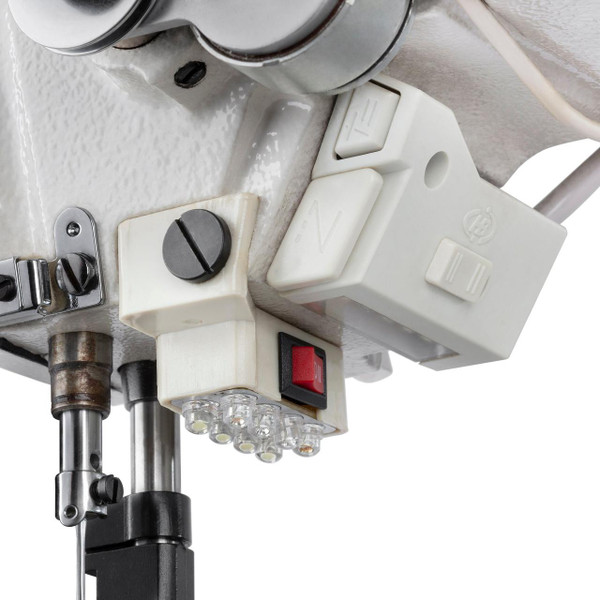

Convenient knuckle control switches ensure smooth operation and improved workflow, making it ideal for high-production environments.

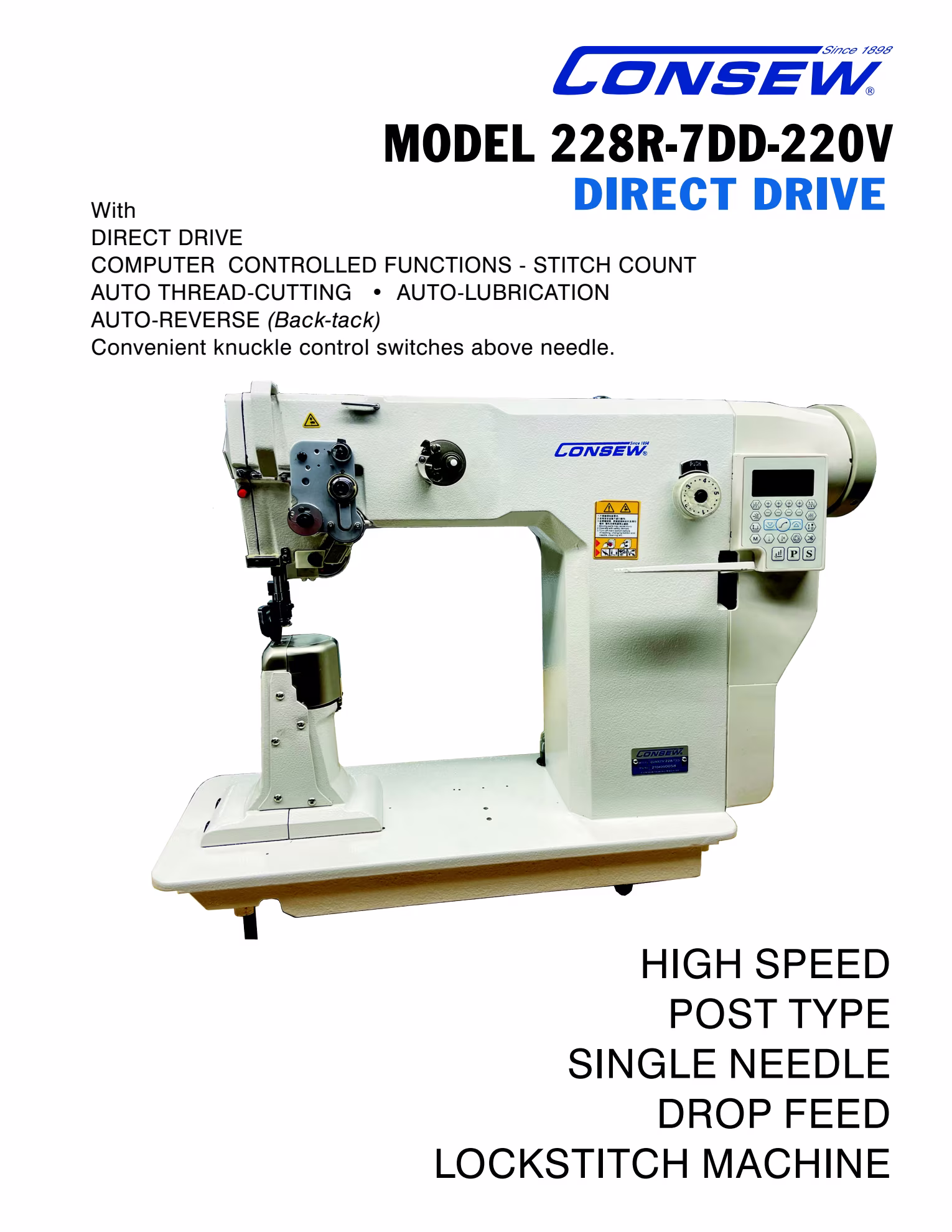

Consew 228R-7DD-220V Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling Brochure Page 1Consew 228R-7DD-220V Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Complete Tabling Brochure Page 2

MACHINE APPLICATIONS:

  • For sewing light to medium weight fabrics, leather, canvas, vinyl, synthetics, and various coated and laminated materials.
  • Designed for stitching products such as apparel, shoes, boots, raincoats, foundation garments, luggage, handbags, travelware accessories, and leather goods.
  • Also used for attaching vamps and backstraps or inserting counters on heavy shoes.

MACHINE FEATURES:

  • Vertical axis hook
  • Drop feed
  • Roller presser foot allows for turning of sharp corners and tight curves
  • Single needle
  • Stitches per minute: 3000*
  • Reverse feed
  • Automatic Footlift
  • Automatic Back-tack (Reverse)
  • Automatic Thread Trim

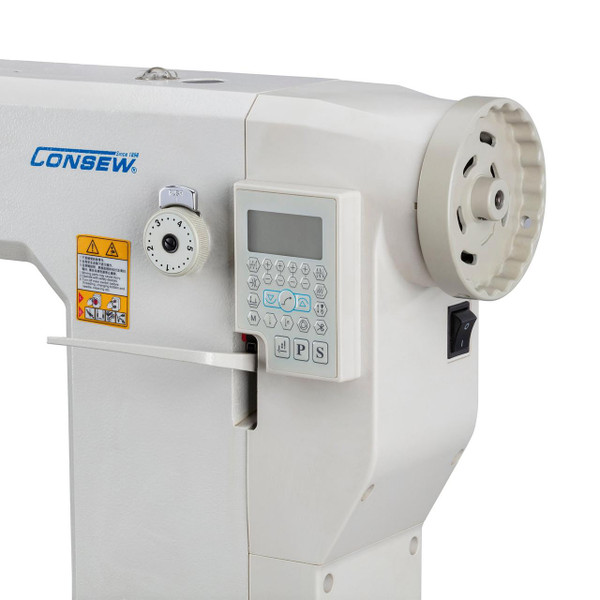

  • Stitch count, multifunction control panel

MACHINE SPECIFICATIONS:

  • Speed, Maximum (S.P.M.): 3000*
  • Clearance Under Foot: 25/64" (10 mm)
  • Needle Bar Stroke: 1-27/64" (36 mm)
  • Stitch Length, Maximum: 0 ~ 5 s.p.i. (5 mm)
  • Needle: DPX5 12 - 21#
  • Presser Foot Lift: by Hand: 6.5 mm / by Foot: 16 mm
  • Post Height: 7" (178 mm)
  • Stitch Type: 301
  • Power: Servo Motor
  • Voltage: 220 VAC

WHAT COMES WITH THE COMPLETE UNIT SHIPMENT?

  • Machine Head factory-sealed box
  • Stand/Leg
  • Table Top
  • Instruction Manual, Parts Book, and Documentation
