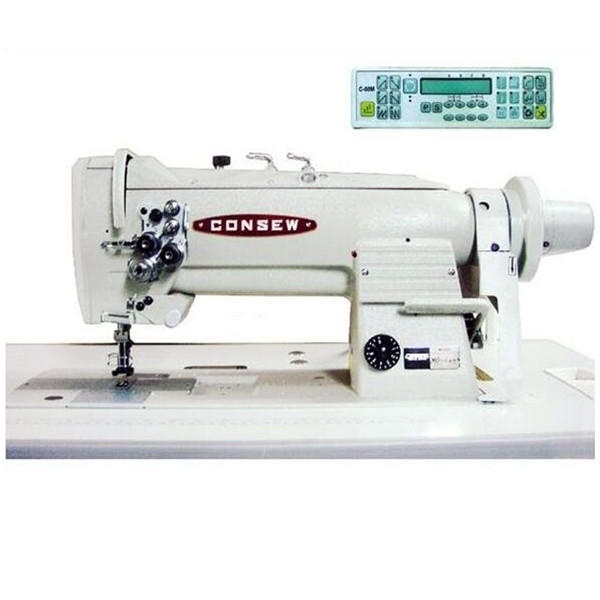

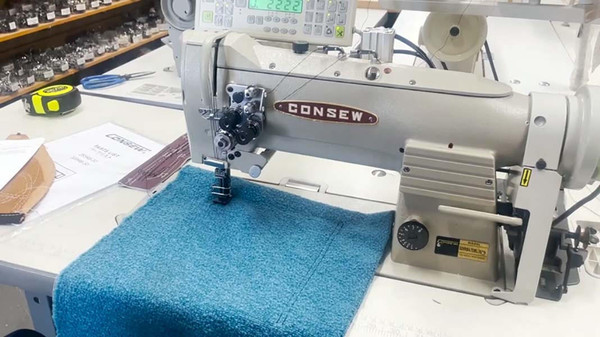

Consew 339RBATCL(N)-1 Double Needle Heavy Duty Compound Walking Foot Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $6,796.00
$5,233.00
Save $1,563.00 per unit
SKU:
339RBATCL(N)-1
Condition:
New
Shipping:
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 339RBATCL(N)-1 Double Needle Heavy Duty Compound Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $6,796.00
$5,233.00
Save $1,563.00 per unit

Consew 339RBATCL(N)-1 Double Needle Heavy Duty Compound Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $6,796.00
$5,233.00
Save $1,563.00 per unit

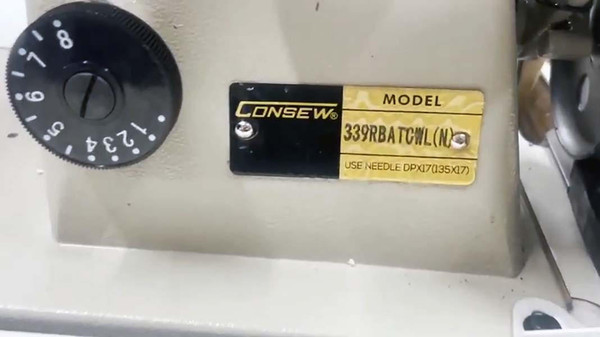

Consew 339RBATCWL(N) Double Needle Heavy Duty Drop Feed Needle Feed (Compound Feed) Alternating Presser Feet Lockstitch With Table and Servo Motor

With: Centra-lube Semi-automatic Lubrication System,  Programmable Functions,  Automatic Backtacking,  Automatic Reverse Feed,  Automatic Thread Trimmer,  Automatic Needle Up/down,  Pneumatic Foot Lift,  Safety Clutch,  Push Button Reverse

Consew 339RBATCL(N)-1 BrochureConsew Model 339 RBATCL(N)-1 Brochure

MACHINE APPLICATIONS:

  • For sewing medium to heavyweight materials such as leather,  vinyl,  synthetics, and laminated and coated materials.
  • Suitable for sewing items such as automobile upholstery tarpaulins,  covers,  awnings,  tents,  umbrellas handbags,  luggage,  travel ware accessories,  sports and camping equipment, and wearing apparel outdoor clothing.

MACHINE FEATURES:

  • PEDAL OPERATION The operator has precise control of the motor through the convenient foot pedal.  Forward pressure controls speed and backward pressure automatically controls reverse stitching speed.
  • ADJUSTABLE PEDAL PRESSURE For ease of operation operator can simply adjust the spring position to meet the desired foot pressure, achieving extremely fast and accurate start-stop actions.  Linear speed control for accurate, predictable control.
  • UNBLOCKED HAND WHEEL The sewing machine's handwheel is freely movable, even when the machine is stopped. This allows easy threading and readily permits required adjustments for fittings.

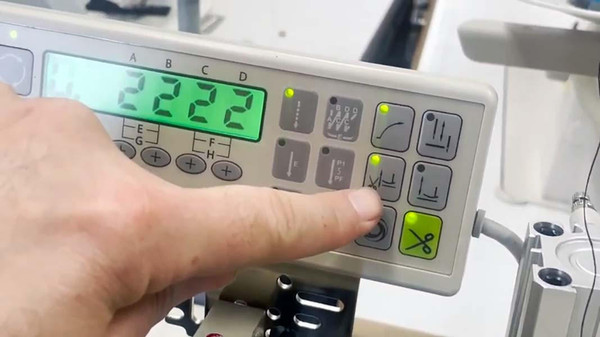

  • ELECTRONIC CONTROLS Consew uses a rugged servo-motor.  The servo-motor affords precise control of all motor action while allowing for additional sewing machine functions, such as trimming, foot lift, etc.
  • PRECISE NEEDLE POSITIONING A specially designed servo-motor ensures precise needle positioning and stopping accuracy, thereby helping to eliminate one cause of needle breakage.
  • SWITCHING OF NEEDLE-UP/DOWN-STOP Either needle-up stop or needle-down stop can be selected intermediate of the end of the seam. (It may be convenient to have the machine stop with the needle in the "down" position for operations where sewing will continue after adjusting the item or have it stop in the "needle-up" position when the work will be removed after each operation.)
  • AUTO BACKTACK BUTTON Conveniently located a few inches to the right of the needle, one-touch initiates a programmable backtacking function. Push-button switch reverse with safety lockout adjustment.

MACHINE SPECIFICATIONS:

  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Auto Trimming, Backtack, Reverse
  • Speed, Max (S.P.M.): 3000
  • Stitch Length: 2 1/2" s.p.i. (10mm)
  • Work Space: 10" (258mm)
  • Needle: 135 x 17
  • Bobbin: Metal 15041 & Pre-wound S or U
  • Bed Size: 7" x 18 7/8" (178m x 477mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 4 s.p.i. (8mm)
  • Standard Needle Spacing: 1/8" (3.2mm) 1 1/2" (38.1mm)
  • Hook: 15040
  • Foot Lift:
    • By Hand:  25/64" (10mm)
    • By Knee:  1/2" (13mm)
    • Electric:  1 5/16" (33mm)

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
