Consew UEW-PPE Ultrasonic Embossing Machine for Face Masks with Complete Tabling

No reviews yet Write a Review
Market Price: $3,449.00
$2,656.00
Save $793.00 per unit
SKU:
UEW-PPE
Condition:
New
Availability:
Replaced with UEW-PPE-2.
Shipping:
Sold Out
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew UEW-PPE Ultrasonic Embossing Machine for Face Masks with Complete Tabling

Market Price: $3,449.00
$2,656.00
Save $793.00 per unit

Consew UEW-PPE Ultrasonic Embossing Machine for Face Masks with Complete Tabling

Market Price: $3,449.00
$2,656.00
Save $793.00 per unit

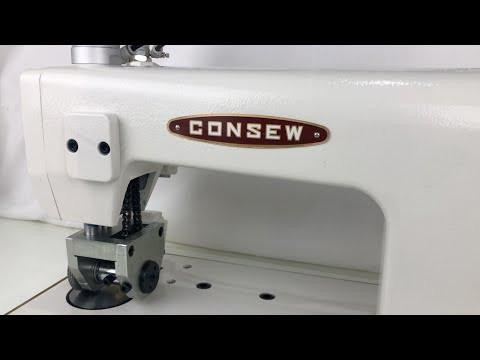

Consew UEW-PPE Ultrasonic Embossing Machine for Face Masks Comes with Complete Fully Assembled Tabling (Arrives Ready for Operation)

The UEW-PPE ultrasonic embossing machine is mainly used to emboss, bubble, wrinkle and trademark on all kinds of fabrics. It can also emboss trademarks on non-woven fabric, coating, leather, paper and aluminum plate, imitating leather pattern and various deep and shallow patterns.
It uses high frequency ultrasonic vibrations to create instantaneous heat energy and thus transform the material to achieve various embossing effects. It can also be used for the welding and cutting of synthetic fiber materials. All without the use of needles and threads.

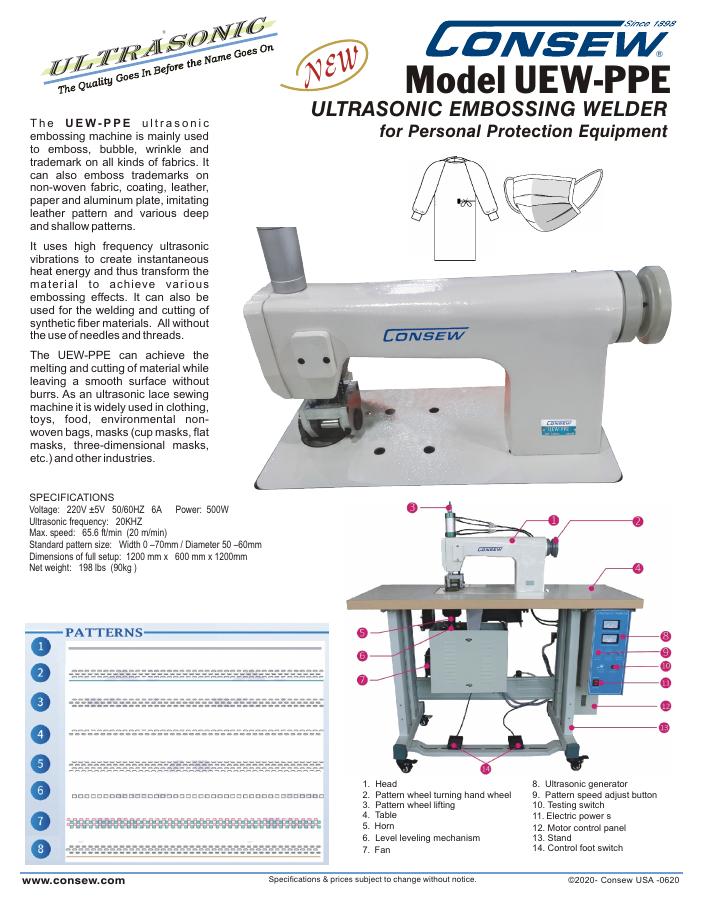

Consew USW-PPE Brochure

APPLICATIONS

The UEW-PPE can achieve the melting and cutting of material while leaving a smooth surface without burrs. As an ultrasonic lace sewing machine it is widely used in clothing, toys, food, environmental non-woven bags, masks (cup masks, flat masks, three-dimensional masks, etc.) and other industries.

FEATURES

High frequency ultrasonic vibrations to create instantaneous heat energy for embossing and welding

SPECIFICATIONS

  • VOLTAGE: 220V ±5V 50/60HZ
  • POWER: 500W 6AMPS
  • ULTRASONIC FREQUENCY: 20KHZ
  • MAX. SPEED: 65.6 FT/MIN (20 M/MIN)
  • PATTERN SIZE: WIDTH 0 –70MM / DIAMETER 50 –60MM
  • DIMENSIONS OF FULL SETUP: 1200 MM X 600 MM X 1200MM
  • NET WEIGHT: 198 LBS (90KG )

ADDITIONAL INFORMATION

What's Included in the Shipment?

  • Consew UEW-PPE Machine Fully Assembled and Setup Ready for Operation.

Ships via Truck on a wooden pallet.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
