Habraken HM866 Series Extra Heavy Duty Programmable Walking Foot Zig-Zag Sewing Machine

No reviews yet Write a Review
$35,950.00
Save per unit
SKU:
HM866-100180
Condition:
New
Availability:
Current lead time is 5 months.
Shipping:
Bulk Pricing:
Quantity-Based Pricing
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Habraken HM866 Series Extra Heavy Duty Programmable Walking Foot Zig-Zag Sewing Machine

$35,950.00
Save per unit

Habraken HM866 Series Extra Heavy Duty Programmable Walking Foot Zig-Zag Sewing Machine

$35,950.00
Save per unit

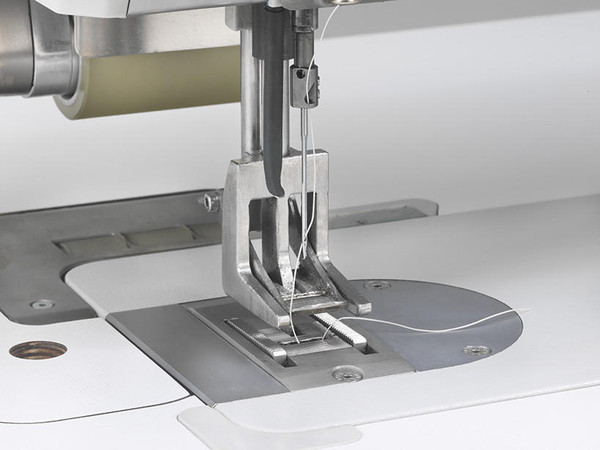

Habraken HM866 Series Heavy Duty Programmable Zig-Zag Machines with 420x 225mm Workspace Clearance, Bottom Feed, Alternating Top Feed & Electropneumatic Sewing Foot Lift

Heaviest Duty Commercial Zig-Zag Sewing Machine Currently Available in the World. Comes as a Complete Setup Ready to Sew with Preassembled Table & Stand.

Touch screen for easily choosing of different zigzag stitch patterns.

MACHINE APPLICATION:

This machine was specifically designed to solve sewing problems that involve extra thick and high density fabrics hard to feed and sew and high TEX thread. Thus this machine is by far the heaviest duty zig-zag sewing machine available in the market.

MACHINE FEATURES:

With integrated sewing drive incl. DAC classic control box, operation panel OP1000 and electronic needle
positioning (Jog Dial), with XL barrel shuttle, motor driven bobbin winder, adjustable sewing foot stroke up to
10 mm, sewing foot lift in high needle position 30 mm, key combination for needle position high/low, stitch
length up to 10 mm, maximum sewing speed up to 800 stitches/min.

AVAILABLE OPTIONS:

  • RAP 15-8: Electropneumatic back tack device
  • HM 2nd stitch length
  • HM “0” stitch: Electropneumatic device for setting stitch length to “0” while sewing. For creating “flat” back tack or T-stitch
  • HM pneumatic foot pressure: Electropneumatic device for applying extra foot pressure
  • NK-SP: Special needle cooling system build inside the sewing head. Depending on the supplied air pressure a
    temperature of up to ± -4o will be blown direct towards the needle that avoids the melting of the sewing
    thread.

  • Puller: Servo driven top puller with passive rolls in table-top

  • STL Sensor: With this option the puller will automatically adjust the speed when stitch length is changed.

  • DA LED sewing light: Integrated sewing light (LED) circuit board with 2 integrated white LED's and mounting frame fitted underside of the sewing head + transformer

  • HM-LED sewing light: Head mount 5W LED sewing light adjustable with flex-arm

  • HM-MG 58-3: Standard manual in height adjustable stand with tabletop size 1160mm x 750mm

  • HM-MG 58-63: Standard manual in height adjustable stand with tabletop size 1820mm x 750mm

View Brochure

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
