Consew P1199RB-1A-7DD Single Needle Direct Drive Zig-Zag Lockstitch Industrial Sewing Machine with Complete Tabling

No reviews yet Write a Review
Market Price: $6,665.00
$5,132.00
Save $1,533.00 per unit
SKU:
P1199RB-1A-7DD#
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew P1199RB-1A-7DD Single Needle Direct Drive Zig-Zag Lockstitch Industrial Sewing Machine with Complete Tabling

Market Price: $6,665.00
$5,132.00
Save $1,533.00 per unit

Consew P1199RB-1A-7DD Single Needle Direct Drive Zig-Zag Lockstitch Industrial Sewing Machine with Complete Tabling

Market Price: $6,665.00
$5,132.00
Save $1,533.00 per unit

Consew P1199RB-1A-7DD Single Needle Direct Drive Zig-Zag Lockstitch Industrial Sewing Machine with Complete Tabling

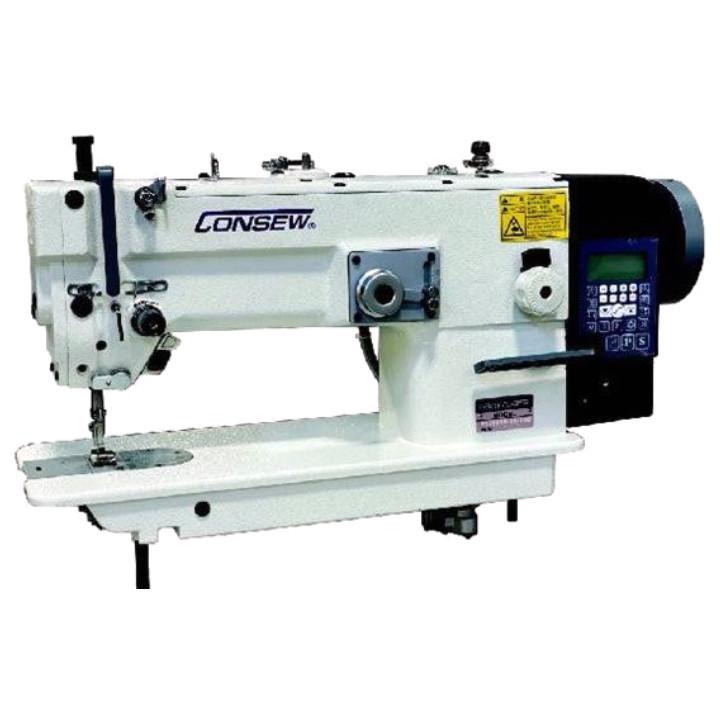

The Consew P1199RB-1A-7DD is a versatile single needle, drop feed, zig-zag, lockstitch machine. It features a built-in direct drive motor and digital controls, making it an ideal choice for a wide range of stitching operations. With reverse feed, a large bobbin, and the ability to switch between zig-zag and straight stitching, this machine is designed for both efficiency and precision.

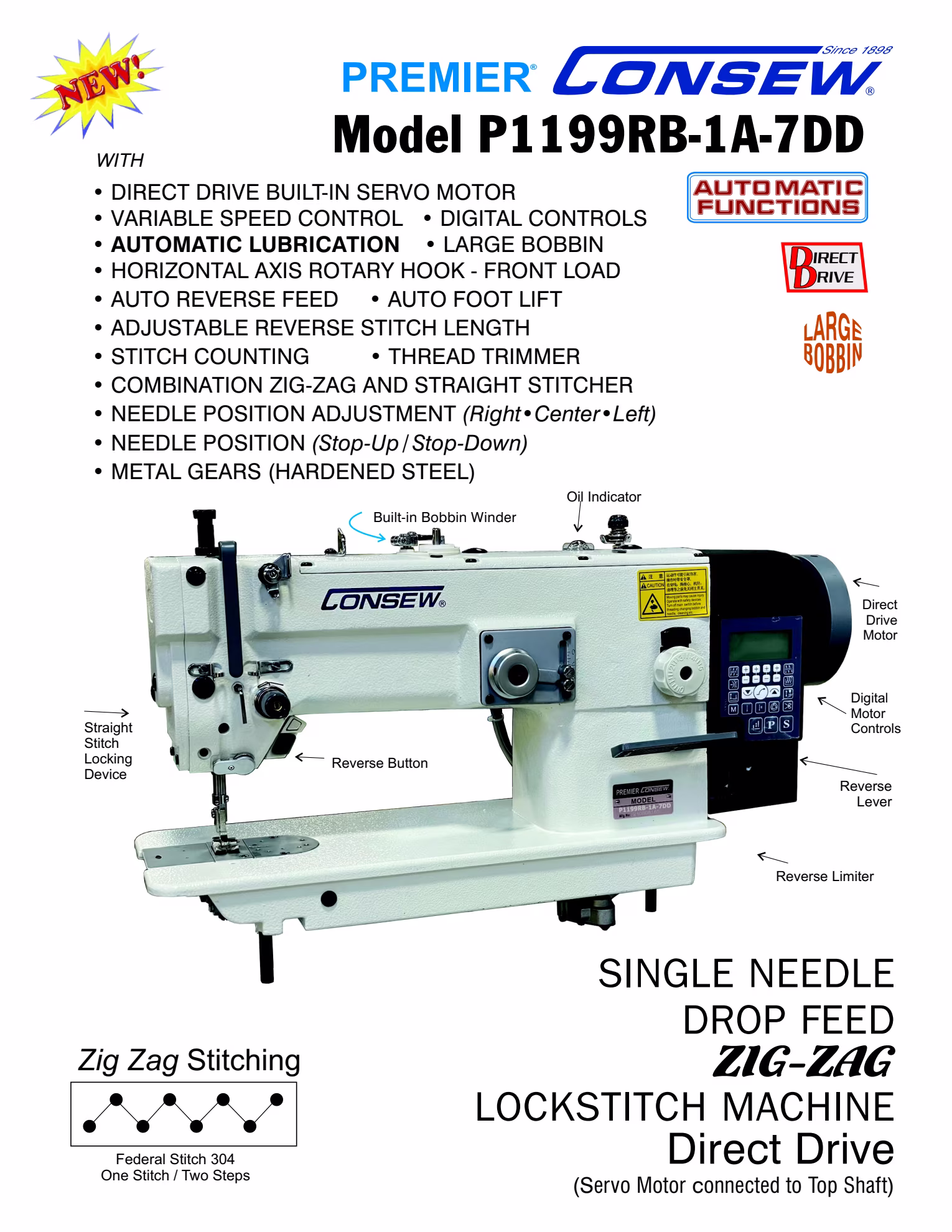

Consew P1199RB-1A-7DD Single Needle Direct Drive Zig-Zag Lockstitch Industrial Sewing Machine with Complete Tabling Brochure Page 1Consew P1199RB-1A-7DD Single Needle Direct Drive Zig-Zag Lockstitch Industrial Sewing Machine with Complete Tabling Brochure Page 2

MACHINE APPLICATIONS:

  • Edge sewing, patch sewing, and attaching and abutting work
  • Applique work and binding on materials like leather, vinyl, canvas, cloth, and lace
  • Sewing light to medium heavy-weight fabrics, including clothing, shoes, caps, leather articles, and bags
  • Attaching lace and elastic bands
  • Bottom hemming, edge stitching, and butted seaming
  • Applique and similar operations

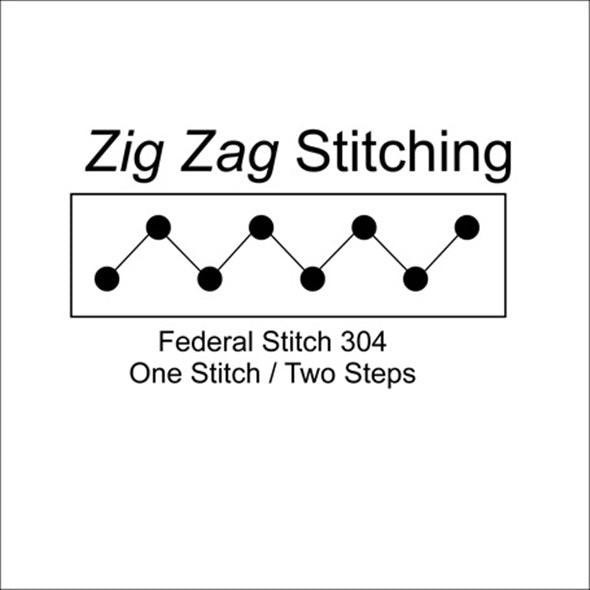

  • Supports Federal stitch type 304 (and type 301 stitch when set to straight stitch)

MACHINE FEATURES:

  • Direct Drive Internal Motor (110V) for efficient operation
  • Automatic Lubrication for smooth performance
  • Horizontal Axis Rotary Hook for reliable stitching
  • Dial Zig-Zag Regulator for easy adjustment of zig-zag width
  • Locking Zig-Zag Width Regulator to secure settings
  • Versatile stitching options with straight stitches when zig-zag is set to '0'
  • Stitches per minute: Up to 2000*
  • Reverse Stitching with adjustable stitch length for enhanced control
  • Built-in Bobbin Winder for convenience and time-saving
  • Durable metal gears made of hardened steel
  • Built-in Free-Hand Monogramming Lever for detailed work
  • Needle Position Adjustment (Right, Center, Left) for customizable stitching
  • Needle Position (Stop-Up / Stop-Down) for precision control
  • Auto Foot Lift to improve efficiency
  • Auto Reverse to simplify reverse stitching
  • Stitch Counting for accurate stitching
  • Thread Trimmer for clean and efficient thread cutting

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Needle Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Automatic
  • Speed, Max (S.P.M.): 2200 spm
  • Clearance Under Presser Foot: By hand 15/64” (6 mm) / By knee 25/64” (10 mm)
  • Stitch Length: 4.2 s.p.i. (6 mm)
  • Work Space: 10.5" (266mm)
  • Needle: 16 x 95
  • Bed Size: 7 x 15 11/16" (178mm x 398mm)
  • Needle Bar Stroke: 1 6/25" (31.5 mm)
  • Hook: B-70
  • Presser Lift: 6 - 12 mm
  • Zig-Zag Stitch Width: 3/8" (9.5mm)

WHAT COMES WITH THE COMPLETE UNIT SHIPMENT?

  • Machine Head factory-sealed box
  • Stand/Leg
  • Table Top
  • Instruction Manual, Parts Book, and Documentation

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
