Jack 20U53 Single Needle Straight and Zig-Zag Lockstitch Industrial Sewing Machine Complete Unit with Table and Stand

No reviews yet Write a Review
Market Price: $1,479.00
$1,414.00
Save $65.00 per unit
SKU:
20U53
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack 20U53 Single Needle Straight and Zig-Zag Lockstitch Industrial Sewing Machine Complete Unit with Table and Stand

Market Price: $1,479.00
$1,414.00
Save $65.00 per unit

Jack 20U53 Single Needle Straight and Zig-Zag Lockstitch Industrial Sewing Machine Complete Unit with Table and Stand

Market Price: $1,479.00
$1,414.00
Save $65.00 per unit

Jack 20U53 Single Needle Straight and Zig-Zag Lockstitch Industrial Sewing Machine Complete Unit with Table and Stand

This versatile industrial lockstitch machine combines straight and zig-zag sewing in one compact design, making it a practical choice for a wide range of garment and creative work. It is well suited for decorative stitching, appliqué, hemming, alterations, and free-motion embroidery on light to medium fabrics, as well as precision tasks like zipper insertion, piping, and topstitching. The adjustable zig-zag capability and multiple needle positions give operators added control for detailed work, while the built-in control features support smooth, efficient handling in busy sewing environments. With its flexible design, it’s a strong fit for tailoring shops, alterations studios, and general garment production.

MACHINE APPLICATIONS:

  • Decorative stitching, appliqué, and satin stitch embellishment on garments and home décor
  • Hemming, alterations, and general garment sewing on light to medium fabrics
  • Free-motion embroidery and creative stitching applications
  • Zipper installation, piping, and precision topstitching
  • Tailoring shops and alterations studios requiring straight and zig-zag capability in one machine

MACHINE FEATURES:

  • Zig-zag stitch width up to 9 mm adjustable by lever or knee lifter, enabling decorative stitching, appliqué, and satin stitch work in one machine
  • Three needle positions (center, right, left) for precise control on zipper insertion, piping, and topstitching applications

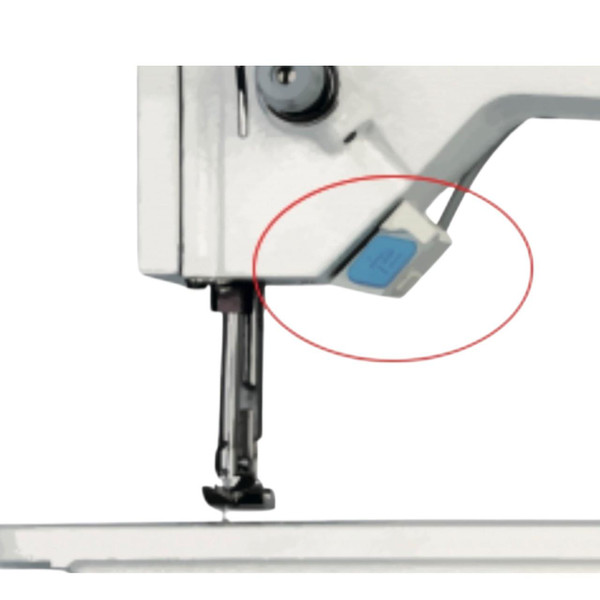

  • Add Stitch Button next to the needle bar for precise stitch control in detailed and free-motion work
  • Dual-function knee lifter raises the presser foot or adjusts zig-zag width depending on the operation mode for hands-free workflow
  • Integrated Direct Drive 550W motor delivers quieter operation, faster response, and lower power consumption compared to external clutch motor setups
  • Needle positioner and built-in control panel for speed adjustment and needle stop position
  • Built-in LED illumination for consistent, shadow-free visibility at the needle area

MACHINE SPECIFICATIONS:

  • Needle System: 134R / DPx5
  • Motor: Integrated Direct Drive 550W
  • Drive Type: Direct Drive
  • Machine Type: Straight & Zig-Zag Lockstitch
  • Max Sewing Speed: 2,000 RPM
  • Zigzag Width: Up to 9 mm (0.35")
  • Needle Positions: Center, Right, Left
  • Led Illumination: Built-in
  • Setup: Table & Stand Included

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Motor is built directly into the machine head for maximum efficiency
  • Silent operation with low vibration
  • Energy efficient — uses up to 70% less power than clutch motors
  • Precise speed control through electronic foot pedal
  • Instant start/stop with electronic braking
  • Compact design eliminates belt and pulley maintenance
