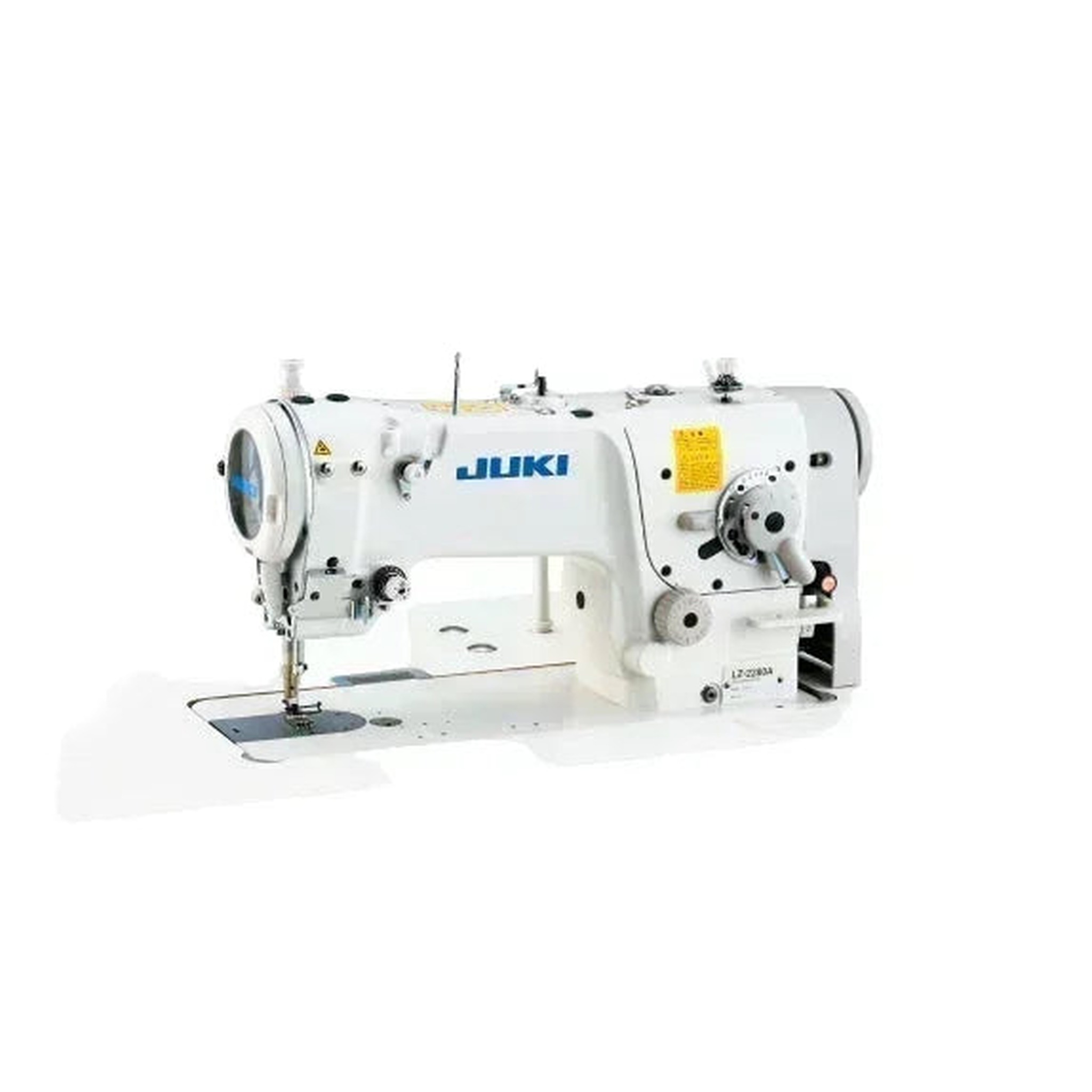

Juki LZ-2280AA Single Needle High-Speed Lockstitch Zig-Zag Industrial Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $5,294.00
$4,744.00
Save $550.00 per unit
SKU:
LZ-2280AA
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki LZ-2280AA Single Needle High-Speed Lockstitch Zig-Zag Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $5,294.00
$4,744.00
Save $550.00 per unit

Juki LZ-2280AA Single Needle High-Speed Lockstitch Zig-Zag Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $5,294.00
$4,744.00
Save $550.00 per unit

Juki LZ-2280AA Single Needle High-Speed Lockstitch Zig-Zag Industrial Sewing Machine Complete Unit with Table and Servo Motor

This high-speed single needle lockstitch machine combines precision zigzag capabilities with advanced feed control for professional garment production. The machine features a finely adjustable feed mechanism that provides exceptional control over overlapped seams and fabric thickness transitions, while its optimized low-tension sewing system delivers soft, flexible seams with reduced thread breakage and skipped stitches. With a standard 5mm zigzag width and intuitive adjustments for stitch parameters, this machine is engineered to maintain steady performance and reliability during demanding production runs in modern apparel production.

MACHINE FEATURES:

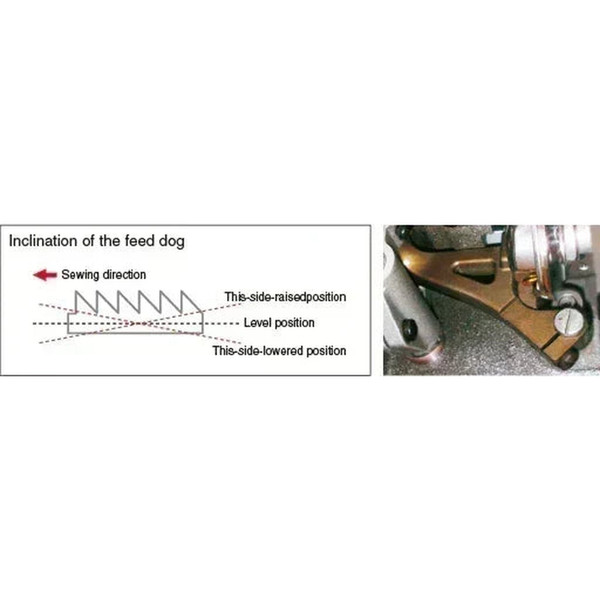

  • Fine-Adjustable Feeding for Overlaps and Layered Fabrics: The feed dog’s height and inclination can be finely tuned across a widened adjustment range, improving control on overlapped seams and reducing feeding irregularities when transitioning between fabric thicknesses.
  • Optimized Low-Tension Sewing for Soft, Flexible Seams: The improved thread path, hook and needle locus, and timing reduce double-catching and skipped stitches under low tension, enabling softer seam finishes desirable in garment production.
  • Fully Automatic Lubrication for Continuous Operation: A redesigned oil-feeding route ensures consistent lubrication of the hook, supporting reliability and durability during long production runs.

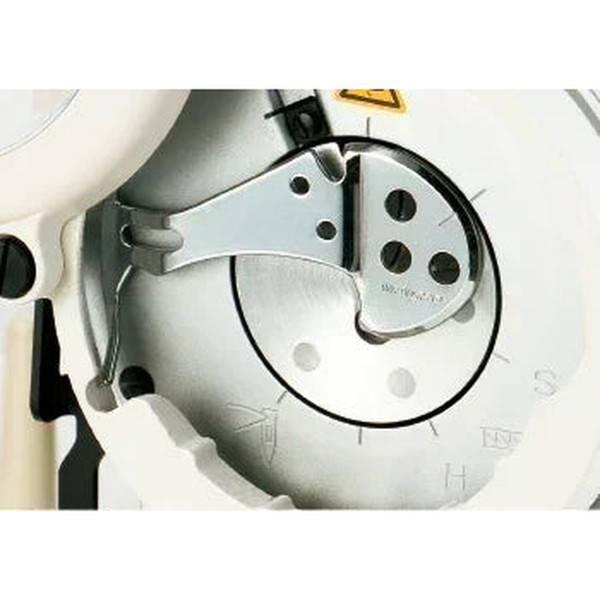

  • Built-In Timing Markers for Precise Needle and Hook Alignment: The built-in guides let you adjust the timing between needle, hook, and feed motion quickly and precisely. This helps maintain clean zigzag formation and makes troubleshooting or switching between fabrics more efficient.
  • Easy Lever and Dial Adjustments for Zigzag Width, Needle Throw, and Stitch Baseline: Key zigzag parameters — including needle position, throw width, and baseline — can be set quickly using an intuitive lever system, while a dedicated dial allows precise control of feed amount and condensation stitches.
  • Steadier Zigzag Performance: Low-tension stability keeps the needle and hook interaction steady, so zigzag stitches form cleanly even on tricky materials. Operators spend less time re-adjusting tension or correcting uneven seams.
  • Better Control on Overlaps and Layers: Fine feed adjustment improves how the machine moves fabric at thickness changes, preventing hesitation or sudden pulling at transitions. This reduces skipped stitches and lowers the amount of rework on critical seams.
  • Higher Output at Production Speed: The head maintains stitch accuracy at up to
  • Faster Setup and Fewer Interruptions: Built-in timing guides help align hook, needle, and feed motion quickly when changing materials. Automatic lubrication keeps the hook running smoothly, reducing unplanned stops during long shifts.
  • High-Speed Operation (Up to 5,000 stitches/min): Supports high-volume production with smooth, stable sewing performance.
  • Optimized Low-Tension Sewing: Refined thread path, hook geometry, needle locus, and timing reduce double-catching and irregular stitches at low tension.
  • Fine-Adjustable Feed Mechanism: Feed-dog height and inclination can be finely tuned for cleaner handling of overlaps and layered materials.
  • Built-In Timing Guides: Clear markers for needle-to-feed and hook timing allow faster, more accurate mechanical setup and troubleshooting.
  • Fully Automatic Lubrication: Ensures continuous oiling of key components for reliable high-speed operation.

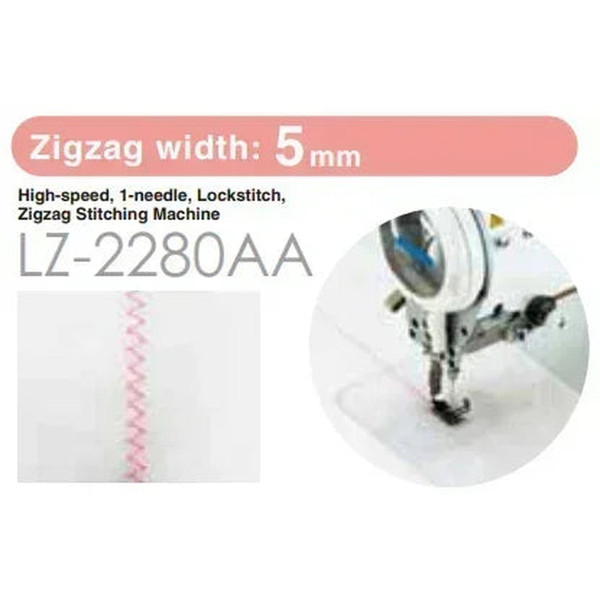

  • 5 mm Zigzag Width: Offers a standard zigzag width suitable for a wide range of apparel applications.
  • DP Hook With Titanium-Treated Inner Hook: Durable hook construction supports long-term high-speed use and consistent stitch formation.
  • Low-Noise, Low-Vibration Mechanical System: Refined mechanisms help stabilize stitch formation and improve operator comfort during long runs.

MACHINE SPECIFICATIONS:

  • Machine Type: 1-needle, lockstitch, zigzag stitching machine
  • Stitch Pattern: Standard zigzag
  • Max Zigzag Width: 5 mm (0.20")
  • Max Sewing Speed: 5 000 sti/min
  • Max Feeding Amount: 2.5 mm (0.10")
  • Presserfoot Lift: By hand 5.5 mm (0.22") / By knee 10 mm (0.39")
  • Hook: DP-type hook (with titanium-treated inner hook)
  • Thread Takeup: Rotary type
  • Lubrication: Fully automatic
  • Needle: 134SUK (Nm70)
  • Reverse Feed Mechanism: Provided as standard
  • Needle Position Changing Mechanism: Provided as standard
  • Needle Throw Pattern Cam: Triangular cam

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
