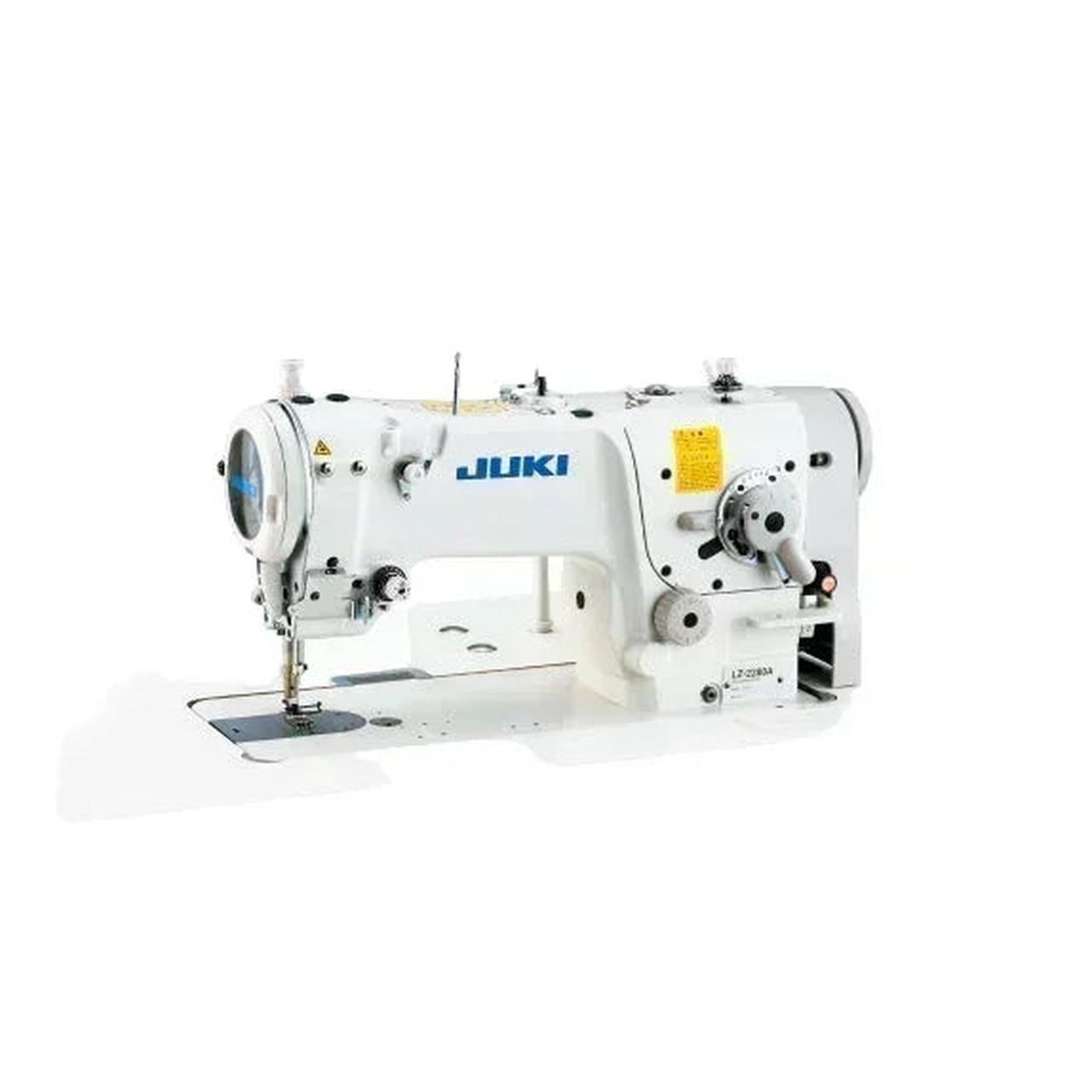

Juki LZ-2280AB Zig-Zag Single Needle High-Speed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $5,372.00
$4,744.00
Save $628.00 per unit
SKU:
LZ-2280AB
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki LZ-2280AB Zig-Zag Single Needle High-Speed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $5,372.00
$4,744.00
Save $628.00 per unit

Juki LZ-2280AB Zig-Zag Single Needle High-Speed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $5,372.00
$4,744.00
Save $628.00 per unit

Juki LZ-2280AB Zig-Zag Single Needle High-Speed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

This high-speed single-needle lockstitch zigzag machine is designed for apparel production where strong seam definition and reliable stitch quality are important. Its wider zigzag capability makes it well suited for reinforced seams and decorative finishing, while the adjustable feed and timing help it handle layered sections and transitions more consistently. The machine is also engineered to support smooth, low-tension sewing for clean results on a range of materials. Overall, it offers a practical combination of versatility, precision, and durability for industrial sewing applications.

MACHINE FEATURES:

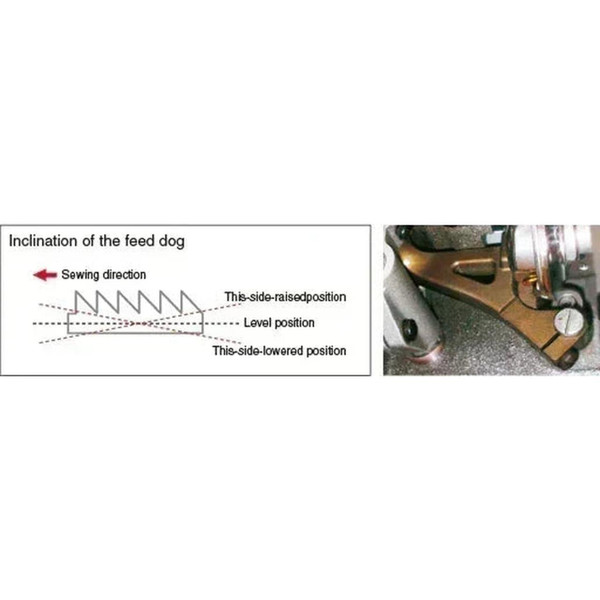

  • Fine-Adjustable Feeding for Layered and Transition Areas: Feed-dog height and inclination can be precisely tuned to maintain stable feeding across overlaps, helping prevent hesitation and stitch distortion where fabric thickness changes.
  • 8 mm Zigzag Width for Stronger and More Expressive Seams: The extended
  • Stable Low-Tension Sewing for Soft, Flexible Finishes: The optimized thread path, hook geometry, and timing help reduce double-catching and maintain clean zigzag shape when sewing delicate materials at low tension.
  • Fully Automatic Lubrication for Consistent Hook Performance: A revised oil-feeding path delivers consistent lubrication to the hook at high speed, improving durability and maintaining clean zigzag formation. This ensures smoother operation across long production runs with less downtime.
  • Built-In Timing Markers for Faster Mechanical Setup: The built-in timing markers give an immediate visual reference for aligning the needle, hook, and feed motion, so adjustments can be made with less trial and error. This reduces small inconsistencies in zigzag formation, speeds up setup work, and keeps production running with fewer interruptions.
  • Easy Lever and Dial Controls for Zigzag Width and Stitch Parameters: Zigzag width (up to
  • Steadier Zigzag Performance: Low-tension stability helps minimize issues, such as double-catching and irregular stitches on soft materials. With cleaner point formation, operators spend less time correcting zigzag shape or chasing tension-related defects.
  • Better Control Through Overlaps and Thickness Changes: Fine adjustment of feed-dog height and inclination keeps material movement steady when entering layered or reinforced zones. This minimizes skipped stitches and reduces rework on seams that see the most stress.
  • Higher Thruput at Production Pace: The machine holds zigzag accuracy at up to
  • Quicker Setup and Less Downtime: Built-in timing references shorten alignment work when switching fabrics or addressing stitch issues. Automatic hook lubrication supports smoother long-run operation with fewer maintenance stops.
  • Wider Zigzag Capability for Reinforcement and Decorative Work: The extended
  • High-Speed Performance (Up to 5,000 stitches/min): Delivers stable zigzag formation at full production speed, supporting continuous operation in high-output environments.
  • 8 mm Zigzag Width: Provides wider coverage for reinforcement, elastic applications, and decorative stitching, offering more pronounced seam profile.
  • Stable Low-Tension Stitching: An optimized thread path, hook shape, and needle movement reduce double-catching and irregular zigzag points when working at low tension.
  • Precisely Adjustable Feed System: Feed-dog height and inclination can be fine-tuned to maintain smooth fabric movement through overlaps and layered sections.
  • Integrated Timing Reference Marks: Clear visual guides for needle–feed and hook coordination make mechanical adjustments quicker and help keep stitch formation consistent across different materials.
  • Fully Automatic Lubrication: Ensures continuous oiling of key components. The revised oil-feeding path supplies a steady amount of oil to the hook, improving durability and stitch reliability at high speed.

MACHINE SPECIFICATIONS:

  • Machine Type: 1-needle, lockstitch, zigzag stitching machine
  • Stitch Pattern: Standard wider zigzag
  • Max Zigzag Width: 8 mm (0.31")
  • Max Sewing Speed: 5 000 stitches/min
  • Max Feeding Amount: 5 mm (0.20")
  • Presserfoot Lift: By hand 5.5 mm (0.22") / By knee 10 mm (0.39")
  • Hook: DP-type hook (with titanium-treated inner hook)
  • Thread Takeup: Rotary type
  • Lubrication: Fully automatic
  • Needle: 134SUK (Nm70)
  • Reverse Feed Mechanism: Provided as standard
  • Needle Position Changing Mechanism: Provided as standard
  • Needle Throw Pattern Cam: Triangular cam

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
