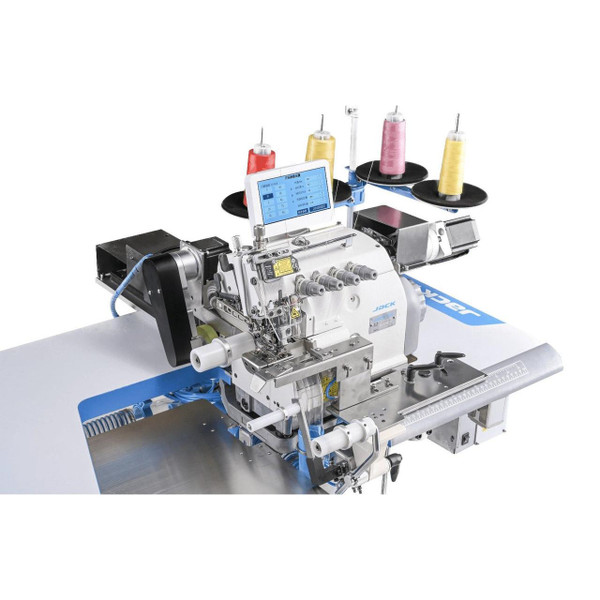

Jack JK-797TDI-4-514-M03/333/KS/FR09E Fully Automatic Small Cylinder Bed Overlock Machine Complete Unit with Table and Stand

No reviews yet Write a Review
Market Price: $7,526.00
$7,219.00
Save $307.00 per unit
SKU:
JK-797TDI-4-514-M03/333/KS/FR09E
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack JK-797TDI-4-514-M03/333/KS/FR09E Fully Automatic Small Cylinder Bed Overlock Machine Complete Unit with Table and Stand

Market Price: $7,526.00
$7,219.00
Save $307.00 per unit

Jack JK-797TDI-4-514-M03/333/KS/FR09E Fully Automatic Small Cylinder Bed Overlock Machine Complete Unit with Table and Stand

Market Price: $7,526.00
$7,219.00
Save $307.00 per unit

Jack JK-797TDI-4-514-M03/333/KS/FR09E Fully Automatic Small Cylinder Bed Overlock Machine Complete Unit with Table and Stand

This fully automatic small cylinder bed overlock system is designed to streamline neck and collar attachment with a high level of consistency and operator ease. Its photocell auto-alignment, programmable size memory, and electronically controlled tensioning help automate the handling of collars from loading through sewing, reducing manual adjustments during production. The compact cylinder-bed design gives excellent access to tubular openings, making it well suited for T-shirt necks as well as polo collars, sweatshirt and hoodie neck bands, and other small-garment neckline applications.

MACHINE APPLICATIONS:

  • T-shirt neck and collar attachment (primary application)
  • Polo shirt collar bands
  • Sweatshirt and hoodie neck banding
  • Baby clothing collar/neck attachment
  • Children's apparel necklines
  • Underwear and undershirt neck binding
  • Pajama and loungewear collar work
  • Activewear and athletic shirt necks
  • Tubular knit garment neck finishing
  • High-volume T-shirt factory production lines
  • Operations that need to eliminate the skill bottleneck of manual collar attaching

MACHINE FEATURES:

  • Fully automatic T-shirt neck/collar attaching system — Jack's most automated solution for this operation
  • Photocell auto-alignment — automatically positions and tensions the collar the moment it's loaded
  • Touch screen control panel with programmable size memory — one-click recall of any saved T-shirt size
  • Programmable upper feed gathering motor — change gather ratio on the fly during sewing
  • Automatic electronic tensioner controlled by the photocell — perfect tension on every collar
  • 148mm small cylinder bed with 47mm arm diameter for tubular neck access
  • 4-thread mock safety stitch (Class 514) — clean, professional overlock seam with edge finish
  • Top feed mechanism prevents fabric layer shift on stretchy knits
  • Front + rear vacuum suction — automatic removal of fabric scraps and cut threads
  • Direct drive integrated AC servo motor — silent operation, energy savings up to 70%
  • Automatic needle positioning (top/bottom)
  • Central lubrication system with fully enclosed needle bar (oil return) — low maintenance, no leaks
  • Eliminates operator skill variability — every collar attached identically

MACHINE SPECIFICATIONS:

  • Brand: Jack
  • Model: JK-797TDI-4-514-M03/333/KS/FR09E
  • Machine Type: Fully Automatic Small Cylinder Bed Overlock for Neck/Collar Attaching
  • Configuration: T (Top Feed) + DI (Direct Drive Integrated) + M03 (Medium Duty) + KS + FR09E (Auto Neck System)
  • Primary Application: Automatic T-Shirt Neck & Collar Attaching
  • Stitch Type: 514 — 4-Thread Mock Safety Stitch
  • Number Of Needles: 2
  • Number Of Threads: 4
  • Needle Gauge: 2 mm (0.08")
  • Stitch Width: 4 mm (0.16")
  • Seam Width: 6 mm (0.24")
  • Stitch Length: 3.8 mm (Adjustable)
  • Differential Feed Ratio: 3:3:3
  • Needle System: B27
  • Presser Foot Lift: 5.5 mm (0.22")
  • Cylinder Bed Head: 148 mm (5.83")
  • Cylinder Arm Diameter: 47 mm (Ø)
  • Cylinder Arm Perimeter: 150 mm (5.91")
  • Top Feed: Yes
  • Autoalignment: Photocell Sensor (Automatic Collar Positioning)
  • Gathering Control: Programmable Upper Feed Motor (Adjustable While Sewing)
  • Tensioner: Automatic Electronic (Photocell Controlled)
  • Control Panel: Touch Screen with Custom Size Memory
  • Waste Management: Front + Rear Vacuum Suction System
  • Needle Positioning: Automatic (Top / Bottom)
  • Lubrication: Central Lubrication (Fully Enclosed Needle Bar with Oil Return)
  • Motor: Built-in Direct Drive AC Servo Motor
  • Energy Savings: Up to 70% vs Conventional Motor
  • Voltage: 110V
  • Material Weight: Light to Medium (Knit Fabrics)
  • Includes: Complete Setup with Table and Stand

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
