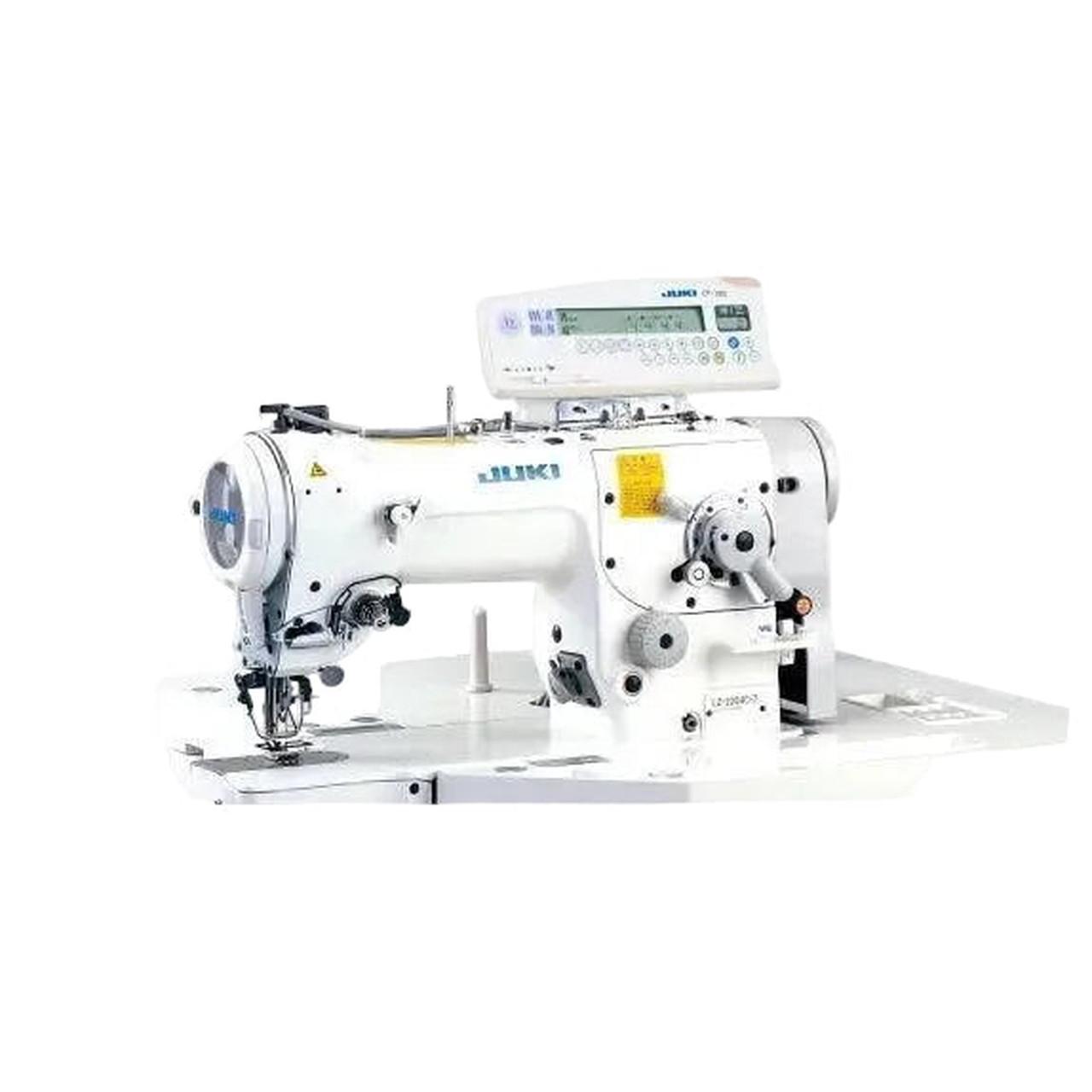

Juki LZ-2284C-7WB/AK83 High-Speed Cylinder-Bed 1-Needle Lockstitch Zigzag Stitching Machine with Automatic Thread Trimmer Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $13,558.00
$11,787.00
Save $1,771.00 per unit
SKU:
LZ-2284C-7WB/AK83
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki LZ-2284C-7WB/AK83 High-Speed Cylinder-Bed 1-Needle Lockstitch Zigzag Stitching Machine with Automatic Thread Trimmer Complete Unit with Table and Servo Motor

Market Price: $13,558.00
$11,787.00
Save $1,771.00 per unit

Juki LZ-2284C-7WB/AK83 High-Speed Cylinder-Bed 1-Needle Lockstitch Zigzag Stitching Machine with Automatic Thread Trimmer Complete Unit with Table and Servo Motor

Market Price: $13,558.00
$11,787.00
Save $1,771.00 per unit

Juki LZ-2284C-7WB/AK83 High-Speed Cylinder-Bed 1-Needle Lockstitch Zigzag Stitching Machine Complete Unit with Table and Servo Motor

This high-speed cylinder-bed zigzag lockstitch machine represents advanced industrial sewing technology, combining zigzag stitching capabilities with automatic thread trimming functionality. The cylinder-bed design provides exceptional access and maneuverability around curved seams and tubular garments, making it ideal for professional garment construction and specialized industrial applications. Built on Juki's proven LZ-2284 platform, this machine delivers reliable performance for demanding production environments where precision zigzag stitching and automated features are essential. The integrated control box and operation panel provide intuitive operation and enhanced productivity for experienced operators.

MACHINE SPECIFICATIONS:

  • Machine Head: LZ-2284C-7 (With automatic thread trimmer)
  • Max Sewing Speed: 5,000 stitches per minute (sti/min)
  • Stitch System: Standard/3-step zigzag
  • Max Zigzag Width: 10.0 mm (standard and 3-step)
  • Max Feeding Amount: 2.5 mm (standard), 2.0 mm (3-step)
  • Lift Of The Presser Foot: By hand: 5.5 mm (0.22"), By knee: 10.0 mm (0.39")
  • Hook: DP hook (with titanium-treated inner hook)
  • Thread Takeup: Rotary type
  • Lubrication: Fully automatic
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Needle: 438 (Nm80)
  • Needle Position Changing Mechanism: Provided as standard
  • Reverse Feed Stitching Mechanism: Provided as standard
  • Needle Throw Pattern Cam: Grooved cam

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
