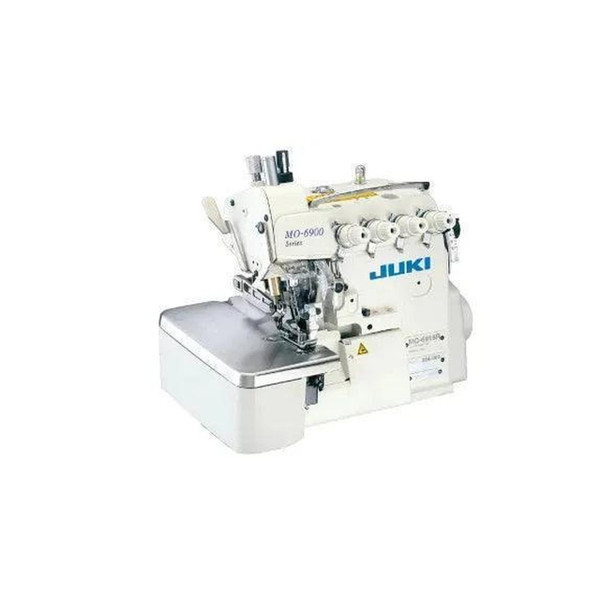

Juki MO-6904R-0H450M High Speed 1 Needle Overlock Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $8,146.00
$7,057.00
Save $1,089.00 per unit
SKU:
MO-6904R-0H450M
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MO-6904R-0H450M High Speed 1 Needle Overlock Machine Complete Unit with Table and Servo Motor

Market Price: $8,146.00
$7,057.00
Save $1,089.00 per unit

Juki MO-6904R-0H450M High Speed 1 Needle Overlock Machine Complete Unit with Table and Servo Motor

Market Price: $8,146.00
$7,057.00
Save $1,089.00 per unit

Juki MO-6904R-0H450M High Speed 1 Needle Overlock Machine Complete Unit with Table and Servo Motor

This high-speed single needle overlock machine from Juki's MO-6900R Series is engineered specifically for medium to heavy-weight materials and demanding runstitching applications. The machine features variable top-feed technology that ensures consistent fabric handling and precise stitch formation across challenging materials. With its 6.4 mm overedging width, it provides extended coverage for professional finishing work on thicker fabrics and demanding industrial applications. This robust overlock solution delivers the reliability and performance needed for high-volume production environments where consistent edge finishing is critical.

MACHINE SPECIFICATIONS:

  • Max Sewing Speed: 7,000 stitches per minute (sti/min) for a top feed dog stroke of 6mm (0.24") or less, 6,000 stitches per minute (sti/min) for a stroke of 6-8.5mm (0.33")
  • Lift Of The Presser Foot: Maximum 7 mm (0.28")
  • Needle: DC×27
  • Stitch Length: 0.8mm (0.03") to 4mm (0.16")
  • Overedging Width: 6.4mm (0.25")
  • Differential Feed Ratio: For gathering: Max. 1:4, For stretching: Max. 1:0.6
  • Needle Bar Stroke: 24.5mm (0.96")
  • Inclination Angle Of The Needle: 20°
  • Lubrication System: Automatic lubrication
  • Lubricating Oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Needle Cooler: Provided as standard
  • Needle Thread Heat Remover: Provided as standard
  • Microlifter: Provided as standard
  • Stitch Adjusting Method: By push-button
  • Bottom Differential Feed Adjusting Method: By lever with micro-adjustment
  • Top Differential Feed Adjusting Method: By lever with micro-adjustment
  • Weight Of The Machine Head: 29kg
  • Type Of Fabric: Capable of handling medium to heavy-weight materials
  • Power Requirement Power Consumption: Varies by specific model configuration

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
