Consew P1510RBL-25-(N) Single Needle Long Arm Walking Foot Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $6,310.00
$4,395.00
Save $1,915.00 per unit
SKU:
P1510RBL-25-(N)#
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew P1510RBL-25-(N) Single Needle Long Arm Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $6,310.00
$4,395.00
Save $1,915.00 per unit

Consew P1510RBL-25-(N) Single Needle Long Arm Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $6,310.00
$4,395.00
Save $1,915.00 per unit

Consew P1510RBL-25-(N) Single Needle Long Arm Walking Foot Sewing Machine with Table and Servo Motor

The P1510RBL-25-(N) with air footlift is a high-performance compound feed, walking foot sewing machine equipped with a large vertical-axis rotary hook. Designed for heavy-duty sewing tasks, it offers a spacious 25-inch workspace that is perfect for handling thick materials such as leather, canvas, and technical textiles. With its built-in safety clutch, smooth material feeding, and reinforced frame, this machine ensures reliability and durability in demanding industrial environments.

This Single Needle, Walking Foot, Long Arm, Lockstitch Machine, complete with an air footlift, is available in 14", 18", and 25" workspace configurations. Key features include a Large Top Load Bobbin, Vertical Axis Hook, Climbing Device, and Reverse Semi-automatic Lubrication. Note: The air footlift requires a CSM3002 or CSM4002 motor.

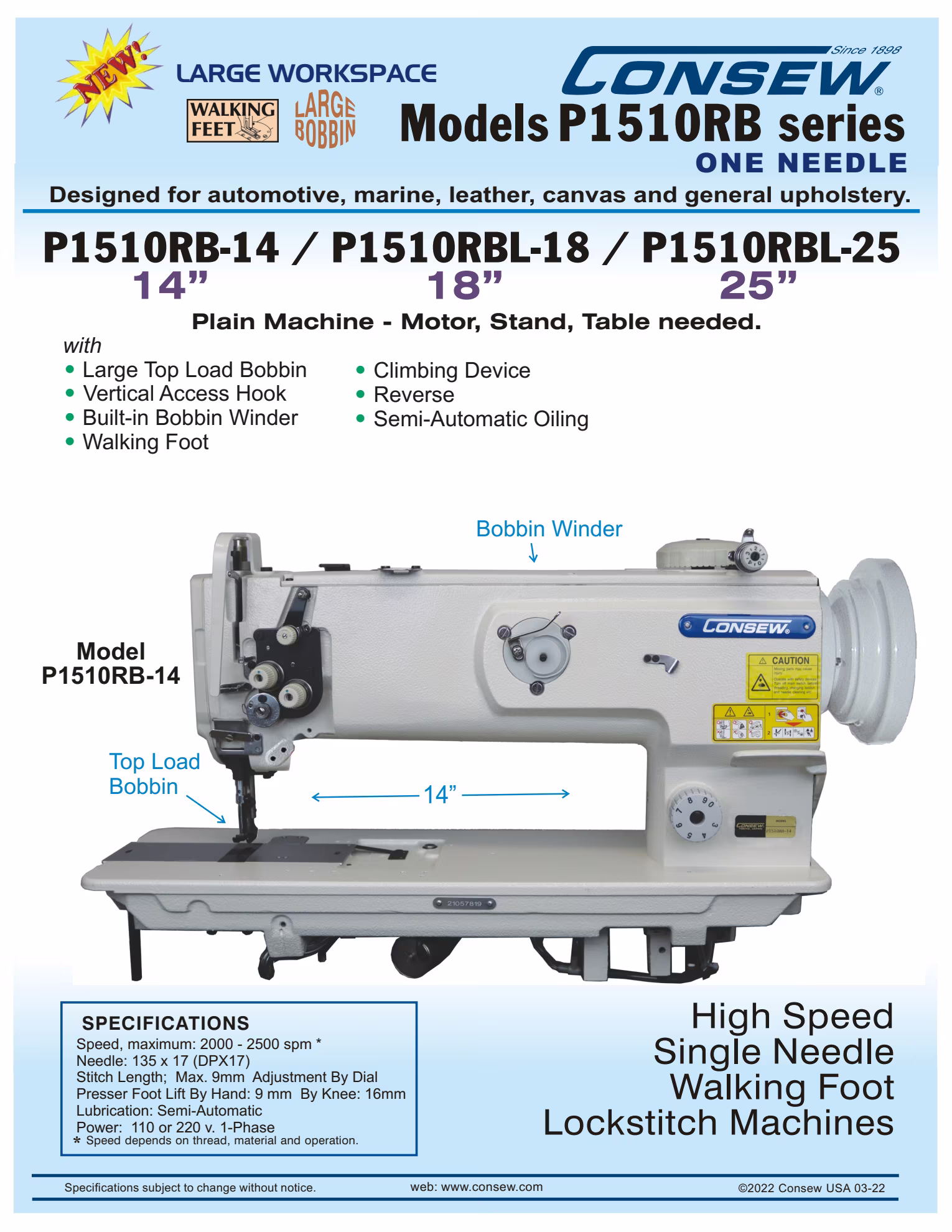

Consew P1510RBL-25-(N) Single Needle Long Arm Walking Foot Sewing Machine with Table and Servo Motor Brochure Page 1Consew P1510RBL-25-(N) Single Needle Long Arm Walking Foot Sewing Machine with Table and Servo Motor Brochure Page 2

MACHINE APPLICATIONS:

  • Designed for automotive, marine, leather, canvas, and general upholstery.
  • Suitable for sewing light to heavyweight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials.
  • Ideal for stitching products such as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.

MACHINE FEATURES:

  • Large Top Load Bobbin(s)
  • Vertical Axis Hook(s)
  • Built-in Bobbin Winder
  • Walking Foot
  • Reverse
  • Semi-Automatic Oiling

MACHINE SPECIFICATIONS:

  • Speed, maximum: 2000 - 2500 spm (*Speed depends on thread, material, and operation)
  • Clearance Under Foot: 9/16" (14mm)
  • Needle: 135 x 17 (DPX17)
  • Stitch Length; Max.: 9mm Adjustment By Dial
  • Presser Foot Lift By Hand: 9 mm / By Knee: 16mm
  • Lubrication: Semi-Automatic
  • Bobbin: U or S
  • Power: 110 / 220 vac

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
