Speedway SW-1906GH Electronic Direct Drive Bartacking Machine Complete Unit with Table and Stand

No reviews yet Write a Review
Market Price: $5,964.00
$5,719.00
Save $245.00 per unit
SKU:
SW-1906GH
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Speedway SW-1906GH Electronic Direct Drive Bartacking Machine Complete Unit with Table and Stand

Market Price: $5,964.00
$5,719.00
Save $245.00 per unit

Speedway SW-1906GH Electronic Direct Drive Bartacking Machine Complete Unit with Table and Stand

Market Price: $5,964.00
$5,719.00
Save $245.00 per unit

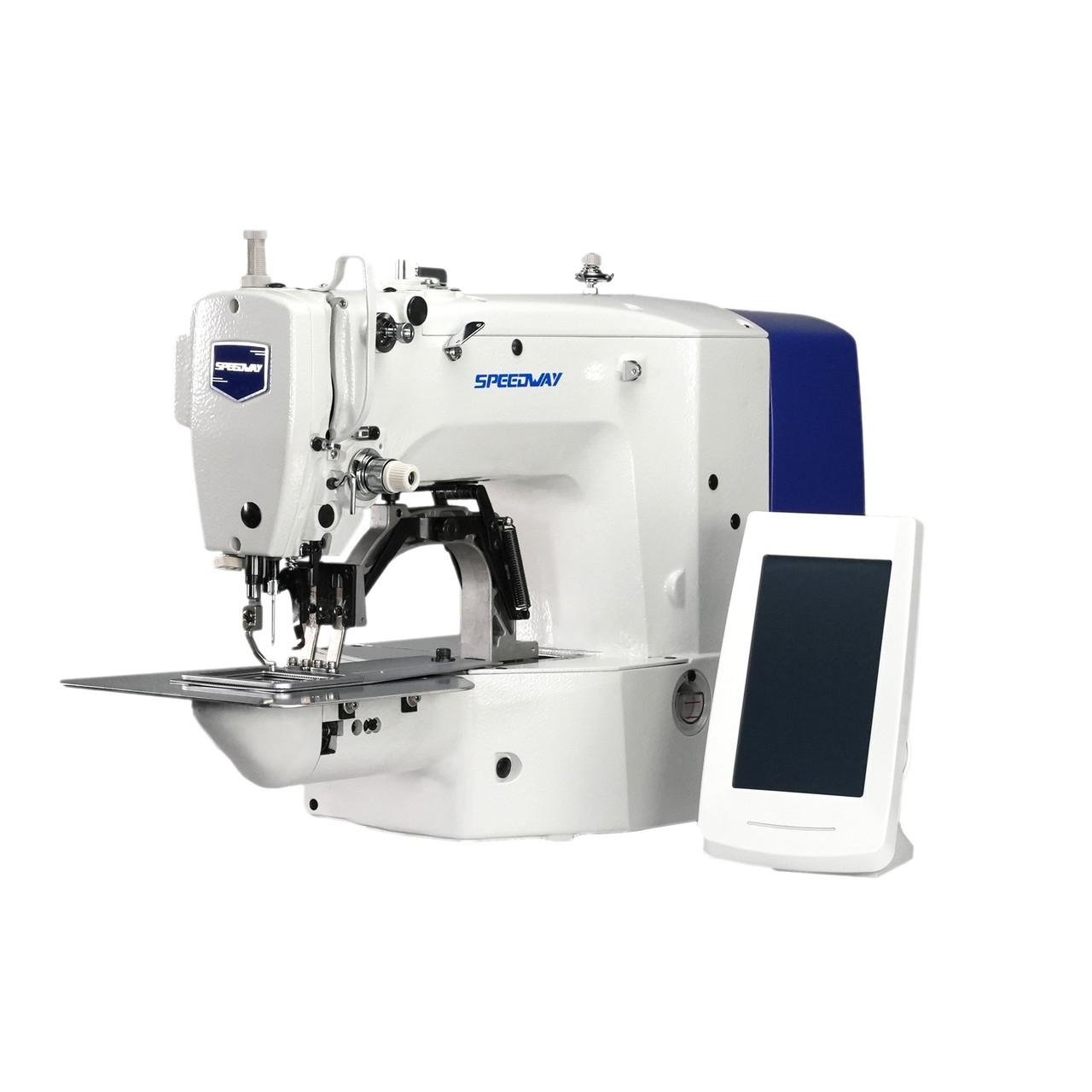

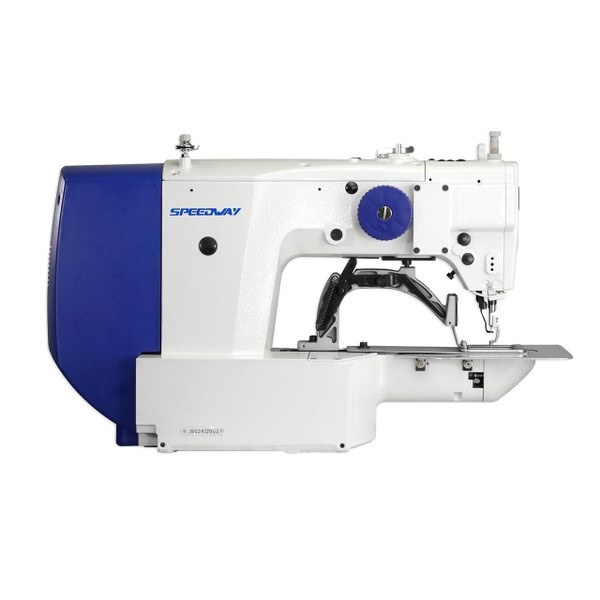

Speedway SW-1906GH Electronic Direct Drive Bartacking Machine Complete Unit with Table and Stand

This industrial electronic bartack machine is designed for high-volume production where fast, precise, and repeatable reinforcement stitches are essential. Its programmable touchscreen control makes it easy to create, store, and recall custom tack patterns, while the broad sewing field supports a wide range of bartack shapes for standard and custom applications. Built to handle medium to heavy-weight materials, it is well suited for reinforcing belt loops, pocket corners, flys, straps, handles, and other load-bearing points in garments, bags, and safety gear. Auto thread trimming helps streamline operation and improve efficiency in demanding sewing environments.

MACHINE APPLICATIONS:

  • Belt loops, pocket corners, and fly bartacks on denim and trousers
  • Workwear, uniforms, and tactical gear reinforcement points
  • Straps, handles, and attachment points on bags, packs, and luggage
  • Safety harnesses, webbing, and load-bearing assembly reinforcement
  • Any high-volume application requiring consistent, programmable tack patterns

MACHINE FEATURES:

  • Full-color touchscreen with on-board programming — easily create, store, and recall custom bartack patterns without external software
  • 60 × 50 mm programmable sewing field — wide pattern area accommodates standard and custom bartack shapes for diverse applications
  • 750W direct-drive servo motor — energy-efficient, low-noise operation with consistent torque across all speeds
  • Auto thread trimming — automatically cuts thread at the end of each pattern for faster cycle times and reduced operator handling
  • Up to 3,000 SPM — high-speed output suited for demanding production volume

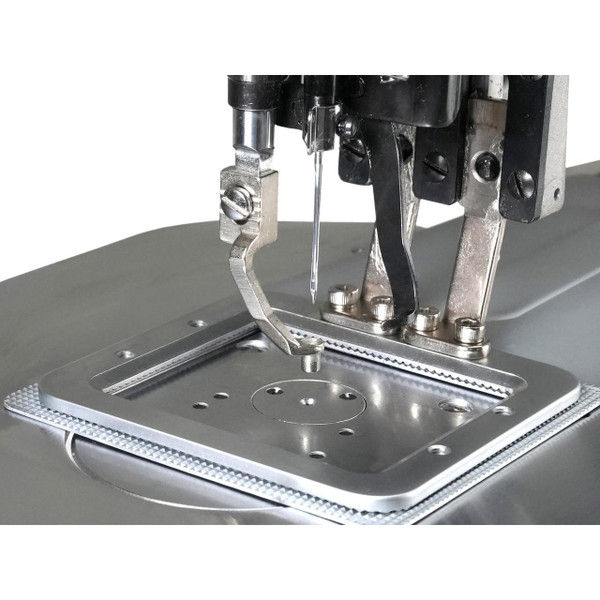

  • 20 mm presser foot lift — accommodates thick multi-layer materials and heavy substrates
  • Automatic lubrication system — ensures consistent machine performance and extended service life
  • 110V converter included free — compatible with North American single-phase electrical supply right out of the box

MACHINE SPECIFICATIONS:

  • Needle System: DPx17 (135×17), sizes #14–22
  • Motor: 750W direct-drive servo motor
  • Drive Type: Direct drive
  • Machine Type: Electronic bartack
  • Max Sewing Speed: 3,000 SPM
  • Sewing Field: 60 mm (X) × 50 mm (Y)
  • Stitch Length: 0.1–10 mm (0.39")
  • Presser Foot Lift: 20 mm (0.79")
  • Control Panel: Full-color touchscreen with on-board programming
  • Lubrication: Automatic
  • Power: 110V
  • Setup: Complete — table and stand included

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
