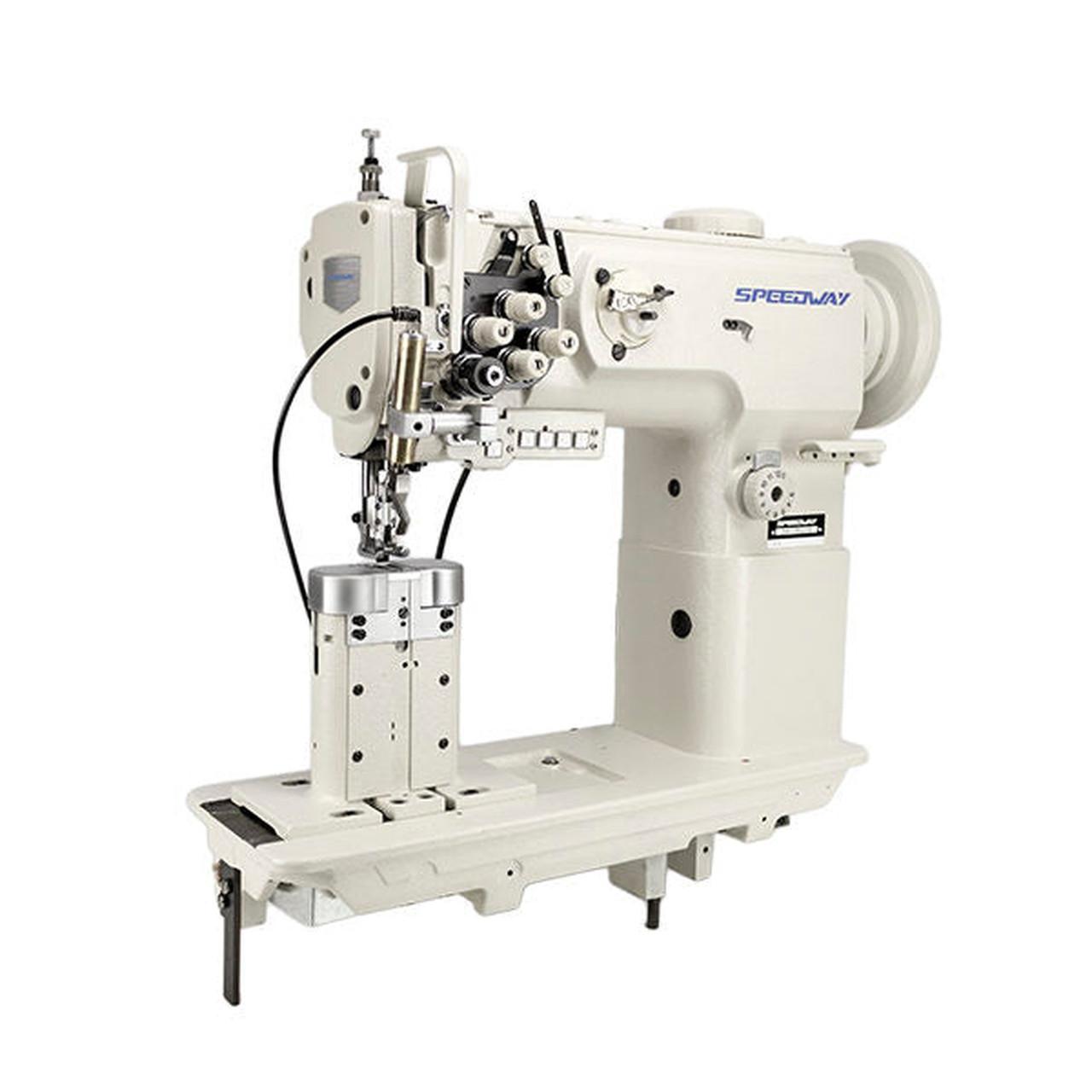

Speedway SW1760L-VS Double Needle Post Bed Heavy Duty Unison Feed Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $4,971.00
$4,766.00
Save $205.00 per unit
SKU:
SW1760L-VS
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Speedway SW1760L-VS Double Needle Post Bed Heavy Duty Unison Feed Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $4,971.00
$4,766.00
Save $205.00 per unit

Speedway SW1760L-VS Double Needle Post Bed Heavy Duty Unison Feed Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $4,971.00
$4,766.00
Save $205.00 per unit

Speedway SW1760L-VS Double Needle Post Bed Heavy Duty Unison Feed Walking Foot Sewing Machine Complete Unit with Table and Servo Motor

This industrial double needle post-bed machine features a specialized unison feed system that coordinates top, bottom, and needle feed mechanisms to ensure even material advancement through thick, challenging layers. The post-bed design provides exceptional access for sewing cylindrical and tubular workpieces, making it ideal for applications that require precision stitching in hard-to-reach areas. Enhanced with pneumatic foot lift capabilities and variable speed control, this heavy-duty machine delivers consistent performance on demanding materials including leather, canvas, vinyl, and industrial upholstery fabrics. The walking foot technology and robust construction make it particularly well-suited for high-volume production environments where reliability and stitch quality are paramount.

MACHINE APPLICATIONS:

  • Double needle post-bed heavy-duty lockstitch machine
  • Unison feed walking foot – bottom, needle and top feed working together for stable feeding
  • Pneumatic presser foot lift – easier, faster lifting of the foot for thick or multi-layer pieces
  • VS (Vertical Stroke) system controlled pneumatically via knee lifter – quick adjustment of walking foot stroke when changing material thicknesses
  • Designed for medium to heavy materials such as leather, vinyl, upholstery and coated fabrics
  • Produces two parallel rows of stitching in a single pass for decorative and structural seams
  • Built for continuous industrial use in leather, footwear, bag and upholstery shops

MACHINE FEATURES:

  • Double needle post-bed design for sewing cylindrical, tubular, and hard-to-reach workpieces
  • Unison feed (walking foot) system — top, bottom, and needle feed work together for even material advancement on thick layers
  • Pneumatic foot lift for hands-free presser foot lifting, reducing operator fatigue in high-volume production
  • Variable speed (VS) system for precise sewing speed control and consistent stitch quality
  • Heavy-duty construction built for leather, canvas, upholstery, and industrial textiles
  • 750W servo motor for powerful, energy-efficient operation

MACHINE SPECIFICATIONS:

  • Needle System: DPx17, Size #16–#21
  • Machine Type: Double Needle Post-Bed Walking Foot
  • Motor: 750W Variable Speed Servo Motor
  • Drive Type: Belt Driven
  • Foot Lift: Pneumatic

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
