SWF KX-T1502D PRO Series Double Head 15-Needle Embroidery Machine

No reviews yet Write a Review
Market Price: $35,600.00
$34,900.00
Save $700.00 per unit
SKU:
KX-T1502D
Condition:
New
Availability:
Ships in 4 to 7 business days.
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

SWF KX-T1502D PRO Series Double Head 15-Needle Embroidery Machine

Market Price: $35,600.00
$34,900.00
Save $700.00 per unit

SWF KX-T1502D PRO Series Double Head 15-Needle Embroidery Machine

Market Price: $35,600.00
$34,900.00
Save $700.00 per unit

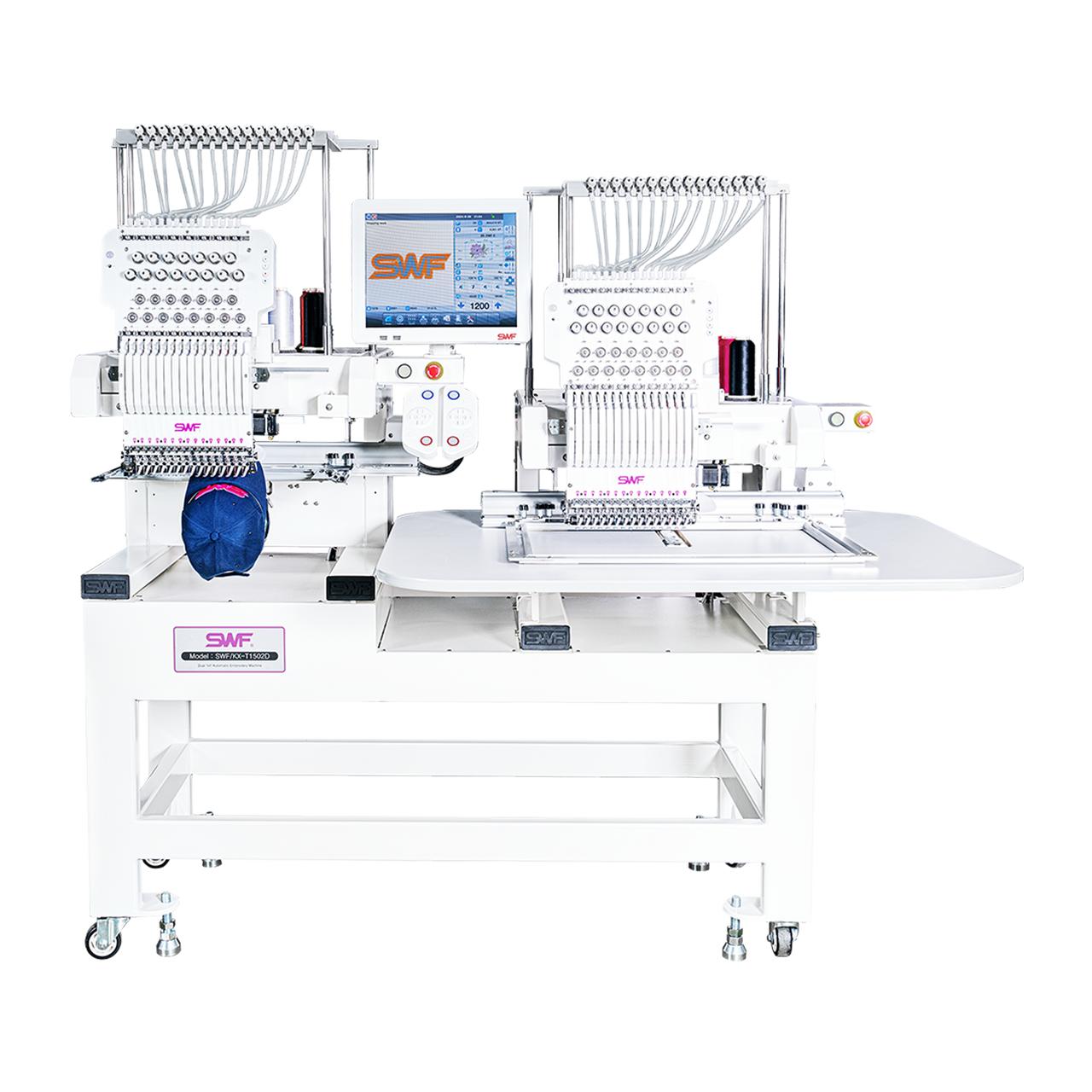

SWF KX-T1502D Dual Head 15-Needle Commercial Embroidery Machine

The SWF KX-T1502D, part of the innovative KX series, is a dual-head, 15-needle commercial embroidery machine designed to revolutionize high-volume embroidery for professional studios and growing businesses. Engineered for precision, versatility, and efficiency, it delivers premium stitch quality at speeds up to 1,200 stitches per minute (SPM). With SWF’s exclusive Dual-Function Technology, this machine can embroider two different designs simultaneously, maximizing productivity while maintaining exceptional quality. Ideal for scaling production or handling diverse orders, the KX-T1502D is perfect for caps, apparel, and large-scale projects.

Featuring the Smart Tension System (S.T.S), the KX-T1502D automatically adjusts thread tension based on stitch type and speed, ensuring consistent results with minimal manual effort. The Smart Action Presser Foot (S.A.P) adapts to fabric thickness for flawless embroidery, while the redesigned slim cylinder arm enhances precision on small items like pockets and caps. The 15.1" full-color touchscreen LCD panel offers intuitive control, and optional WiFi connectivity streamlines design transfers. Backed by a robust warranty, the KX-T1502D is a reliable, high-value investment for businesses seeking to elevate their embroidery operations.

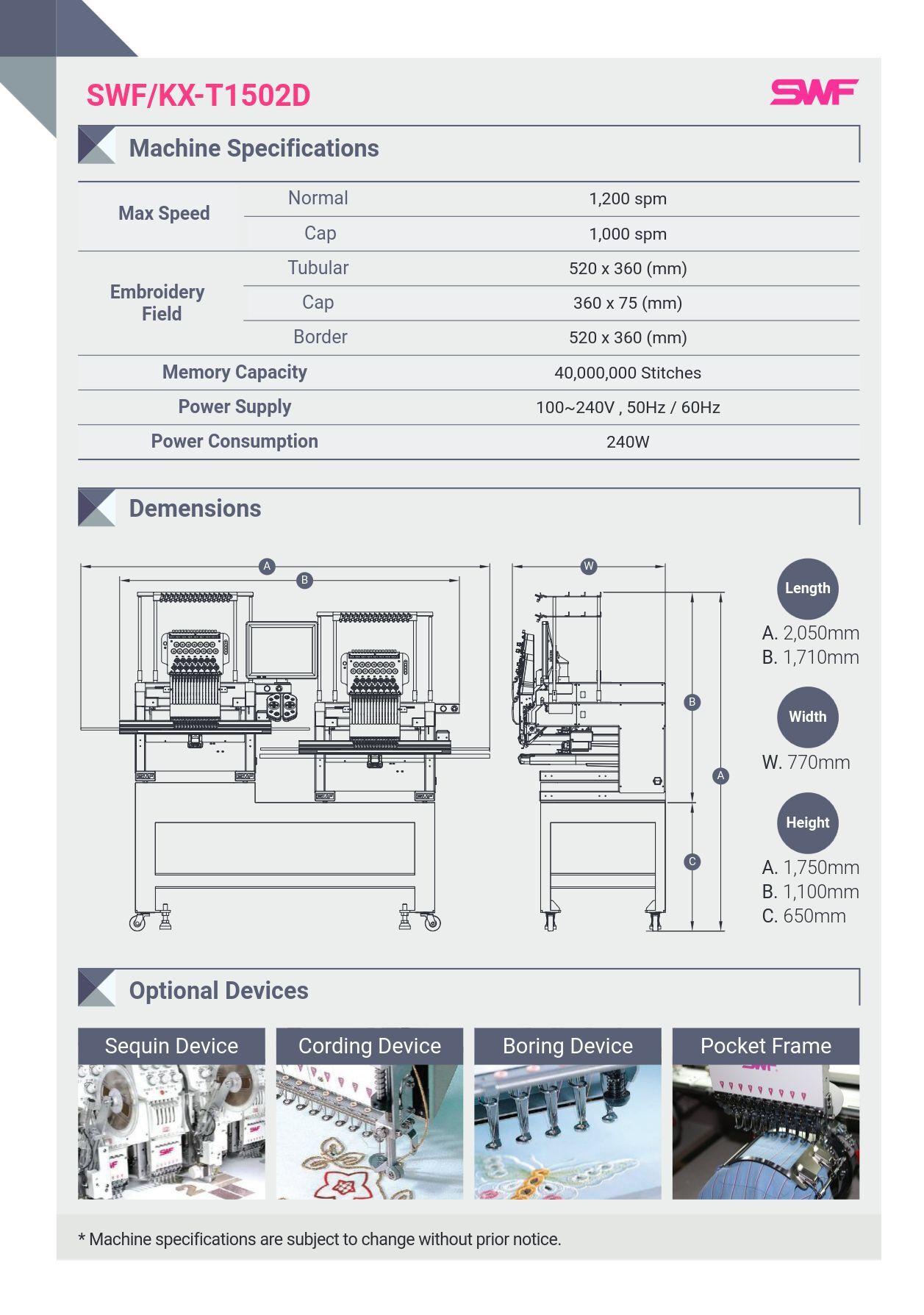

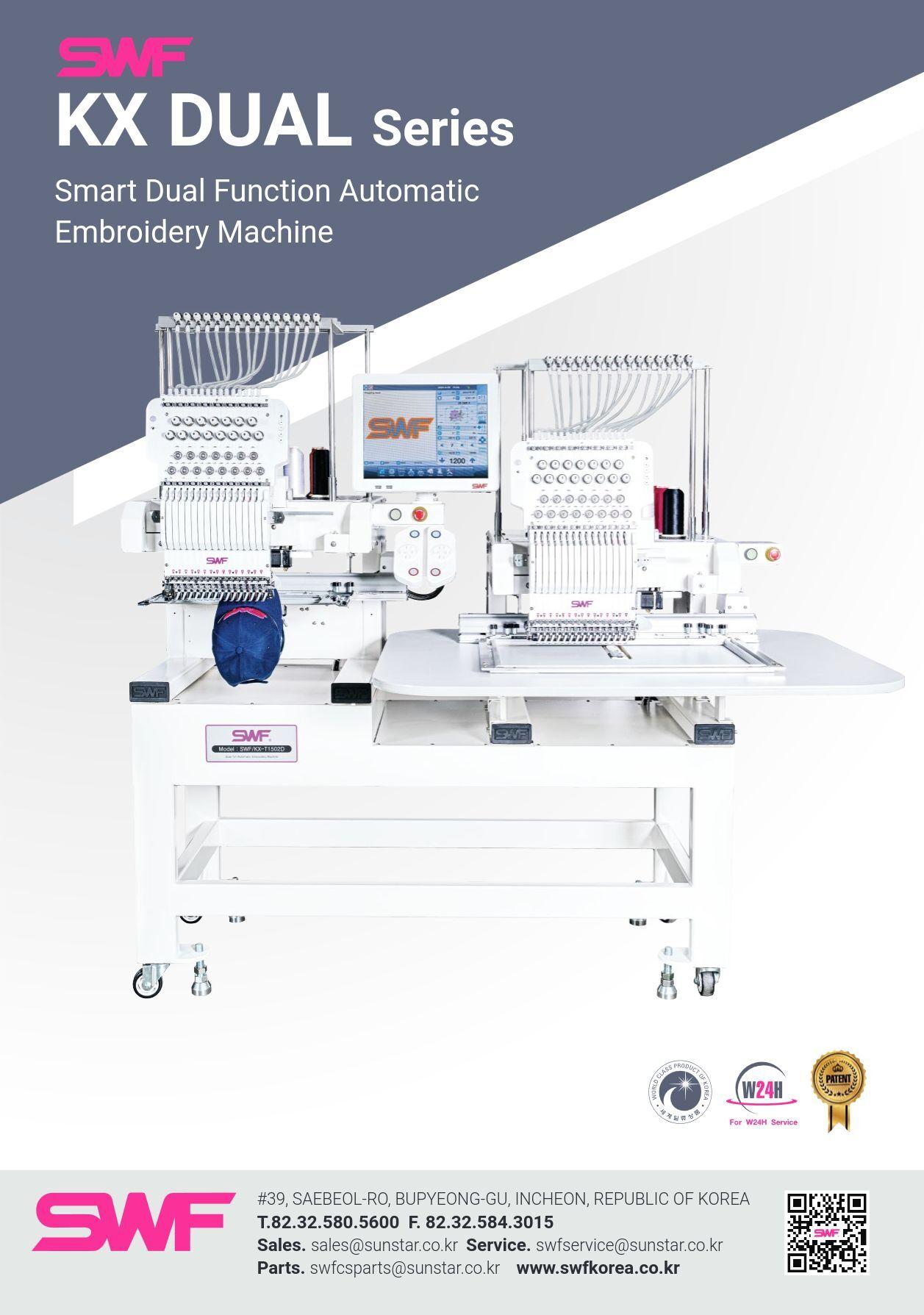

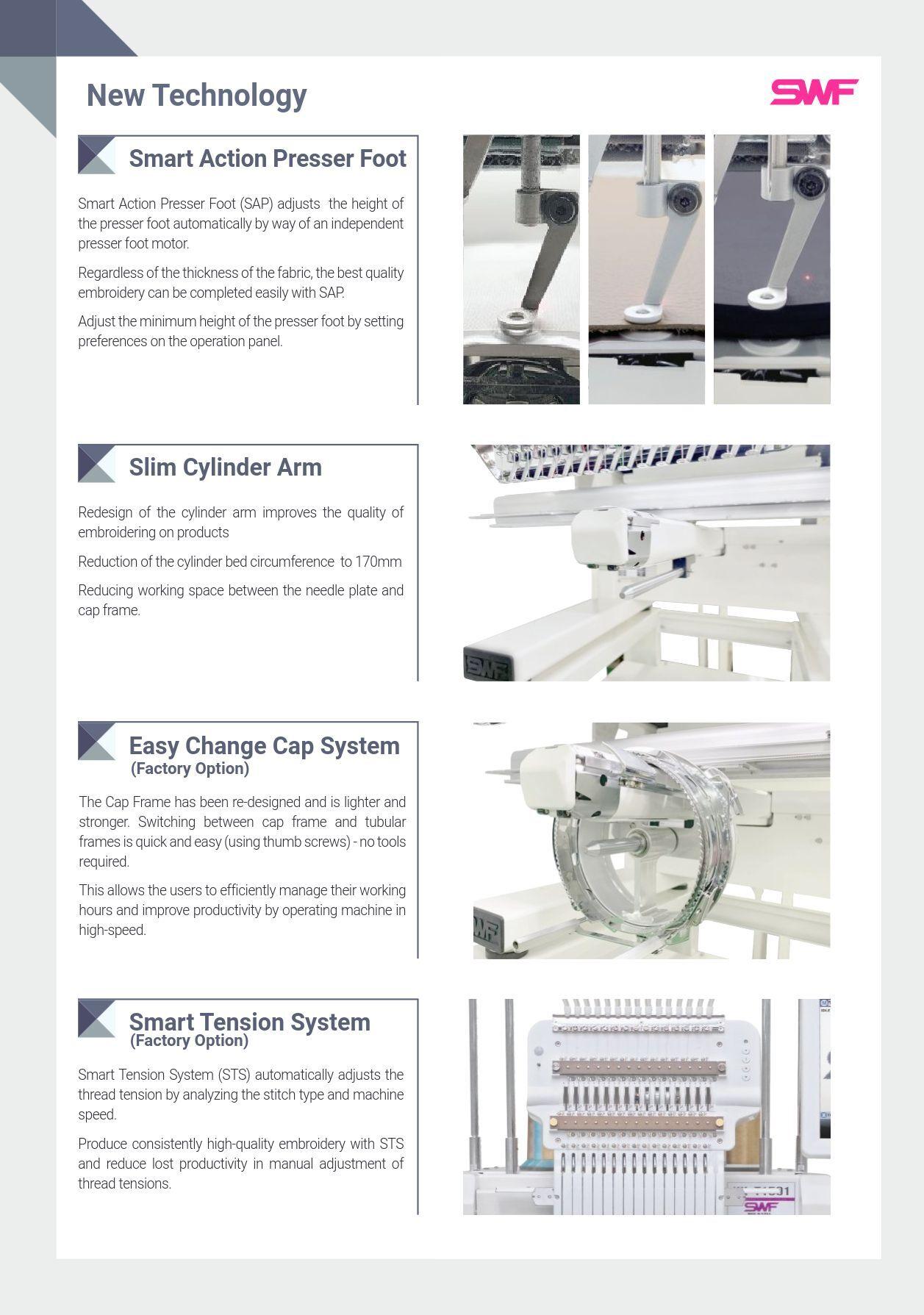

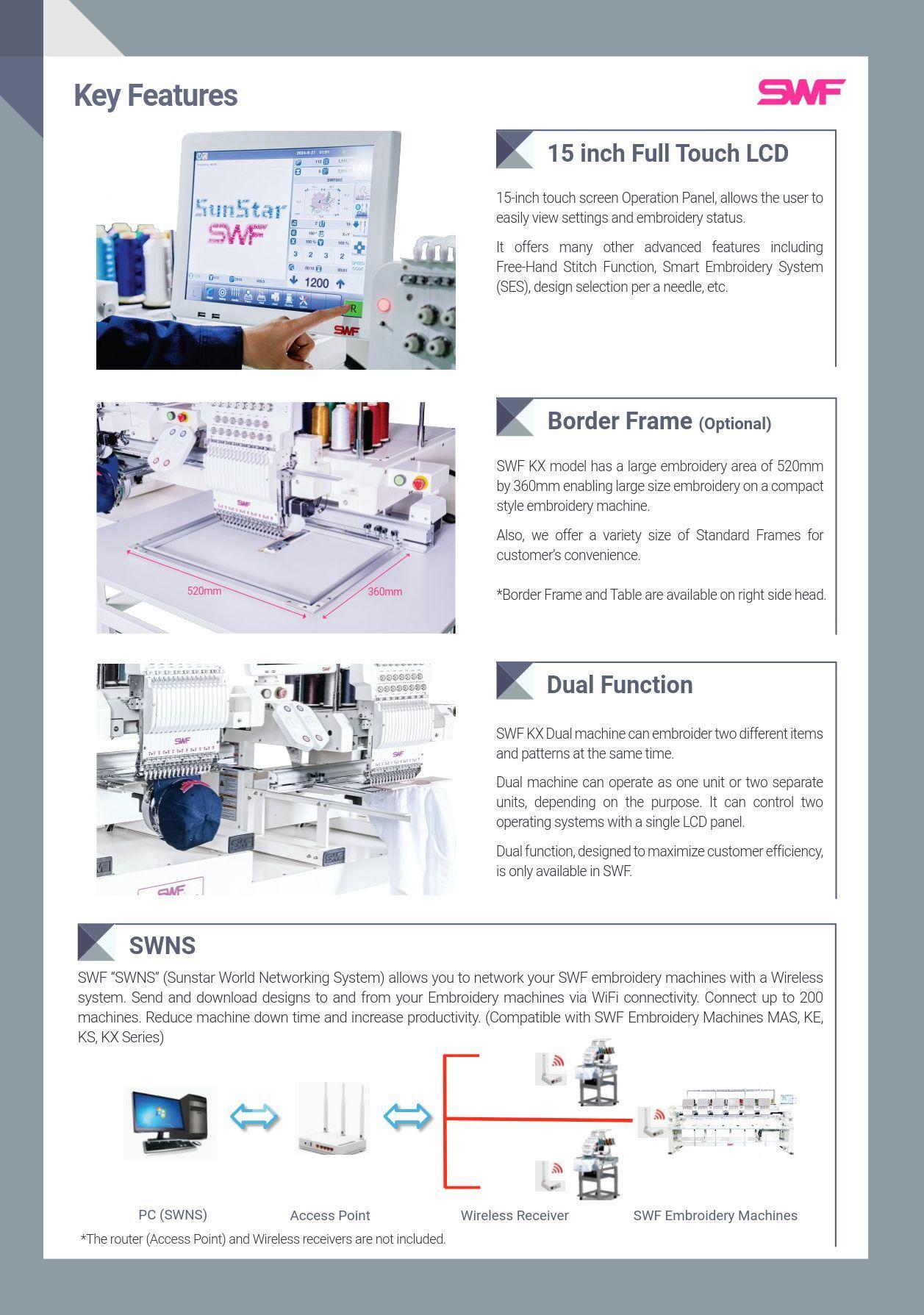

SWF KX-T1502D Dual Head 15-Needle Commercial Embroidery Machine Brochure page 1SWF KX-T1502D Dual Head 15-Needle Commercial Embroidery Machine Brochure page 2SWF KX-T1502D Dual Head 15-Needle Commercial Embroidery Machine Brochure page 3SWF KX-T1502D Dual Head 15-Needle Commercial Embroidery Machine Brochure page 4

Key Features

  • Dual-Function Technology: Embroider two different designs or garments simultaneously, or operate as two independent single-head machines.
  • Smart Tension System (S.T.S): Auto-adjusts thread tension for consistent, high-quality embroidery across stitch types.
  • Smart Action Presser Foot (S.A.P): Automatically adjusts to fabric thickness for precise stitching on diverse materials.
  • Slim Cylinder Arm: Enhances embroidery on small items like sleeves, pockets, and structured caps.
  • 15.1" Full-Color Touchscreen LCD Panel: Intuitive interface for easy monitoring and operation.

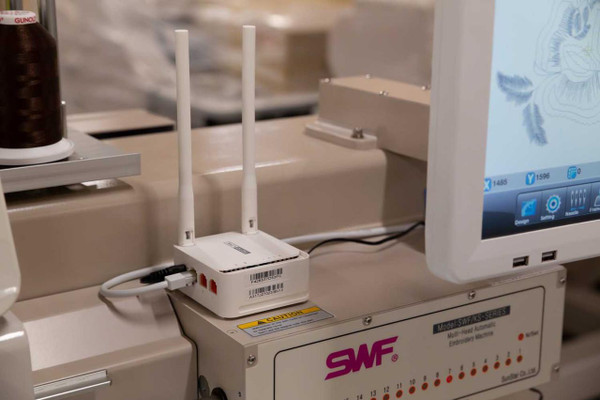

  • WiFi Connectivity (Optional): Wirelessly transfer designs for seamless workflow.
  • Quick Change Cap System: Tool-less transitions between caps and hoops for maximum efficiency.
  • Auto Lubrication System: Reduces maintenance with pump-driven oiling.
  • Large Design Memory: Stores up to 490 million stitches for extensive design capacity.
  • High Productivity: Operates at up to 1,200 SPM for fast, efficient output.
  • Thread Break Detection: Minimizes waste by detecting and addressing thread breaks.

Technical Specifications

  • Brand & Model: SWF KX-T1502D
  • Number of Heads: 2
  • Number of Needles: 15 per head
  • Flat Sewing Field: 20.47” x 14.17” (520 x 360 mm)
  • Cap Sewing Field: 14.17” x 2.95” (360 x 75 mm)
  • Max Speed: 1,200 SPM
  • Stitch Length: 0.1 ~ 12.7 mm
  • Design Memory: 490 million stitches
  • Memory Media: USB
  • Operation Panel: 15.1" Full-Color LCD Touchscreen
  • Machine Dimensions (LxWxH): 86” x 44” x 73” (2,184 x 1,118 x 1,854 mm)
  • Power: 110V, 50/60Hz
  • Power Consumption: 400W
  • Motors: Main: BLDC Motor x 2, X-Y: Pulse Motor x 4
  • Bobbin Winder: Standard
  • Hook: Standard Hook

Included Accessories

  • Quick Change Cap Frame Set:
    • Cap Frames (2 pieces per head)
    • Cap Frame Drivers (4 pieces)
    • Cap Frame Holder (1 piece)
  • Tubular Round Frame (2 pieces per head):
    • TRF 12 (4.25")
    • TRF 15 (5.4")
    • TRF 18 (6.6")
  • Tubular Square Frame (2 pieces per head):
    • TSF-30x30 cm (12.3" x 12.3")
    • TSF-32x44 cm (12.5" x 17.1")
  • Tool/Parts Kit: Included
  • Manuals: Included

Additional Options

  • Delivery & Installation: Professional setup services available.
  • On-Site Training: Hands-on instruction to maximize machine potential.
  • Payment Plans: Flexible financing options to suit your budget.

Why Choose the SWF KX-T1502D?

The SWF KX-T1502D is a game-changer for businesses seeking to scale production or diversify orders. Its Dual-Function Technology allows simultaneous embroidery of different designs, boosting efficiency by 20-25% compared to single-head machines. The expansive 20.47” x 14.17” flat sewing field accommodates large projects, while the slim cylinder arm excels on caps and small items. Smart features like S.T.S and S.A.P ensure consistent quality with minimal effort, and the robust build guarantees lasting performance. Whether you’re handling high-volume orders or custom designs, the KX-T1502D delivers unmatched versatility, precision, and value.
