Jack A2B-C Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Undertrimmer Complete with Table and Stand

No reviews yet Write a Review
Market Price: $1,420.00
$1,395.00
$1,199.00
Save $221.00 per unit
SKU:
JK-A2B-C
Condition:
New
Availability:
In stock. Ships in 1 to 3 business days.
Shipping:
Bulk Pricing:
Quantity-Based Pricing
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack A2B-C Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Undertrimmer Complete with Table and Stand

Market Price: $1,420.00
$1,395.00
$1,199.00
Save $221.00 per unit

Jack A2B-C Single Needle Direct Drive Lockstitch Industrial Sewing Machine with Undertrimmer Complete with Table and Stand

Market Price: $1,420.00
$1,395.00
$1,199.00
Save $221.00 per unit

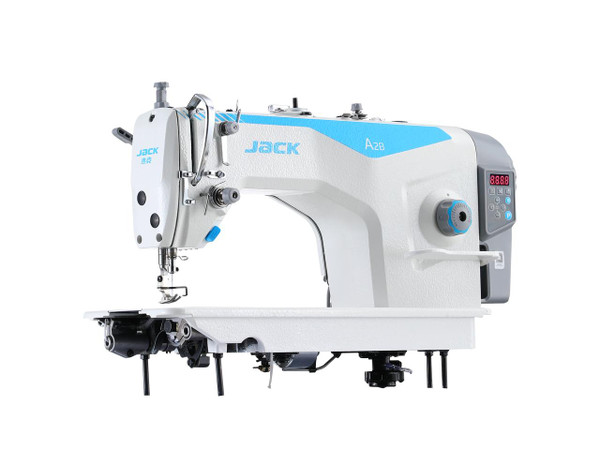

Jack A2B-C High Speed Single Needle Drop Feed Automatic Thread Trimming Lockstitch Industrial Sewing Machine Comes Complete with Heavy Duty Table, Stand, and Built-In Direct Drive Motor

This machine cuts the thread automatically. Comes with Auto-Trimming Mechanism!

New generation of lockstitch sewing machine, with automatic thread trimmer and manual bartack lever. Detached oil pan and integrated motor. The thread trimmer improves 30% of productivity such as speed and thread length. Multifunction panel with quick keys to activate or deactivate functions.

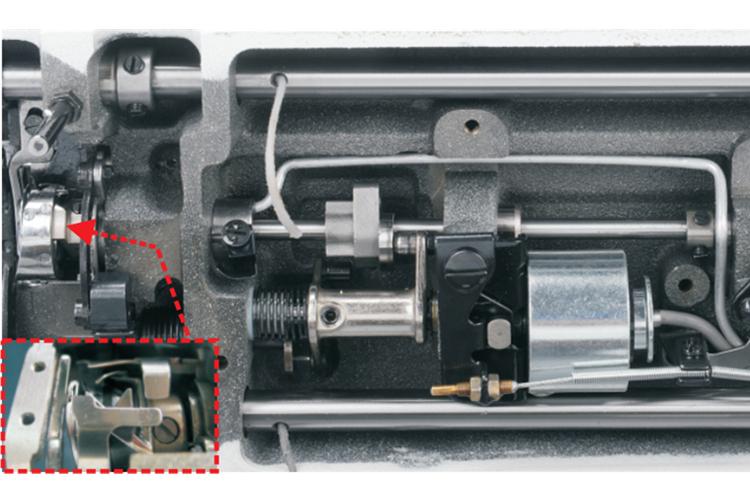

Automatic Thread Trimmer

At the end of the seam it is possible to activate the automatic thread cutting function which activates a knife with the simple heel counter of the pedal.

Increase Productivity

Thanks to the automatic thread trimmer, efficiency is increased by 30%, thus increasing production capacity and ensuring faster delivery of works.

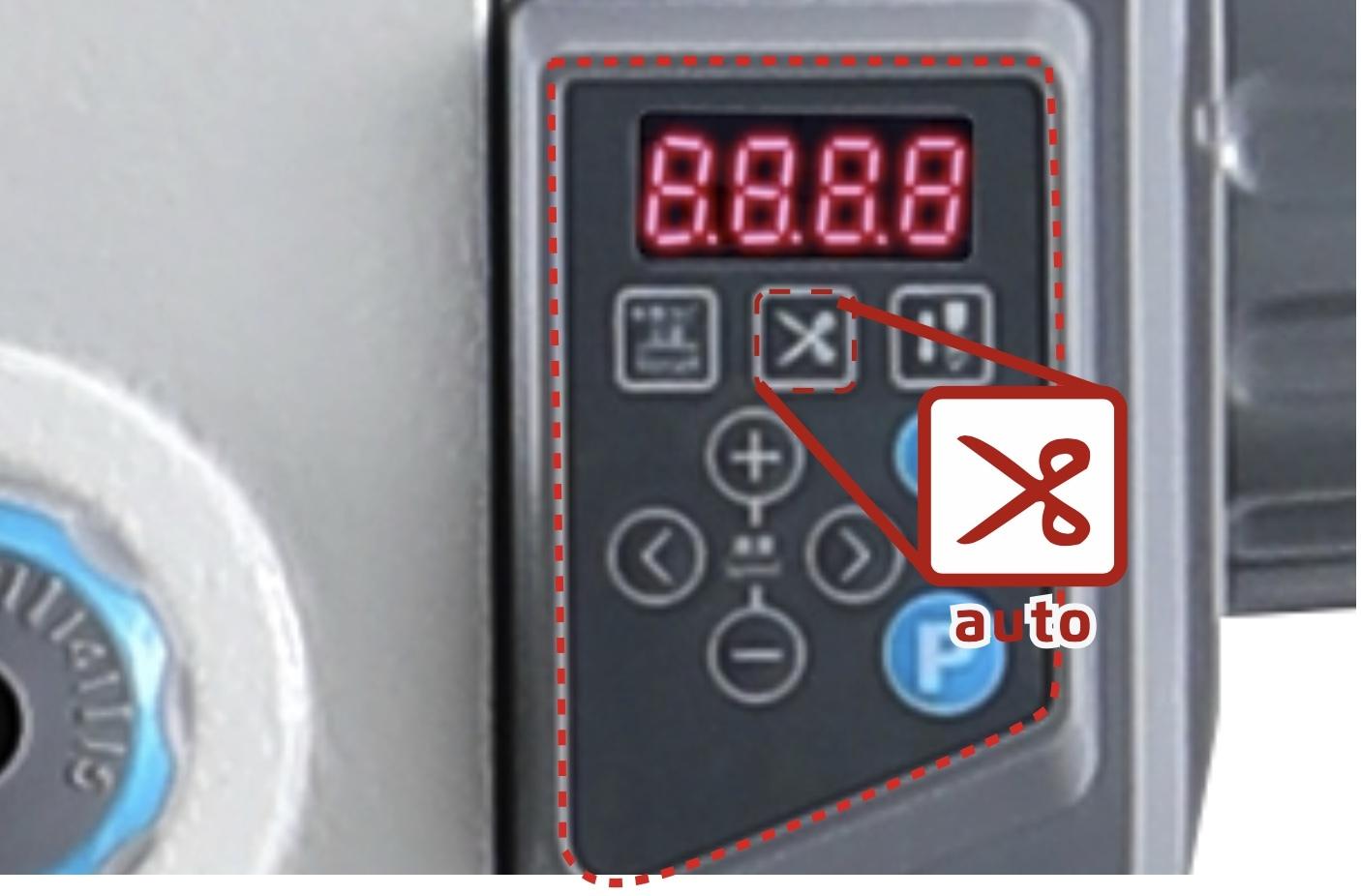

Computerized Integreated Panel

Quickly activate functions such as automatic cutting without any mechanical adjustment, or select needle up / needle down at the end of the seam with a click. On the head there is also the stitch to stitch button.

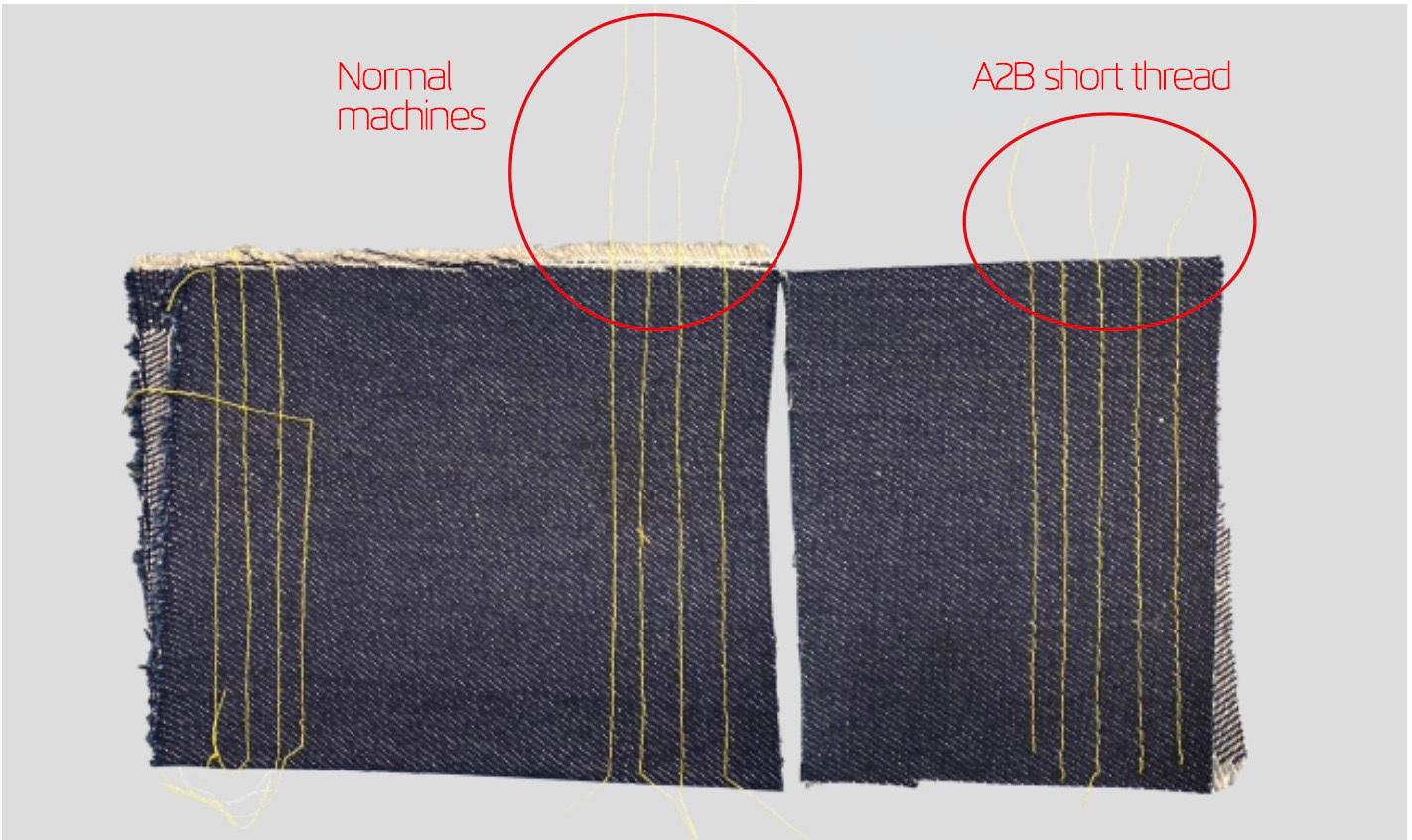

Save Thread

On a normal machine without thread trimmer, you have to cut it by hand leaving the tail of the thread about 7cm long. With A2B the remainder is only 4 cm ... almost half!

For Light And Heavy Fabric

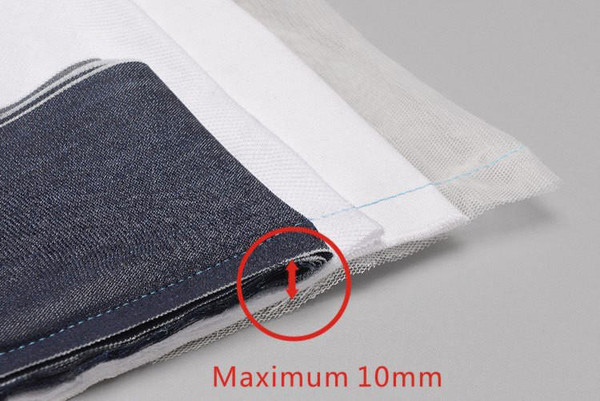

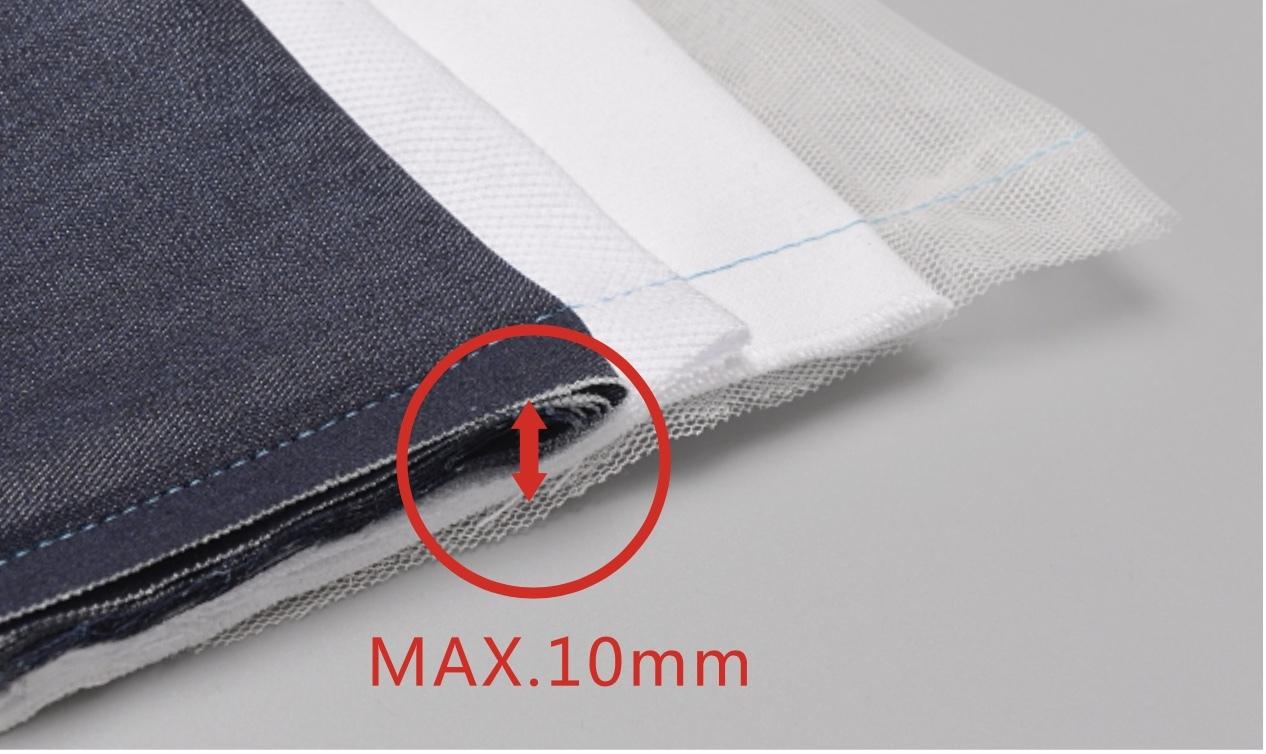

Expand the range of applications: this machine is suitable for various types of fabrics, such as shirts and jeans. The maximum recommended thickness is 10mm.

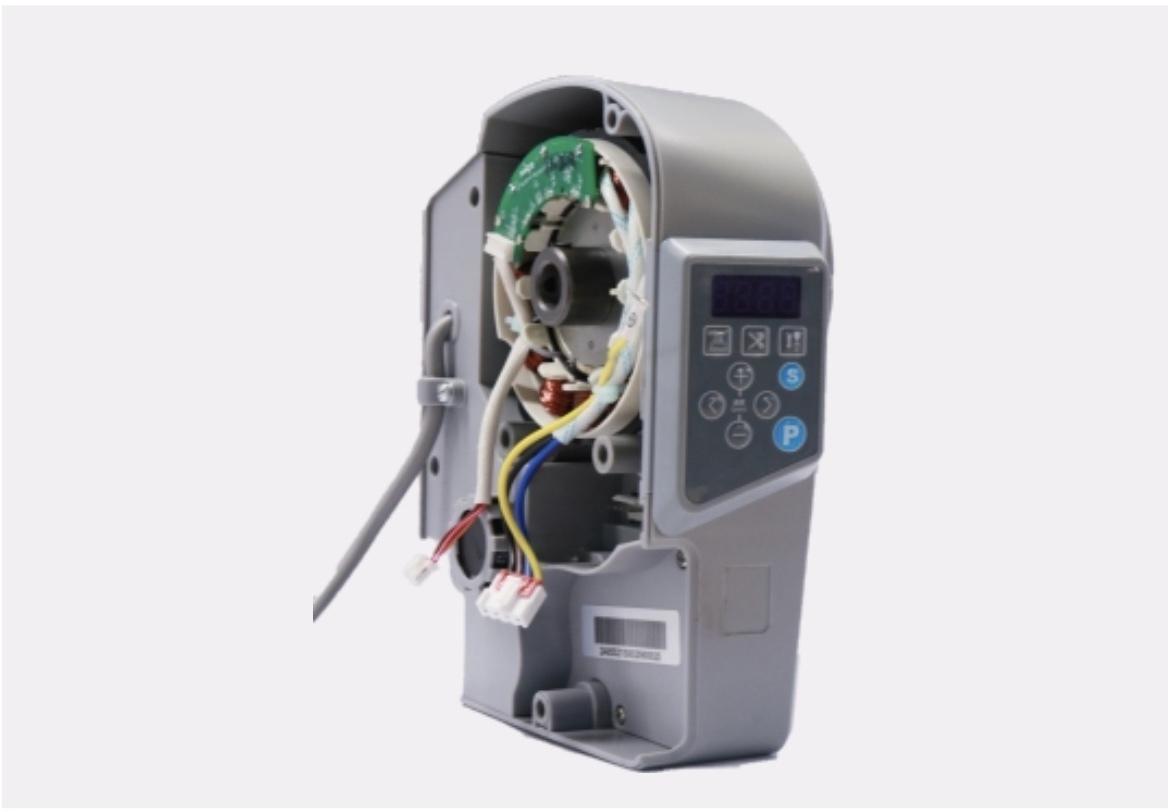

Integreated Motor And Control Box

The eco servo motor integrated into the machine head allows you to save 71% of energy. Compared with normal lockstitch machines, every year it saves 446kw / h. The control box is also integrated, making the installation of the machine quick and easy.

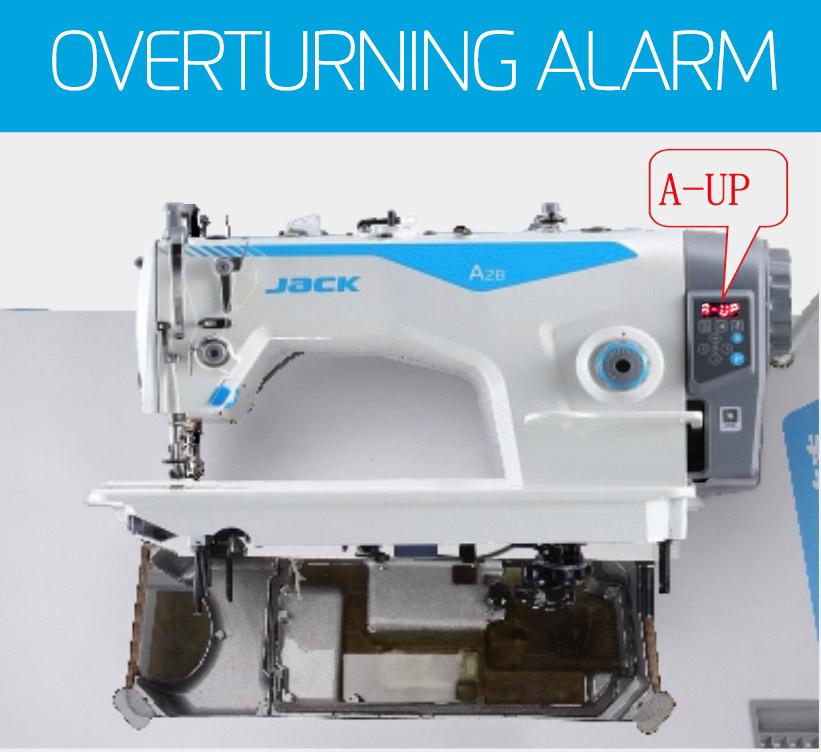

Safety First

The machine has an anti-overturning alarm that blocks its functions when it is overturned to ensure maximum safety for the technician or operator.

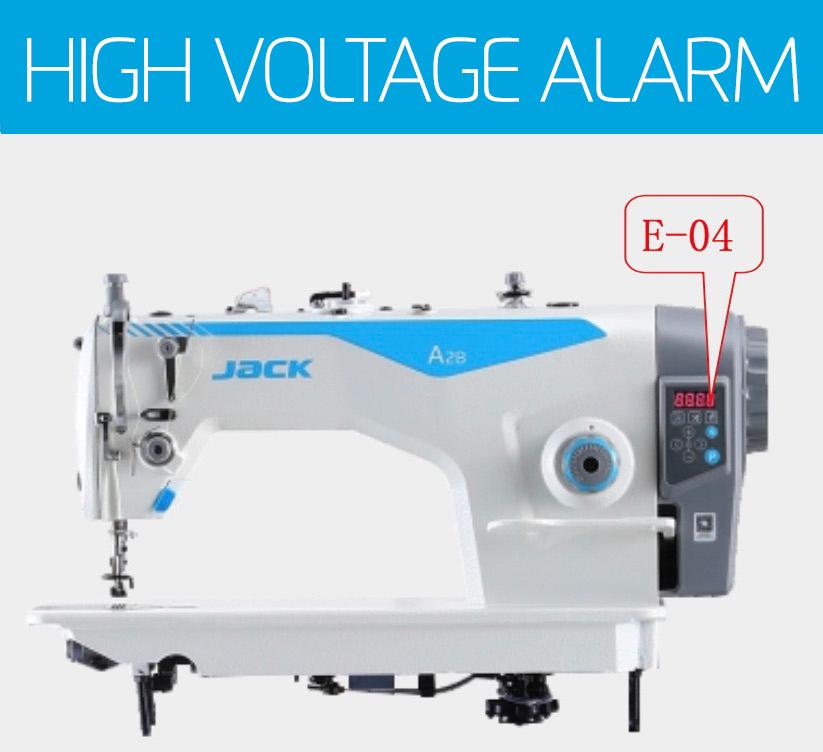

High Voltage Protection

Unstable current? Don't be afraid to damage the machine. The voltage protector will monitor the range of the incoming current.

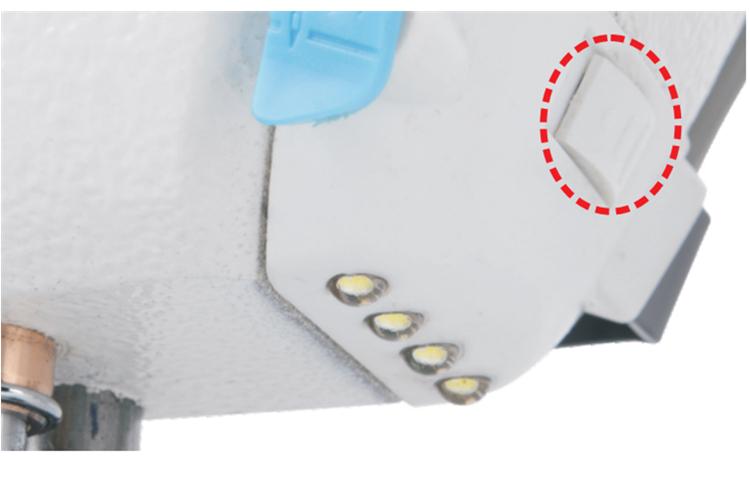

LED Light

3 levels of intensity, offers omnidirectional brightness, reduce eyestrain.

Integrated Bobbin Winder

Wind the bobbin while you are working, as soon as it finishes you will have the next one ready.

Stitch 2 Stitch

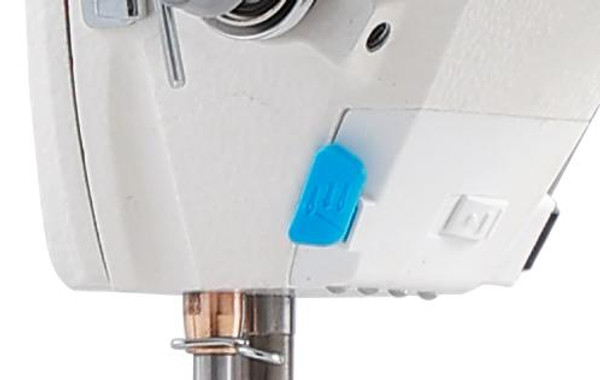

Thanks to the stitch-to-stitch button located within easy reach on the machine head, even the most difficult stitches can be sewn with precision

MACHINE APPLICATIONS:

  • For sewing light to heavy-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
  • Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
  • Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar

MACHINE FEATURES:

  • Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
  • Noise and vibration absorbing table mounting
  • Treadle controlled foot lifter
  • Automatic reverse
  • Auto-lubrication rotary hook
  • Under bed thread trimmer
  • Electric thread clamp (holds thread after thread trim)
  • Needle positioning
  • Electric foot lift
  • Stitch counter
  • Built-in bobbin winder
  • Built -in LED light with level settings and on/off switch
  • Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)
  • 5,000-RPM high-speed operation
  • Automatic lubrication with pump
  • Instruction / parts manual included
  • Tool kit, drawer, thread stand included
  • Individually tested and sewn-off before shipping

MACHINE SPECIFICATIONS:

  • Model: A2B-C
  • Needle System: DB×1 11-18#
  • Applications: Suitable for sewing all kinds of small orders and quick reorders fabrics
  • Use for: Heavy, Light, Elastic
  • Maximum Stitch Length: 5mm
  • Presser Foot Height: 5mm to 13mm
  • Operating Space: 10"
  • Maximum Speed: 5000 Stitches Per Minute (SPM/RPM)

DOWNLOADS:

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
