Jack A5E-A Single Needle Direct Drive Fully Automatic Drop Feed Lockstitch Industrial Sewing Machine

No reviews yet Write a Review
Market Price: $1,907.00
$1,691.00
Save $216.00 per unit
SKU:
JK-A5E-A
Condition:
New
Availability:
Ships in 1 to 3 business days.
Shipping:
Bulk Pricing:
Quantity-Based Pricing
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack A5E-A Single Needle Direct Drive Fully Automatic Drop Feed Lockstitch Industrial Sewing Machine

Market Price: $1,907.00
$1,691.00
Save $216.00 per unit

Jack A5E-A Single Needle Direct Drive Fully Automatic Drop Feed Lockstitch Industrial Sewing Machine

Market Price: $1,907.00
$1,691.00
Save $216.00 per unit

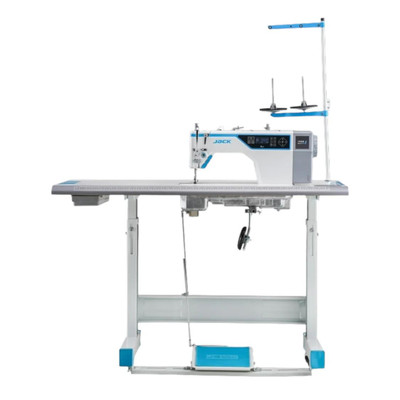

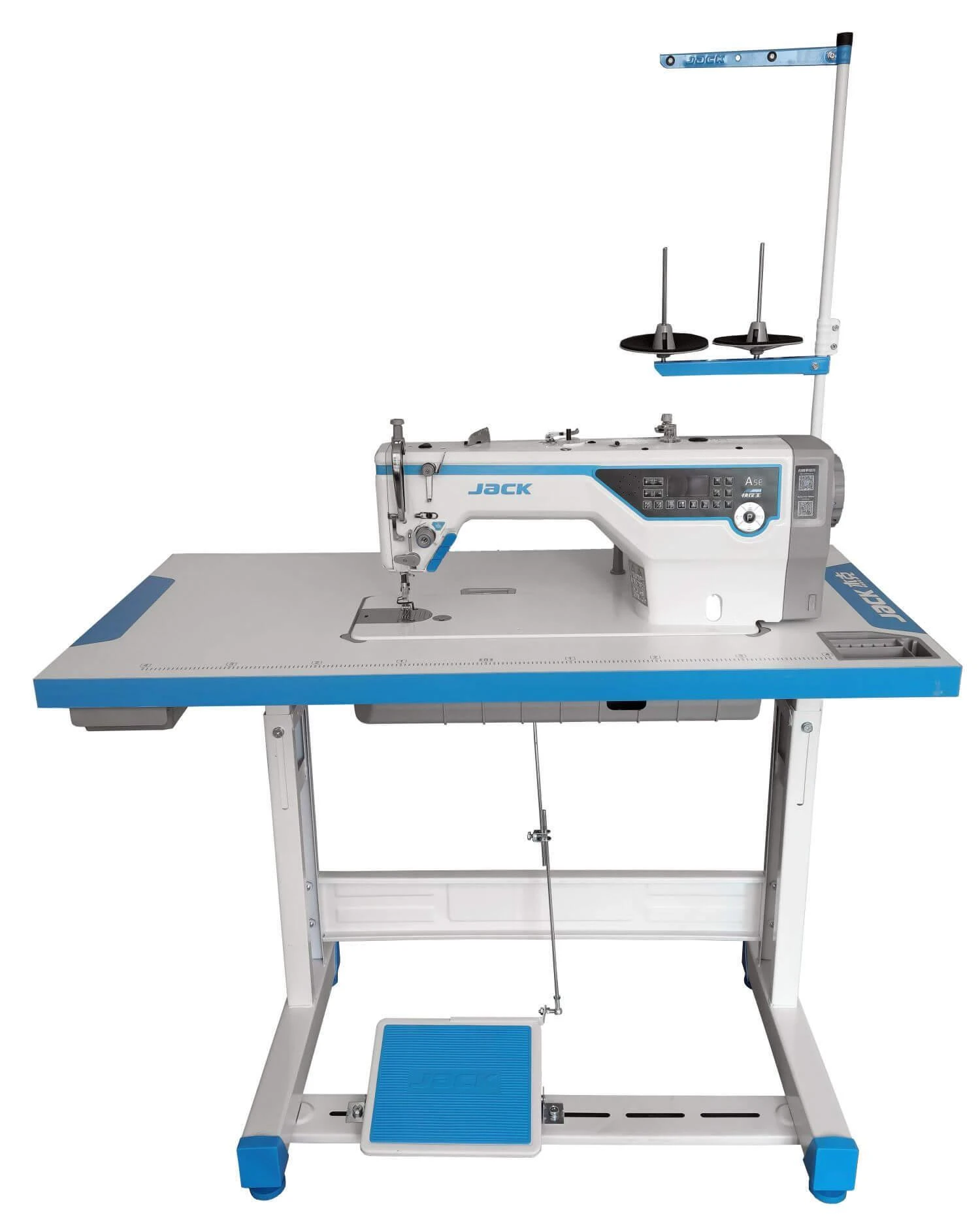

Jack A5E-A Single Needle 12 Inch Arm Direct Drive Fully Automatic Drop Feed Lockstitch Industrial Sewing Machine Comes Complete With Table & Legs

Jack's Flagship Sewing Machine! Two Inches Longer Arm compared to conventional sewing machines!

With: Automatic Reverse (backtacking)  •  Auto-lubrication  •  Rotary Hook  •  Needle Positioning  •  Under Bed Thread Trimmer  •  Electric Thread Clamp (holds thread qfter thread trim)  •  Electric Foot Lift   •   Stitch Counter  •  Built-in Bobbin Winder  •  Built-in, Direct Drive, 3/4hp, 550 Watt Motor

Lockstitch machine with Artificial intelligence chip Auto Tissue Adaptive System; it senses fabric changes in real time and communicates them to the new powerful motor capable of punching up to 100 sheets of A4 paper thanks to the 15% increase in torque and power.

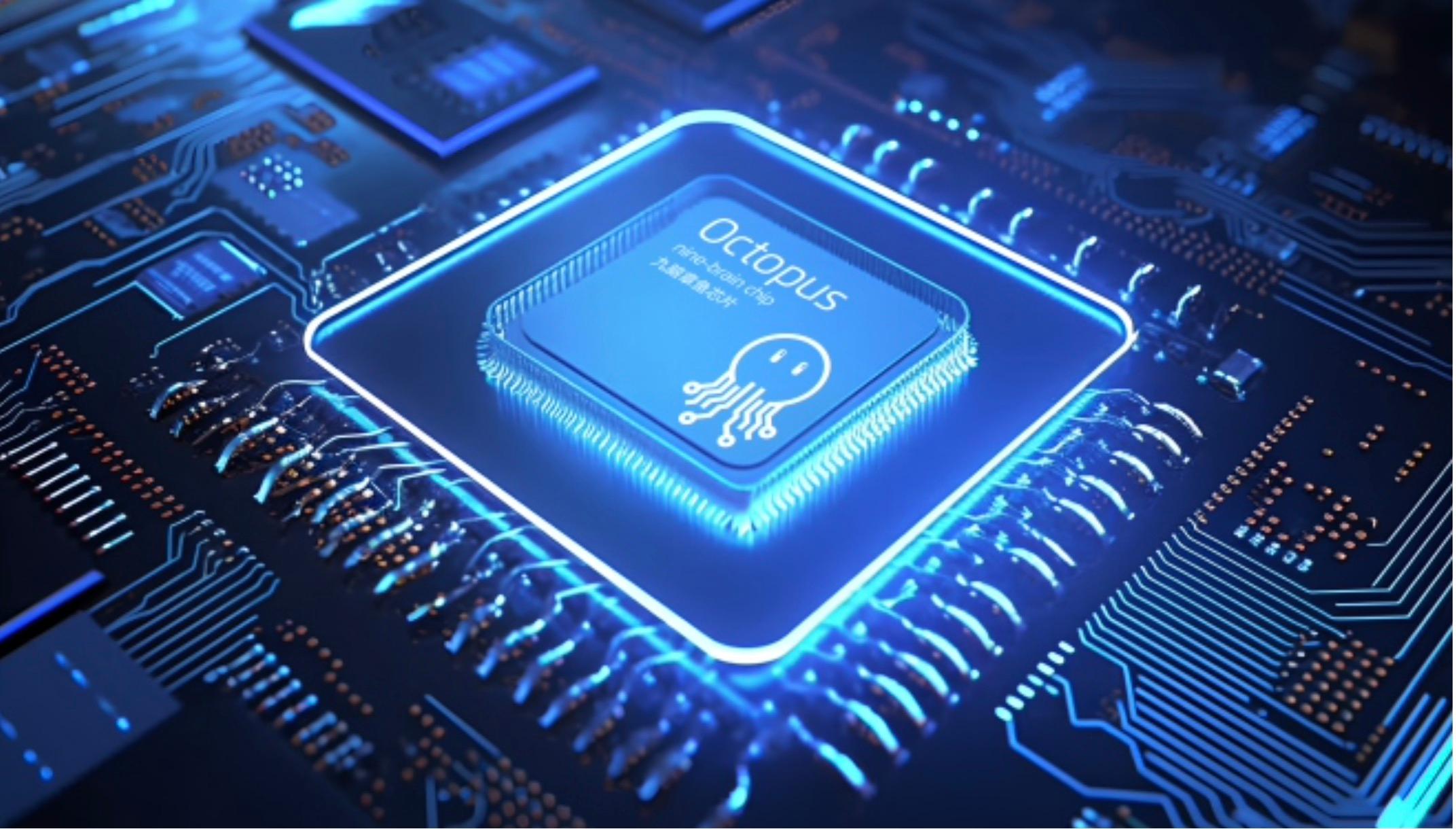

Artificial Intelligence Chip (AI)

It senses material change in real time, comparing 200,000 data patterns 10,000 times per second and sending them to the engine.

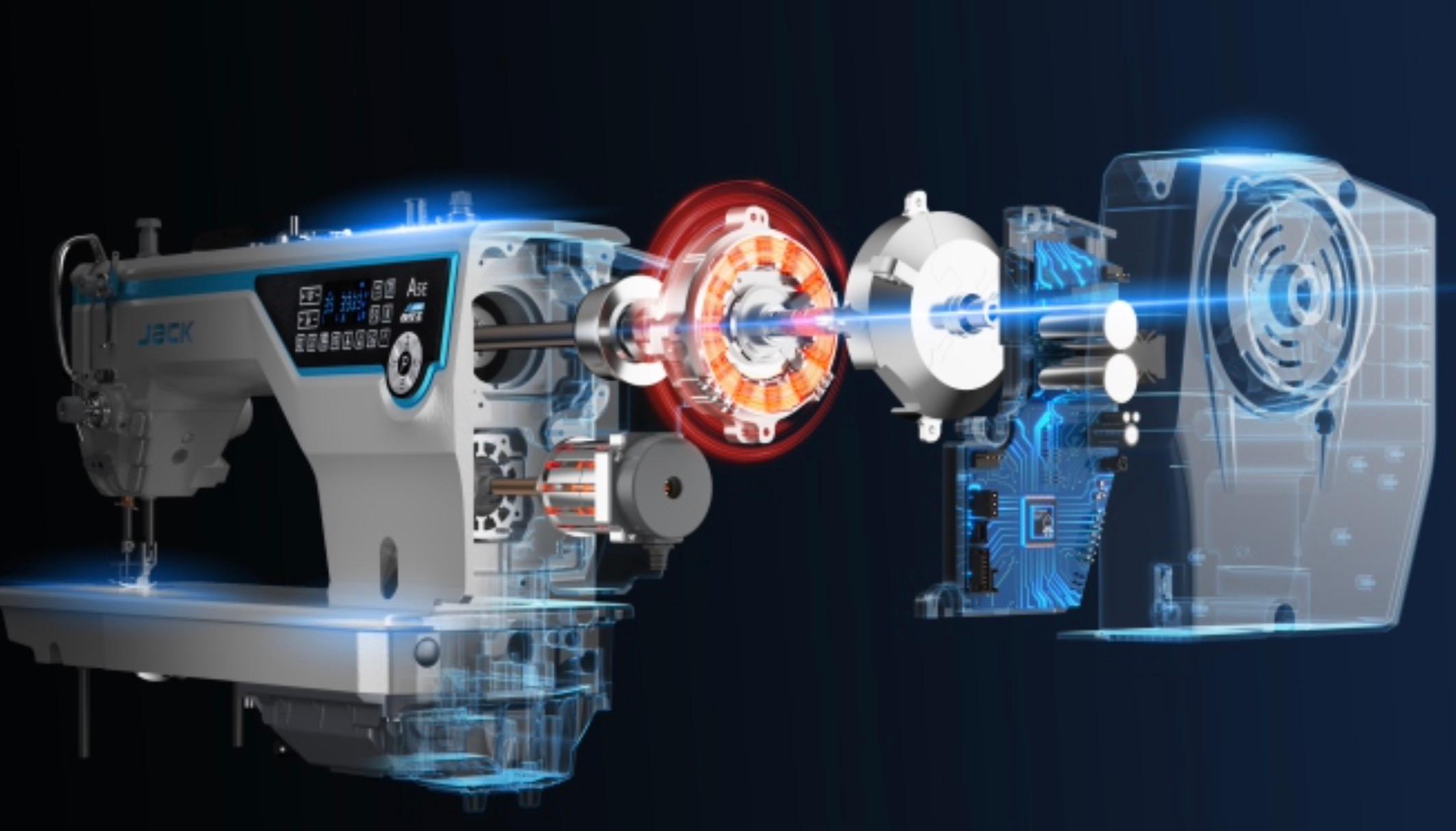

Ultra Powerful Motor

Remarkable 15% increasing power reaches 8.4Nm of torque, allowing you to sew heavier materials without thread breakage and lighter materials without puckering.

A New Pannel

Fully digital machine: automatic thread trimmer with short cut, digital silent bartack, digital presser foot lifter, digital stitch length, voice guide, ornamental patterns sewing and other standard functions.

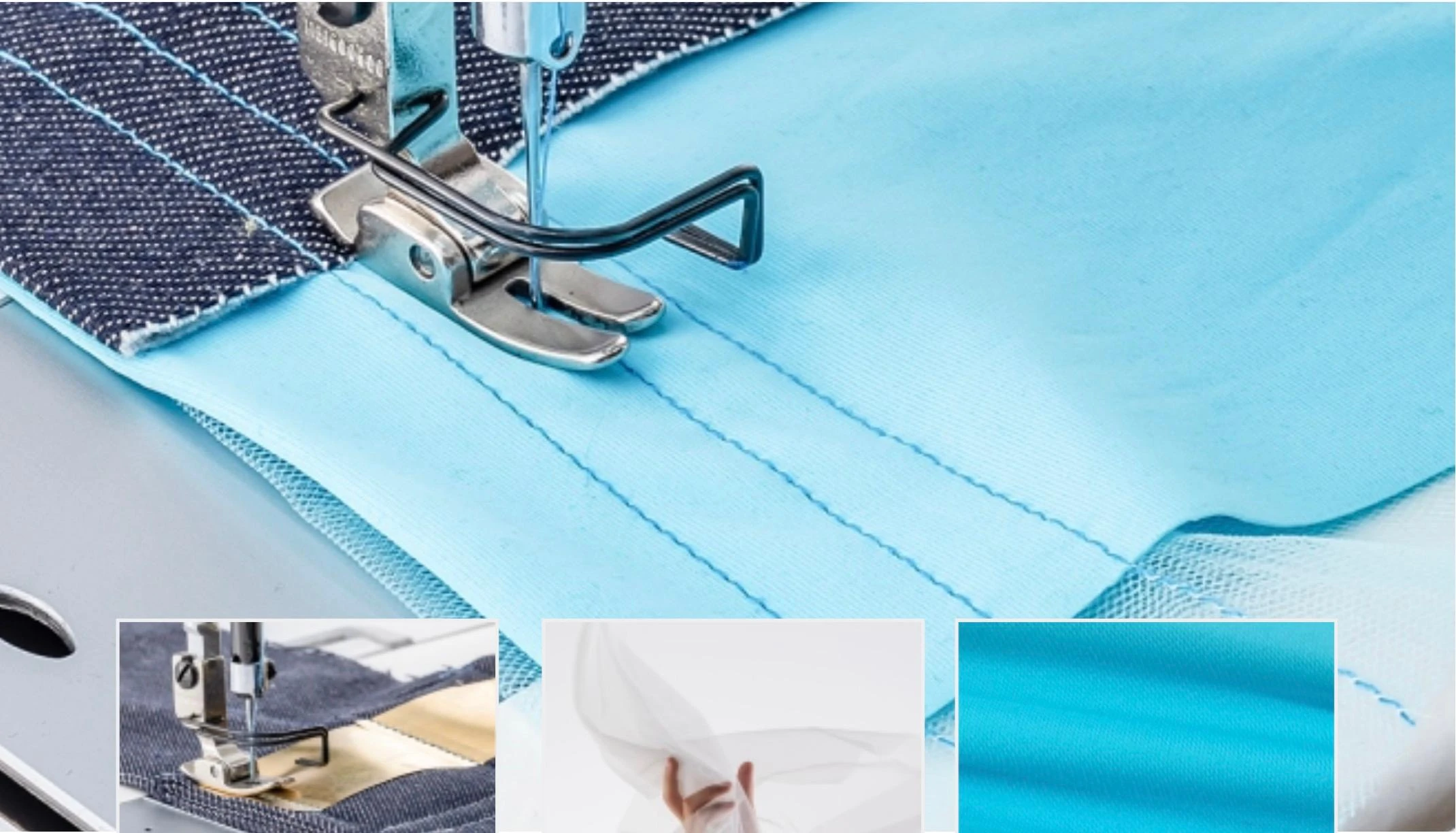

Adaptive Fabric System (AMH)

The adaptive fabric system (AMH) thanks to the AI chip allows you to sew heavy, light and elastic fabrics without having to make adjustments.

Punchering Power

The new ultra-powerful motor allows to penetrate up to 10 layers of jeans and more than 100 A4 paper sheets.

Digital Presser Foot Lifter

Presser foot lift digitally controlled by a stepper motor. It is possible with one click to adjust up to 13 levels from the panel.

Sealed Oil Pan: No More Oil Spilling or Stains

The oil pan is sealed and prevents the entry of dust, keeping the machine clean and resistant, ensuring perfect lubrication.

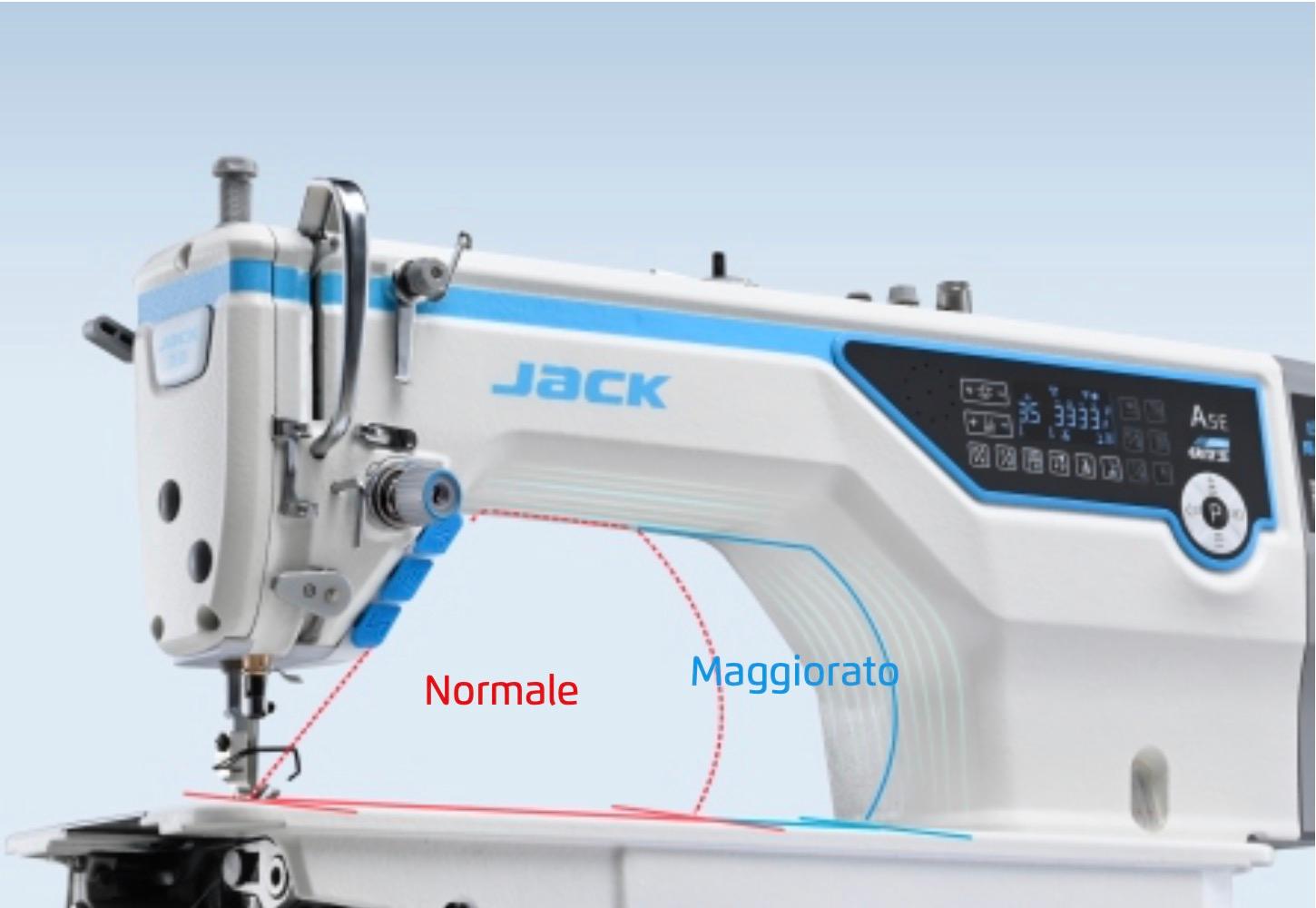

305mm Big Space Underarm

Large working space, easy job insertion, even quilts, quilted jackets and small sewing programs can be sewn without any problems.

MACHINE APPLICATIONS:

  • For sewing light to medium-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
  • Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
  • Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar

MACHINE FEATURES:

  • Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
  • Noise and vibration absorbing table mounting
  • Treadle controlled foot lifter
  • Automatic reverse
  • Auto-lubrication rotary hook
  • Under bed thread trimmer
  • Electric thread clamp (holds thread after thread trim)
  • Needle positioning
  • Electric foot lift
  • Stitch counter
  • Built-in bobbin winder
  • Built -in LED light with level settings and on/off switch
  • Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)

MACHINE SPECIFICATIONS:

  • Model: A5E-A
  • Needle System: DB×1 11-18#
  • Applications: Suitable for sewing all kinds of small orders and quick reorders fabrics
  • Use for: Heavy, Light, Elastic
  • Maximum Stitch Length: 5mm
  • Presser Foot Height: 1mm to 13mm
  • Operating Space: 305mm x 130mm (12" x 5")
  • Maximum Speed: 5000 Stitches Per Minute (SPM/RPM)
  • Shipping Dimensions: 690mm x 295mm x 550mm (27" x 12" x 22")
  • Weight (Net/Gross): 41KG/47KG (91LBS/104LBS)

DOWNLOADS:

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
