Jack C7-5-M04-435 High Speed 5 Thread Overlock Machine Complete Unit with Table and Stand

No reviews yet Write a Review
Market Price: $2,366.00
$2,265.00
Save $101.00 per unit
SKU:
C7-5-M04-435
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack C7-5-M04-435 High Speed 5 Thread Overlock Machine Complete Unit with Table and Stand

Market Price: $2,366.00
$2,265.00
Save $101.00 per unit

Jack C7-5-M04-435 High Speed 5 Thread Overlock Machine Complete Unit with Table and Stand

Market Price: $2,366.00
$2,265.00
Save $101.00 per unit

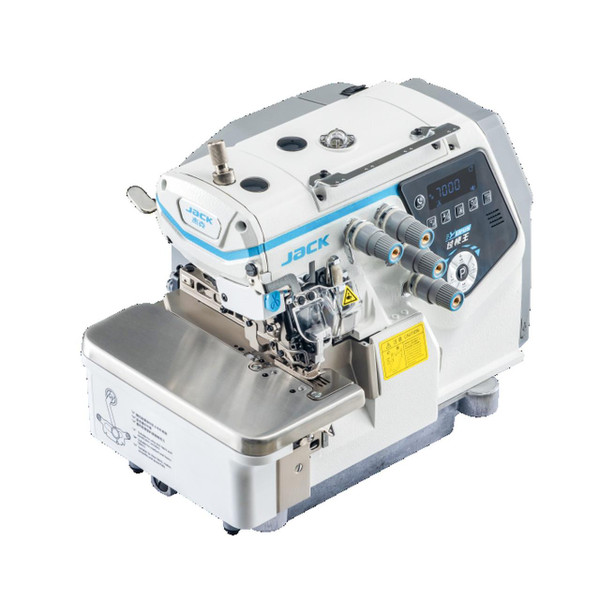

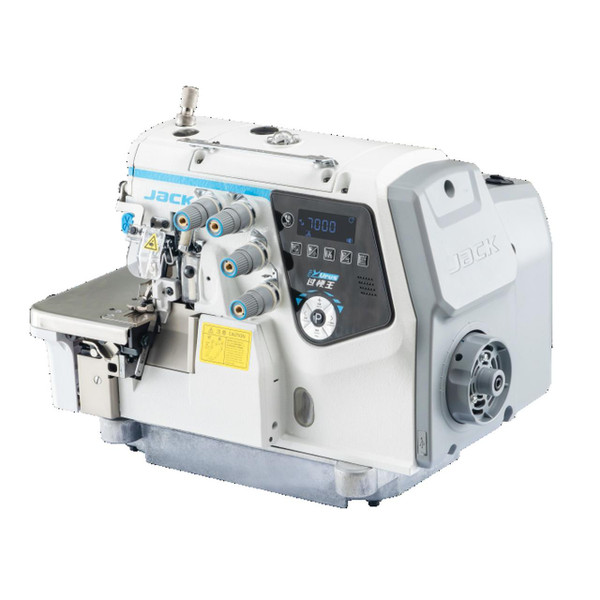

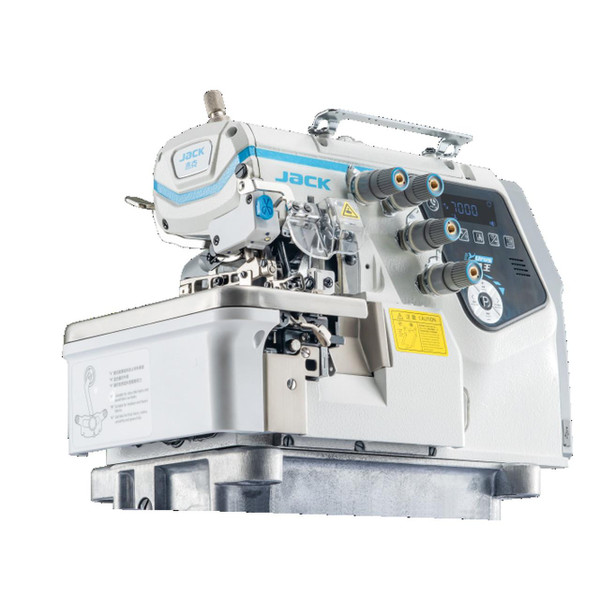

Jack C7-5-M04-435 High Speed 5 Thread Overlock Machine Complete Unit with Table and Stand

This industrial 5-thread overlock machine is built for automated, high-precision seam finishing across a wide range of fabrics. Its intelligent material-handling system adapts in real time to fabric changes, helping maintain consistent stitch quality and smooth feeding on light, medium, and heavy materials. Designed for demanding production environments, it is well suited to garment factories, commercial sewing rooms, and other operations handling workwear, uniforms, denim, knits, canvas, and multi-layer seams. The machine’s advanced sensing and automation features also help reduce operator intervention and support more efficient, reliable overlocking in high-volume work.

MACHINE APPLICATIONS:

  • Garment factories producing workwear, uniforms, denim, and heavy-duty apparel
  • Operations working with medium to heavy-weight fabrics requiring robust seam construction
  • Commercial sewing rooms needing consistent overlocking on thick knits, canvas, and multi-layer seams
  • High-volume production lines requiring automated material handling and reduced operator fatigue

MACHINE FEATURES:

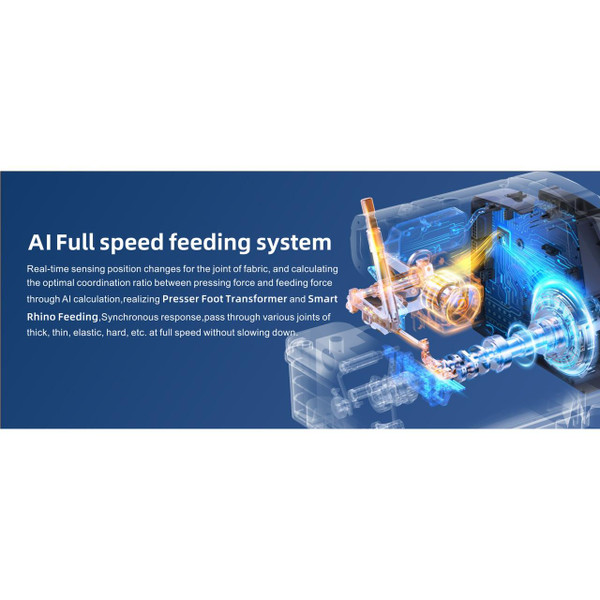

  • A.M.H. (Automatic Material Handling) — real-time AI sensors detect thickness changes at fabric seams and automatically calculate the optimal ratio between presser foot pressure and feed dog force
  • Smart Rhino Feeding System — motor detects thickness changes in real time and increases torque up to 9.2 Nm to maintain constant speed even on heavy materials
  • Presser Foot Transformer — intelligent perception with 32,000 detections/second and microsecond pressure response using 1+ million data models
  • Active sensor presser foot — modulates pressure during sewing, raising automatically at seam junctions to facilitate passage of thick fabrics
  • Digital presser foot lift up to 7mm — controlled by stepper motor for maximum precision on heavy-duty applications
  • Three operating modes: Manual (full pedal control), Semi-Automatic (auto cut/lift with photocells), and Fully Automatic (photocell-only hands-free operation)
  • Digital thread trimmer — stepper motor controlled (not magnetic), short cut up to 5mm
  • Sewing speed up to 6,000 SPM optimized for heavy-weight production

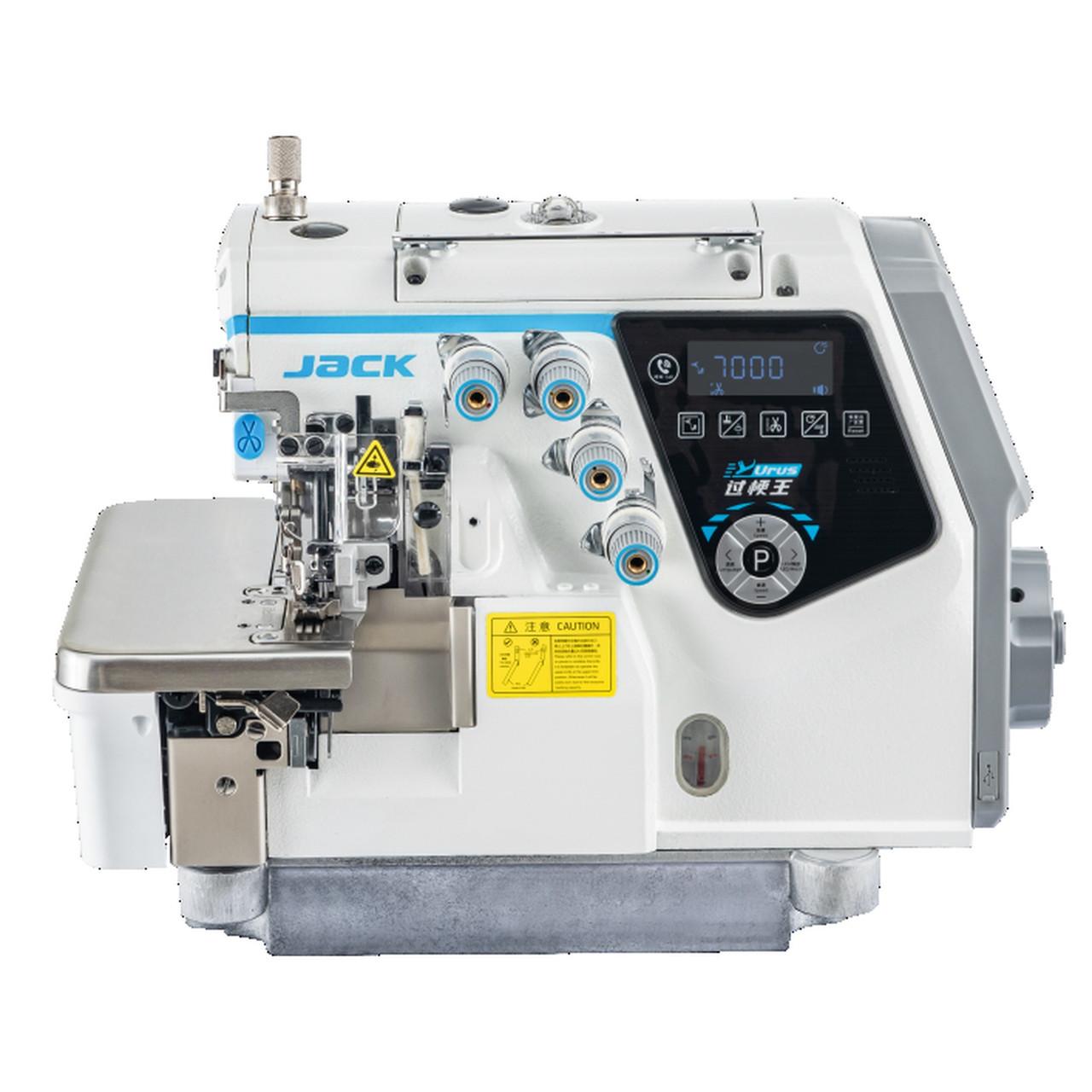

  • Intuitive panel with voice guide and quick-access keys
  • Mechanical L/M/H selector — lever to adjust feed dog ellipse height for light/medium/heavy fabrics
  • Minimal design — no external cables, magnets, or devices; everything integrated for quick cleaning
  • Industry 4.0 ready — built-in WiFi for App or WebApp connection, production monitoring, parameter adjustment, and maintenance notifications via Jack cloud
  • 3-step LED work area lighting — adjustable brightness for optimal visibility

MACHINE SPECIFICATIONS:

  • Model: C7-5-M04/435
  • Needle System: B27/DCx27 #19
  • Number Of Needles: 2
  • Thread Count: 5-Thread
  • Needle Gauge: 5 mm (0.20")
  • Stitch Width: 5×6 mm (0.24")
  • Stitch Length: 0.8–5 mm (0.20")
  • Differential Feed Ratio: 0.8–1.5
  • Presser Foot Lift: 7 mm (digital, stepper motor controlled)
  • Max Sewing Speed: 6,000 SPM
  • Max Motor Torque: 9.2 Nm
  • Motor: 550W Direct Drive Servo Motor
  • Drive Type: Direct Drive (beltless)
  • Stitch Type: Safety Stitch / Overlock
  • Feed Type: Drop Feed with Smart Rhino System + L/M/H Selector
  • Operating Modes: Manual / Semi-Automatic / Fully Automatic
  • Features: Digital Thread Trimmer, Auto Foot Lifter, Needle Positioner, A.M.H. Technology, Voice Guide, LED Lighting (3-step)
  • Connectivity: Built-in WiFi (Industry 4.0) — App/WebApp/Cloud
  • Air Required: No (fully electric control)
  • Setup: Complete with table and stand

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Motor is built directly into the machine head for maximum efficiency
  • Silent operation with low vibration
  • Energy efficient — uses up to 70% less power than clutch motors
  • Precise speed control through electronic foot pedal
  • Instant start/stop with electronic braking
  • Compact design eliminates belt and pulley maintenance
