Juki AMS-221EN-HS3020/X90014 Computer-Controlled Cycle Sewing Machine Complete Unit

No reviews yet Write a Review
Market Price: $56,618.00
$51,953.00
Save $4,665.00 per unit
SKU:
AMS-221EN-HS3020/X90014
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki AMS-221EN-HS3020/X90014 Computer-Controlled Cycle Sewing Machine Complete Unit

Market Price: $56,618.00
$51,953.00
Save $4,665.00 per unit

Juki AMS-221EN-HS3020/X90014 Computer-Controlled Cycle Sewing Machine Complete Unit

Market Price: $56,618.00
$51,953.00
Save $4,665.00 per unit

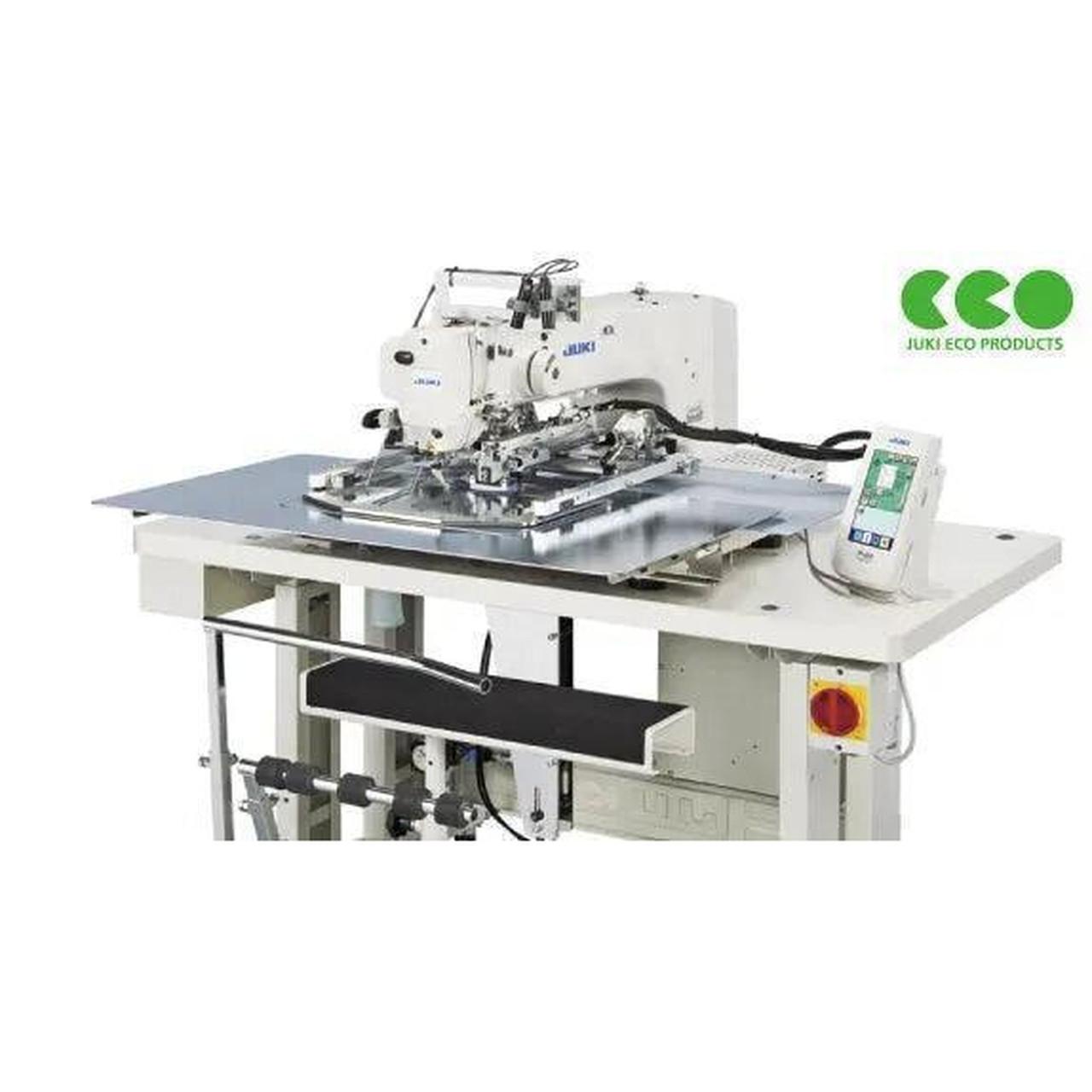

Juki AMS-221EN-HS3020/X90014 Computer-Controlled Cycle Sewing Machine Complete Unit

This computer-controlled cycle sewing machine is designed for precise pocket sewing applications on garments. Its digital control helps improve consistency and productivity, while the active tension system supports stable seam quality by ensuring precise control of needle thread tension during sewing. It is a strong choice for production environments that need accurate, repeatable sewing on pocket operations.

MACHINE FEATURES:

  • Active Tension: Ensures precise control of needle thread tension during sewing, allowing for adjustments according to material thickness and sewing direction.
  • Intermediate-Presser Height Adjusting Function: Allows for stepless adjustment of the presser height during sewing, accommodating multi-layered materials and preventing issues like stitch skipping and thread breakage.

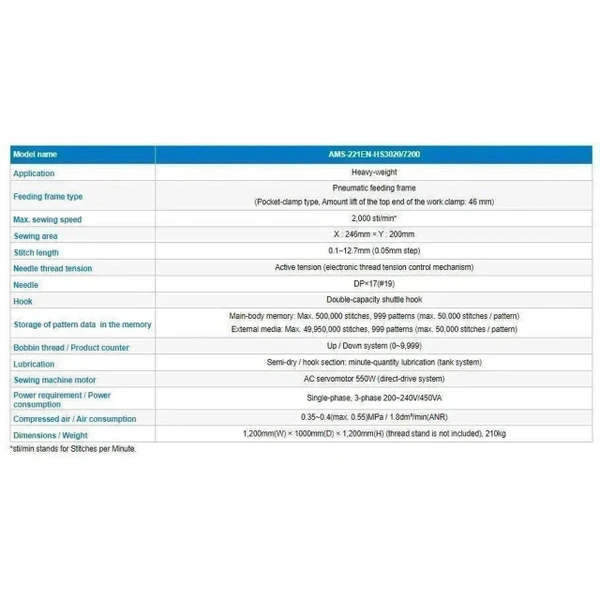

MACHINE SPECIFICATIONS:

  • Machine Head: AMS-221EN-HS3020 (Computer-controlled Cycle Machine with Input Function, Semi-dry head)
  • Max Sewing Speed: 2,000 stitches per minute (sti/min)

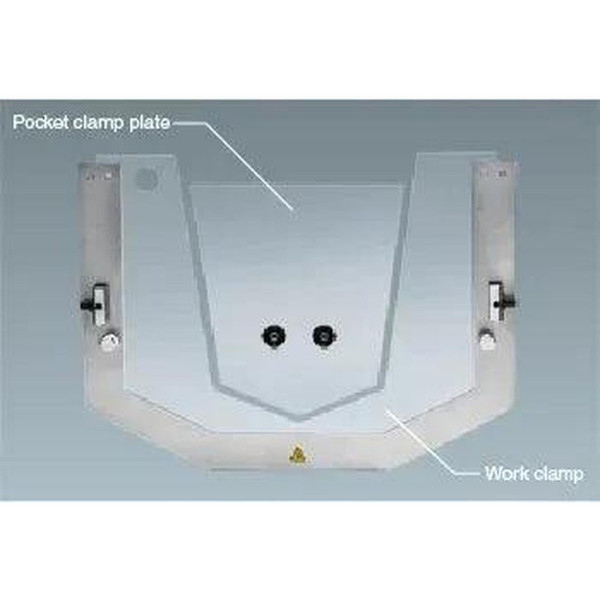

  • Lift Of The Work Clamp Foot: 46 mm (adjustable for pocket size variations)
  • Hook: Double-capacity shuttle hook
  • Stored Patterns: Supports up to 999 patterns and 500,000 stitches in main-body memory; external media storage can handle up to 50,000,000 stitchesStitch Size: Adjustable stitch length from 0.1mm (0.00") to 12.7mm (adjustable in 0.05mm steps)
  • Needle: DP×17 (#19), suitable for heavy-weight materials
  • Thread: Designed for heavy-weight materials, with active tension control for precise adjustments based on fabric thickness
  • Power Requirement Power Consumption: Single-phase or 3-phase, 200-240V / 450VA
  • Compressed Air And Air Consumption: 0.35~0.4 MPa, air consumption of 1.8 dm³/minTotal Weight: 210 kgDimensions: 1,200mm (W) × 1,000mm (D) × 1,200mm (H)Automatic Thread Trimming: Provided as standard
  • Automatic Foot Lift: Provided as standard
  • Automatic Bartack: No, designed for pocket sewing rather than bartacking

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
