Juki AMS-224ENGS-1005-N Computer-Controlled Cycle Machine Complete Unit

No reviews yet Write a Review
Market Price: $134,772.00
$123,692.00
Save $11,080.00 per unit
SKU:
AMS-224ENGS-1005-N
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki AMS-224ENGS-1005-N Computer-Controlled Cycle Machine Complete Unit

Market Price: $134,772.00
$123,692.00
Save $11,080.00 per unit

Juki AMS-224ENGS-1005-N Computer-Controlled Cycle Machine Complete Unit

Market Price: $134,772.00
$123,692.00
Save $11,080.00 per unit

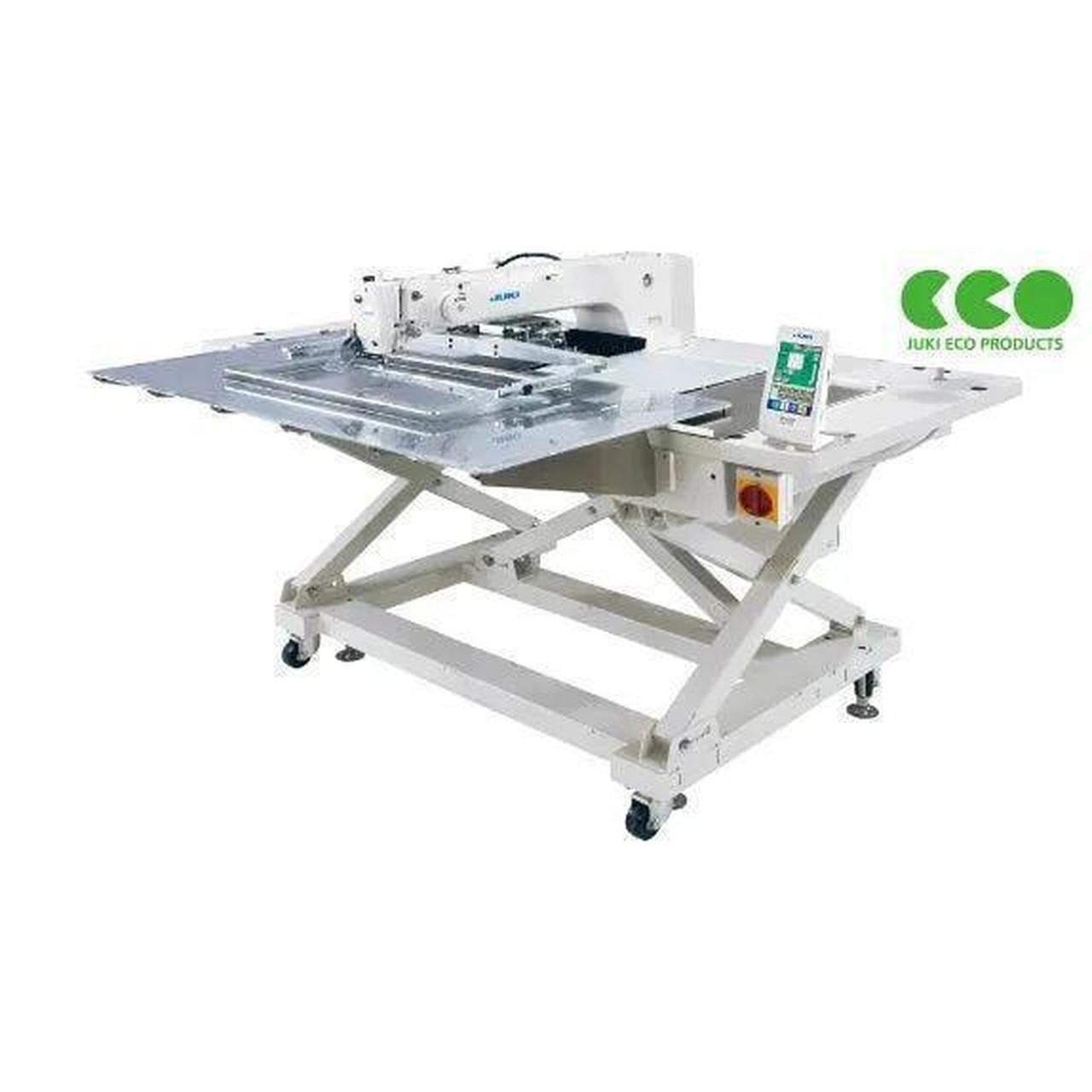

Juki AMS-224ENGS-1005-N Computer-Controlled Cycle Machine Complete Unit

This computer-controlled cycle machine is engineered to significantly boost energy efficiency and productivity in sewing operations, making it an ideal choice for high-demand production environments. Its advanced technology ensures superior performance, allowing for precise adjustments and easy handling of heavy-weight materials. The inclusion of features such as a hand pulley for needle bar height adjustment and a feeding frame lift enhances versatility, catering to a variety of applications. With its focus on efficiency and user-friendly design, this machine is a valuable asset for any sewing operation looking to optimize workflow and output quality.

MACHINE FEATURES:

  • Hand Pulley: Allows easy adjustment of the needle bar height and needle entry point during data programming.
  • Feeding Frame Lift: Maximum lift of 30mm for easy setting of heavy-weight materials.
  • PK 2-Pedal Unit: Enables precise positioning of parts to be sewn with a mechanical valve pedal.
  • Hook Driving Shaft Pulley: Facilitates easy hook adjustment.

MACHINE SPECIFICATIONS:

  • Machine Head: AMS-224EN (Semi-dry head system, reducing oil stains)
  • Max Sewing Speed: 2,500 stitches per minute (sti/min)Lift of the work clamp foot: Maximum 30mm (1.18"), adjustable for heavy materials
  • Hook: Double-capacity shuttle hookStored patterns: 999 patterns, capacity for 50,000 stitches per patternStitch size: Adjustable stitch length from 0.1mm (0.00") to 12.7mmNeedle: DP×17 (#18), ideal for heavy-weight fabrics
  • Thread: Suitable for medium- to heavy-weight fabrics
  • Power Requirement Power Consumption: Single-phase 200-240V / 450VACompressed air and air consumption: 0.35 to 0.4 MPa, air consumption 1.8 dm³/minTotal weight: Approximately 200 kgDimensions: 1,200mm (W) × 1,000mm (D) × 1,200mm (H)Automatic thread trimming: Provided as standard
  • Automatic Foot Lift: Provided as standard
  • Automatic Bartack: No

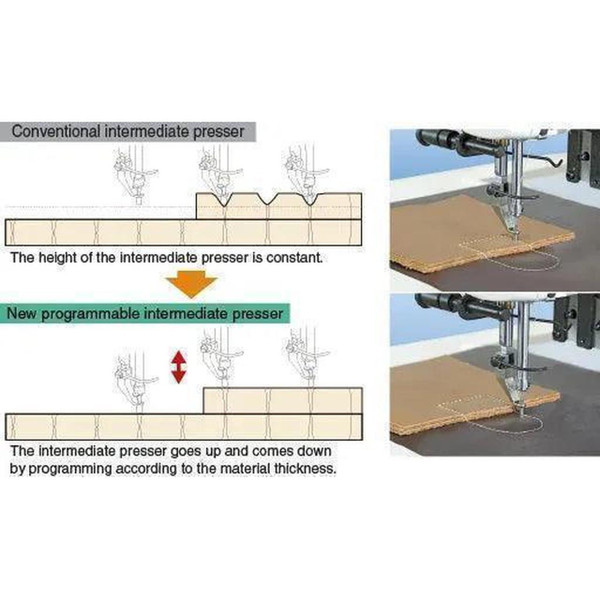

  • Intermediate Presser Stroke: Adjustable from 0 to 10mm (0.39")​

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
