Juki DLM-5400ND-7WB Single Needle Lockstitch Industrial Sewing Machine with Vertical Edge Trimmer Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $8,746.00
$8,216.00
Save $530.00 per unit
SKU:
DLM-5400ND-7WB
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki DLM-5400ND-7WB Single Needle Lockstitch Industrial Sewing Machine with Vertical Edge Trimmer Complete Unit with Table and Servo Motor

Market Price: $8,746.00
$8,216.00
Save $530.00 per unit

Juki DLM-5400ND-7WB Single Needle Lockstitch Industrial Sewing Machine with Vertical Edge Trimmer Complete Unit with Table and Servo Motor

Market Price: $8,746.00
$8,216.00
Save $530.00 per unit

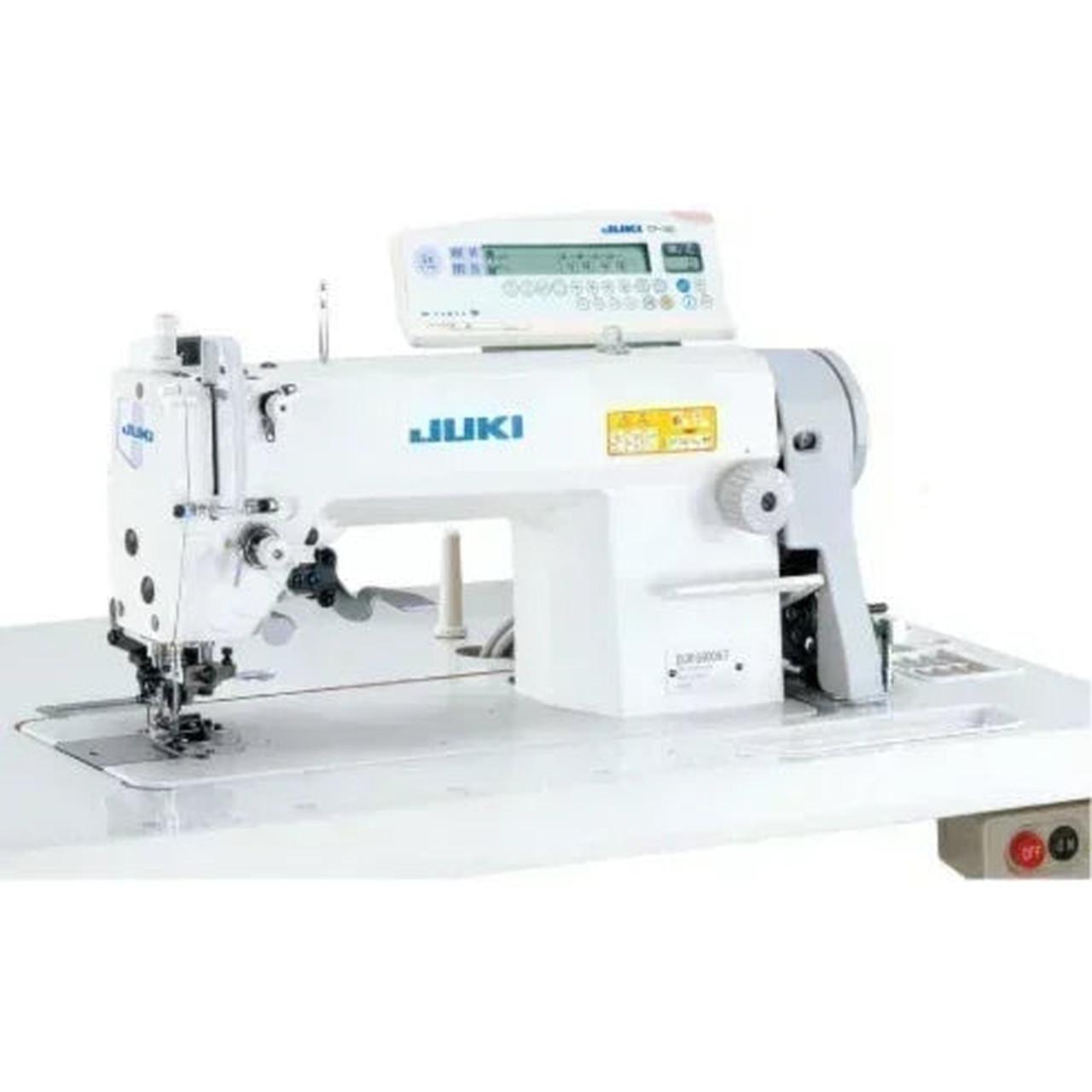

Juki DLM-5400ND-7WB Single Needle Lockstitch Industrial Sewing Machine with Vertical Edge Trimmer Complete Unit with Table and Servo Motor

This industrial single-needle lockstitch machine is designed to streamline sewing and edge finishing in one operation, helping reduce handling and improve workflow efficiency. Its vertical edge trimming system leaves seams neatly finished as it stitches, making it well suited for general and medium-heavy fabrics. The machine also includes automatic thread trimming, supporting clean, professional results in production settings. It is a strong choice for manufacturers looking for precise seam allowance control and reliable performance on a wide range of materials.

MACHINE FEATURES:

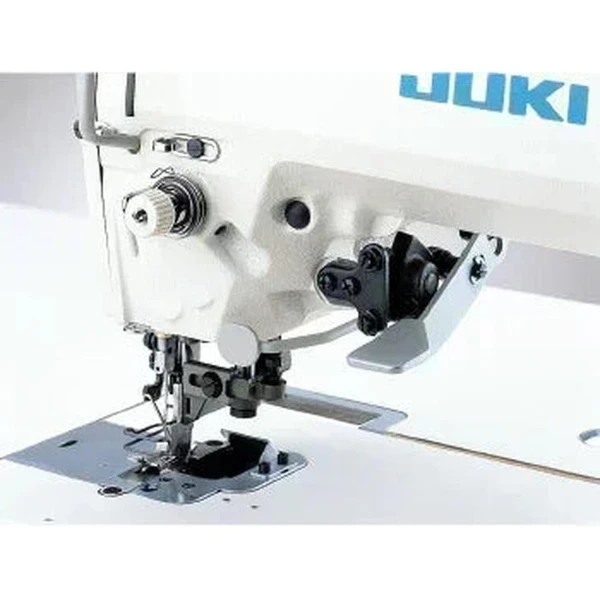

  • Vertical Edge Trimmer — Sewing and Edge Cutting in One Pass: The machine forms the lockstitch seam and trims the fabric edge simultaneously. A separate trim step is removed from the workflow — every piece that leaves the station has a sewn seam and a clean
  • Cloth Trimming Knife for Wide Fabric Range: The trimming knife cuts any material regardless of thickness or toughness — heavy-weight, elastic, and textured fabrics included — up to a maximum cutting thickness of

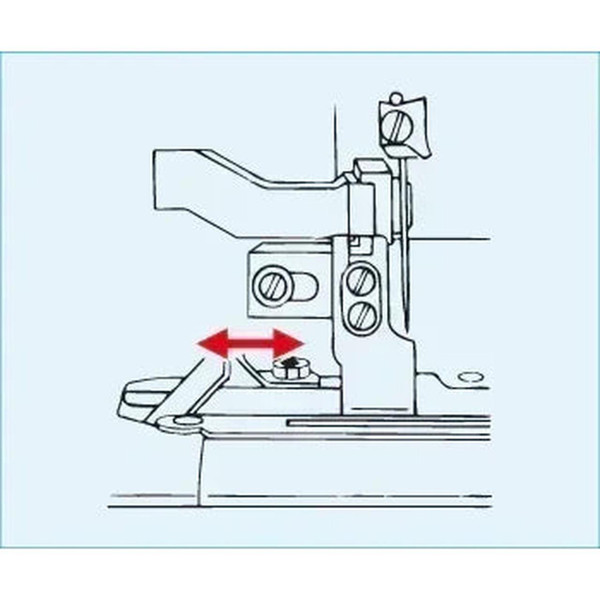

  • Adjustable Knife Position for Precise Control: The knife position can be moved up to
  • One-Touch Knife Lever — Rust-Proof and Easy to Operate: The knife lever is plated to prevent rust, protecting the material from soiling throughout the production run. Single-touch operation keeps knife engagement straightforward and within easy reach, reducing the physical demand on the operator.
  • Thread Trimmer Built for Variable Thread Thickness: The thread trimming mechanism handles a wide range of thread thicknesses — including heavy thread — without adjustment between thread types.
  • Automatic Reverse Feed — Seam Lockoff Held to Spec: Backtacking at seam start and end is handled automatically. Stitch count is set via the control panel, so the reinforcement is uniform regardless of production pace or operator experience level.
  • Thread Wiper — Thread End Cleared Before the Next Piece: After each trim, the wiper sweeps the needle thread end away from the presser foot before the next piece is positioned. The thread does not carry forward into the following seam and requires no manual clearing between pieces.
  • Stitch Quality Stable at Up to 4,500 Stitches Per Minute: The machine sustains stable stitch quality through high-speed operation across a range of fabric types and construction weights.
  • Automatic Lubrication — Consistent Performance Without Interruption: The machine lubricates automatically throughout operation, keeping the hook and moving components performing at a stable level without manual oiling between service intervals.
  • AK85 Automatic Foot Lifter for Simplified Handling: Pedal-driven automatic foot lift following each trim cycle. The operator's hands stay on the material through every transition — the foot lift is no longer a manual step in the handling sequence.

MACHINE SPECIFICATIONS:

  • Machine Head: 1-needle, lockstitch with vertical edge trimmer
  • Application: General fabrics and medium-heavy weight materials
  • Max Sewing Speed: 4,500 sti/min
  • Max Stitch Length: 4 mm (normal and reverse feed)
  • Needle Bar Stroke: 30.7 mm (1.21")
  • Lift: by hand 5.5 mm (0.22"), by knee 10 mm (0.39")
  • Hook: automatic-lubricating full-rotary hook
  • Needle: DB×1 (#14), #9–#18; 134 (Nm90)
  • Distance Between Needle And Knife: 3.2 mm (0.13")
  • Knife Stroke: 5 mm (0.20")
  • Max Material Cutting Thickness: 4 mm (0.16")
  • Thread Trimmer: automatic
  • Wiper: included
  • Reverse Feed: automatic
  • Foot Lifter: AK85 automatic
  • Lubrication: automatic
  • Total Weight: 83 kg

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
