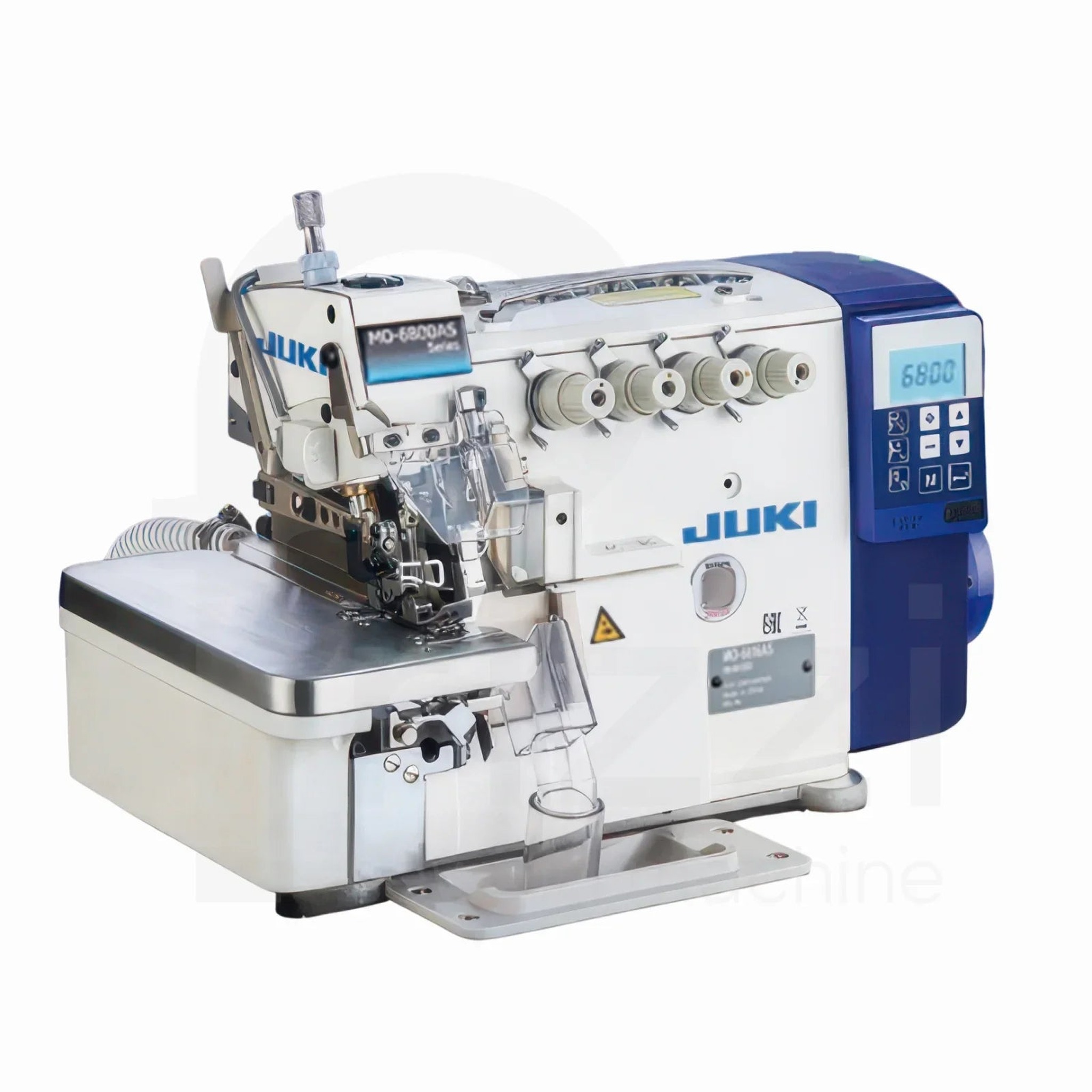

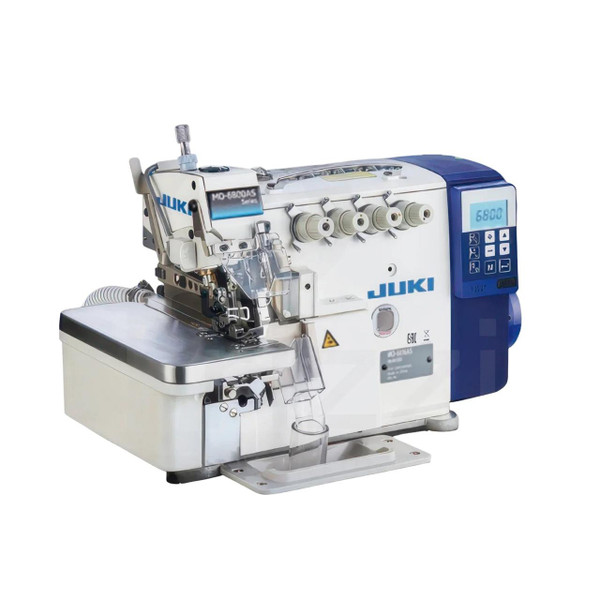

Juki MO-6843AS-1D6-40H-DD10S High Speed 3 Needle 5 Thread Safety Stitch Overlock Machine Complete Unit with Table and Stand

No reviews yet Write a Review
Market Price: $2,469.00
$2,012.00
Save $457.00 per unit
SKU:
MO-6843AS-1D6-40H-DD10S
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MO-6843AS-1D6-40H-DD10S High Speed 3 Needle 5 Thread Safety Stitch Overlock Machine Complete Unit with Table and Stand

Market Price: $2,469.00
$2,012.00
Save $457.00 per unit

Juki MO-6843AS-1D6-40H-DD10S High Speed 3 Needle 5 Thread Safety Stitch Overlock Machine Complete Unit with Table and Stand

Market Price: $2,469.00
$2,012.00
Save $457.00 per unit

Juki MO-6843AS-1D6-40H-DD10S High Speed 3 Needle 5 Thread Safety Stitch Overlock Machine Complete Unit with Table and Stand

This industrial safety stitch overlock machine is designed for medium to heavy-weight knit fabrics, where strong, flexible seams are essential. It is well suited for activewear, sweatshirts, and other stretch garments that need reliable seam reinforcement and a clean professional finish. Built for demanding production environments, it combines durability with smooth operation and is intended to help maintain consistent seam quality across long runs. Its direct-drive design supports efficient day-to-day use while helping reduce maintenance needs.

MACHINE FEATURES:

  • Direct-Drive Servo Motor – Quiet & Efficient:: Provides low noise, minimal vibration, and reduced energy consumption for improved operator comfort and operational efficiency.
  • 3-Needle Safety Stitch (5-thread) – Exceptional Seam Strength:: Reinforces seams with maximum durability and elasticity, ideal for heavy-duty knit garments requiring flexibility and strength.
  • Unique Gauge (5.0 mm + 2.0 mm) & Narrow Overedging (3.0 mm) – Precision Finishes:: Offers precise stitching, superior seam stability, and professional finishes, ensuring garment integrity even under high stress.
  • High-Speed Operation – Up to 7,000 Stitches per Minute:: Accelerates production without sacrificing quality, enabling efficient handling of large volumes.
  • Automatic Lubrication System – Reduced Maintenance:: Ensures smooth, continuous operation and minimizes downtime due to maintenance.
  • Single-Phase 110-120V Power – Easy Installation:: Compatible with standard power sources, simplifying setup for various workshop sizes.
  • Direct-Drive Servo Motor – Quiet & Efficient:: Provides low noise, minimal vibration, and reduced energy consumption for improved operator comfort and operational efficiency.
  • 3-Needle Safety Stitch (5-thread) – Exceptional Seam Strength:: Reinforces seams with maximum durability and elasticity, ideal for heavy-duty knit garments requiring flexibility and strength. Unique Gauge (5.0 mm + 2.0 mm) & Narrow Overedging (3.0 mm) – Precision Finishes:Offers precise stitching, superior seam stability, and professional finishes, ensuring garment integrity even under high stress.High-Speed Operation – Up to 7,000 Stitches per Minute:Accelerates production without sacrificing quality, enabling efficient handling of large volumes.Automatic Lubrication System – Reduced Maintenance:Ensures smooth, continuous operation and minimizes downtime due to maintenance.Single-Phase 110-120V Power – Easy Installation:Compatible with standard power sources, simplifying setup for various workshop sizes.

MACHINE SPECIFICATIONS:

  • Machine Type: 3-Needle, 5-Thread Safety Stitch Overlock with Direct-Drive
  • Application: Medium to heavy-weight knit fabrics (activewear, sweatshirts, fleece, hoodies)
  • Maximum Sewing Speed: 7,000 stitches per minute
  • Stitch Type: 3-needle, 5-thread safety stitch (516 variant)
  • Gauge: 5.0 mm (0.20") + 2.0 mm (0.08") needle spacing
  • Overedging Width: 3.0 mm (0.12") narrow, precise edge finishing
  • Automatic Thread Trimming: Standard manual thread cutting (no automated trimming sensor)
  • Feed Mechanism: Differential feed system for precise fabric handling
  • Stitch Length: Adjustable up to 4.0 mm (0.16")
  • Presser Foot Lift: By hand: 5.5 mm (0.22"), by knee: 7 mm (0.28")
  • Needle System: DC×27 (#11–#16 recommended)
  • Lubrication: Fully automatic lubrication with oil barrier
  • Safety Mechanism: Integrated oil barrier to prevent fabric staining
  • Drive System: Integrated direct-drive servo motor
  • Power Supply: Single-phase, 110-120V standard setup
  • Noise And Vibration Level: Quiet, low vibration for enhanced operator comfort
  • Construction: Industrial-grade durability for continuous, high-volume sewing
  • Dimensions Machine Head Only: Approx. 300 mm (W) × 260 mm (D) × 290 mm (H)
  • Machine Weight Head Only: Approx. 30 kg

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Motor is built directly into the machine head for maximum efficiency
  • Silent operation with low vibration
  • Energy efficient — uses up to 70% less power than clutch motors
  • Precise speed control through electronic foot pedal
  • Instant start/stop with electronic braking
  • Compact design eliminates belt and pulley maintenance

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
