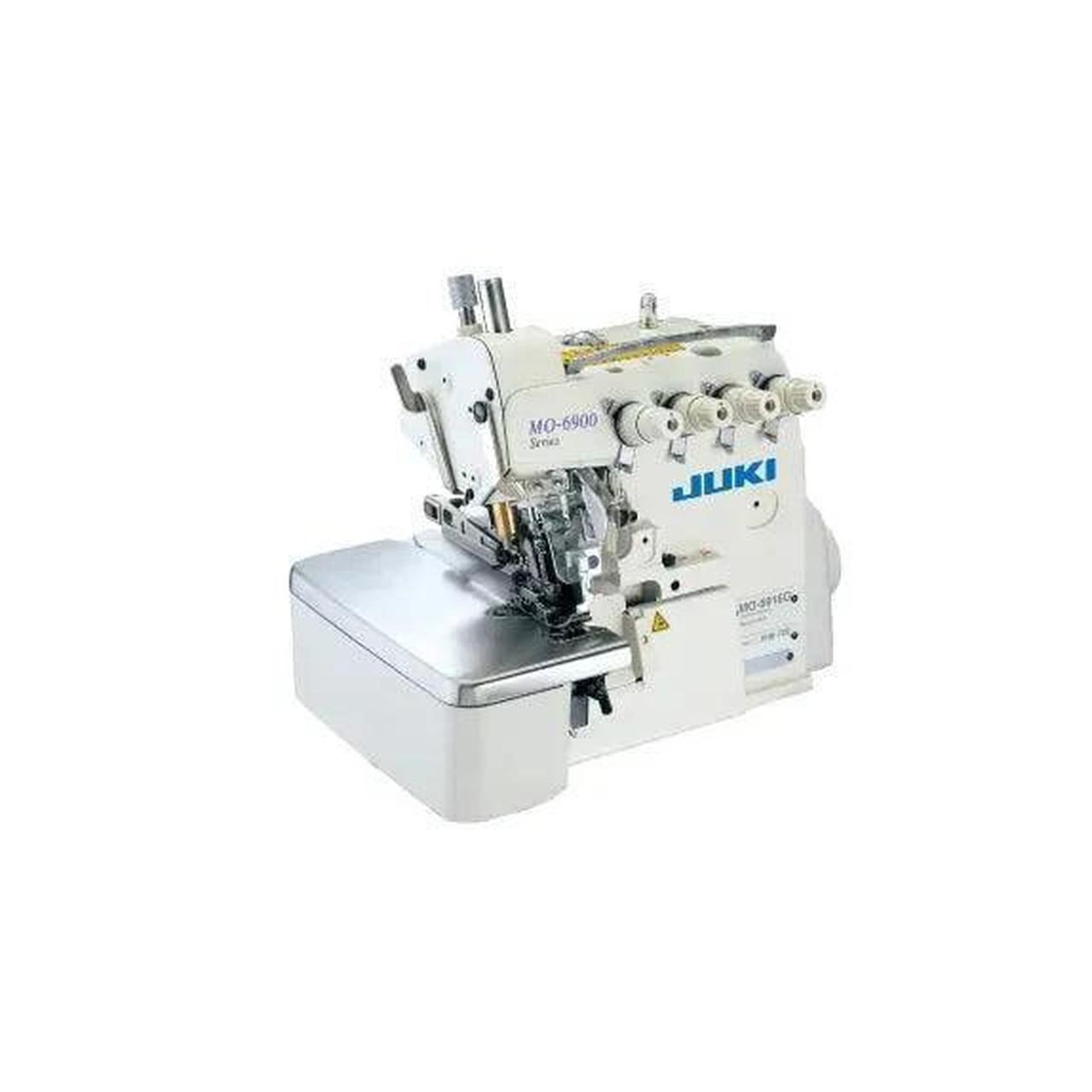

Juki MO-6903G-0N-63D1 Heavy Duty Single Needle Bottom Feed Overlock Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $5,848.00
$4,938.00
Save $910.00 per unit
SKU:
MO-6903G-0N-63D1
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MO-6903G-0N-63D1 Heavy Duty Single Needle Bottom Feed Overlock Machine Complete Unit with Table and Servo Motor

Market Price: $5,848.00
$4,938.00
Save $910.00 per unit

Juki MO-6903G-0N-63D1 Heavy Duty Single Needle Bottom Feed Overlock Machine Complete Unit with Table and Servo Motor

Market Price: $5,848.00
$4,938.00
Save $910.00 per unit

Juki MO-6903G-0N-63D1 Heavy Duty Single Needle Bottom Feed Overlock Machine Complete Unit with Table and Servo Motor

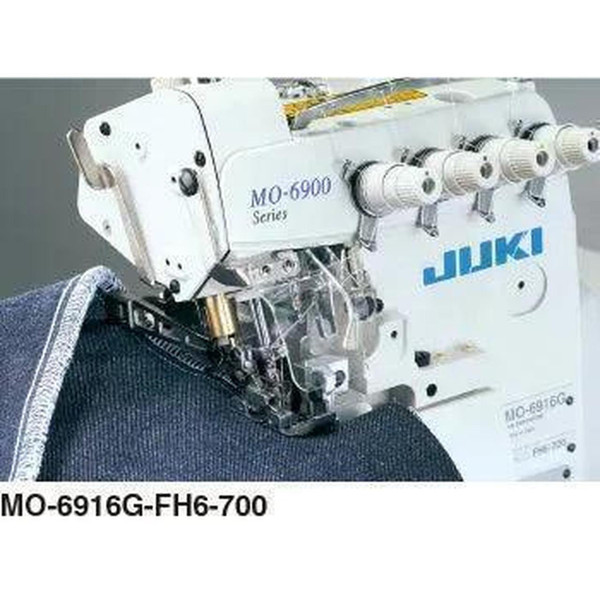

This specialized industrial overlock machine is engineered specifically for splicing and joining extra heavy-weight materials that demand exceptional seam strength. The bottom-feed design combined with an ultra-wide 18.0 mm overedging width makes it ideal for thick, dense fabrics and materials that would challenge standard overlock machines. Built for durability, it delivers the performance needed for continuous heavy-duty production environments in demanding industrial applications.

MACHINE FEATURES:

  • Durable Needle Bar Structure with Upper & Lower Bushings: Enhances long-term reliability and reduces wear in high-load applications.
  • Cartridge-Type Oil Filter & Cooling System for Extended Service Life: Maintains lubrication cleanliness and thermal stability during heavy-duty sewing.
  • Micro-Adjustment Mechanisms for Optimized Sewing Conditions: Allows fine tuning to match machine settings to different heavy materials.
  • Push-Button Stitch Length Adjustment for Easy Setup: Simplifies stitch configuration to suit various industrial splicing requirements.

MACHINE SPECIFICATIONS:

  • Max Sewing Speed: 6,000 stitches per minute (sti/min)
  • Lift Of The Presser Foot: Maximum 8 mm (0.31")
  • Needle: DO×5
  • Stitch Length: Adjustable from 2.5mm (0.10") to 5mm (0.20")
  • Overedging Width: 18.0 mm (0.71")
  • Differential Feed Ratio: For gathering: Max. 1:3.8, For stretching: Max. 1:0.6
  • Needle Bar Stroke: 28.8mm (1.13")
  • Inclination Angle Of The Needle: 20°
  • Feed System: Bottom-feed with advanced adjustments for heavy-weight materials
  • Lubrication System: Automatic lubrication with a cartridge-type oil filter and cooling fan
  • Oil Crankcase: No (uses a cartridge-type oil filter instead)
  • Needle Cooler: Provided as standard
  • Needle Thread Heat Remover: Provided as standard
  • Microlifter: Provided as standard
  • Stitch Adjusting Method: By push-button
  • Differentialfeed Adjusting Method: By lever (with micro-adjustment)
  • Weight Of The Machine Head: 28kg

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
