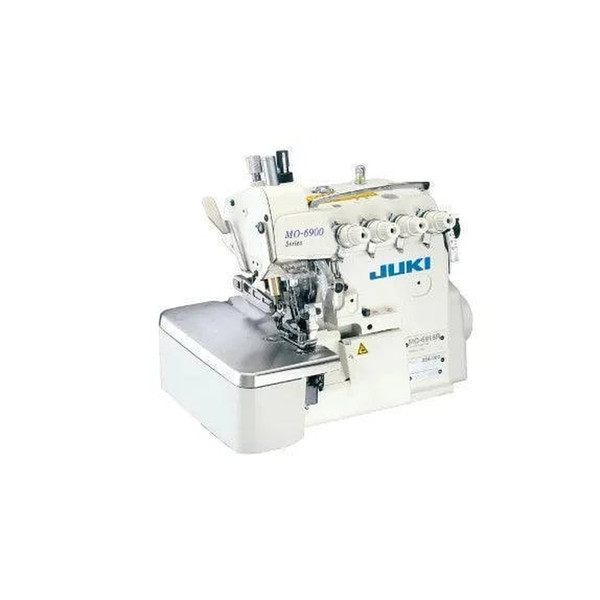

Juki MO-6916R-FF650H High Speed Double Needle Variable Top Feed Overlock Machine Complete Unit with Table and Servo Motor

This industrial high-speed overlock machine is specifically engineered for medium to heavy-weight materials and demanding runstitching applications. The 2-needle configuration with 4.8 mm needle gauge and 4.8 mm overedging creates durable multi-thread seams, making it suitable for structural garment assembly. As part of the MO-6900R Series, this machine delivers consistent professional results in high-volume production environments.

MACHINE FEATURES:

  • High-Speed Operation – Up to 7,000 sti/min: Supports efficient production while maintaining seam stability on medium to heavy fabrics.

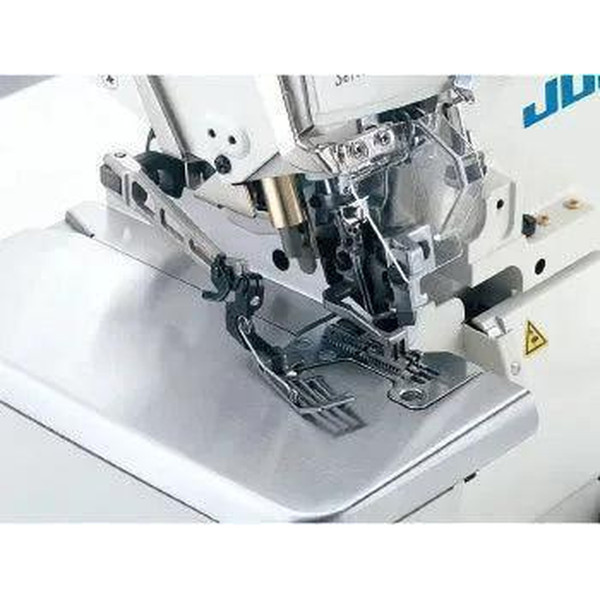

  • Variable Top & Bottom Feed System – Advanced Fabric Control: Separately driven feeds provide smooth, synchronized material transport without surface damage.
  • 2-Needle Configuration – Reinforced Seam Construction: Creates durable multi-thread seams suitable for structural garment assembly.
  • 4.8 mm Gauge & 4.8 mm Overedging Width – Wide Seam Coverage: Delivers broad seam geometry designed for medium to heavy-weight apparel components.
  • Extra High-Throw Upper Looper – Reliable Loop Formation: Extended looper movement enhances thread control and ensures stable stitch formation on layered materials.
  • Independent Micro-Adjustments for Top & Bottom Feed – Precision Tuning: Allows accurate feed balancing to prevent puckering, distortion, or uneven seam appearance.
  • Needle Thread Heat Remover & Needle Cooler – Stable Continuous Sewing: Reduces needle heat buildup and helps prevent stitching issues during prolonged operation.

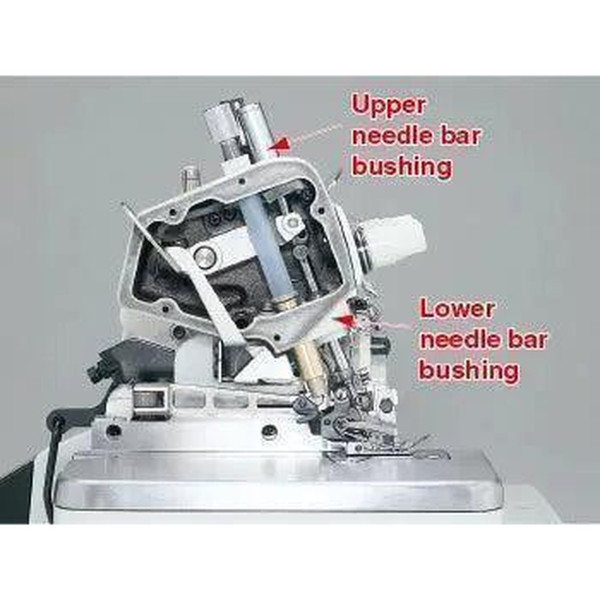

  • Shield-Structured Needle Bar with Upper & Lower Bushings – Increased Durability: Reinforced needle bar construction improves reliability in demanding production environments.
  • Cartridge-Type Oil Filter & Cooling Fan – Extended Service Life: Maintains lubrication cleanliness and internal temperature stability.

MACHINE SPECIFICATIONS:

  • Max Sewing Speed: 7,000 stitches per minute (sti/min) for a top feed dog stroke of 6mm (0.24") or less, 6,000 stitches per minute (sti/min) for a stroke of 6-8.5mm (0.33")
  • Lift Of The Presser Foot: Maximum 7 mm (0.28")
  • Needle: DC×27
  • Fabrics: medium, heavy-weight
  • Stitch Length: 0.8mm (0.03") to 4mm (0.16")
  • Overedging Width: 3.2 mm (0.13")
  • Needle Gauge: 2 mm (0.08")
  • Differential Feed Ratio: For gathering: Max. 1:4, For stretching: Max. 1:0.6
  • Needle Bar Stroke: 24.5mm (0.96")
  • Inclination Angle Of The Needle: 20°
  • Lubrication System: Automatic lubrication
  • Lubricating Oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
  • Needle Cooler: Provided as standard
  • Needle Thread Heat Remover: Provided as standard
  • Microlifter: Provided as standard
  • Stitch Adjusting Method: By push-button
  • Bottom Differential Feed Adjusting Method: By lever with micro-adjustment
  • Top Differential Feed Adjusting Method: By lever with micro-adjustment
  • Weight Of The Machine Head: 29kg

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
