Consew 14TU2345 2/3/4/5 Thread Portable Coverlock Machine

No reviews yet Write a Review
Market Price: $670.00
$516.00
Save $154.00 per unit
SKU:
14TU2345
Condition:
New
Shipping:
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 14TU2345 2/3/4/5 Thread Portable Coverlock Machine

Market Price: $670.00
$516.00
Save $154.00 per unit

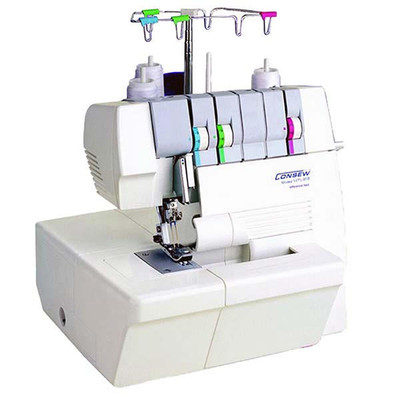

Consew 14TU2345 Portable Coverlock 2/3/4/5 Thread Machine

If you're ready to take your sewing to a new level, then you're ready for the Consew "Coverlock" 14TU2345. It makes the decorative and professional touches easier than you ever thought they would be. The Consew "Coverlock" puts every feature or capability you could want at your fingertips.

Consew 14TU2345 Series BrochureConsew 14TU2345 Series Brochure

MACHINE APPLICATIONS

  • For overedging and trimming various materials from lightweight fabrics such as chiffons, silk, suit lining, tricot, linen, cotton, general dress materials and woolens to heavyweight fabrics such as tweeds, coat cloth, jersey and denim
  • Sew through denim as well as through the sheerest of fabrics without puckering
  • Suitable for overedging such products as jackets, sweaters, dress and sports shirts, overalls, uniforms, jeans, work pants, dresses, jump suits, slips, negligees, pajamas, bathing suits, trousers and coats
  • Suitable for general overedging, cross seaming, plain seaming, pintucking and braiding. You can ornament with pintuck or braid stitching and ornamental overlocking
  • Perfect for sample rooms, alteration rooms, tailor's shops, drapery shops, dry cleaners, department stores, dress makers and the home

MACHINE SPECIFICATIONS

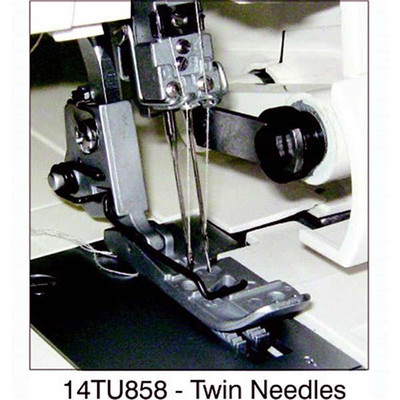

  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Differential
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Stitch Type: Coverstitch - Safety Stitch
  • Speed, Max (S.P.M.): 1200
  • Max Stitch Length: Up to 4mm
  • Clearence Under Foot: 4mm
  • Differential Ratio: 0.5 min - 2.0 max
  • Dimensions: Lv.300 mm x W.310 mm x H.320 mm
  • Needle Used: HAX1
  • Power: 110 vac (220 optional)
  • Machine Weight: 15.5 lbs (7kg)
  • Shipping Weight: 21 lbs (9.5kg)
  • Stitch Width, Max: (Left Needle: 5.2 - 6.7mm
  • Seam Width: (Right Needle) 3.0 - 4.5 mm
  • Motor: 110 vac (220 available)

MACHINE FEATURES

  • Differential Feed

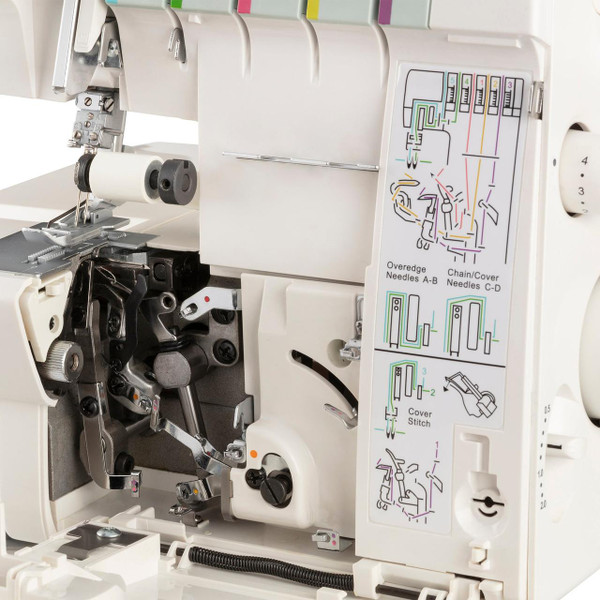

  • Easy color coded threading
  • Counterbalanced mechanism. Precision feet for smooth, vibration-free operation
  • Telescoping thread mast (convenient extension spool holders)
  • Adjustable stitch length dial
  • High-rise looper mechanism with presser foot lift up to 5/32" (4.5 mm)
  • Adjustable cutting width. Heavy duty top tungsten-carbide steel knife and lower carbon steel knife ensures sharp, clean cutting
  • Easy thread tension control for any thickness of materials and any threads
  • Needle guard prevents needle from bending or breaking when stitching heavyweight materials such as denim etc.
  • Auto Tension Release
  • Attachable Clean Pocket
  • Equipped with built-in motor, electronic foot-operated speed control
  • Built-in LED sew light, ruler, handle and seam guide
  • Removable cloth plate for cylinder operations

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
