Juki APW-895NS-ZR1 Automatic Lockstitch Welting Machine Complete Unit

No reviews yet Write a Review
Market Price: $40,187.00
$36,872.00
Save $3,315.00 per unit
SKU:
APW-895NS-ZR1
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki APW-895NS-ZR1 Automatic Lockstitch Welting Machine Complete Unit

Market Price: $40,187.00
$36,872.00
Save $3,315.00 per unit

Juki APW-895NS-ZR1 Automatic Lockstitch Welting Machine Complete Unit

Market Price: $40,187.00
$36,872.00
Save $3,315.00 per unit

Juki APW-895NS-ZR1 Automatic Lockstitch Welting Machine Complete Unit

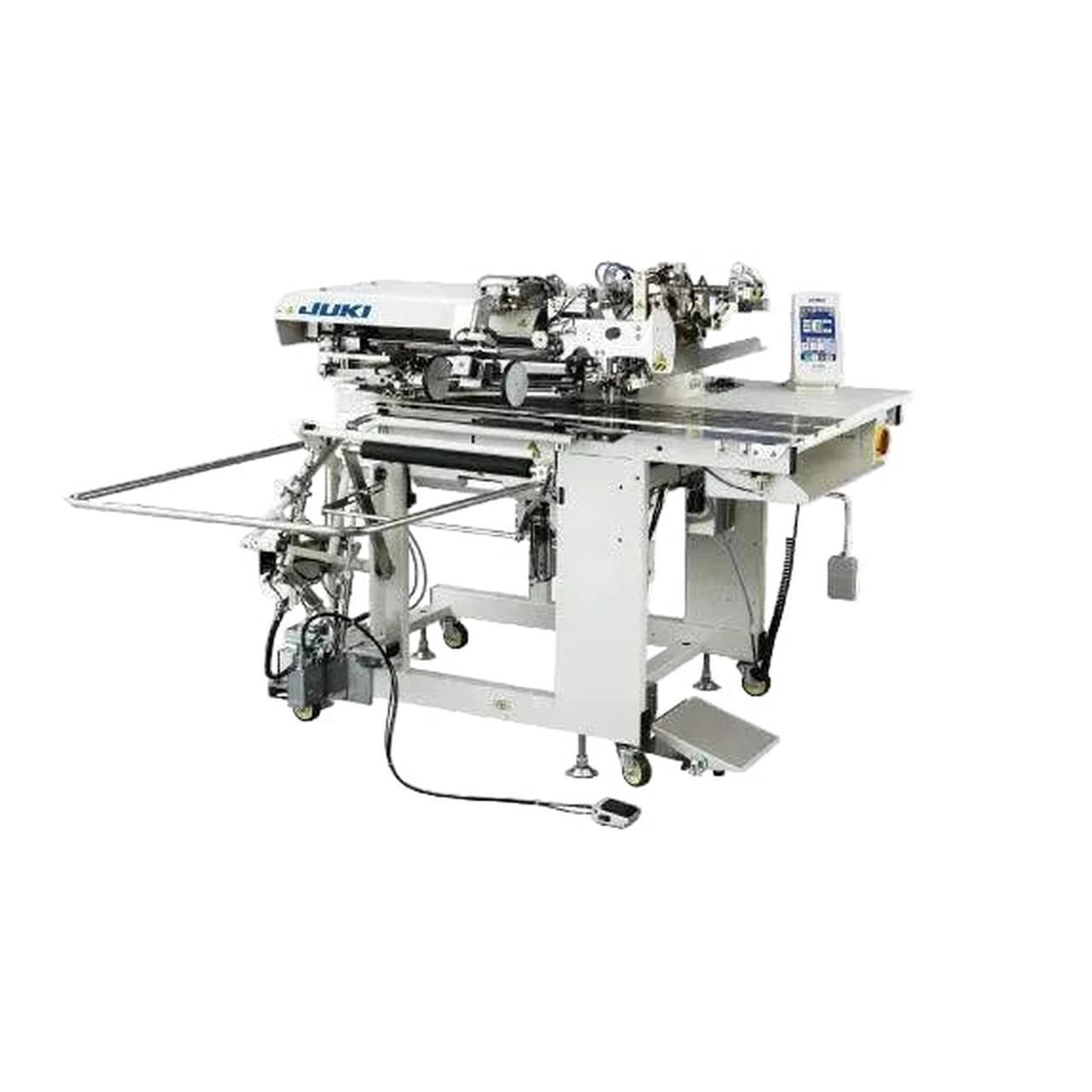

This fully automatic lockstitch welting machine is engineered for high-precision sewing of straight welt pockets with flaps in garments such as jackets, trousers, and formalwear. The machine is built on the advanced APW-895N platform and features the IP-420 Control System. With its automated design, it provides an ideal solution for high-volume garment production facilities focused on quality and efficiency.

MACHINE FEATURES:

  • Automatic Pocket Sewing Process: Performs clamping, sewing, cutting, and finishing automatically, reducing manual steps.
  • High Productivity (Up to 3,000 sti/min): Enables production of up to ~1900–2300 pockets per shift depending on configuration.
  • Programmable Patterns (Up to 99 Programs): Allows quick switching between styles and pocket types.
  • Precise Knife System (Center & Corner Knives): Ensures clean and accurate cutting regardless of sewing speed.
  • Digital Control Panel (IP420): Provides intuitive operation, fast setup changes, and parameter adjustments.
  • Automatic Flap Handling & Detection: Improves positioning accuracy and reduces sewing errors.
  • Energy-Efficient Direct Drive System: Reduces power consumption and vibration during operation.
  • Automatic Pocket Sewing Process: Performs clamping, sewing, cutting, and finishing automatically, reducing manual steps.
  • High Productivity (Up to 3,000 sti/min): Enables production of up to ~1900–2300 pockets per shift depending on configuration.
  • Programmable Patterns (Up to 99 Programs): Allows quick switching between styles and pocket types.
  • Precise Knife System (Center & Corner Knives): Ensures clean and accurate cutting regardless of sewing speed.
  • Digital Control Panel (IP420): Provides intuitive operation, fast setup changes, and parameter adjustments.
  • Automatic Flap Handling & Detection: Improves positioning accuracy and reduces sewing errors.

MACHINE SPECIFICATIONS:

  • Machine Head: High-speed, 2-needle, lockstitch, zigzag stitching machine (exclusive machine head with semi-dry head system)
  • Max Sewing Speed: 3,000 stitches per minute (sti/min)
  • Lift Of The Work Clamp Foot: Adjustable presser foot lift for versatile fabric handling
  • Hook: Horizontal-axis full-rotary hook for precision sewing
  • Stored Sewing Patterns: Up to 99 independent sewing patterns (999 patterns with a Compact Flash memory card)
  • Maximum Stitch Length: 2.5 mm (0.10")
  • Welt Styles: Parallel double welt, parallel single welt (with or without flaps)
  • Stitch Length Fastening Stitching: Condensation stitching: 1.0 mm (0.5-1.5 mm), Back-tack stitching: 2.0 mm (0.5-3.0 mm), adjustable between condensation and back-tack stitching
  • Needle: ORGAN DPx17 Standard #16 (for general use) or SCHMETZ 190R #100-110 (for thicker materials)
  • Power Requirement Power Consumption: Single-phase 200V-240V / 350VA, 3-phase 200-380V, 50Hz/60Hz
  • Compressed Air And Air Consumption: 0.5 MPa (5kg/cm²), 40 dm³/min
  • Weight: 238.5 kg
  • Dimensions: 1,095 mm (W) × 1,500 mm (D) × 1,200 mm (H); with stacker included, 1,580 mm (W), and with thread stand, 1,800 mm (H)

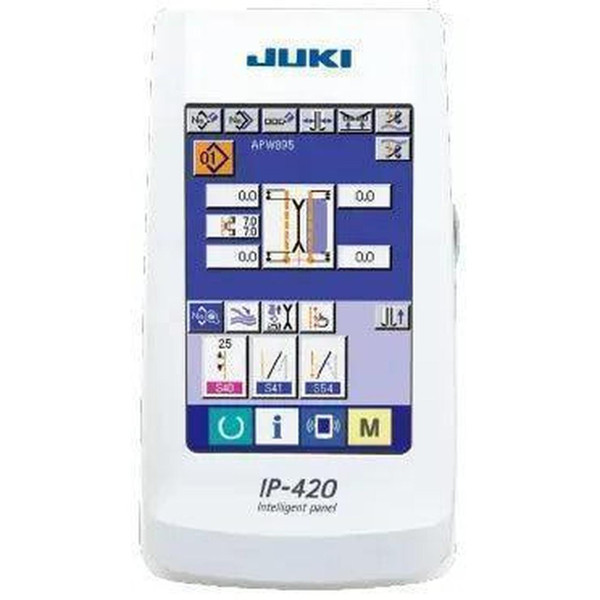

  • Control Panel: Large color LCD touch panel (IP-420), USB ready, supporting multiple media (SD, CF, Smart Media)

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
