Juki APW-896NS-QR2 Automatic Lockstitch Welting Machine Complete Unit

No reviews yet Write a Review
Market Price: $60,411.00
$51,759.00
Save $8,652.00 per unit
SKU:
APW-896NS-QR2
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki APW-896NS-QR2 Automatic Lockstitch Welting Machine Complete Unit

Market Price: $60,411.00
$51,759.00
Save $8,652.00 per unit

Juki APW-896NS-QR2 Automatic Lockstitch Welting Machine Complete Unit

Market Price: $60,411.00
$51,759.00
Save $8,652.00 per unit

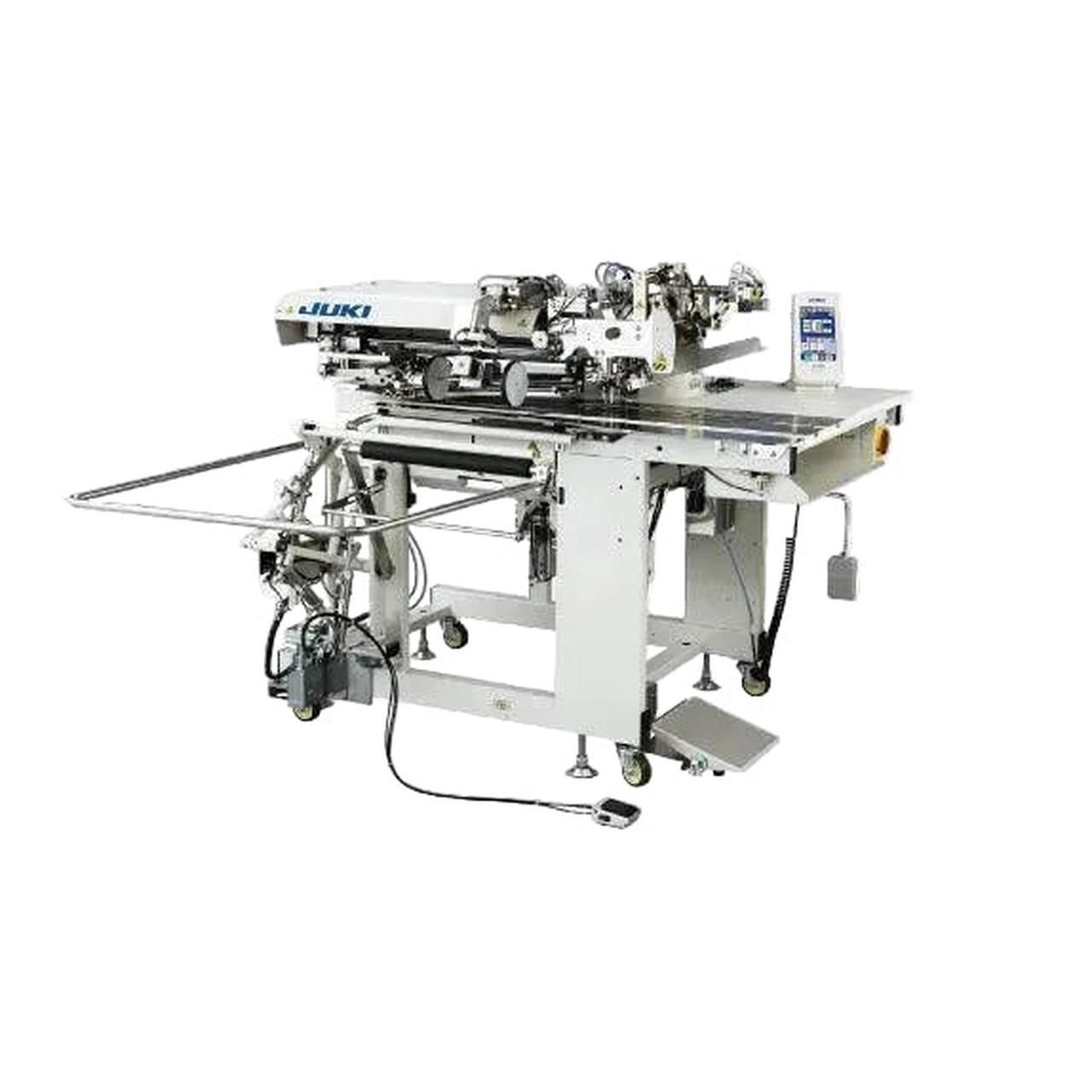

Juki APW-896NS-QR2 Automatic Lockstitch Welting Machine Complete Unit

This fully automatic lockstitch welting machine is engineered for high-precision sewing of slanted welt pockets with flaps on premium garments. Designed specifically for suits, jackets, trousers, uniforms, and high-end outerwear, it delivers consistent professional results that meet the demanding standards of tailoring and garment manufacturing. The machine features integrated automation tools including a clamp bar stacker, suction device, and marking light that work together to streamline the welting process and ensure accurate pocket placement. Its specialized design makes it an essential tool for manufacturers who need to produce perfectly finished slanted welt pockets with reliable consistency and professional quality.

MACHINE SPECIFICATIONS:

  • Machine Head: High-speed, 2-needle, lockstitch, zigzag stitching machine (exclusive machine head with semi-dry head system)
  • Max Sewing Speed: 3,000 stitches per minute (sti/min)
  • Lift Of The Work Clamp Foot: Adjustable presser foot lift for versatile fabric handling
  • Hook: Horizontal-axis full-rotary hook for precision sewing
  • Stored Sewing Patterns: Up to 99 independent sewing patterns (999 patterns with a Compact Flash memory card)
  • Maximum Stitch Length: 2.5 mm (0.10")
  • Welt Styles: Single welt, double welt, slanted welt, trapezoidal pockets with or without flaps
  • Stitch Length Fastening Stitching: Condensation stitching: 1.0 mm (0.5-1.5 mm), Back-tack stitching: 2.0 mm (0.5-3.0 mm), adjustable between condensation and back-tack stitching
  • Needle: ORGAN DPx17 Standard #16 (for general use) or SCHMETZ 190R #100-110 (for thicker materials)
  • Power Requirement Power Consumption: Single-phase 200V-240V / 350VA, 3-phase 200-380V, 50Hz/60Hz
  • Compressed Air And Air Consumption: 0.5 MPa (5kg/cm²), 40 dm³/min
  • Weight: 238.5 kg
  • Dimensions: 1,095 mm (W) × 1,500 mm (D) × 1,200 mm (H); with stacker included, 1,580 mm (W), and with thread stand, 1,800 mm (H)

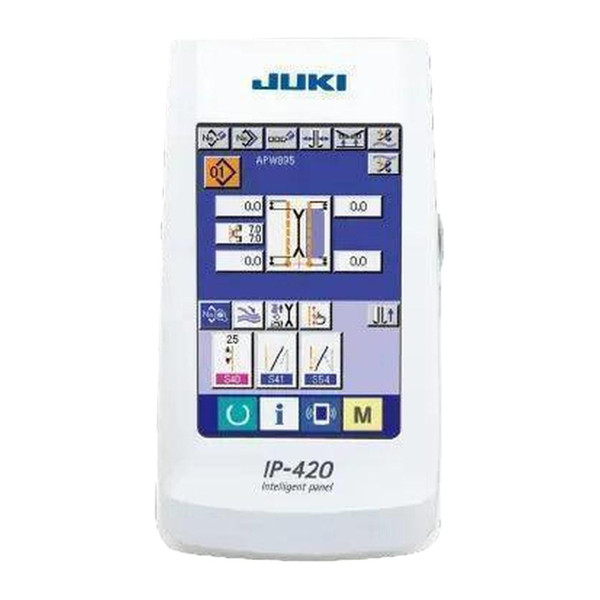

  • Control Panel: Large color LCD touch panel (IP-420), USB ready, supporting multiple media (SD, CF, Smart Media)
