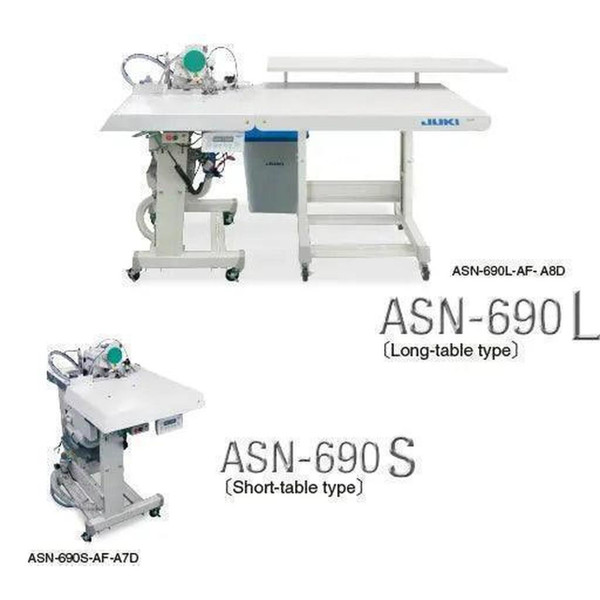

Juki ASN-690-LA-FA-8D Automatic Serging Machine Complete Unit

No reviews yet Write a Review
Market Price: $24,942.00
$22,604.00
Save $2,338.00 per unit
SKU:
ASN-690-LA-FA-8D
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki ASN-690-LA-FA-8D Automatic Serging Machine Complete Unit

Market Price: $24,942.00
$22,604.00
Save $2,338.00 per unit

Juki ASN-690-LA-FA-8D Automatic Serging Machine Complete Unit

Market Price: $24,942.00
$22,604.00
Save $2,338.00 per unit

Juki ASN-690-LA-FA-8D Automatic Serging Machine Complete Unit

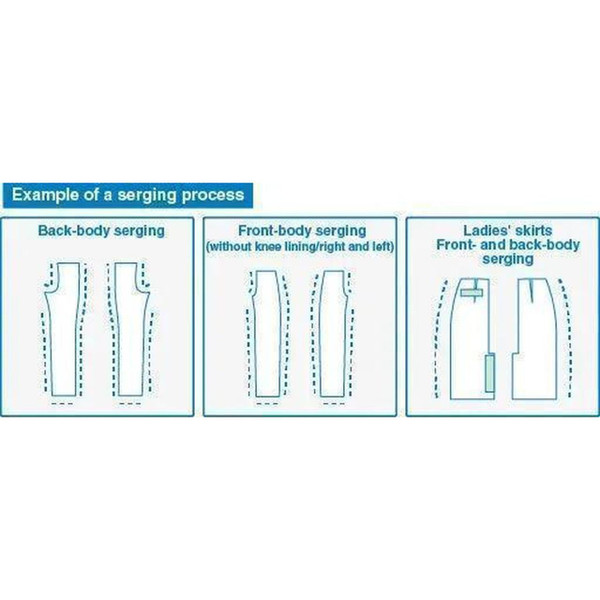

This automatic serging machine is designed for efficient overcasting on fabric pieces cut into shapes for jeans, pants, and skirts. It combines simple operation with high-output performance, making it well suited to industrial production environments where consistency and productivity matter. The machine supports smoother material handling for cleaner results, and adjustable serging settings give operators the flexibility to work with a range of fabrics and seam requirements.

MACHINE FEATURES:

  • ULTRA-HIGH-SPEED PERFORMANCE: With a top speed of 8,000 stitches per minute, the Juki ASN-690 is designed for rapid serging, making it ideal for high-volume production environments.
  • AUTOMATED THREAD TRIMMING: The automatic thread trimming feature saves time and effort by cutting threads automatically at the end of each sewing sequence, streamlining the workflow.
  • FLEXIBLE FABRIC HANDLING: The

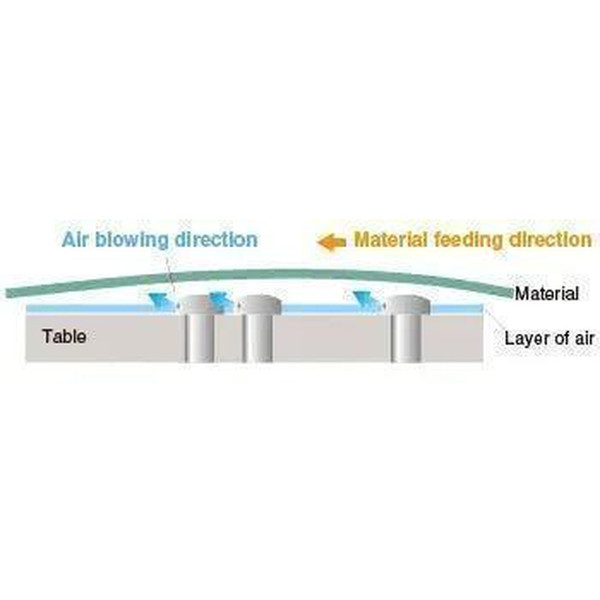

  • AIR-BLOW TABLE: An air-blow table ensures smooth fabric movement, preventing material bunching and ensuring consistent stitch quality at high speeds.
  • PRECISION SERGING CONTROL: Adjustable stitch width (4.0 mm to 5.6 mm) and stitch length (0.8 mm to 4.0 mm) allow for fine-tuning to meet the specific requirements of various garments and fabrics.

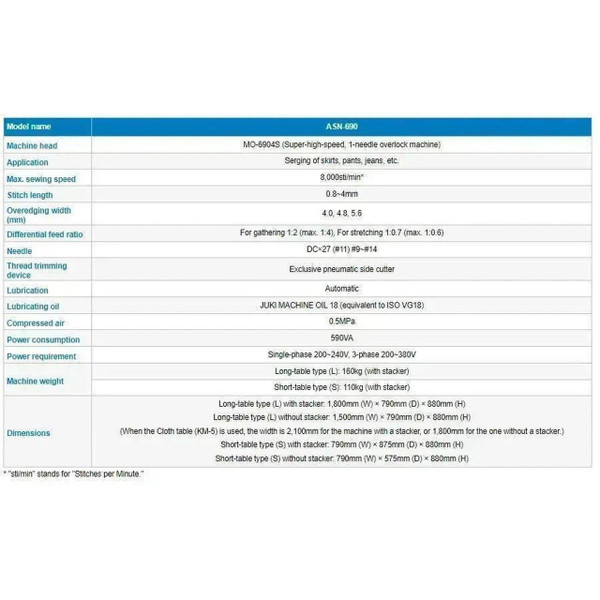

MACHINE SPECIFICATIONS:

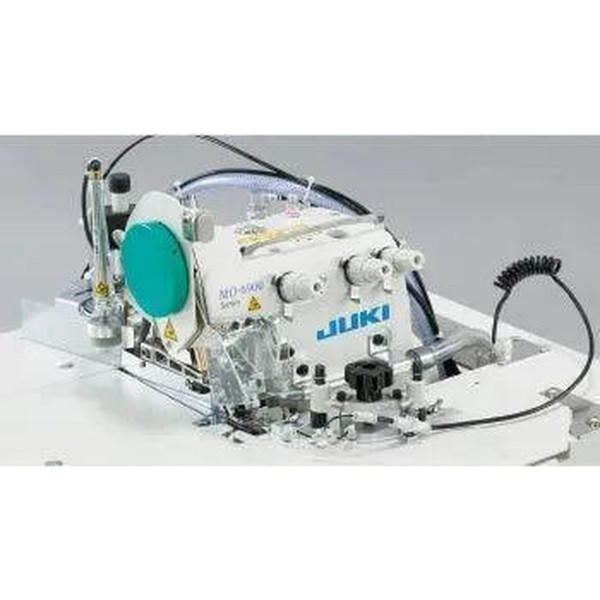

  • Machine Head: Juki MO-6904S, high-speed, single-needle, overlock serger machine
  • Max Sewing Speed: 8,000 stitches per minute (sti/min)

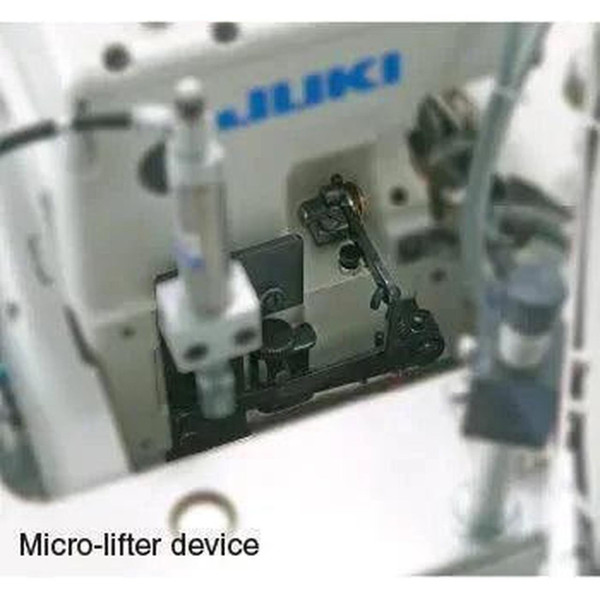

  • Lift Of The Work Clamp Foot: Micro-lifter device (adjustable to suit fabric thickness)
  • Stitch Width: Adjustable between 4.0 mm (0.16"), 4.8 mm (0.19"), and 5.6 mm (0.22")
  • Stitch Length: Adjustable from 0.8 mm (0.03") to 4.0 mm (0.16")
  • Type Of Needle: DC×27 (#11), with options for #9 to #14
  • Thread System: Single-thread serging system
  • Fabric Types: Suitable for various fabrics, including jeans, skirts, and pants
  • Lubrication System: Automatic lubrication
  • Power Requirement Power Consumption: Single-phase 220–240V, 350VA
  • Compressed Air And Air Consumption: 0.5 MPa, 50 dm³/min (with air-blow table feature)

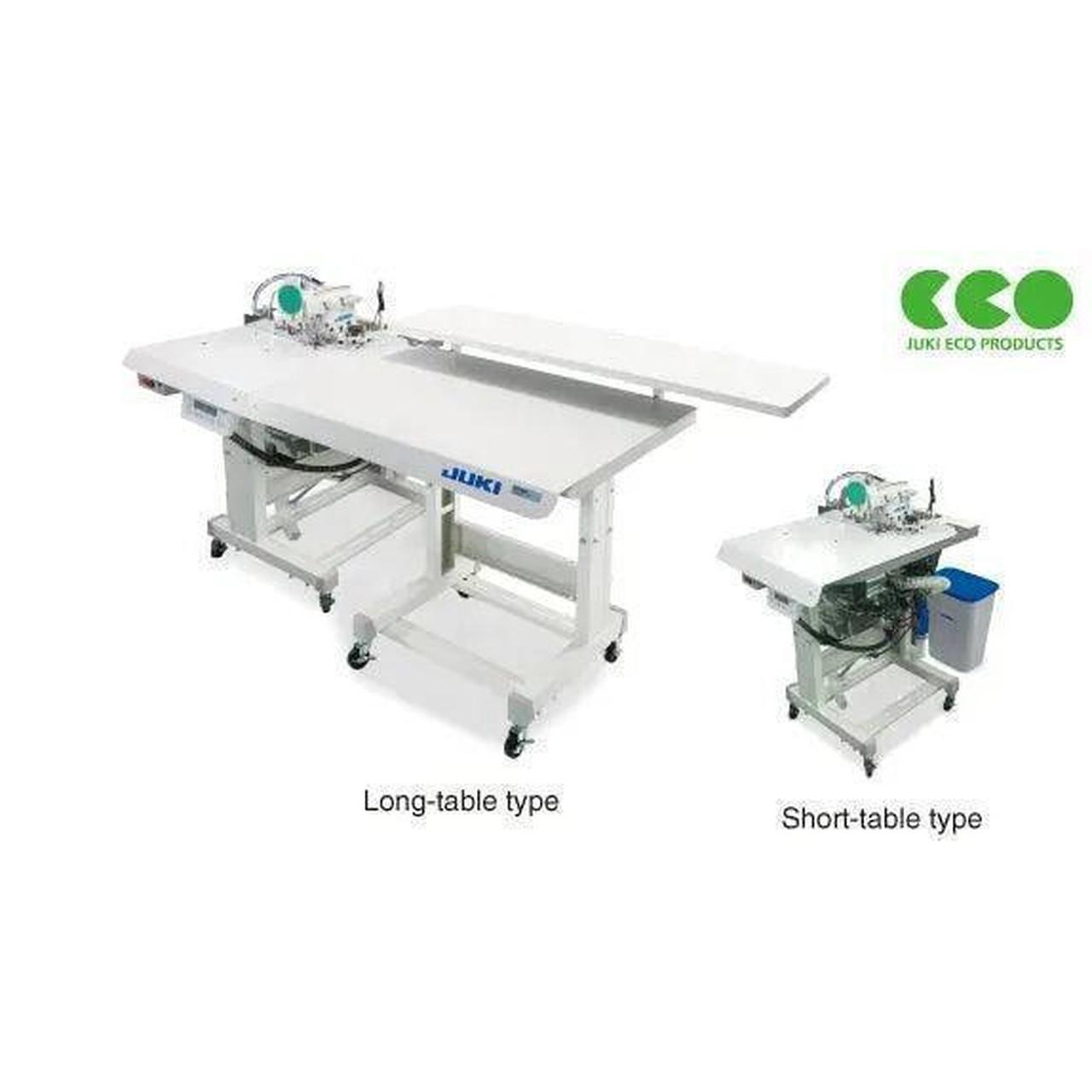

  • Dimensions: Machine body: approx. 1,200 mm (W) × 850 mm (D) × 1,210 mm (H)
  • Weight: Approx. 150 kg
  • Thread Trimming: Automatic thread trimming
  • Additional Features: Air-blow table for smooth fabric handling, adjustable cloth guide for versatile material usage, manual stacker switch for easy operation, pneumatic side cutter for clean thread cutting.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
