Juki MOL-254DAB Automatic 2-Needle Belt-Loop Attaching Machine Complete Unit

No reviews yet Write a Review
Market Price: $54,200.00
$49,737.00
Save $4,463.00 per unit
SKU:
MOL-254DAB
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MOL-254DAB Automatic 2-Needle Belt-Loop Attaching Machine Complete Unit

Market Price: $54,200.00
$49,737.00
Save $4,463.00 per unit

Juki MOL-254DAB Automatic 2-Needle Belt-Loop Attaching Machine Complete Unit

Market Price: $54,200.00
$49,737.00
Save $4,463.00 per unit

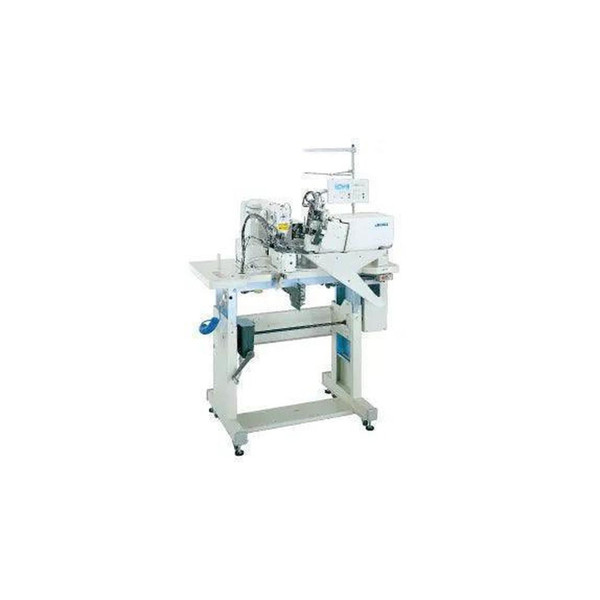

Juki MOL-254DAB Automatic 2-Needle Belt-Loop Attaching Machine Complete Unit

This automatic two-needle belt-loop attaching machine is built for efficient, consistent production of belt loops on jeans, trousers, workwear, and casual garments. Designed on JUKI's MOL-254 platform, it is suited to high-volume sewing operations where precision and repeatability matter. Its specialized belt-loop handling makes it a strong choice for manufacturers looking to streamline loop attachment while maintaining dependable results. The machine is well suited to apparel production environments that require fast, uniform belt-loop attachment across a range of garment types.

MACHINE SPECIFICATIONS:

  • Machine Head: MOL-254 (Computer-controlled, 2-needle, lockstitch bartacking machine)
  • Max Sewing Speed: 2,500 stitches per minute (sti/min)
  • Lift Of The Presser Foot: Maximum 21 mm (0.83")
  • Hook: Horizontal-axis 1.8 fold-capacity shuttle hook
  • Number Of Stitches: 28, 36, 42 (selectable on the operating panel)
  • Bartacking Length: 7~22 mm (adjustable in increments of 0.1 mm)
  • Bartacking Width: 1~3.2 mm (adjustable in increments of 0.1 mm)

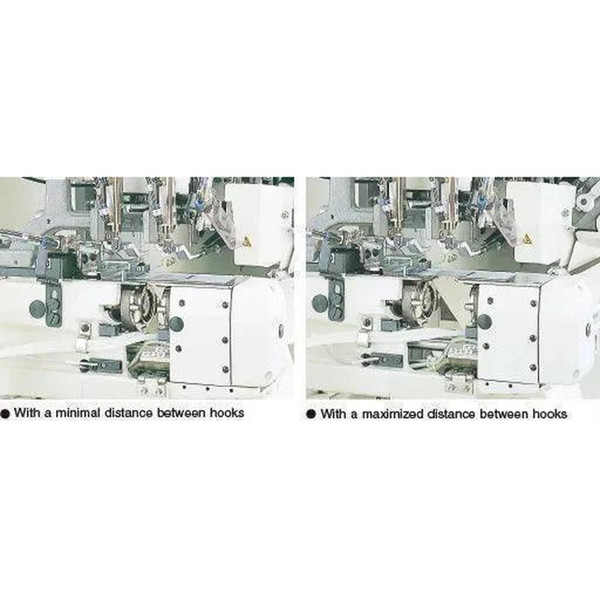

  • Needle Gauge: 43~70 mm (2.76")
  • Needle: DP × 17 (#21)
  • Thread: Spun thread, cotton thread #50~#30, B33~B46, Nm=120/3~60/3

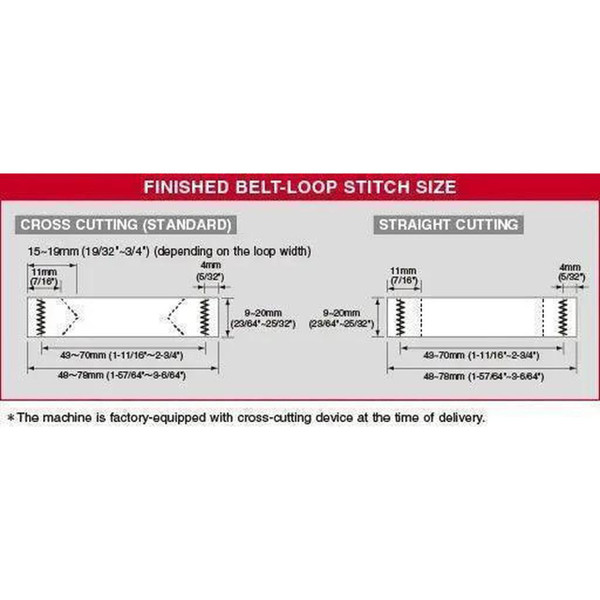

  • Beltloop Width: 9~20 mm (0.79")
  • Finished Length Of Beltloop: 48~78 mm (3.07")
  • Lubrication: Centralized oil wick lubrication (machine head)
  • Lubricating Oil: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
  • Bobbin Winder: Electric type (provided as standard)
  • Power Requirement Power Consumption: Single-phase, 3-phase 200~240V / 350VA
  • Compressed Air And Air Consumption: 0.5 MPa (5 kgf/cm²), 32 Nl/min
  • Total Weight: 230 kg
  • Dimensions: 1,200 mm (W) × 800 mm (D) × 1,350 mm (H)
  • Height Of The Top Surface Of The Throat Plate As From The Floor Surface: 920~1,250 mm (provided with the adjustable stand capability)
