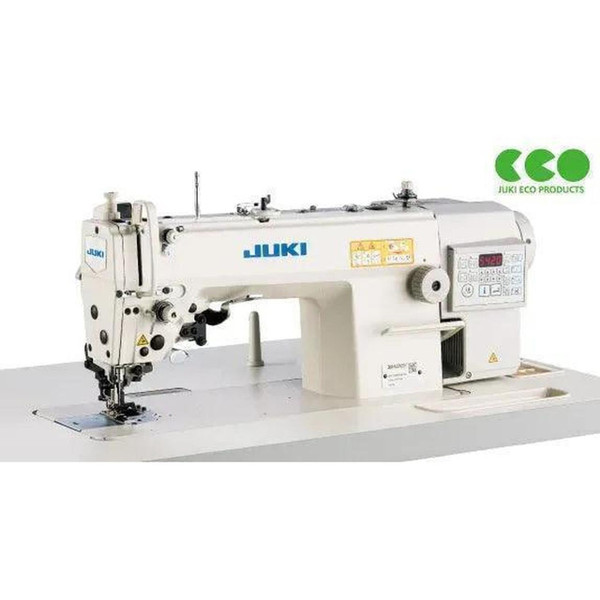

Juki DMN-5420N(D,F) Single Needle Direct Drive Needle Feed Sewing Machine with Automatic Thread Trimmer and Vertical Edge Trimmer Complete Unit with Table and Stand

No reviews yet Write a Review
Market Price: $8,829.00
$8,013.00
Save $816.00 per unit
SKU:
DMN-5420N(D,F)
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki DMN-5420N(D,F) Single Needle Direct Drive Needle Feed Sewing Machine with Automatic Thread Trimmer and Vertical Edge Trimmer Complete Unit with Table and Stand

Market Price: $8,829.00
$8,013.00
Save $816.00 per unit

Juki DMN-5420N(D,F) Single Needle Direct Drive Needle Feed Sewing Machine with Automatic Thread Trimmer and Vertical Edge Trimmer Complete Unit with Table and Stand

Market Price: $8,829.00
$8,013.00
Save $816.00 per unit

Juki DMN-5420N(D,F) Single Needle Direct Drive Needle Feed Sewing Machine Complete Unit with Table and Stand

This advanced single needle lockstitch machine combines direct-drive technology with a precision needle-feed system to deliver exceptional performance for demanding industrial applications. The needle-feed mechanism ensures consistent fabric handling and uniform stitch quality, even when working with thick, layered, or challenging materials like heavy-weight fabrics, elastic, and brushed textiles. Equipped with both automatic thread trimming and vertical edge trimming capabilities, it streamlines production workflows by eliminating manual cutting steps. The integrated CP-180 control panel provides intuitive operation with adjustable sewing parameters and security features, making it ideal for high-volume manufacturing environments where efficiency and reliability are paramount.

MACHINE FEATURES:

  • HIGH-SPEED PERFORMANCE: The Juki DMN-5420NDD-7 delivers up to 5,000 stitches per minute, ensuring fast and efficient sewing for high-volume production.
  • PRECISION NEEDLE-FEED SYSTEM: The needle-feed system ensures consistent fabric handling, producing high-quality, uniform stitches, even on thick or layered materials.
  • AUTOMATIC THREAD TRIMMING: This machine features an automatic thread trimming mechanism that effortlessly cuts threads of various thicknesses, enhancing workflow efficiency.
  • RELIABLE FABRIC HANDLING: Equipped with a rust-resistant cloth trimming knife, the machine handles a wide range of fabrics, from heavy-weight to elastic and brushed materials, providing clean and accurate cuts.
  • USER-FRIENDLY CONTROL PANEL: The integrated CP-180 control panel allows for easy adjustments to sewing speed and settings, with a password lock function for added security.

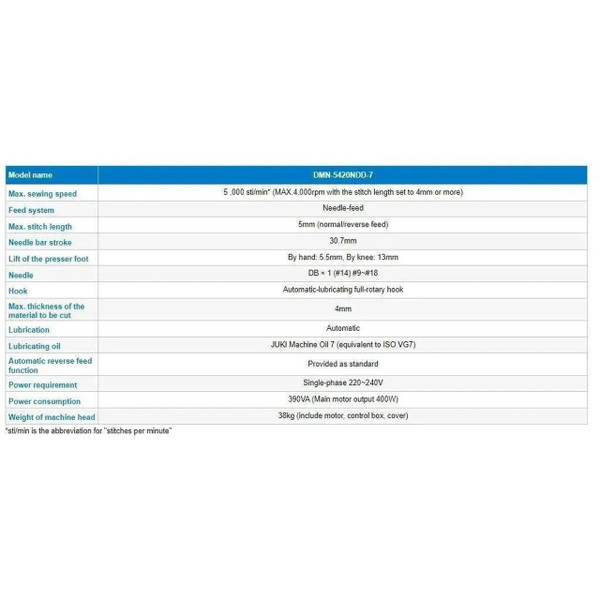

MACHINE SPECIFICATIONS:

  • Model Name: DMN-5420NDD-7
  • Max Sewing Speed: 5,000 stitches per minute (sti/min), MAX 4,000 rpm (with stitch length set to 4 mm or more)
  • Feed System: Needle-feed
  • Max Stitch Length: 5 mm (normal/reverse feed)
  • Needle Bar Stroke: 30.7 mm (1.21")
  • Lift Of The Presser Foot: By hand: 5.5 mm (0.22"), By knee: 13 mm (0.51")
  • Needle: DB × 1 (#14), #9~#18

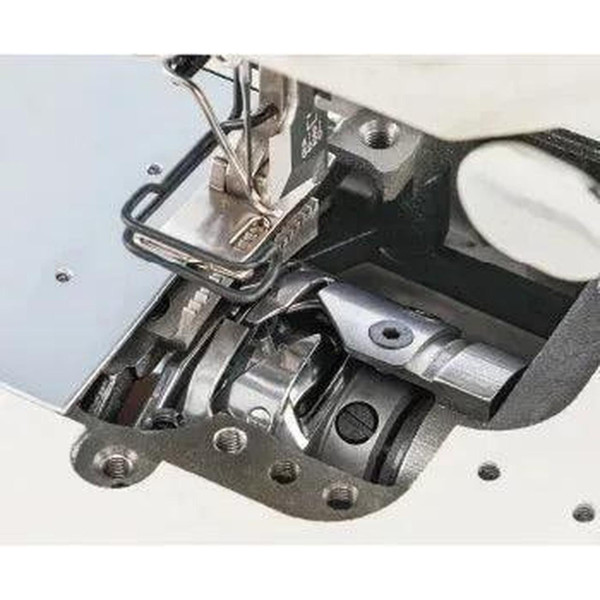

  • Hook: Automatic-lubricating full-rotary hook
  • Max Thickness Of Material To Be Cut: 4 mm (0.16")
  • Lubrication: Automatic
  • Lubricating Oil: JUKI Machine Oil 7 (equivalent to ISO VG7)
  • Automatic Reverse Feed Function: Provided as standard
  • Power Requirement Power Consumption: Single-phase 220~240V, 390VA (Main motor output 400W)
  • Weight Of Machine Head: 38 kg (includes motor, control box, and cover)

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
