Juki DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A 1-Needle Bottom and Variable Top-Feed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $9,130.00
$8,364.00
Save $766.00 per unit
SKU:
DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A 1-Needle Bottom and Variable Top-Feed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $9,130.00
$8,364.00
Save $766.00 per unit

Juki DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A 1-Needle Bottom and Variable Top-Feed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $9,130.00
$8,364.00
Save $766.00 per unit

Juki DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A 1-Needle Bottom and Variable Top-Feed Lockstitch Sewing Machine Complete Unit with Table and Servo Motor

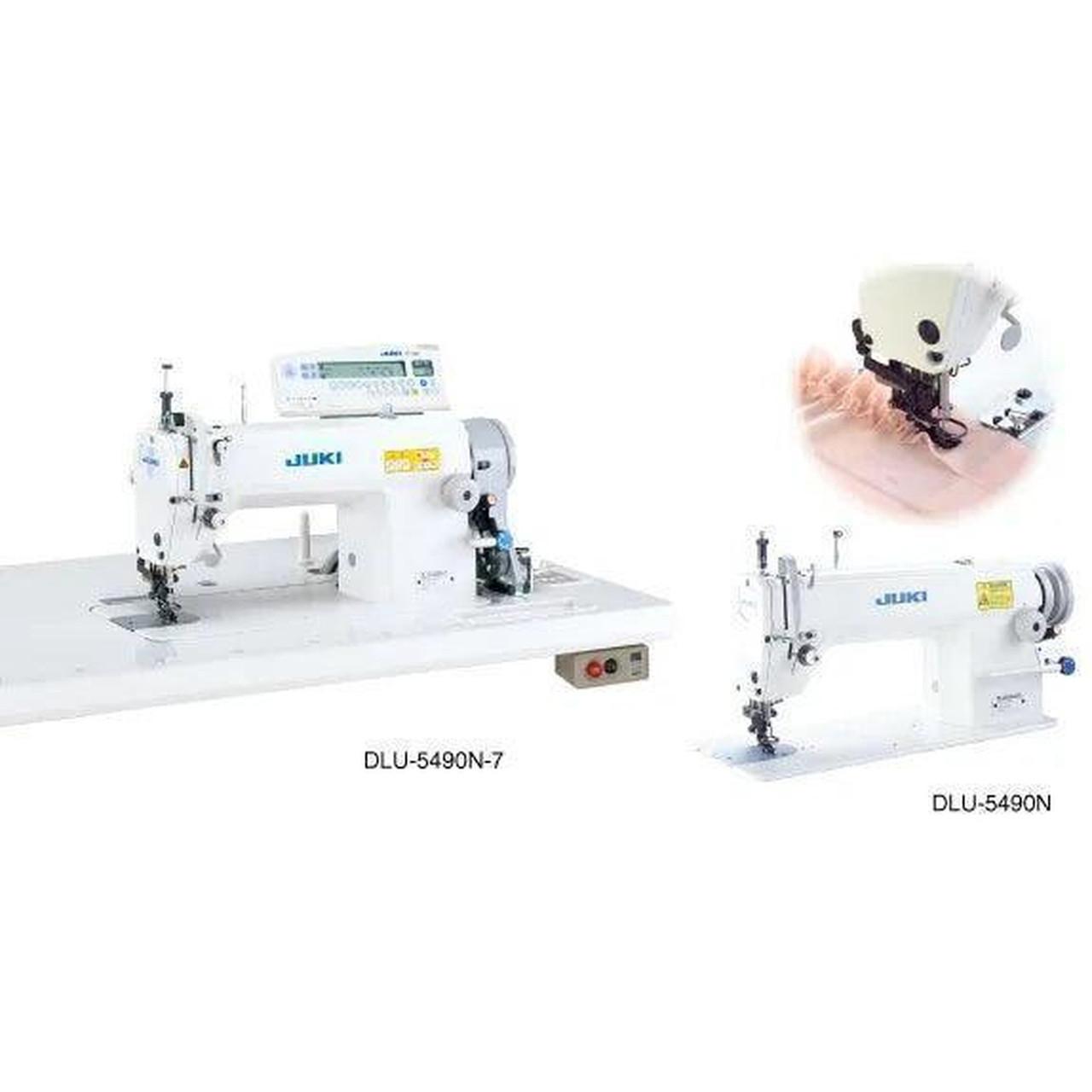

This is a 1-needle bottom and variable top-feed lockstitch machine designed for consistent, high-quality sewing in professional production settings. Its synchronized feed system helps handle upper and lower layers evenly, making it well suited for uniform stitching, stable gathering, and other applications that require precise fabric control. The walking foot design supports smooth feeding throughout the sewing process, while the large presser foot lift makes it easier to work with thicker or overlapping materials. An automatic thread trimming mechanism helps streamline workflow and improve overall productivity.

MACHINE FEATURES:

  • HIGH-SPEED STITCHING: The Juki DLU-5490N-7 delivers up to 4,500 stitches per minute, ensuring fast and efficient sewing for high-volume production.
  • PRECISION FABRIC FEEDING: Synchronized top and bottom feed provides even fabric handling, ensuring uniform, high-quality stitches with every operation.

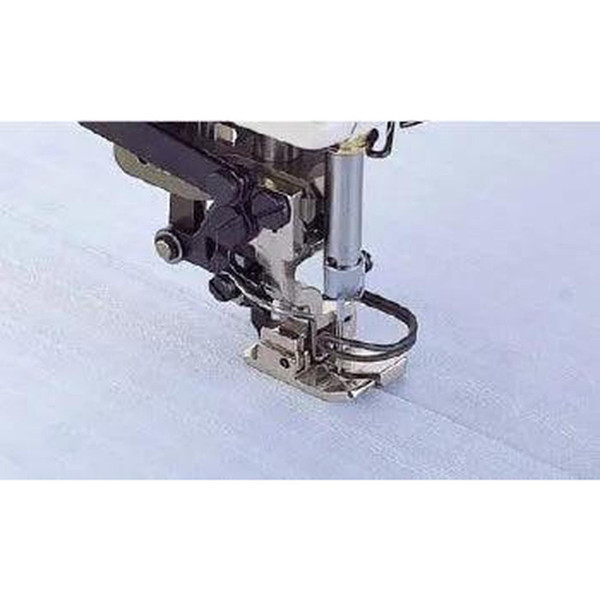

  • HANDLING THICK MATERIALS: The large presser foot lift allows easy sewing of thick or overlapping materials, ideal for medium-weight fabrics.
  • AUTOMATIC THREAD TRIMMING: Equipped with a reliable thread trimming mechanism, the machine streamlines workflow and increases productivity.
  • ENERGY-SAVING TECHNOLOGY: The SC-920C control box with M92 servomotor reduces power consumption by 25% during standby, enhancing energy efficiency.

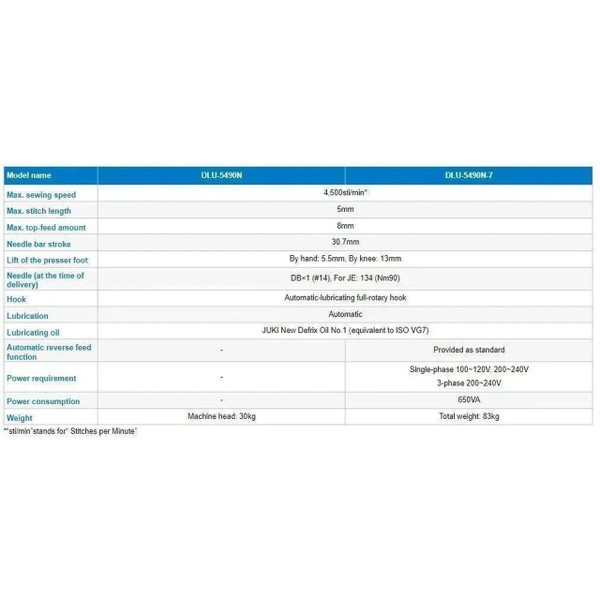

MACHINE SPECIFICATIONS:

  • Machine Head: DLU-5490N-7 (Automatic-lubricating full-rotary hook)
  • Max Sewing Speed: 4,500 stitches per minute (sti/min)
  • Max Stitch Length: 5 mm (0.20")
  • Max Topfeed Amount: 8 mm (0.31")
  • Needle Bar Stroke: 30.7 mm (1.21")

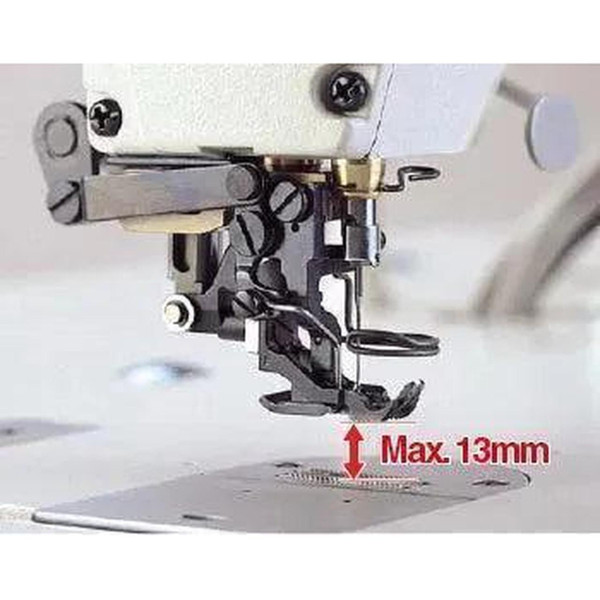

  • Lift Of The Presser Foot: By hand: 5.5 mm (0.22"), By knee: 13 mm (0.51")
  • Needle At The Time Of Delivery: DB×1 (#14), For JE: 134 (Nm90)

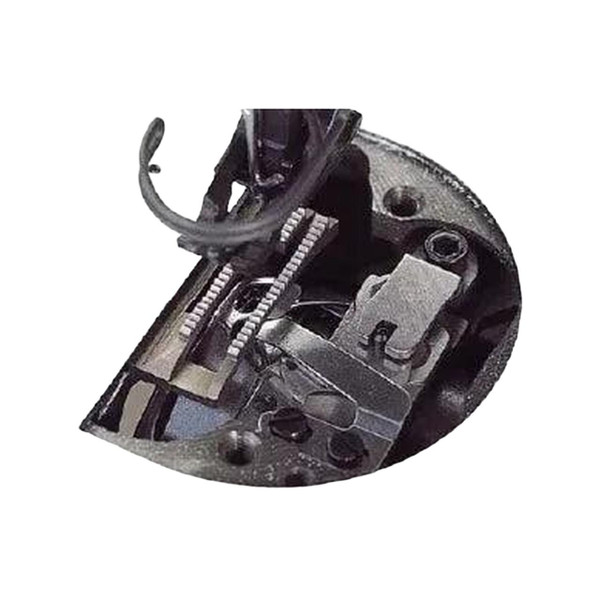

  • Hook: Automatic-lubricating full-rotary hook
  • Lubrication: Automatic
  • Lubricating Oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Automatic Reverse Feed Function: Provided as standard
  • Power Requirement Power Consumption: Single-phase 100~120V, 200~240V / 650VA, 3-phase 200~240V / 650VA
  • Total Weight: 83 kg

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
