Juki LK-1910HA-5000Z/MC6762DD Computer Controlled High Speed Shape Tacking Machine Complete Unit

No reviews yet Write a Review
Market Price: $13,510.00
$12,671.00
Save $839.00 per unit
SKU:
LK-1910HA-5000Z/MC6762DD
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki LK-1910HA-5000Z/MC6762DD Computer Controlled High Speed Shape Tacking Machine Complete Unit

Market Price: $13,510.00
$12,671.00
Save $839.00 per unit

Juki LK-1910HA-5000Z/MC6762DD Computer Controlled High Speed Shape Tacking Machine Complete Unit

Market Price: $13,510.00
$12,671.00
Save $839.00 per unit

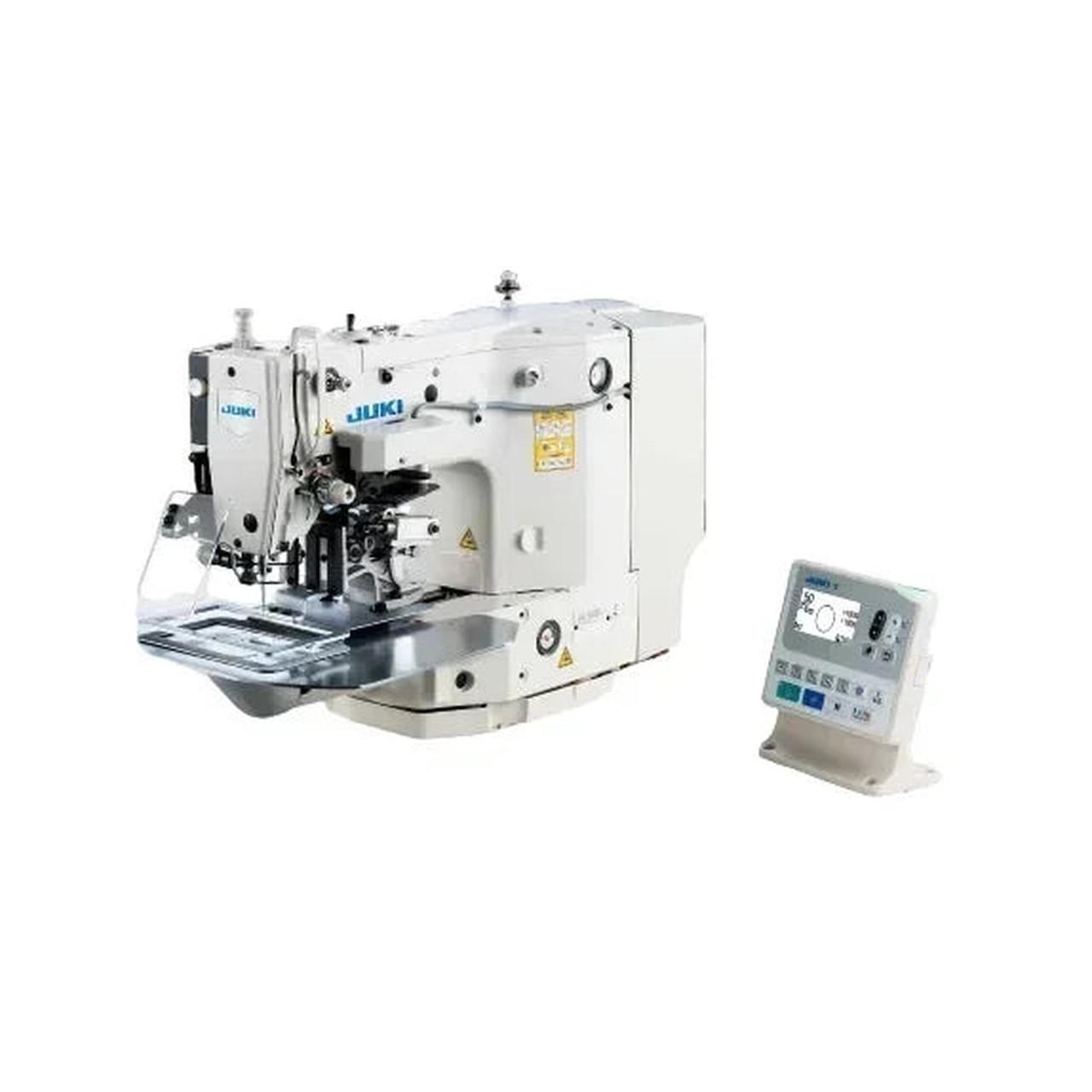

Juki LK-1910HA-5000Z/MC6762DD Computer Controlled High Speed Shape Tacking Machine Complete Unit

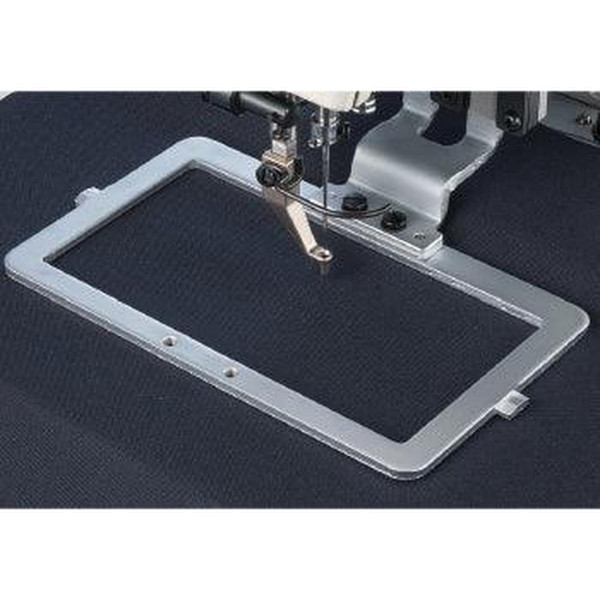

This computer-controlled high-speed shape-tacking machine is specifically engineered for heavy-weight materials and demanding industrial applications. The advanced system features a pneumatic feeding frame and provides a generous 60×100 mm sewing area, making it ideal for precise pattern work on thick fabrics and materials. Its computer-controlled operation ensures consistent, accurate stitching patterns while maintaining exceptional speed and reliability. Perfect for manufacturers working with heavy-duty textiles, upholstery, automotive materials, and other industrial fabrics that require precise shape-tacking operations.

MACHINE SPECIFICATIONS:

  • Machine Type: Computer-controlled shape-tacking sewing machine
  • Material Type: Heavy-weight materials (H type)
  • Maximum Sewing Speed: 2,500 stitches/min
  • Sewing Area: 60 mm (L) × 100 mm (W)
  • Stitch Length: 0.1 – 10 mm (0.1 mm step)
  • Needle Bar Stroke: 41.2 mm (1.62")
  • Feeding Frame Lift: 25 mm (0.98")
  • Needle: DP×17 (#18)
  • Hook: Semi-rotary double-capacity shuttle hook
  • Number Of Input Patterns: Up to 200 patterns
  • Pattern Scaling: 20% – 200% (1% step)
  • Memory: EEP-ROM
  • Drive System: Direct-drive AC servomotor
  • Machine Head With Motor: 46 kg
  • Control Box: 5 kg

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Motor is built directly into the machine head for maximum efficiency
  • Silent operation with low vibration
  • Energy efficient — uses up to 70% less power than clutch motors
  • Precise speed control through electronic foot pedal
  • Instant start/stop with electronic braking
  • Compact design eliminates belt and pulley maintenance

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
