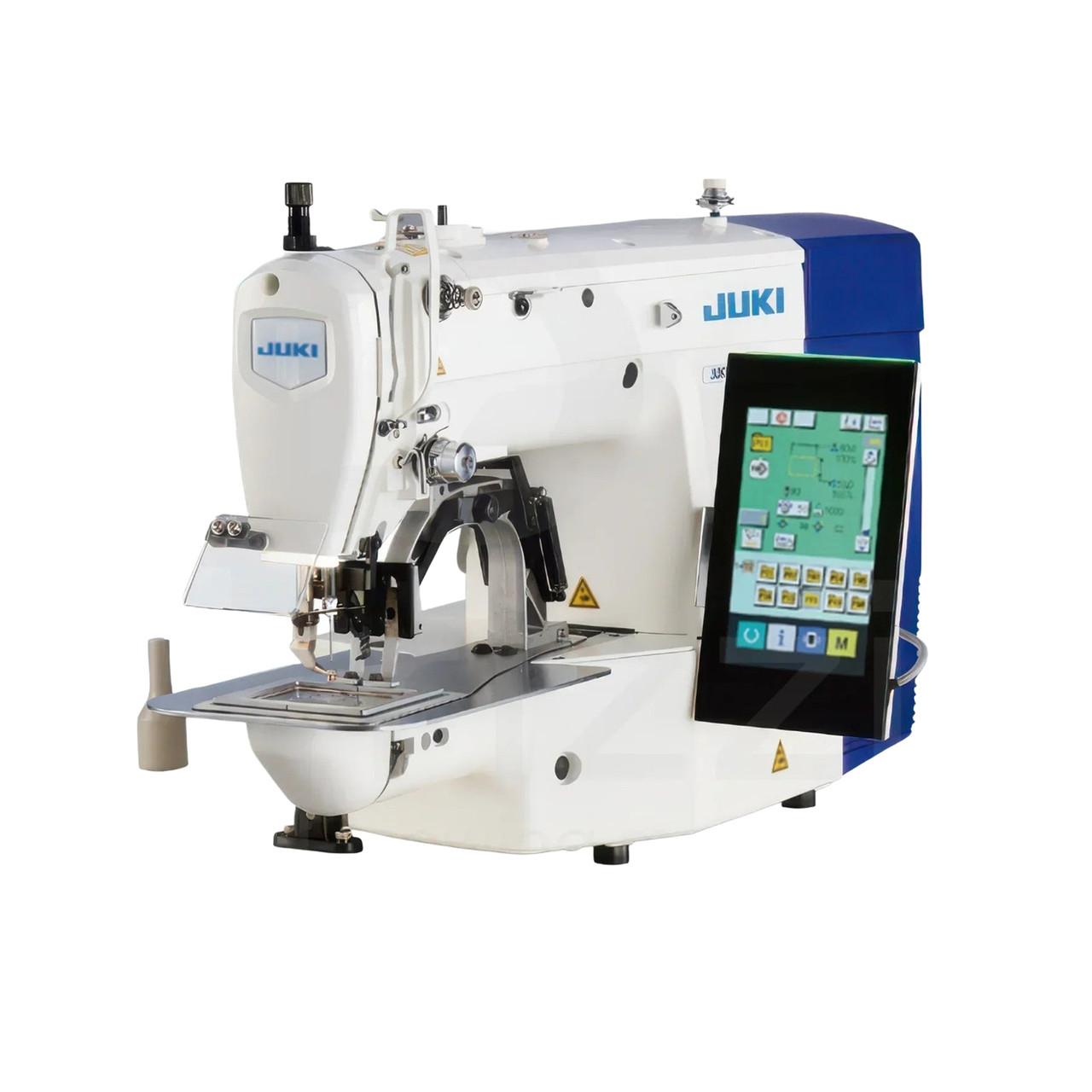

Juki LK-1905C-SS000D Computer-Controlled High-Speed Bartacking Sewing System Complete Unit

No reviews yet Write a Review
Market Price: $8,325.00
$7,822.00
Save $503.00 per unit
SKU:
LK-1905C-SS000D
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki LK-1905C-SS000D Computer-Controlled High-Speed Bartacking Sewing System Complete Unit

Market Price: $8,325.00
$7,822.00
Save $503.00 per unit

Juki LK-1905C-SS000D Computer-Controlled High-Speed Bartacking Sewing System Complete Unit

Market Price: $8,325.00
$7,822.00
Save $503.00 per unit

Juki LK-1905C-SS000D Computer-Controlled High-Speed Bartacking Sewing System Complete Unit

This computer-controlled bartacking system delivers exceptional precision and productivity for medium-weight materials within its 60×50 mm sewing area. The machine is designed for high-volume production environments requiring consistent, professional-grade bartacking, maintaining the reliability and performance standards demanded in industrial sewing applications.

MACHINE FEATURES:

  • Ultra-high productivity with 3,300 sti/min speed
  • Accurate positioning with LED marking guidance
  • Flexible pattern programming and storage
  • Reduced setup time between operations
  • Stable seam quality across different materials
  • Lower power consumption and improved efficiency

MACHINE SPECIFICATIONS:

  • Application: Medium-weight materials
  • Max Sewing Speed: 2,700 sti/min

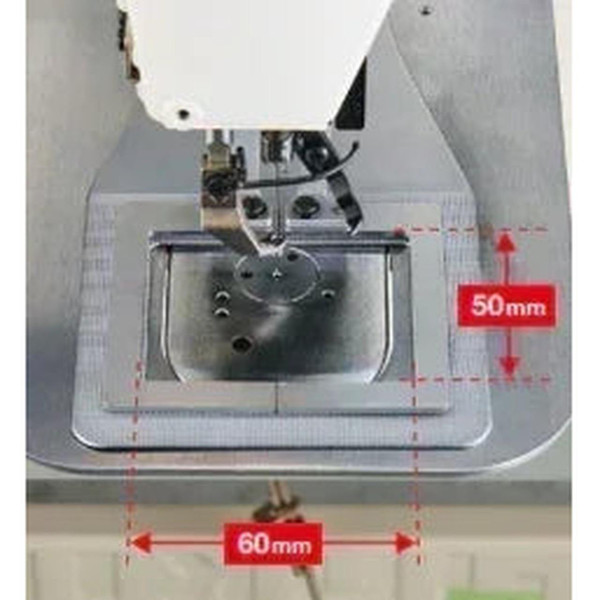

  • Sewing Area: 60 mm (W) × 50 mm (L)
  • Stitch Length: 0.1–10.0 mm (0.1-mm steps)
  • Needle Bar Stroke: 41.2 mm (1.62")
  • Workclamp Lift: 14 mm (0.55") standard (up to 17 mm using reverse-rotation needle-up function)
  • Autolifter: Stepping-motor type (standard)
  • Thread Tension: Active (electronic)
  • Needle: DP×5 (#14) (at delivery)
  • Hook: Standard
  • Standard Patterns: 100
  • Patterns In Memory: Up to 999 / 50,000,000 stitches total (max 50,000 stitches per pattern)
  • Enlargereduce: 20–200% in 1% steps (with stitch-length compensation)
  • Material Drawing Amount: Max 3 mm (0.12")
  • Bobbin Thread Counter: Standard (up/down method)
  • Marking Light: LED alignment light (selectable)
  • Lubrication: Dry-head; hook minute-quantity lubrication (JUKI New Defrix Oil No.2)
  • Motordrive: 550 W direct-drive AC servo; control box on head
  • Power: Single-phase 200–240 V / 230 VA or 3-phase 200–240 V / 230 VA
  • Weight Head With Control Box Motor Panel: ≈58.3 kg

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
