Juki LZ-2290CS-70B/AK155 Zig-Zag Single Needle Digital High-Speed Industrial Sewing System Complete Unit

No reviews yet Write a Review
Market Price: $9,981.00
$9,338.00
Save $643.00 per unit
SKU:
LZ-2290CS-70B/AK155
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki LZ-2290CS-70B/AK155 Zig-Zag Single Needle Digital High-Speed Industrial Sewing System Complete Unit

Market Price: $9,981.00
$9,338.00
Save $643.00 per unit

Juki LZ-2290CS-70B/AK155 Zig-Zag Single Needle Digital High-Speed Industrial Sewing System Complete Unit

Market Price: $9,981.00
$9,338.00
Save $643.00 per unit

Juki LZ-2290CS-70B/AK155 Zig-Zag Single Needle Digital High-Speed Industrial Sewing System Complete Unit

This digital zigzag sewing system is designed for high-precision industrial work where flexibility and consistent stitch quality matter. Its electronic control makes it easy to switch between a wide range of stitch shapes, helping reduce the need for multiple machines on the floor. The automatic thread trimmer supports clean finishing, while the semi-dry head design helps prevent oil stains on garments. It is well suited for applications that call for decorative zigzag stitching, pattern sewing, and detailed garment construction.

MACHINE FEATURES:

  • 11 types / 20 patterns: This reduces the need for multiple machines.
  • Digital Zigzag Control System: Precise electronic control of stitch formation.
  • Automatic Thread Trimmer: Clean and consistent finishing.
  • Semi-Dry Head Technology: Prevents oil stains on garments.

MACHINE SPECIFICATIONS:

  • Machine Head: LZ-2290CS (High-speed, 1-needle, digital zigzag stitching machine)
  • Max Sewing Speed: 5,000 stitches per minute (sti/min) (4,000 sti/min at the time of shipment)
  • Max Zigzag Width: 8 mm (up to 10 mm with gauge change)
  • Max Feed Amount: 5.0 mm (2.5 mm at the time of shipment)
  • Needle Throw Mechanism: Motor control
  • Feed Mechanism: Horizontal: Motor control; Vertical: Mechanical type
  • Lift Of The Presser Foot: Hand: 5.5 mm (0.22"); Knee: 10 mm (0.39"); Auto-lifter: 10 mm (motor control)
  • Hook: DP hook (titanium-coated inner hook)
  • Thread Takeup Lever: Rotary type
  • Lubrication: Semi-dry (frame lubricated with grease; hook receives oil from the tank)
  • Lubricating Oil: JUKI New Defrix Oil No. 1 (equivalent to ISO VG7)
  • Needle: ORGAN DP × 5 (#10); SCHMETZ 438 (Nm 75)

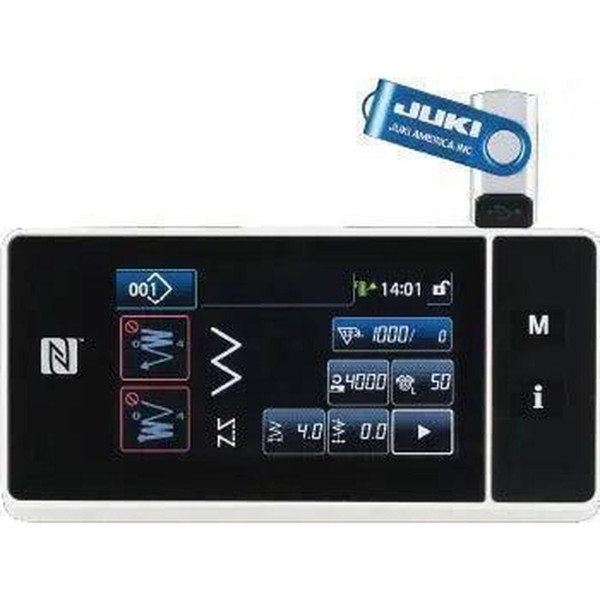

  • Operation Panel: Color touch panel (with NFC function)
  • Memory Capacity For Custom Patterns: 200 patterns
  • Max Number Of Stitches: 500 stitches per pattern
  • Continuous Sewing Pattern: Max. 20 patterns; 20 steps; 2,000 stitches per step
  • Main Body Input Function: Provided through the operation panel
  • Hand Switch: Triple switch (customizable settings)
  • Led Lighting: Standard (with dimmer and toning functions)
  • Bobbin Winder: Built into the machine head
  • Machine Head Drive: Compact AC servomotor; 400 W (direct-drive type)
  • Power Consumption: 530 VA
  • Weight: 49.0 kg
  • Additional Features: Automatic foot lift, thread trimming
