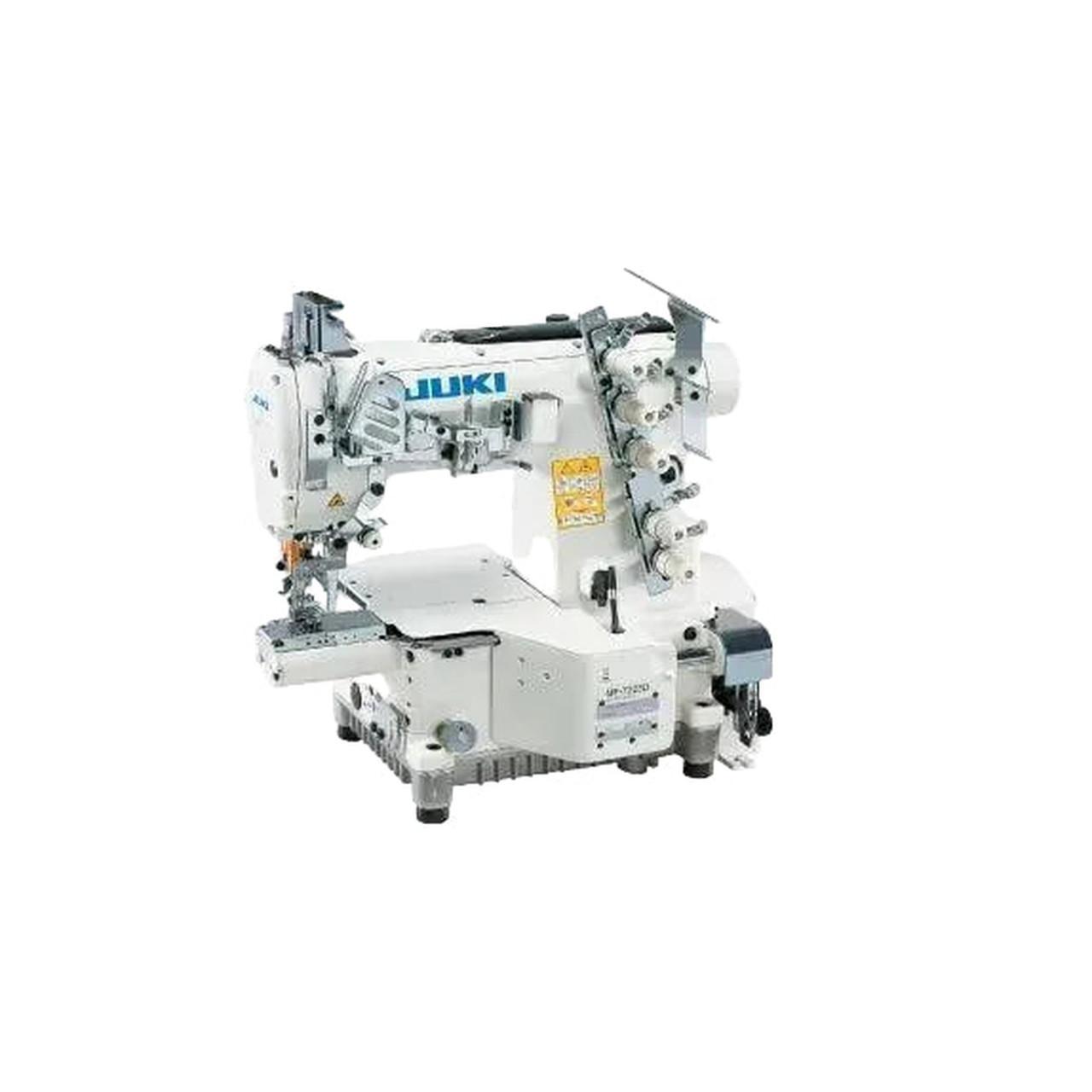

Juki MF-7223DU10-B56-UT45 Three-Needle Semi-Dry Small-Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $14,273.00
$13,354.00
Save $919.00 per unit
SKU:
MF-7223DU10-B56-UT45
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MF-7223DU10-B56-UT45 Three-Needle Semi-Dry Small-Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $14,273.00
$13,354.00
Save $919.00 per unit

Juki MF-7223DU10-B56-UT45 Three-Needle Semi-Dry Small-Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $14,273.00
$13,354.00
Save $919.00 per unit

Juki MF-7223DU10-B56-UT45 Three-Needle Semi-Dry Small-Cylinder-Bed Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

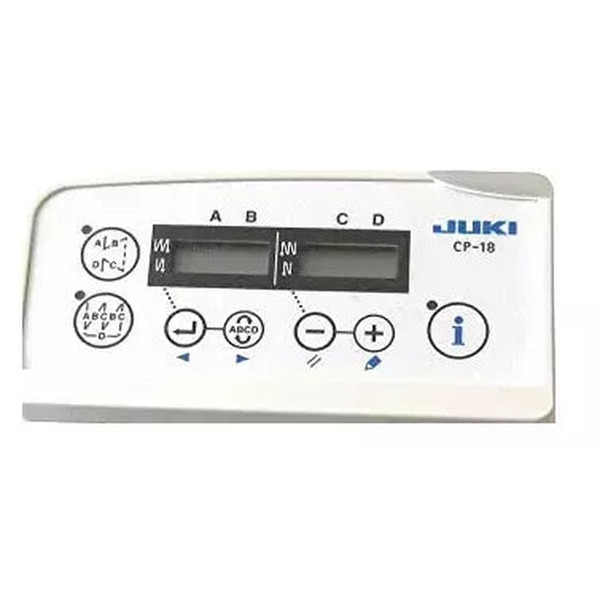

This advanced three-needle coverstitch machine features a specialized small-cylinder-bed design that excels at sewing knitwear, elastic materials, and tubular products. The semi-dry technology reduces oil usage in the needle bar area, helping to prevent fabric staining while maintaining smooth operation. The small-cylinder-bed design provides access to tight sewing areas and curved sections, making it suitable for hemming, covering, and general sewing operations. The machine includes pneumatic thread trimming and comes with the SC921 control box and CP18 operation panel for professional-grade performance.

MACHINE FEATURES:

  • Universal Type (U10): Suitable for hemming, covering, and general sewing operations.
  • Optimized Machine Geometry: Improves access to tight sewing areas and curved sections.
  • Micro-Lifter Mechanism: Allows sewing delicate materials with reduced pressure.

MACHINE SPECIFICATIONS:

  • Model Name: JUKI MF-7223DU10-B56-UT45
  • Stitch Type: 3-needle top and bottom covering stitch
  • Max Sewing Speed: 4,000 stitches per minute (sti/min)
  • Needle: UY128GAS (#10S) #9S~#12S
  • Lift Of The Presser Foot: 8mm (without top covering stitch), 5mm (with top covering stitch)
  • Stitch Pitch Adjustment: By dial

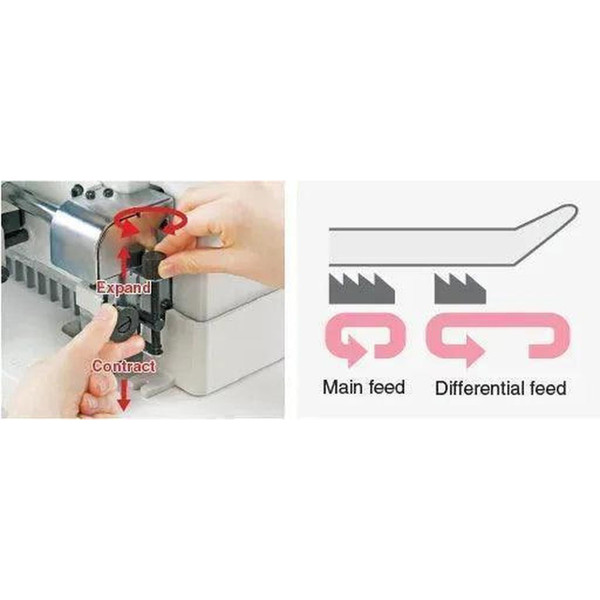

  • Differential Feed Adjustment: By micro-adjustment mechanism
  • Lubrication: Semi-dry
  • Lubricating Oil: JUKI MACHINE OIL 18 (equivalent to ISO VG18)
  • Feed Dog Inclination Adjustment: Provided as standard
  • Microlifter: Provided as standard
  • Needle Bar Stroke Converting Function: 31mm (1.22")
  • Silicon Oil Tank For Needle Thread: Provided as standard
  • Cartridge Oil Filter: Provided as standard
  • Weight Of The Machine Head: 44kg
  • Auto Thread Trimmer: Standard

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
