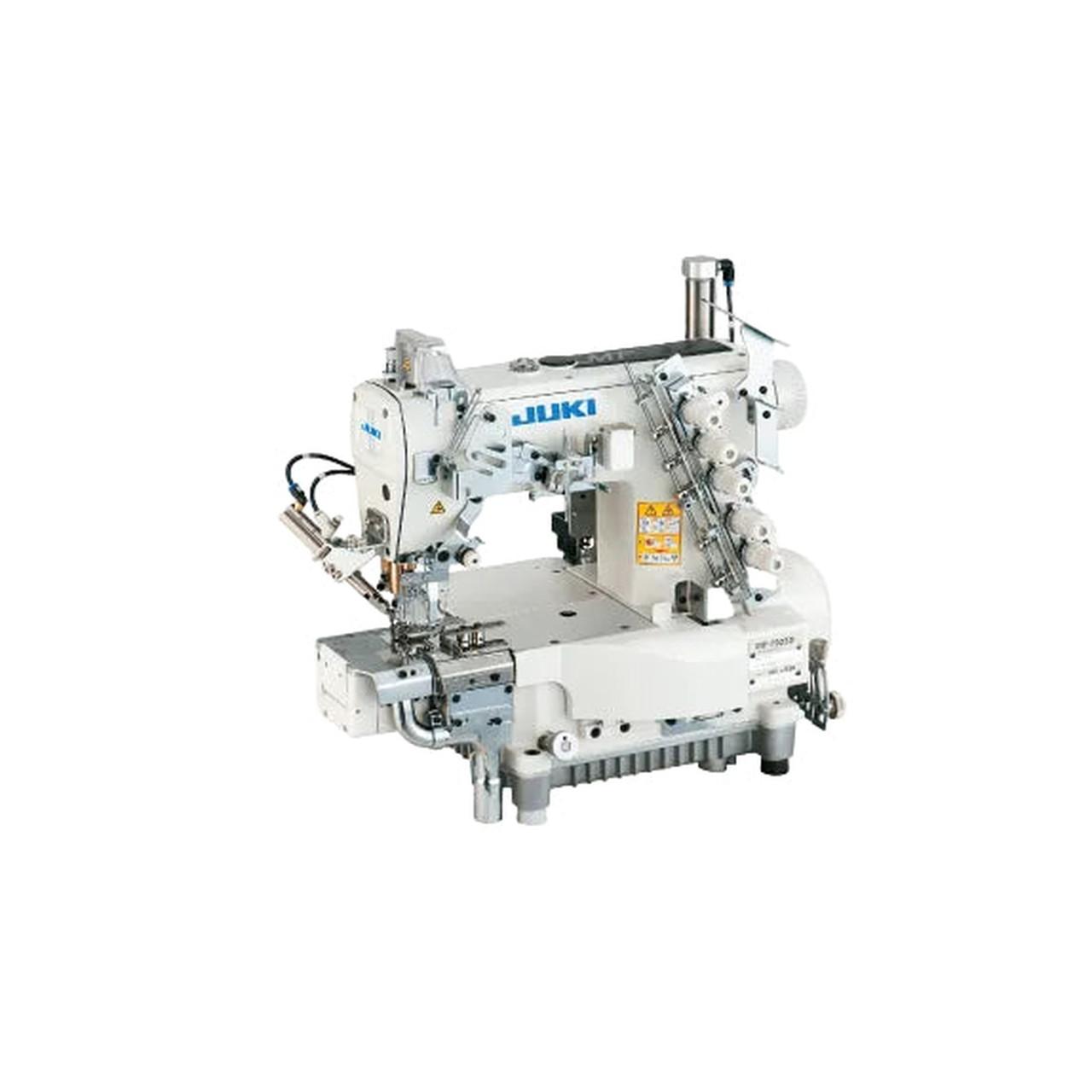

Juki MF-7923D-H23-B56/UT59/MC37 High-Performance Three-Needle Cylinder-Bed Top and Bottom Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $10,476.00
$9,802.00
Save $674.00 per unit
SKU:
MF-7923D-H23-B56/UT59/MC37
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MF-7923D-H23-B56/UT59/MC37 High-Performance Three-Needle Cylinder-Bed Top and Bottom Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $10,476.00
$9,802.00
Save $674.00 per unit

Juki MF-7923D-H23-B56/UT59/MC37 High-Performance Three-Needle Cylinder-Bed Top and Bottom Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $10,476.00
$9,802.00
Save $674.00 per unit

Juki MF-7923D-H23-B56/UT59/MC37 High-Performance Three-Needle Cylinder-Bed Top and Bottom Coverstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

This high-performance three-needle cylinder-bed coverstitch machine is engineered for precision hemming operations on medium-weight materials, featuring advanced semi-dry head technology that significantly reduces oil stains on garments for superior product quality. The cylinder-bed design makes it exceptionally well-suited for tubular parts such as sleeves, cuffs, and garment bottoms, while the integrated left-hand fabric trimmer enables simultaneous trimming and hemming for consistently clean edges. Advanced pneumatic systems handle automatic thread trimming to prevent fraying and maintain seam quality, while the built-in suction system removes fabric waste and thread residues to keep the work area clean. With its SC921 control box and CP18 operation panel, this machine delivers stable electronic control, fast response times, and user-friendly operation for demanding industrial sewing applications.

MACHINE FEATURES:

  • SC921 Control Box & CP18 Operation Panel Included: Ensures stable electronic control, fast response, and easy operation.
  • H23 Hemming with Left-Hand Fabric Trimmer: Allows simultaneous trimming and hemming for clean and consistent edges.
  • Pneumatic Top & Bottom Thread Trimming (UT59): Automatically trims threads while preventing fraying, improving seam quality.
  • Pneumatic Cloth Chip Suction System (MC37): Removes fabric waste and thread residues, keeping the work area clean.
  • Semi-Dry Head Technology: Reduces oil stains on garments, improving product quality and minimizing rework.
  • Cylinder-Bed Design: Ideal for tubular parts such as sleeves, cuffs, and garment bottoms.
  • 3-Needle Coverstitch (5.6 mm Gauge): Provides strong, elastic seams suitable for knitwear and medium-weight fabrics.
  • Differential-Feed Micro-Adjustment Mechanism: Ensures precise fabric control, preventing puckering and distortion.
  • Advanced Feed Mechanism: Adjustable feed locus improves performance on various materials.
  • Micro-Lifter Mechanism: Allows sewing with slightly raised presser foot, reducing fabric damage.
  • Looper Thread Twining Prevention Mechanism: Prevents thread tangling and improves maintenance efficiency.
  • Direct-Drive Motor: Provides fast start-up, precise stopping, reduced vibration, and lower energy consumption.
  • SC921 Control Box & CP18 Operation Panel Included: Ensures stable electronic control, fast response, and easy operation.
  • H23 Hemming with Left-Hand Fabric Trimmer: Allows simultaneous trimming and hemming for clean and consistent edges.
  • Pneumatic Top & Bottom Thread Trimming (UT59): Automatically trims threads while preventing fraying, improving seam quality.
  • Pneumatic Cloth Chip Suction System (MC37): Removes fabric waste and thread residues, keeping the work area clean.
  • Semi-Dry Head Technology: Reduces oil stains on garments, improving product quality and minimizing rework.
  • Cylinder-Bed Design: Ideal for tubular parts such as sleeves, cuffs, and garment bottoms.

MACHINE SPECIFICATIONS:

  • Machine Type: 3-needle, cylinder-bed, top & bottom coverstitch machine
  • Application: Hemming (H23), medium-weight materials
  • Needle Gauge: 5.6 mm (0.22")
  • Thread Trimming: Pneumatic top & bottom thread trimming (UT59) with thread-fray-prevention
  • Fabric Trimmer: Left-hand fabric trimmer (H23 configuration)
  • Suction System: Pneumatic cloth chip suction device (MC37, electromagnetic valve type)
  • Head Type: Semi-dry (reduced oil contamination)
  • Max Sewing Speed: Up to 5,000 stitches per minute
  • Stitch Length: 0.9 – 3.6 mm (0.14")
  • Differential Feed Ratio: 1:0.9 – 1:1.8
  • Needle: UY128GAS (#9S – #12S)
  • Presser Foot Lift: 5 mm (standard), up to 8 mm (0.31")
  • Lubrication: Semi-dry system (minimal oil + grease)
  • Control System: SC921 Control Box & CP18 Operation Panel
  • Drive System: Direct drive

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
