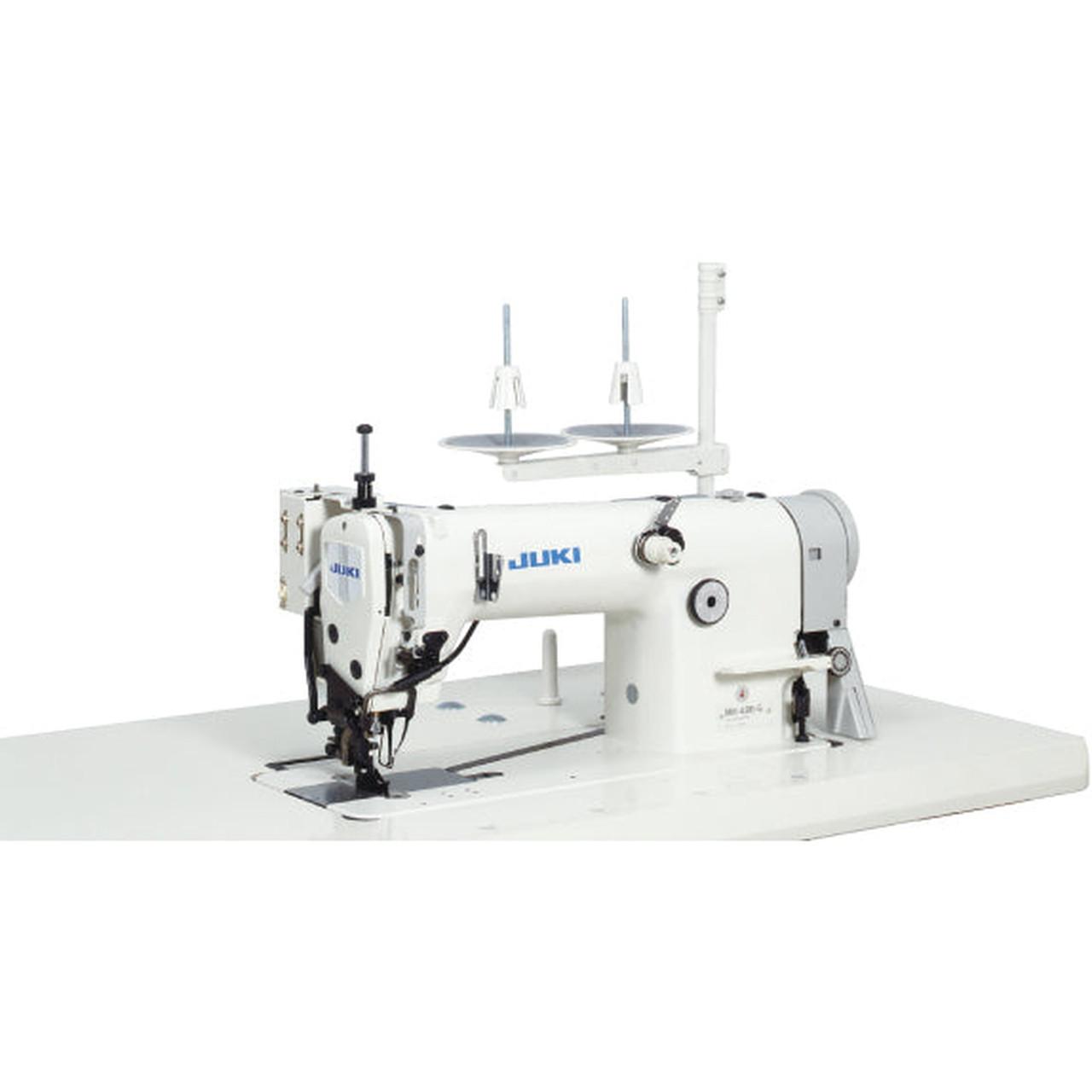

Juki MH-486-54U Single Needle High-Speed Double Chainstitch Sewing Machine Complete Unit with Table and Servo Motor

This single-needle double chainstitch machine is designed for dependable seam quality across a wide range of light- to heavy-weight materials, including elastic fabrics. Its bottom and variable top-feed system helps manage layered or shifting materials, while the automatic thread trimming function reduces manual finishing work for a cleaner production flow. Built for consistent, high-quality stitching, it also incorporates thread control features that help prevent skipped stitches and support smooth seam formation. It is a strong choice for applications where material handling and finished seam appearance are equally important.

MACHINE FEATURES:

  • SC921 Control Box & CP18 Operation Panel Included: Ensures precise electronic control and easy operation.
  • Bottom & Variable Top-Feed System: Provides superior material control, especially for layered, elastic, or shifting fabrics.
  • Automatic Thread Trimming: Delivers clean thread ends and reduces manual finishing work.
  • Wide Material Compatibility: Handles light to heavy materials with consistent seam quality.

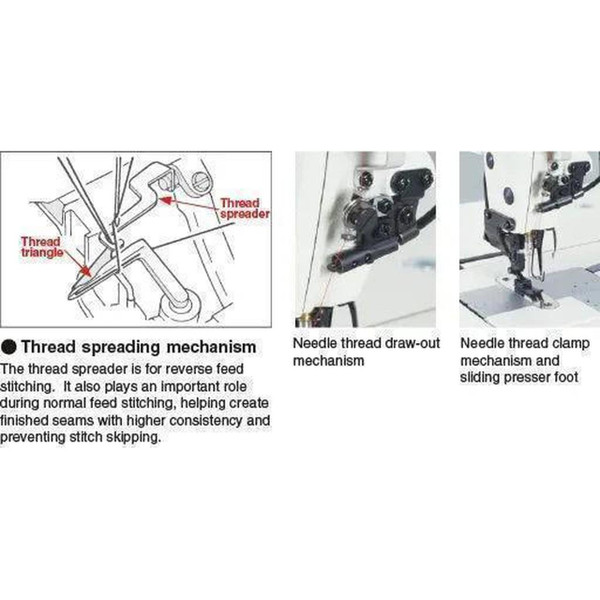

  • Thread Spreading & Control System: Prevents skipped stitches and ensures uniform seam formation.
  • Silicone Oil Lubrication Unit: Prevents needle overheating and improves sewing performance.
  • Flexible Sewing Modes: Supports stretch stitching, gathering, and partial shirring operations.
  • Variable Top Feed – Maximum Control: Ensures even feeding of materials, preventing puckering and shifting.
  • Automatic Thread Trimming – Faster Workflow: Reduces manual operations and increases productivity.
  • High-Quality Seam Formation: Advanced thread handling systems ensure clean and consistent stitches.
  • Adaptability to Multiple Operations: Supports gathering, shirring, and elastic stitching processes.
  • Stable Sewing Performance (Up to 4,500 sti/min): Provides efficient production with consistent quality.
  • Improved Operator Efficiency: User-friendly mechanisms allow even less experienced operators to achieve high-quality results.
  • Variable Top Feed – Maximum Control: Ensures even feeding of materials, preventing puckering and shifting.
  • Automatic Thread Trimming – Faster Workflow: Reduces manual operations and increases productivity.
  • High-Quality Seam Formation: Advanced thread handling systems ensure clean and consistent stitches.
  • Adaptability to Multiple Operations: Supports gathering, shirring, and elastic stitching processes.
  • Stable Sewing Performance (Up to 4,500 sti/min): Provides efficient production with consistent quality.
  • Improved Operator Efficiency: User-friendly mechanisms allow even less experienced operators to achieve high-quality results.

MACHINE SPECIFICATIONS:

  • Feed: Bottom feed + variable top feed
  • Max Sewing Speed: 5,500 stitches per minute (sti/min)
  • Lift Of The Presser Foot: By hand: 5mm (0.20"); By knee: 10mm (0.39")
  • Stitch Type: 1-needle double chainstitch
  • Needle: TV × 7 (#11) with a range from #9 to #18
  • Stitch Length: Adjustable from 1mm (0.04") to 4mm (controlled by stitch dial)
  • Needle Bar Stroke: 30mm (1.18")
  • Looper System: Inclined crank
  • Thread Trimming: Automatic
  • Control System: SC921 Control Box & CP18 Operation Panel
  • Looper Stroke: 21.5mm (0.85")
  • Looper Stroke Front And Rear: 2.1mm (0.08")~3.3mm (0.13")
  • Lubrication System: Automatic lubrication using JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Thread Takeup: Needle bar thread take-up
  • Oil Crankcase: Not applicable (automatic lubrication system used)
  • Number Of Needles: 1 needle
  • Power Requirement Power Consumption: Single-phase, 3-phase / Rating 425VA

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
