Juki MS-3580SF-0SN Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $9,935.00
$9,103.00
Save $832.00 per unit
SKU:
MS-3580SF-0SN
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki MS-3580SF-0SN Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $9,935.00
$9,103.00
Save $832.00 per unit

Juki MS-3580SF-0SN Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $9,935.00
$9,103.00
Save $832.00 per unit

Juki MS-3580SF-0SN Three-Needle Double Chainstitch Feed-Off-The-Arm Sewing Machine Complete Unit with Table and Servo Motor

This heavy-duty feed-off-the-arm double chainstitch machine is designed for medium to heavy-weight materials, making it a strong choice for denim, workwear, and other multi-layer garments. Its tubular sewing configuration is especially well suited to operations such as jeans inseams and side seams, where controlled material handling is important. Built on the robust MS-3580 Series platform, this three-needle machine features a 6.4 mm gauge and is specifically engineered for handling multi-layer garments effectively.

MACHINE FEATURES:

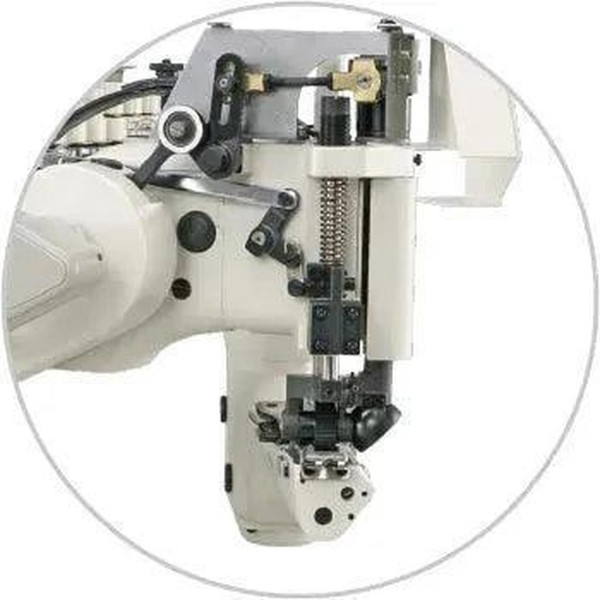

  • Heavy-Duty Feeding System with Puller Mechanism: Ensures stable feeding even on thick, multi-layer materials such as denim.
  • Feed-Off-The-Arm Design: Ideal for tubular sewing operations like jeans inseams and side seams.
  • Consistent Stitch Formation System: Thread take-up automatically adjusts to maintain uniform stitches.
  • Optimized for Heavy Applications: Handles up to 16 layers of denim with stable seam quality.

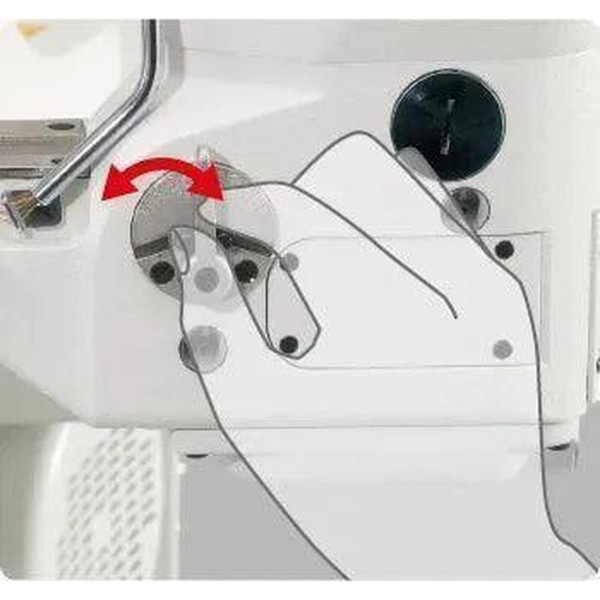

  • Easy Threading Mechanism: Looper push-button system simplifies threading and maintenance.
  • Front Differential Adjustment (where applicable): Allows adjustment during sewing to prevent fabric slippage.
  • Stable Feeding on Multi-Layer Fabrics: Reduces defects such as uneven seams and skipped stitches.
  • High-Speed Industrial Performance (Up to 4,500 sti/min): Supports efficient production in high-volume environments.
  • Strong Chainstitch Seams: Provides durable, elastic seams suitable for heavy garments.
  • Improved Operator Efficiency: Easy threading and front-side adjustments reduce downtime.
  • Consistent Seam Quality: Automatic thread control ensures uniform stitch formation.
  • Optimized for Denim Production: Perfect for lap seaming jeans, jackets, and workwear.
  • Stable Feeding on Multi-Layer Fabrics: Reduces defects such as uneven seams and skipped stitches.
  • High-Speed Industrial Performance (Up to 4,500 sti/min): Supports efficient production in high-volume environments.
  • Strong Chainstitch Seams: Provides durable, elastic seams suitable for heavy garments.
  • Improved Operator Efficiency: Easy threading and front-side adjustments reduce downtime.
  • Consistent Seam Quality: Automatic thread control ensures uniform stitch formation.
  • Optimized for Denim Production: Perfect for lap seaming jeans, jackets, and workwear.

MACHINE SPECIFICATIONS:

  • Machine Head: MS-3580 (3-needle, 6-thread, double chainstitch machine)
  • Max Sewing Speed: 4,500 stitches per minute (sti/min)
  • Normal Sewing Speed: 3,500 stitches per minute (sti/min)
  • Lift Of The Presser Foot: Maximum 9 mm (6.5 mm at the time of delivery)
  • Needle Gauge: 6.4 mm (0.25")
  • Stitch Length: 2.1 mm (0.08")~3.6 mm (standard 3.2 mm)
  • Needle Standard: UY130GS / Nm140 (#22)
  • Needle Bar Stroke: 33 mm (1.30")
  • Top Feed Roller Width: 11.9 mm (0.47")
  • Feed Adjusting Method: Main feed: Slide-type stitch-length adjusting method, Differential feed: Lever adjusting method (without differential feed capability)
  • Lubrication System: Automatic rotary-pump type oiling
  • Lubricating Oil: JUKI MACHINE OIL No. 18
  • Weight Of The Machine Head: 23.5 kg
  • Application: For medium- to heavy-weight materials (jeans, denim jackets, work uniforms, etc.)

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
