Juki PLC-2765S Double Needle Post Bed Unison Feed Lockstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

No reviews yet Write a Review
Market Price: $16,221.00
$14,310.00
Save $1,911.00 per unit
SKU:
PLC-2765S
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki PLC-2765S Double Needle Post Bed Unison Feed Lockstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $16,221.00
$14,310.00
Save $1,911.00 per unit

Juki PLC-2765S Double Needle Post Bed Unison Feed Lockstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

Market Price: $16,221.00
$14,310.00
Save $1,911.00 per unit

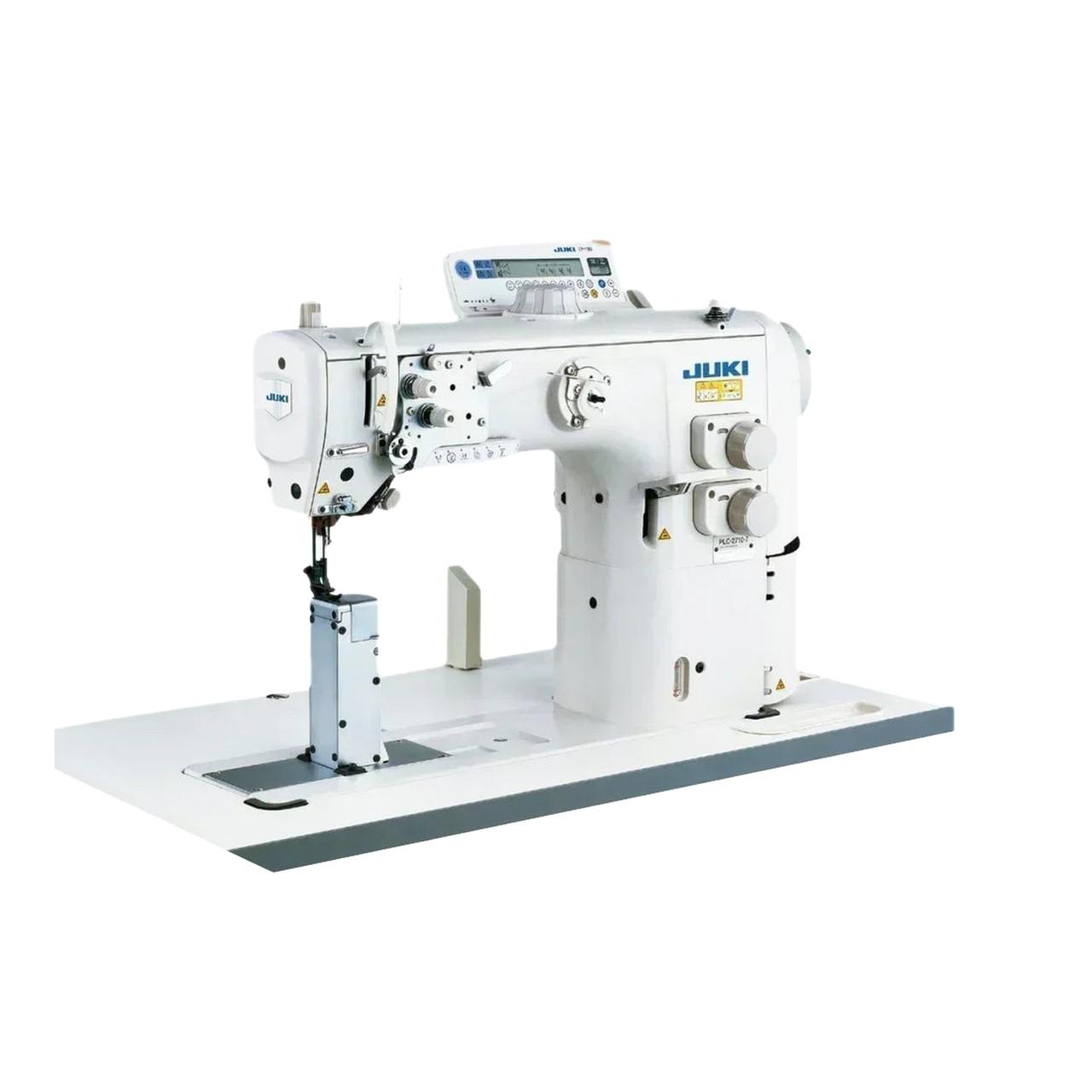

Juki PLC-2765S Double Needle Post Bed Unison Feed Lockstitch Industrial Sewing Machine Complete Unit with Table and Servo Motor

This advanced double needle post-bed machine features unison-feed technology specifically engineered for heavy-weight materials and demanding upholstery applications. The post-bed design provides exceptional access around curved seams and cylindrical workpieces, while the split needlebar configuration allows for versatile stitching patterns and enhanced operational flexibility. Equipped with automatic thread trimming capabilities and an energy-efficient control system, this machine delivers precise stop accuracy and instant torque for consistent performance. The integrated control box and operation panel provide streamlined parameter setting and production-support modes, making it ideal for high-volume industrial environments requiring reliable heavy-duty stitching.

MACHINE APPLICATIONS:

  • SC-922B Control Box Energy-efficient, stable drive/control with instant torque and precise stop accuracy; coordinates automatic thread trimming and auto-lifter functions.
  • CP-18C Operation Panel On-panel parameter setting with production-support modes and one-touch keys for quicker transitions.

MACHINE SPECIFICATIONS:

  • Type: 2-needle, post-bed, unison-feed direct-drive lockstitch, with automatic thread trimmer
  • Application: Heavy-weight materials (car seats, sofas, sports goods; heavy leather/foam stacks)
  • Max Sewing Speed: 2,500 sti/min
  • Max Stitch Length: 12 mm (forward/backward)
  • Hook: Vertical-axis 2.0-fold capacity hook (latch type)
  • Needle System: 135×17 Nm100~180, Standard Nm140
  • Thread Range: TEX 50–167 (approx. #8 to #0)
  • Alternating Vertical Movement: 1–9 mm (0.35"); dial adjustment
  • Presserfoot Lift: By hand 10 mm (0.39"); Auto 18 mm (0.71")
  • Feedhandling: Adjustable cam eccentricity; adjustable upper/lower feed ratio; bottom-feed micro-adjustment standard
  • Lubrication: Automatic tank system
  • Work Area: Needle-to-arm distance 347 mm (13.66"); post height 170 mm (6.69")

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable
